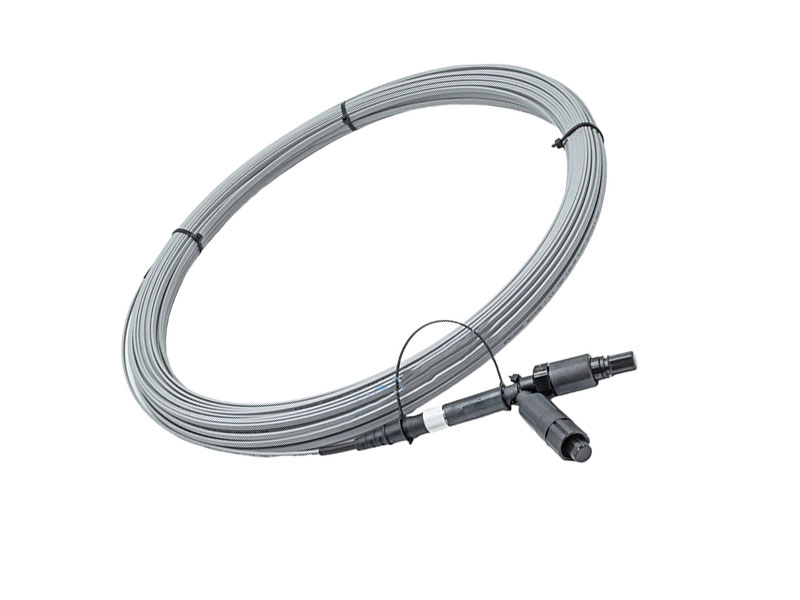

The Figure 8 Compact Drop Cable Assembly, 1F with Steel Messenger and Low-Friction LSZH Jacket, is a robust and flexible pre-terminated solution for FTTH (Fiber to the Home) and ODN (Optical Distribution Network) deployments.It is factory-terminated with a hardened SC/APC connector, providing consistent optical performance and easy installation in aerial, wall-mounted, or conduit environments.The assembly is fully compatible with Slim, OPT, and FastConnect connector systems, ensuring cross-brand interoperability and simplified network integration.
Fetures
Pre-terminated, ready for plug-and-play installation
Compatible with Slim / OPT / FastConnect SC/APC connectors
Durable Figure 8 design with steel messenger for aerial support
Low-friction LSZH jacket ensures easy pulling and superior flexibility
Weatherproof, UV-resistant, and GR-326/GR-771 compliant
Suitable for aerial, wall-mounted, or duct installations
Technical Specification
|
Parameter |
Specifications |
|
Product Type |
Pre-connectorized Fig 8 Drop Patch Cable |
|
Connector Type |
Multiple Interface — Compatible with Slim, OPT, and FastConnect SC/APC Systems |
|
Cable Type |
5.0*2.0mm Fig. 8 Drop 3.0&5.0mm Round Drop |
|
Fiber Type |
SM G657A |
|
Insertion Loss (dB) @1310&1550nm |
Typical<0.15, Max.<0.3 |
|
Return Loss(dB) |
>60 |
|
Resistance of coupling mechanism |
300N |
|
Static side load for strain relief |
50N |
|
Ingress Protection |
IP68 |
|
Operating Temperature |
-40～+75 ℃ |
Dimensional Drawing
Application
FTTH / FTTx outdoor distribution
Fiber access terminals (ODN Solution)
Residential broadband connections
OEM or customized outdoor fiber assemblies
