The 3-in-1 Waterproof SC/APC Field Connector offers a compact and installer-friendly solution for outdoor FTTH networks. It uses a Slim OptiTap FastConnect structure that supports quick, clean, and reliable field termination. Because the connector integrates a pre-polished ferrule, mechanical splice, and waterproof housing, installers can complete assembly without polishing, curing, or epoxy.In addition, the reinforced bayonet-lock design improves stability in harsh environments. With IP67 protection, the connector performs reliably in rain, dust, and temperature changes. As a result, it is widely used for aerial drop cables, customer installations, maintenance work, and fast last-mile deployment.
Fetures
3-in-1 SC/APC field connector with Slim OptiTap FastConnect housing
Pre-polished ferrule + mechanical splice + IP67 waterproof seal
Rapid on-site installation, no epoxy or polishing required
Reinforced outdoor bayonet structure for secure mating
Low insertion loss and stable optical performance
Ideal for aerial FTTH and outdoor last-mile applications
Technical Specification
|
Parameter |
Specifications |
|
Product Type |
Field Assembly Fast Connector |
|
Connector Type |
Multiple Interface — Compatible with Slim, OptiTap, and FastConnect SC/APC Systems |
|
Cable Type |
5.0*2.0mm 3.0*2.0mm Flat Drop 3.0mm Round Drop |
| Fiber Type |
SM |
| Insertion Loss (dB) @1310&1550nm |
Typical<0.2, Max.<0.35 |
|
Return Loss(dB) |
>55 |
|
Pulling Force of Connector At 0° |
70N |
|
Fastening strength of bare fiber |
>5N |
|
On-line tensile strength(20N) |
ΔIL≤0.3dB |
|
Drop-off test(drop-off height 4m,one time per direction, totally 3 times) |
ΔIL≤0.3dB |
|
Reusable |
≥5 times |
|
Operating Temperature |
-40～+75 ℃ |
Application
The Waterproof Field Assembly Connector Compatible Slim, OptiTap and Fastconnect SC/APC is widely used for outdoor FTTH drop cable terminations and hardened interface connections.It is ideal for telecom operators, ISPs, and contractors deploying high-speed broadband networks in Latin America.
● FTTH / FTTB last-mile fiber connections
● OptiTap-compatible terminals and access points
● MST / MDU / closure hardened interface connections
● Outdoor aerial drop cable installation
● Emergency repair or quick-connect restoration
● Field termination of flat drop or round outdoor cables
YOUR VACATION IS HERE
Prepare your network for seamless 5G deployment. Get direct access to factory pricing, custom OEM/0DM solutions, and rapid prototyping,
Let's Build Your Optical Network, Kindly have a chat with our sales experts!
Get A Free Quote
Related Products
This OPTI/FAST/SLM SC/APC pre-terminated drop cable is designed for FTTH installations requiring rapid deployment, low loss, and high reliability. With a flat 5x2 mm design and one G657A2 single-mode fiber, it facilitates indoor installations or runs with tight bends, reducing the risk of micro-bending and improving link stability.
View More
Pre-terminated Figure 8 drop cable assembly designed for FTTH outdoor networks. Features a 1-fiber steel messenger, low-friction LSZH jacket, and SC/APC hardened connector compatible with Slim, OPT, and FastConnect interfaces.Ideal for plug-and-play installation without field splicing.
View More

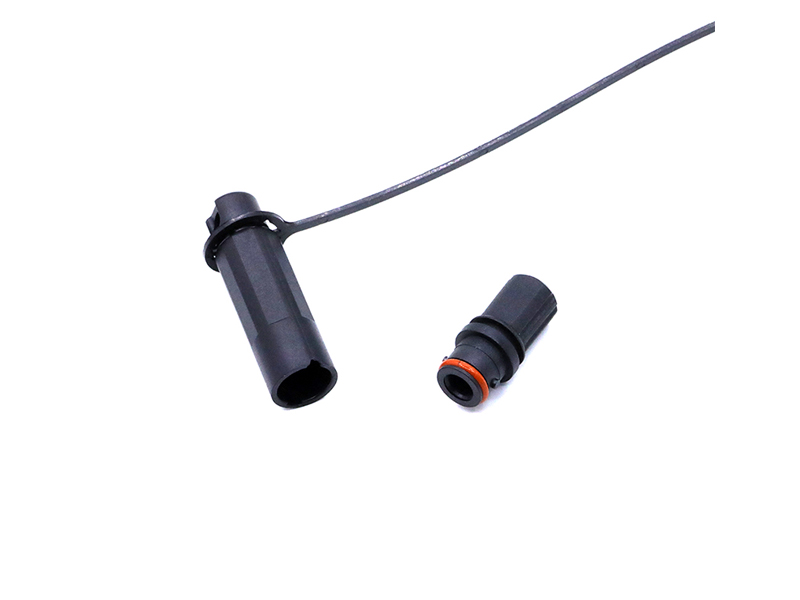

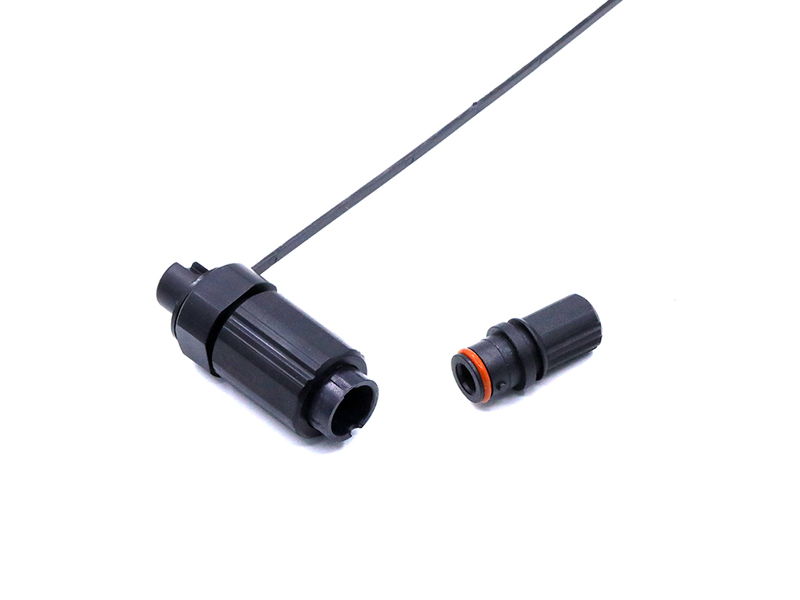

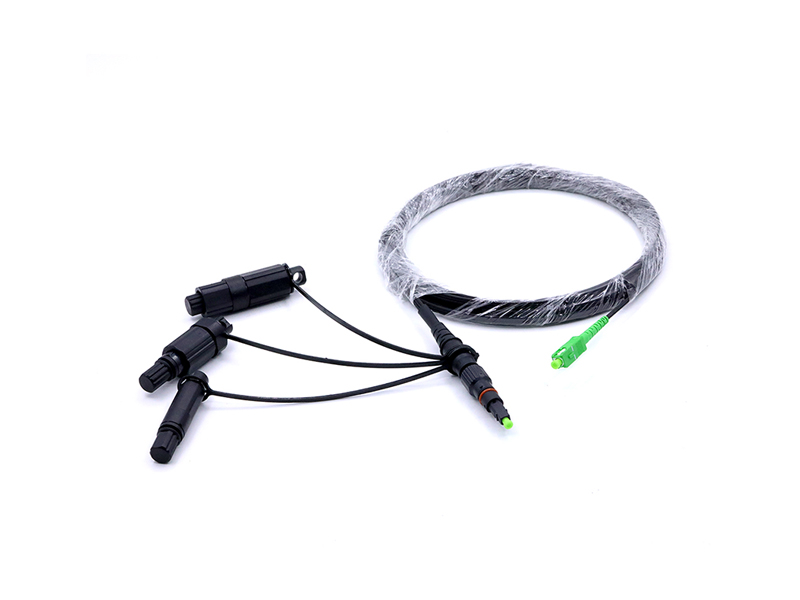

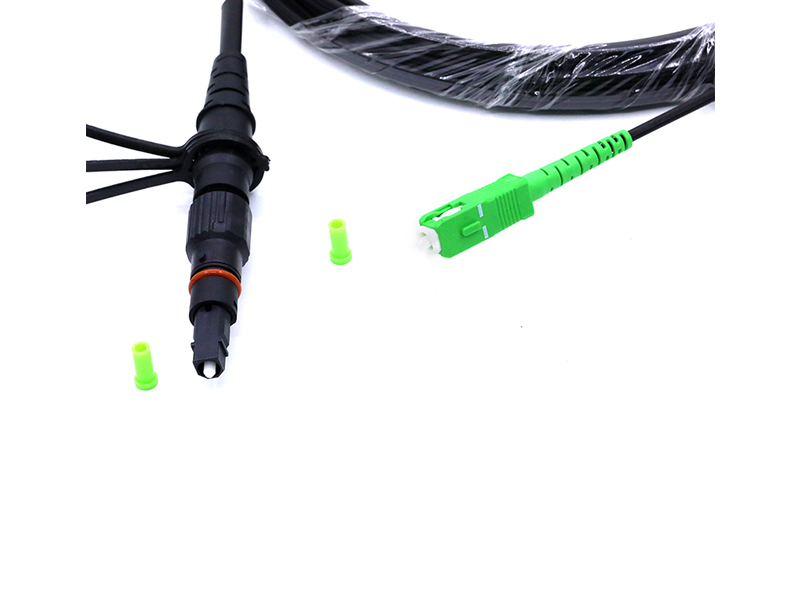

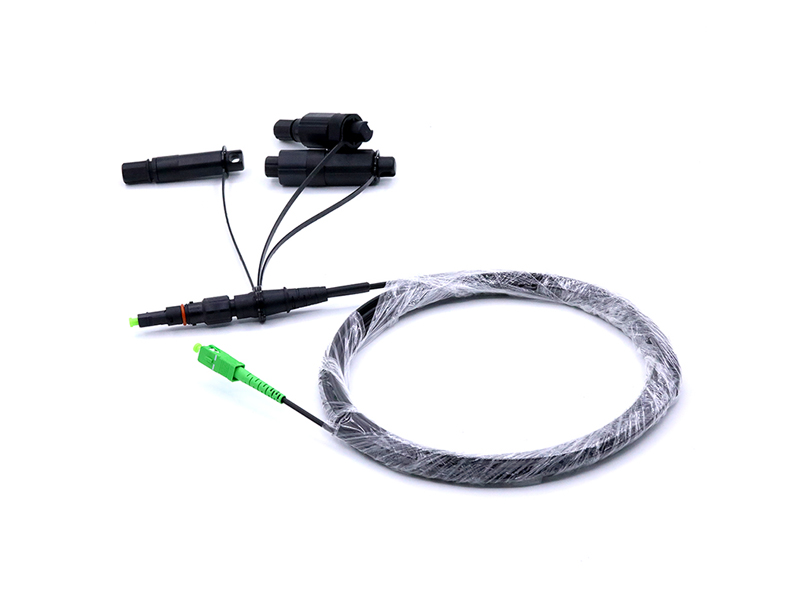

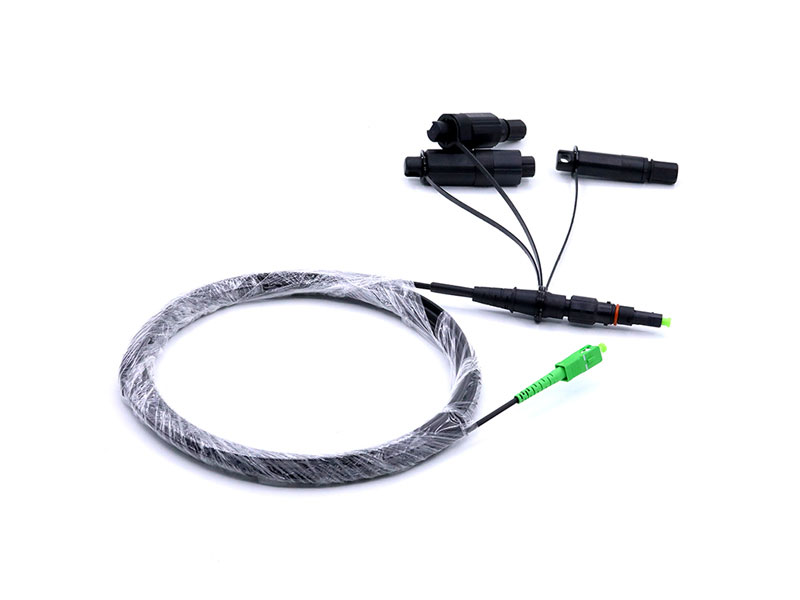

IP68 Waterproof 3 in 1 SC APC Single Mode Hardened Connector Jumper Fiber Optic Cable Assembly
