The assemblies guarantee an easy, one-step connection system with the combined push-pull insertion and bayonet-style mechanical latch. It provides quick installation solutions and has good performance on mating receptacle / Adapter. Cable can be armoured or non-amoured. The industrial panel-mount, plastic adapters serve as a sealed feed-through for the fiber connection. The new industrial integrated flange-mount adapters are designed for tight, side-by-side applications.
|
Operating Performance
|
SC Mini Waterproof Fiber Adapter
|
|
|
PC
|
APC
|
|
|
Insertion Loss (dB)
|
< 0.3
|
< 0.3
|
|
Durability (500 Mating) (dB)
|
< 0.1
|
< 0.1
|
|
Operation Temperature (°C)
|
-40 to 80
|
-40 to 80
|
|
Retention Force (N)
|
200-600
|
200-600
|
|
Tensile Strength (kgf)
|
10
|
10
|
|
Housing Material
|
PC
|
PC
|
|
Mounting Style
|
Screw/Clip
|
Screw/Clip
|
|
Sleeve Alignment Material
|
Ceramic (Grade A)
|
Ceramic (Grade A)
|
|
Housing Color
|
Black
|
Black
|
YOUR VACATION IS HERE
Prepare your network for seamless 5G deployment. Get direct access to factory pricing, custom OEM/0DM solutions, and rapid prototyping,
Let's Build Your Optical Network, Kindly have a chat with our sales experts!
Get A Free Quote
Related Products

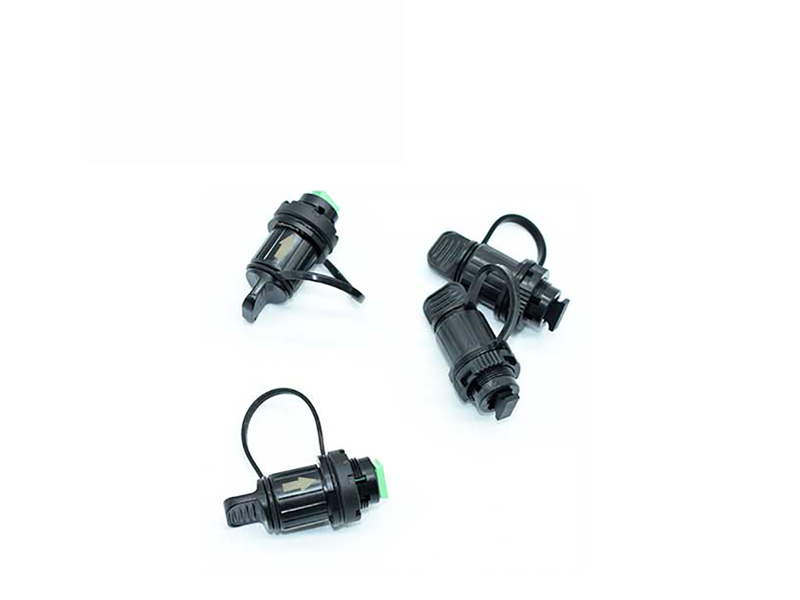

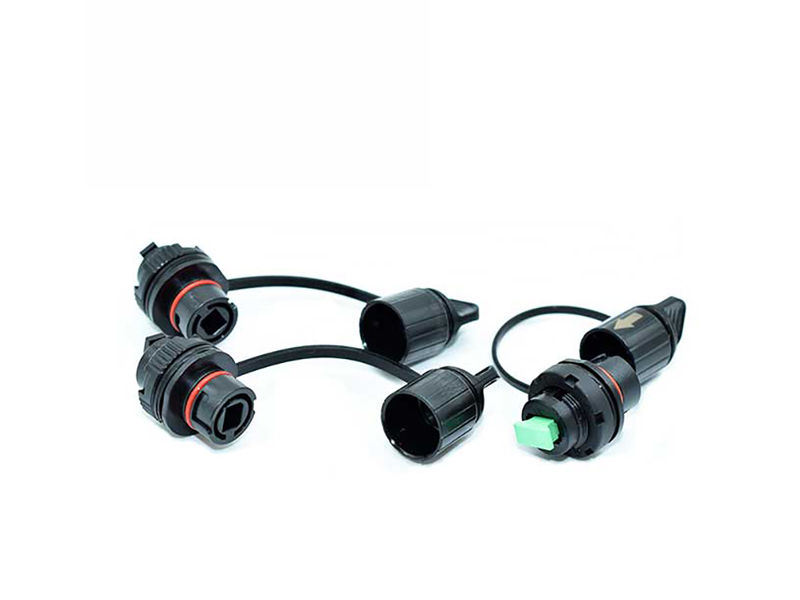

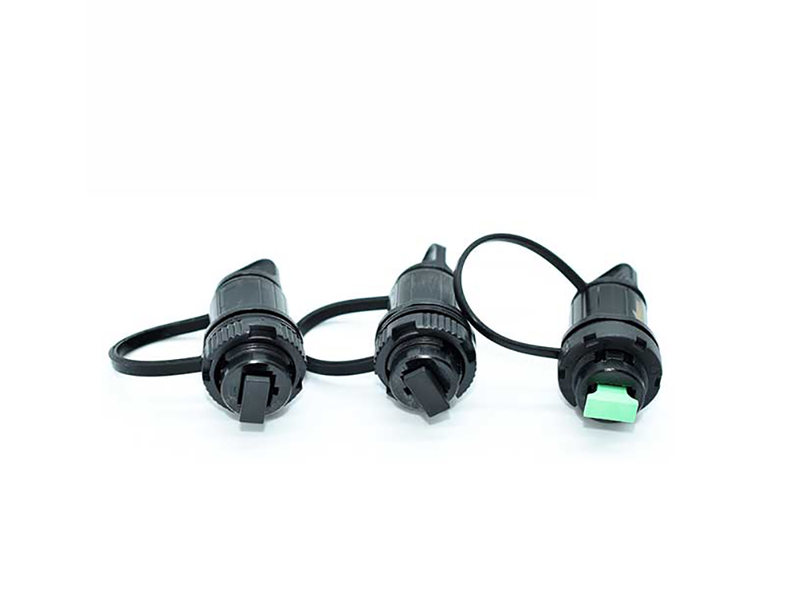

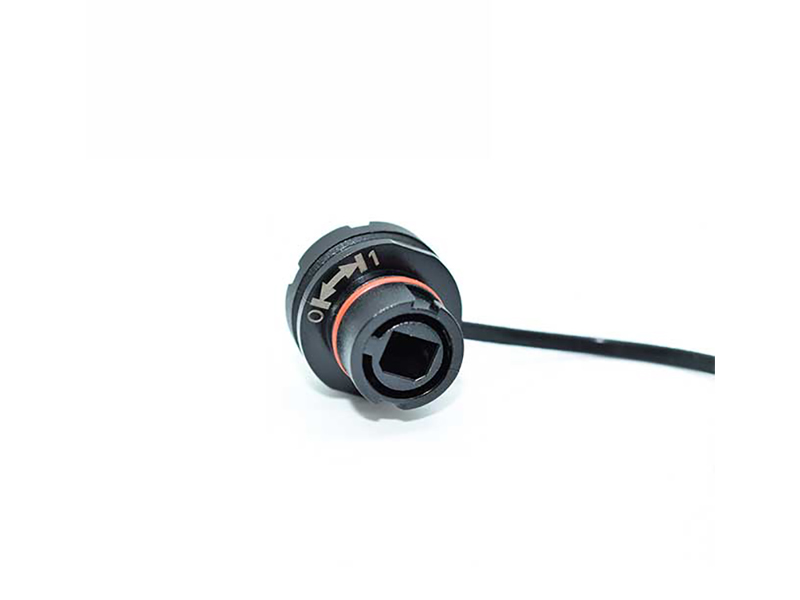

Outdoor SCAPC Optical Adapter Mini SCAPC Waterproof Fiber Optic Adapter for Huawei
This optical adapter MSC is compatible with HUAWEI MINI SC connectors, easy, environmental seal and mechanical protection for 1 fibers simplex SC style connections. Inside cover can protect ferrule end face far away scratch when mating with receptacle;Special fool-proofing design equal to HUAWEI Mini SC connector has blind-mating function; One hand Bayonet-style mechanical latch.
View More
Outdoor SCAPC OptiTap Adaptador H OptiTap Adapter
Cost effective, easy, environmental seal and mechanical protection for 1 fiber simple SC style connections. Special fool-proofing design make sure connector has blind-mating function; provides quick installation solutions and has good performance on mating with H receptacle, it can compatible with all the similar products in market, compatiale with Corning Opitap-SC. Cable can be flat drop or round cable, amored or non-amored. The industrial panel-mount, plastic adapters serve as a sealed feed-through for the fiber connection.
View More
