Telecom Grade ADSS Cable 12 Core UV Resistant Outdoor Aerial Fiber Optic Cable 100m Span Single-Mode G652D

Standards

■ ITU-T Rec. G.657A

■ ISO9001

■ IEC 60794

■ ICEA-596

■ GR-409

■ YD/T 1997-2009

Colors -12 Chromatography

No.

1

2

3

4

5

6

Color

Blue

Orange

Green

Brown

Gray

White

No.

7

8

9

10

11

12

Color

Red

Black

Yellow

Violet

Pink

Aqua

Optical Characteristics

G.652.D

G.655

50/125um

62.5/125um

Attenuation

@850nm

-

-

≤3.0 dB/km

≤3.0 dB/km

@1300nm

-

-

≤1.0 dB/km

≤1.0 dB/km

@1310nm

≤0.36 dB/km

≤0.40 dB/km

-

-

@1550nm

≤0.22 dB/km

≤0.23 dB/km

-

-

Bandwidth

@850nm

-

-

≥500 MHz · km

≥200 MHz · km

@1300nm

-

-

≥1000 MHz · km

≥600 MHz · km

Polarization mode

Individual fiber

≤0.20 ps/√km

≤0.20 ps/√km

-

-

Design link value
(M=20,Q=0.01%)

≤0.10 ps/√km

≤0.10 ps/√km

-

-

Technical Data

Contents

Fibers

Item

Fibre Count

6|12|24

48

72

96

144

288

Loose Tube

Tubes*
Fbres/Tube

1x6 | 2x6
4x6

6x 8
4x12

6x12

8x12

12x12

24x12

Outer diameter (mm)

1.8

2.0

2.5

2.5

2.5

2.5

Adjustable (OEM)

1.5|2.0

1.8|2.2

2.0|2.2

2.0|2.4

2.0|2.4

2.0|2.4

Central
strength
member

Material

Glass Fbre Reinforced Plasticrod (GFRP)

Diameter (mm)

2.0

2.0

2.5

2.8

3.5

3.5

Adjustable (OEM)

1.8|2.2

1.8|2.2

2.5

2.8

3.7

3.7

PE coated diameter (mm)

No

3.7

6.5

4.4

Water
blocking

Material

Water blocking tape

Peripheral Strength

Material

Aramid Yarn KEVLAR

Outer Sheath

Thickness (mm)

1.8mm(1.5-2.0mm OEM)

Cable diameter(mm) Approx.

9.5

9.5|10

10.8

12.0

14.0

20.5

Cable diameter(mm) Adjustable (OEM)

9.0-22.0

Operating temperature range(℃)

From -40~+70

Max. span (m)

50m | 80m | 100m | 120m | 150m  | 200m  | 300m  | 400m  | 500m  | 600m  |  700m  | 800m  | 900m  | 1000m

Climate condition

No Ice,25m/s Max Wind Speed

MAT

Design according to customer requirements

√  Other structure and fibre count are also available according to customer requirements.

√  Cable diameter and weight in this table is typical value, which will fluctuate according to different designs

√  The span needs to be recalculated due to other climate conditions according to the installation area.

Fiber Optical Test Datas

The properties of single mode optical fiber (ITU-T Rec. G652|G657)

Transmission Characteristics

850nm (multimode optical fiber communication system)

O:1260-1360(237.9-220.4THZ)

E: 1360-1460 (the least commonly
used, the attenuation is large) (220.4-205.3) frequency range

S: 1460-1530 (commonly used in PON system) (205.3-195.9)

C: 1530-1565 (minimum attenuation) (195.9-191.6)

L: 1565-1625 (2nd lowest attenuation) (191.6-184.5)

U: 1625-1675 (mainly used for network monitoring) (184.5-179.0)
Attenuation Coefficient

G.652.D
Normal

G.652.D
Best

G.657.A1

G.657.A2

Unit

@1310 nm

≤0.35

≤0.34

≤0.34

≤0.34

dB/km

@1285-1330 nm

≤0.37

≤0.37

≤0.37

dB/km

@1383 nm
(after hydrogen aging)

≤0.30

≤0.30

≤0.31

≤0.31

dB/km

@1460 nm

@1490 nm

≤0.24

≤0.23

≤0.23

dB/km

@1550 nm

≤0.22

≤0.21

≤0.2

≤0.2

dB/km

@1525-1575 nm

≤0.22

≤0.21

≤0.21

dB/km

@1625 nm

≤0.25

≤0.24

≤0.22

≤0.22

dB/km

Mode Field Diameter

@1310 nm

8.6±0.4

9.0±0.4

9.0±0.3

8.6±0.4

µm

@1550 nm

9.8±0.5

10.2±0.4

10.2±0.4

9.6±0.5

µm

Cable Cut-off wavelength(λ cc)

≤1260

≤1260

≤1260

≤1260

nm

Zero Dispersion Wavelength

1300-1324

1300-1324

1300-1324

1300-1324

nm

Zero Dispersion Slope

≤0.092

≤0.092

≤0.09

≤0.09

ps/nm²/km

Dispersion Coefficient

@1285-1339 nm

≤3.4

≤3

≤3.4

ps/(nm·km)

@1271-1360 nm

≤5.3

ps/(nm·km)

1525-1575nm

1530-1565nm

1565-1625nm

@1550 nm

≤ 18

≤ 18

≤ 17

≤ 18

ps/(nm·km)

@1625 nm

≤ 22

≤ 22

≤ 21

≤ 22

ps/(nm·km)

PMD Maximum Individual Fiber

≤0.1

≤0.1

≤0.1

≤0.1

ps√km

PMD Link Design Value

≤0.06

≤0.06

≤0.06

≤0.06

ps/√km

Point Discontinuity

@1310 nm
@1550 nm

≤0.05

≤0.05

≤0.05

≤0.05

dB

EGRI
Effective Group Refractive Index

@1310 nm

1.4671

1.4671

1.4676

@1550 nm

1.4675

1.4675

1.4683

@1625 nm

1.468

1.468

1.4685

Macro Bending Loss
A1 Bending radius: 10mm
A2 Bending radius: mm
B2 Bending radius: mm
B3 Bending radius: 5mm

10turns of
15mm radius

≤0.25

≤0.03

@1550 nm
dB

100turns of
25mm radius

1turns of
16mm radius

≤0.25

≤0.03

1turns of
10mm radius

≤0.75

≤0.1

1turns of
7.5mm radius

≤0.2

1turns of
5mm radius

100turns of
30mm radius

≤0.05

≤0.05

@1625 nm
dB

100turns of
25mm radius

10turns of
15mm radius

≤1.0

≤0.1

1turns of
10mm radius

≤1.5

≤0.2

1turns of
7.5mm radius

≤0.5

1turns of
5mm radius

Dimensions

Description

G.652.D
Normal

G.652.D
Best

G.657.A1

G.657.A2

Unit

Cladding Diameter

125±0.7

125±0.5

125±0.5

125±0.5

µm

Core / Cladding Concentricity Error

≤0.5

≤0.4

≤0.4

≤0.4

µm

Cladding Non-circularity

≤1.0

≤0.7

≤0.7

≤0.7

%

Coating Diameter

245±5

245±5

242±5

242±5

µm

Coating / Cladding Concentricity Error

≤12

≤12

≤8

≤8

µm

Mechanical Characteristics

Proof Test

Fiber Strain

≥1

≥1

≥1

≥1

%

Fiber Load

≥9

≥9

≥9

≥9

N

Stress

≥100

≥100

≥100

≥100

kpsi

Dynamic Stress Corrosion Susceptibility Factor

Unaged &Aged
(30 days@85℃, 85%R.H.)

≥20

≥20

≥20

≥20

Coating Strip Force

Peak Value

1.3-8.9

1.3-8.9

1.3-8.9

1.3-8.9

N

Fiber Curl

≥4

≥4

≥4

≥4

m

Environmental Characteristics

Dry heat aging(30days@85℃)

@1310 nm
@1550 nm

≤0.05

≤0.05

≤0.05

≤0.05

dB/km

Accelerated ageing (30days@85℃, 85%R.H.)

@1310 nm
@1550 nm

≤0.05

≤0.05

≤0.05

≤0.05

dB/km

Temperature Cycling

@1310 nm
@1550 nm

≤0.05

≤0.05

≤0.05

≤0.05

dB/km

Water Soak(30days@23℃)

@1310 nm
@1550 nm

≤0.05

≤0.05

≤0.05

≤0.05

dB/km

Main TEST for Mechanical & Environmental

Characteristics

NO

ITEM

TEST METHOD

ACCEPTANCE REQUIREMENTS

1

Tensile Strength
IEC 794-1-E1

- Load:5000 N
- Length of cable under load:50m

- Loss change 0.1 dB
@1550 nm
- No fiber break and no sheath damage.

2

Crush Test
IEC 60794-1-E3

- Load: 3000 N/100mm
- Load time: ≥1min

- Loss change 0.1 dB
@1550 nm
- No fiber break and no sheath damage.

3

Impact Test
IEC 60794-1-E4

- Points of impact: 5
- Times of per point: 5
- Impact energy: 4.5Nm
- Radius of hammer head:12.5mm
- Impact rate: 2sec/cycle

- Loss change 0.1 dB
@1550 nm
- No fiber break and no sheath damage.

4

Repeated Bending IEC 60794-1-E6

- Bending Dia.: 20 x OD
- Load: 250N
- Flexing rate: 3sec/cycle
- No. of cycle: 30

- Loss change 0.1 dB
@1550 nm
- No fiber break and no sheath damage.

5

Torsion
IEC 60794-1-E7

- Length: 1m
- Load: 150N
- Twist rate: 1min/cycle
- Twist angle: ±90°
- No. of cycle: 10

- Loss change 0.1 dB
@1550 nm
- No fiber break and no sheath damage.

6

Water Penetration
IEC 60794-1-F5B

- Height of water: 1m
- Sample length: 3 m
- Time: 24 hour

- No water shall have leaked from the  opposite end of cable

7

Temperature Cycling
IEC 60794-1-F1

- Temperature step:
+20℃→-20℃→+20℃→+40℃
- Time per each step:24 hour
- Number of cycle: 2

- Loss change 0.1 dB
@1550 nm
- No fiber break and no sheath damage.

8

Compound Flow
IEC 60794-1-E14

- Sample length: 30 cm
- Temp: 70°C    2°C
- Time: 24 hours

- No compound flow

9

Sheath High Voltage Test

- On line test
- 9t KV (t-sheath thickness)

- No sheath breakdown

Cable Marking&Fibers Colors

Sheath marking

COMPANY   Fiber cable name   N*cores  G.652D   2024   XXXXm

COMPANY

Manufacturer's brand

2024

Manufacture year

Fiber cable name

Cable type

G.652D

N cores single-mode optical fiber (ITU-T Rec. G.652D)

XXXXm

Mark of meters

*The marking is printed every 1 meter;
**”G.652D” means ITU-T Rec. Low Water Peak (LWP) G.652 single mode optical fiber..

Also can according to client cable marking.

1 The color of marking is white,
2 An occasional unclear of length marking is permitted if both of the neighboring markings are clear.
3 The both cable ends are sealed with heat shrinkable end caps to prevent water ingress.

Fiber color and Binder color code: according to EIA/TIA 598B

No.

1

2

3

4

5

6

Color

Blue

Orange

Green

Brown

Gray

White

No.

7

8

9

10

11

12

Color

Red

Black

Yellow

Violet

Pink

Aqua

OEM Structure Technical Data

Structure Technical Data(OEM)

No. of cable

/

12

24

48

96

120

144

Design
(Tube+Filler+Strength Member)

/

3+2+1

1+4+1

1+4+1

Fiber type

/

G.652.D

Central Strength
Member

Material

mm

FRP | Steel Wire

Diameter (±0.05mm)

1.2mm | 1.0 mm

Other Strength
Member

Material

mm

Diameter (±0.05mm)

Loose Tube

Material

mm

PBT

Diameter (±0.05mm)

2.1mm | 1.8mm

Material

0.35mm

Diameter (±0.05mm)

12 | 24

Filler

Material

mm

PP

Diameter (±0.05mm)

1.8mm

No.

Water Blocking Layer(Material)

/

Water Blocking Yarn& Water Blocking tape

Yarn Strength Member

/

Aramid Yarns

Outer Sheath

Material

mm

HDPE

Thickness (±0.1mm)

0.8

1.6

1.9

Color

Black

Cable Diameter(±0.2mm)

mm

9.0

13

Cable Wetght(±10.0kg/km)

kg/km

75

95

Max. Installation Tension

N

2400

Min.bending radius

Without Tension

mm

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range（℃）

Installation

℃

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70

Packing and Marking

1. Packing

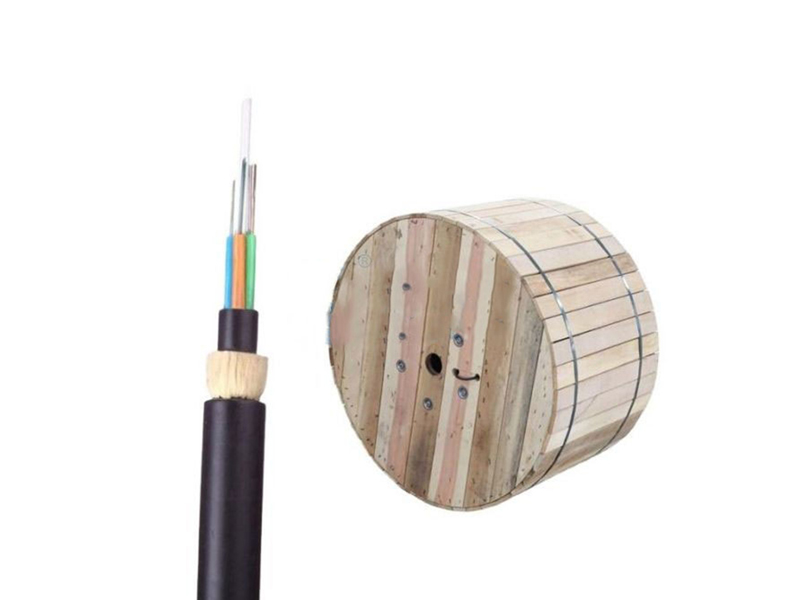

1.1 Each single length of cable shall be reeled on Wooden Drum suitable for long distance shipment.
1.2 Covered by plastic buffer sheet.
1.3 Sealed by strong wooden battens.
1.4 At least 1 m of inside end of cable will be reserved for testing.
1.5 Drum length
- 1.5.1 Standard drum length is 2000-4000m
- 1.5.2 Single length not less than 96% of standard length per drum shall be permitted for quantity not exceeding 10% of the total supply;
1.5.3 Total quantity is at least the ordered quantity.

2. Drum Marking

2.1 Cable drum
- Manufacturer brand;
- Roll-direction arrow;
- Cable outer end position indicating arrow;
- The word “FIBER OPTICAL CABLE”;
- Origin, The word “MADE IN CHINA”;
- Caution plate indicating the correct method for loading, unloading and convey the cable;
- Other customer information such as contract no., project no., and delivery destination. (if needed)

2.2 Marking plate
- Prodct name;
- Cable type and size;
- Drum length;
- Gross / Net weight in kilograms;
- Drum number in meters;
- Manufacturer's name;
- Manufacturing year and month;
- Project number, contract number or purchasing order number (if needed).
