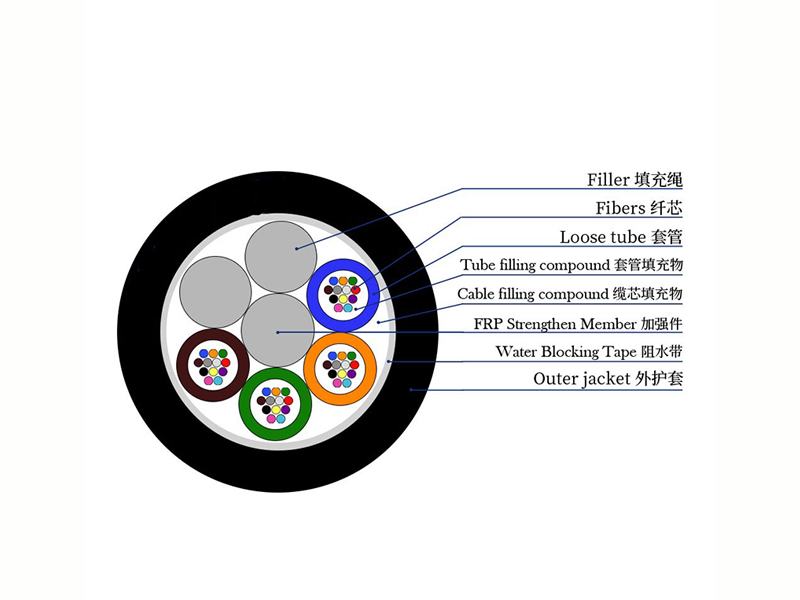

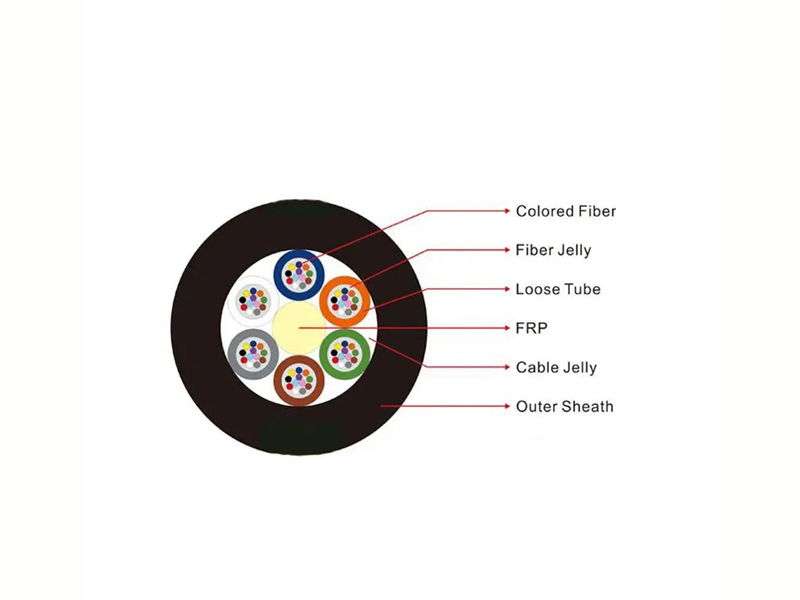

Stranded loose tube non-metallic strength member and non-armored cable (GYFTY) construction is that 250um fibers are positioned in a loose tube which is made of high modulus plastic and filled with a water-resistant filling compound; A fiber reinforced plastic (FRP), sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a non-metallic strength member; Tubes are stranded around the strength member into a compact and circular cable core; After the cable core is filled with the filling compound which protects it from water ingress, the cable is completed with a polyethylene (PE) sheath.

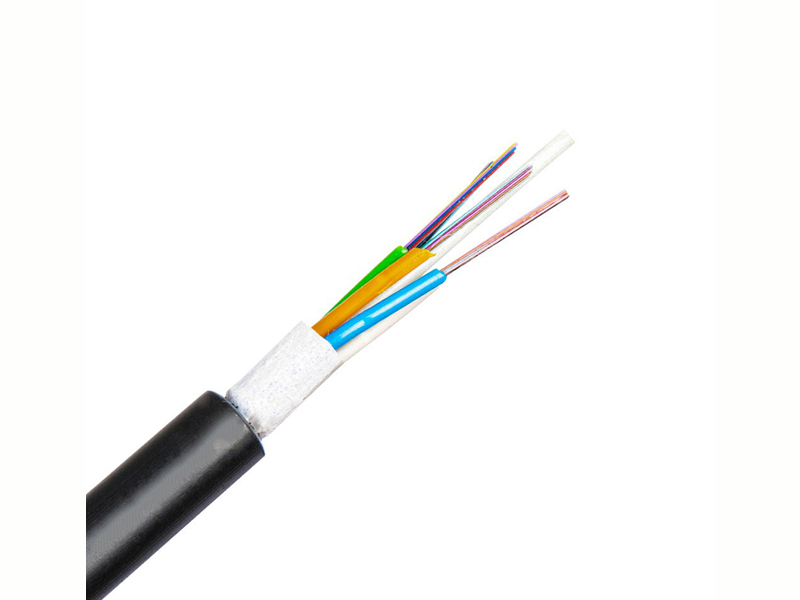

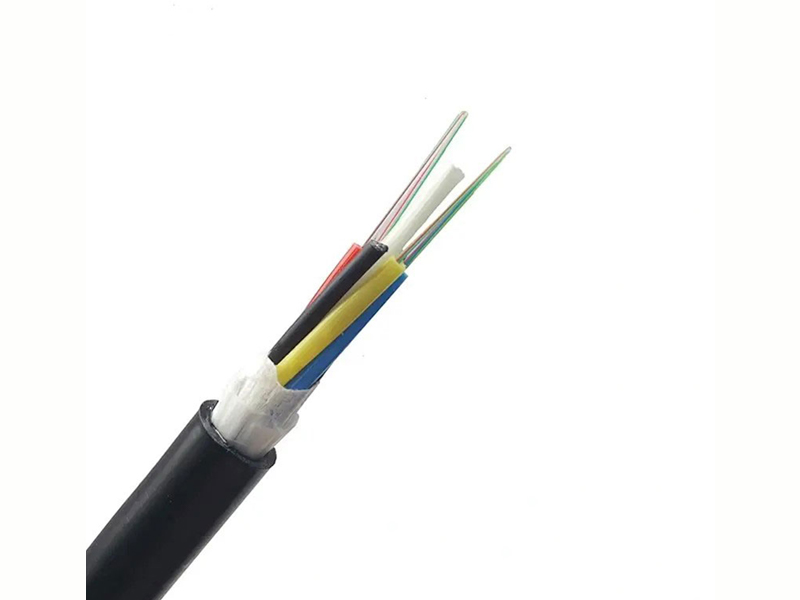

GYFTY Outdoor Aerial Non-Metallic Non-Armored Optical Fiber Cable
Alteoptic is a non-metallic non-armored cable dielectric loose tube cable GYFTY manufacturers, suppliers, factory, wholesaler, 2-144 fo customized, buy, bulk, in stock, free samples!
Fiber Brand:YOFC/Fiberhome/ Corning
Color: Black Or Orange
Jacket Metarial: PE,HDPE/LSZH/AT
Strength Member: FRP(with PE If Needed)
Fiber Count: 4-144cores
Installation: Aerial & Duct
Drum Length: 3KM Or Customized
Product Details

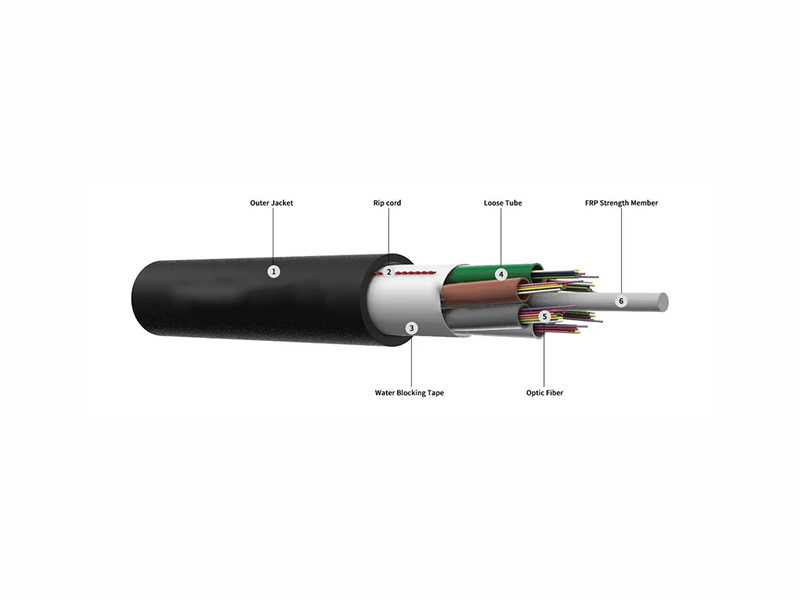

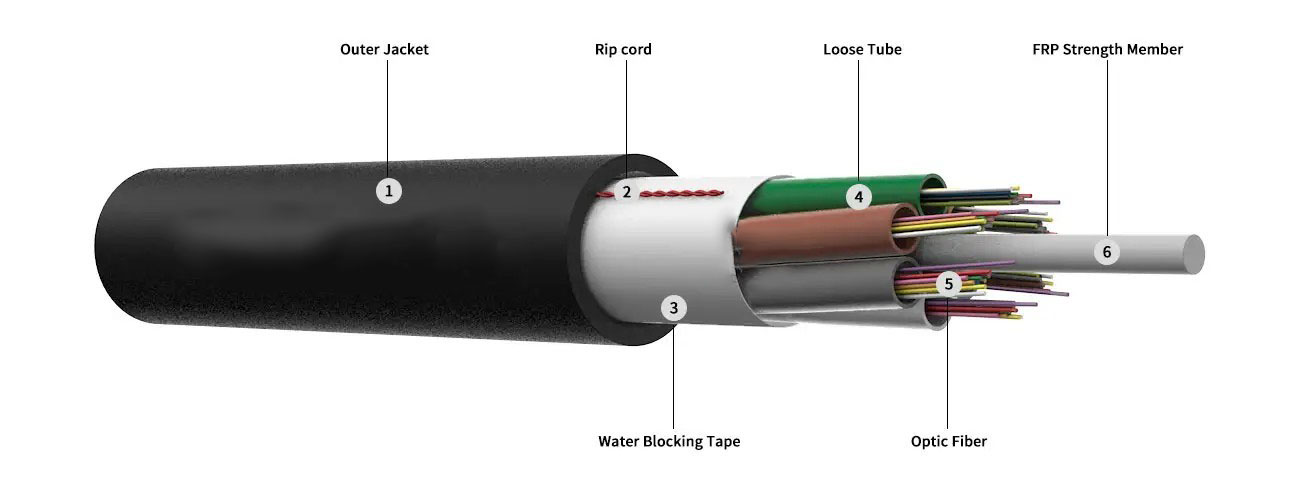

GYFTY FRP locates in the center of cores as a non-metallic strength member. The cable tubes, which are filled with filling compound, are stranded around the strength member. Then the aramid yarn is applied over water proof material, the cable is completed with a PE sheath. GYFTY cables are available from 2 cores to 144 cores. It is used in high-voltage area for long distance communications.The cable tubes, which are filled with filling compound, are stranded around the FRP strength member. Then the aramid yarn is applied over water proof material, the cable is completed with a PE sheath.
– Laying modes: Aerial & Duct
– Electromagnetic interfering places
– Outdoor distribution
– Access network and local network
1.Non-metal strength member.
2.Filler protect loose tuber fiber.
3.Non-metal strength has an excellent anti-electromagnet ability.
GYFTY cable complies with Standard YD/T 901-2001as well as IEC 60794-1.
|
G.652
|
G.655 |
50/125μm |
62.5/125μm |
||
|
Attenuation (+20℃) |
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
|
@1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
|
|
@1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
|
|
|
|
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz·km |
≥200 MHz·km |
|
@1300nm |
|
|
≥1000 MHz·km |
≥600 MHz·km |
|
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
|
Cable Cut-off Wavelength |
≤1260nm |
≤1480nm |
|
|
|
|
Cable Type |
Fiber Count |
Tubes |
Fillers |
Cable Diameter mm |
Cable Weight kg/km |
Tensile Strength Long/Short Term N |
Crush Resistance Long/Short Term N/100mm |
Bending Radius Static/Dynamic mm |
|
GYFTY-2~6 |
2~6 |
1 |
5 |
10.6 |
88 |
400/1000 |
300/1000 |
10D/20D |
|
GYFTY-8~12 |
8~12 |
2 |
4 |
10.6 |
88 |
400/1000 |
300/1000 |
10D/20D |
|
GYFTY-14~18 |
14~18 |
3 |
3 |
10.6 |
88 |
400/1000 |
300/1000 |
10D/20D |
|
GYFTY -20~24 |
20~24 |
4 |
2 |
10.6 |
88 |
400/1000 |
300/1000 |
10D/20D |
|
GYFTY-26~30 |
26~30 |
5 |
1 |
10.6 |
88 |
400/1000 |
300/1000 |
10D/20D |
|
GYFTY-32~36 |
32~36 |
6 |
0 |
10.6 |
88 |
400/1000 |
300/1000 |
10D/20D |
|
GYFTY-2~6 |
2~6 |
1 |
6 |
11.0 |
97 |
600/1500 |
300/1000 |
10D/20D |
|
GYFTY-8~12 |
8~12 |
2 |
5 |
11.0 |
97 |
600/1500 |
300/1000 |
10D/20D |
|
GYFTY-14~18 |
14~18 |
3 |
4 |
11.0 |
97 |
600/1500 |
300/1000 |
10D/20D |
|
GYFTY-20~24 |
20~24 |
4 |
3 |
11.0 |
97 |
600/1500 |
300/1000 |
10D/20D |
|
GYFTY-26~30 |
26~30 |
5 |
2 |
11.0 |
97 |
600/1500 |
300/1000 |
10D/20D |
|
GYFTY-32~36 |
32~36 |
6 |
1 |
11.0 |
97 |
600/1500 |
300/1000 |
10D/20D |
|
GYFTY-38~42 |
38~42 |
7 |
0 |
11.0 |
97 |
600/1500 |
300/1000 |
10D/20D |
|
GYFTY-44~48 |
44~48 |
4 |
2 |
12.0 |
113 |
600/1500 |
300/1000 |
10D/20D |
|
GYFTY-50~60 |
50~60 |
5 |
1 |
12.0 |
113 |
600/1500 |
300/1000 |
10D/20D |
|
GYFTY-62~72 |
62~72 |
6 |
0 |
12.0 |
113 |
600/1500 |
300/1000 |
10D/20D |
| GYFTY-2~6 | 2~6 | 1 | 7 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-8~12 | 8~12 | 2 | 6 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-14~18 | 14~18 | 3 | 5 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-20~24 | 20~24 | 4 | 4 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-26~30 | 26~30 | 5 | 3 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-32~36 | 32~36 | 6 | 2 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-38~42 | 38~42 | 7 | 1 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-44~48 | 44~48 | 8 | 0 | 12.0 | 120 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-50~60 | 50~60 | 5 | 2 | 13.0 | 137 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-62~72 | 62~72 | 6 | 1 | 13.0 | 137 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-74~84 | 74~84 | 7 | 0 | 13.0 | 137 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-86~96 | 86~96 | 8 | 0 | 13.9 | 154 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-98~108 | 98~108 | 9 | 1 | 15.3 | 185 | 1000/3000 | 300/1000 | 10D/20D |
| GYFTY-110~120 | 110~120 | 10 | 0 | 15.3 | 185 | 1000/3000 | 300/1000 | 10D/20D |
YOUR VACATION IS HERE
Prepare your network for seamless 5G deployment. Get direct access to factory pricing, custom OEM/0DM solutions, and rapid prototyping,
Let's Build Your Optical Network, Kindly have a chat with our sales experts!
Get A Free Quote
Related Products

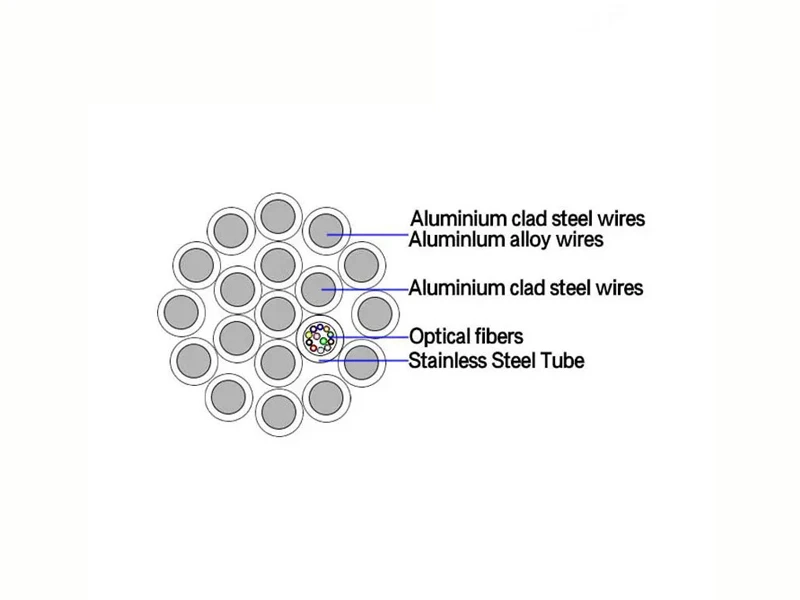

Optical Fiber Composite Overhead Ground Wire Double Layer Stranded OPGW
Stranded Type Stainless Steel Tube OPGW Cable, The stainless steel tube is stranded by double or three layers of aluminum clad steel wires (ACS) or mix ACS wires and aluminum alloy wires.
View More

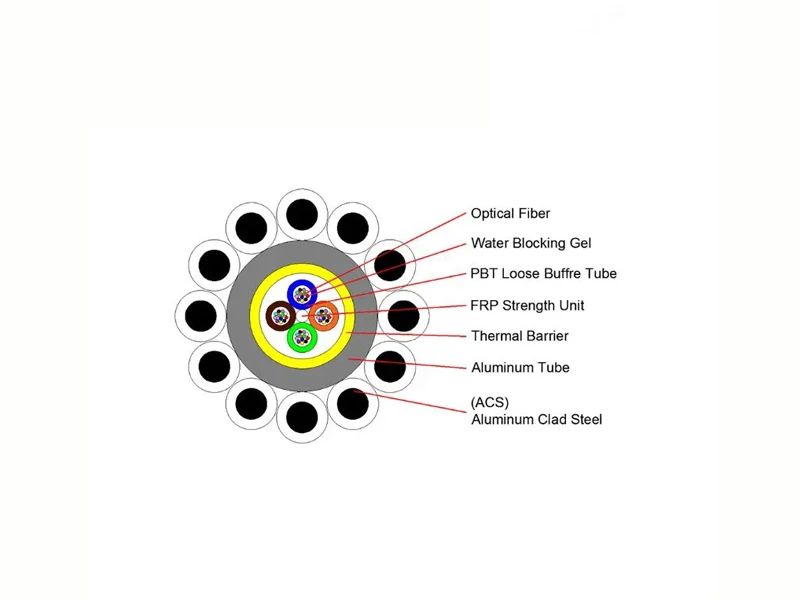

Typical Designs Of Aluminum Tube OPGW Composite Overhead Ground Wire cable
