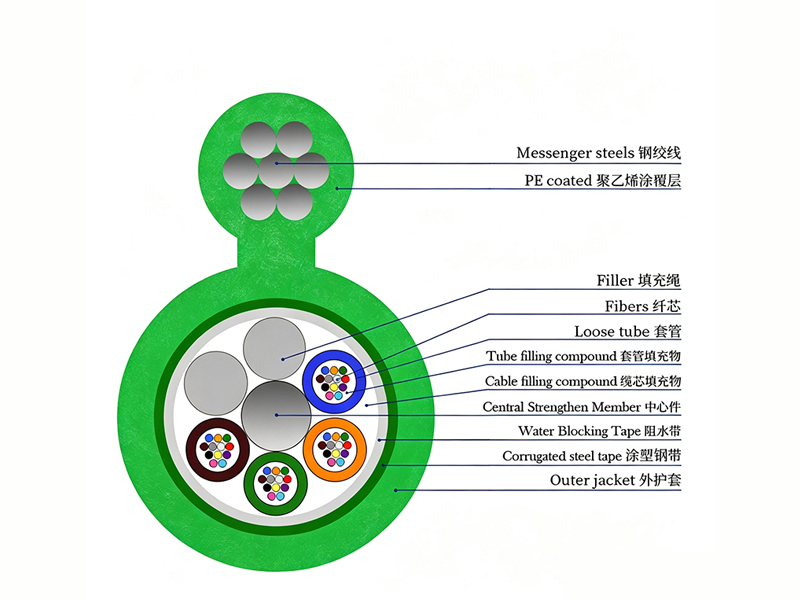

The fibers, 250um, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound.A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure Figure 8 cable GYTC8A, GYTC8S are also available on request.This type of cable is specifically applied for self-suppo rting aerial installation.

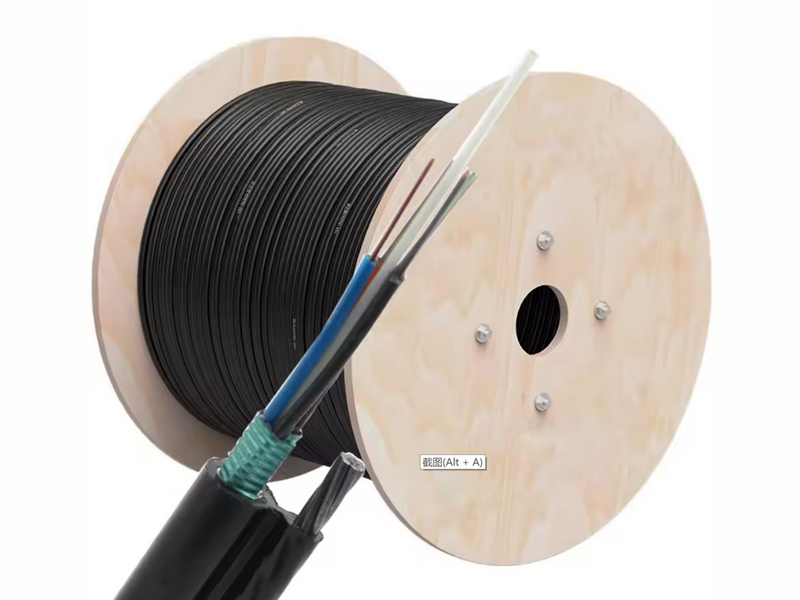

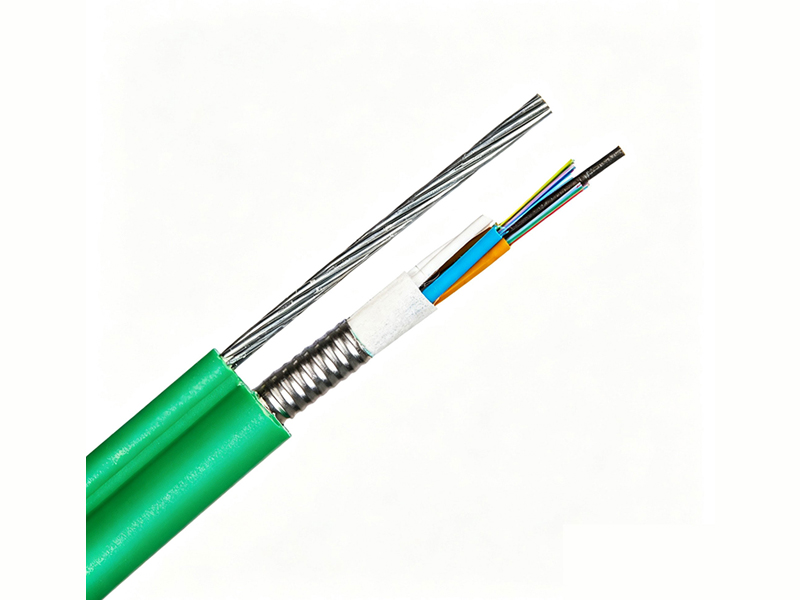

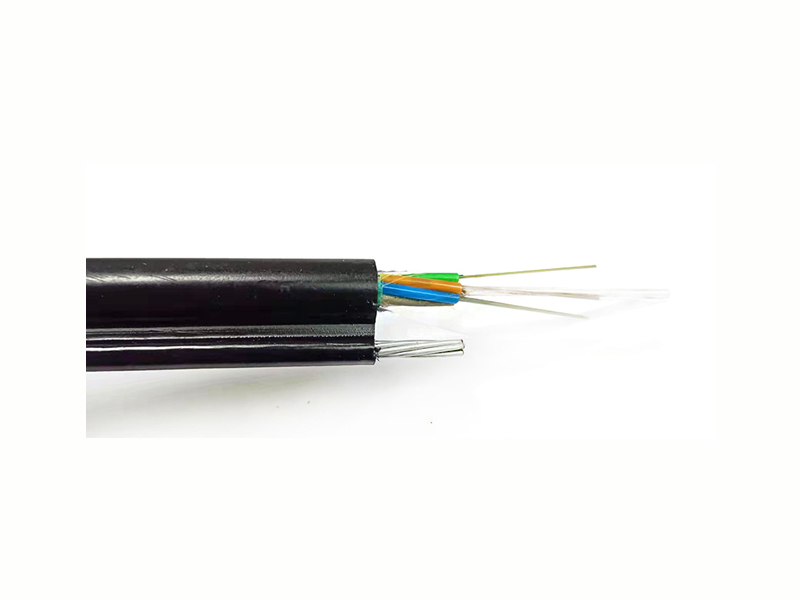

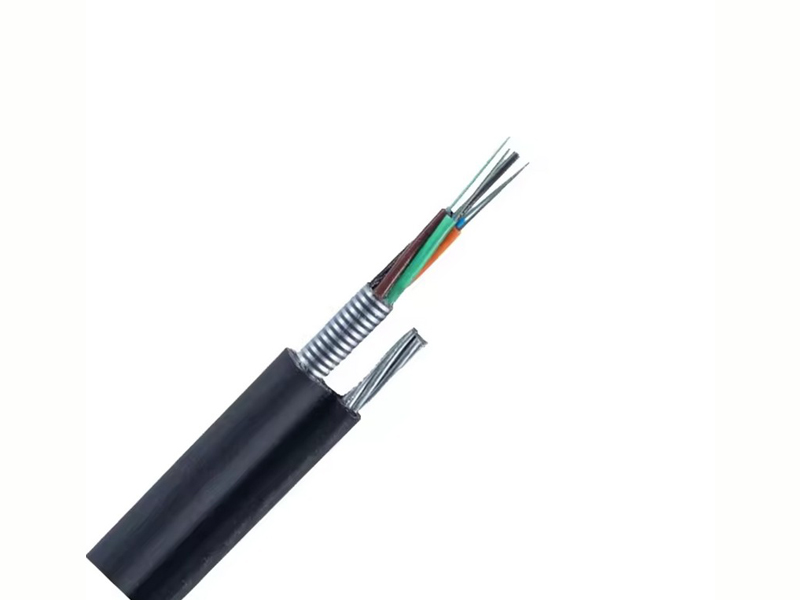

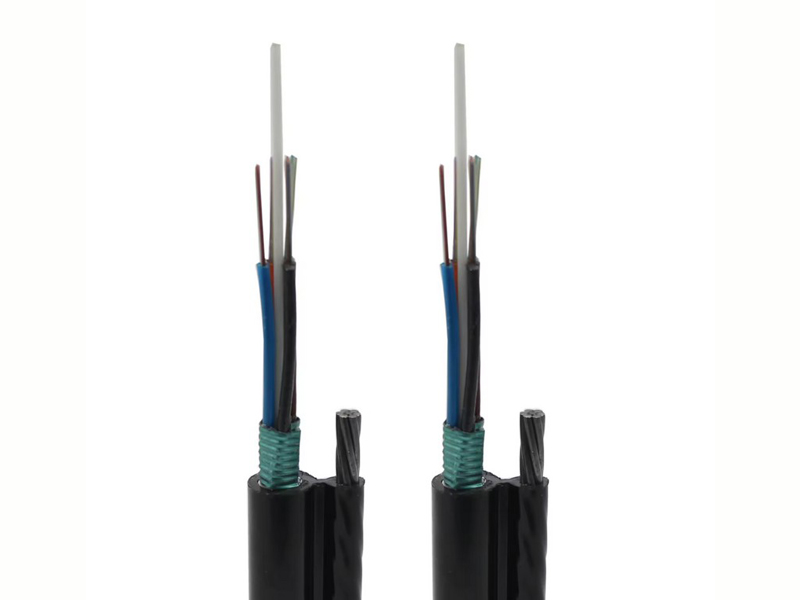

GYTC8S/A Figure-8 Cable with Steel/Aluminum Tape
Alteoptic provide a series of figure-8 optical cable, including GYTC8A cable, GYTC8S cable, GYXTC8S cable, and GYXTC8Y fiber optic cable ... We can customize GYTC8S/A Figure-8 Cable from 2 to 144 cores, we also can make the cable as per customer's special requirements.

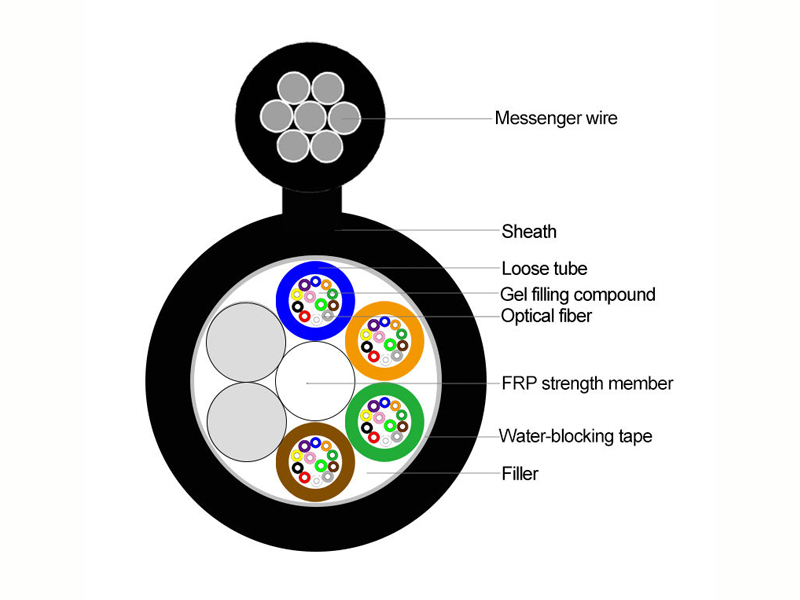

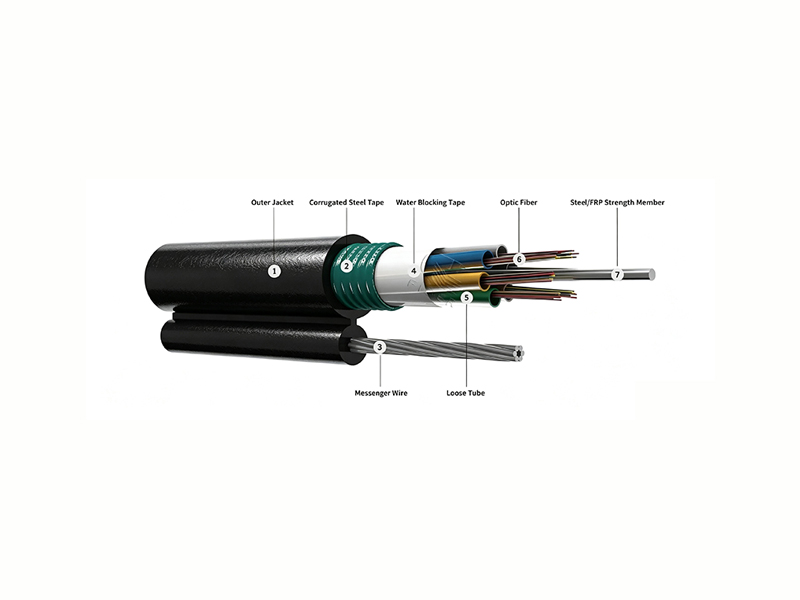

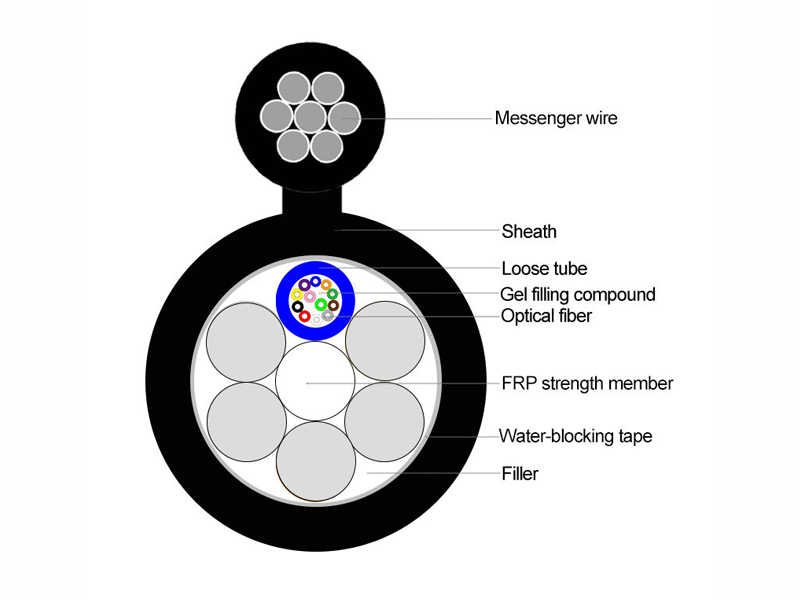

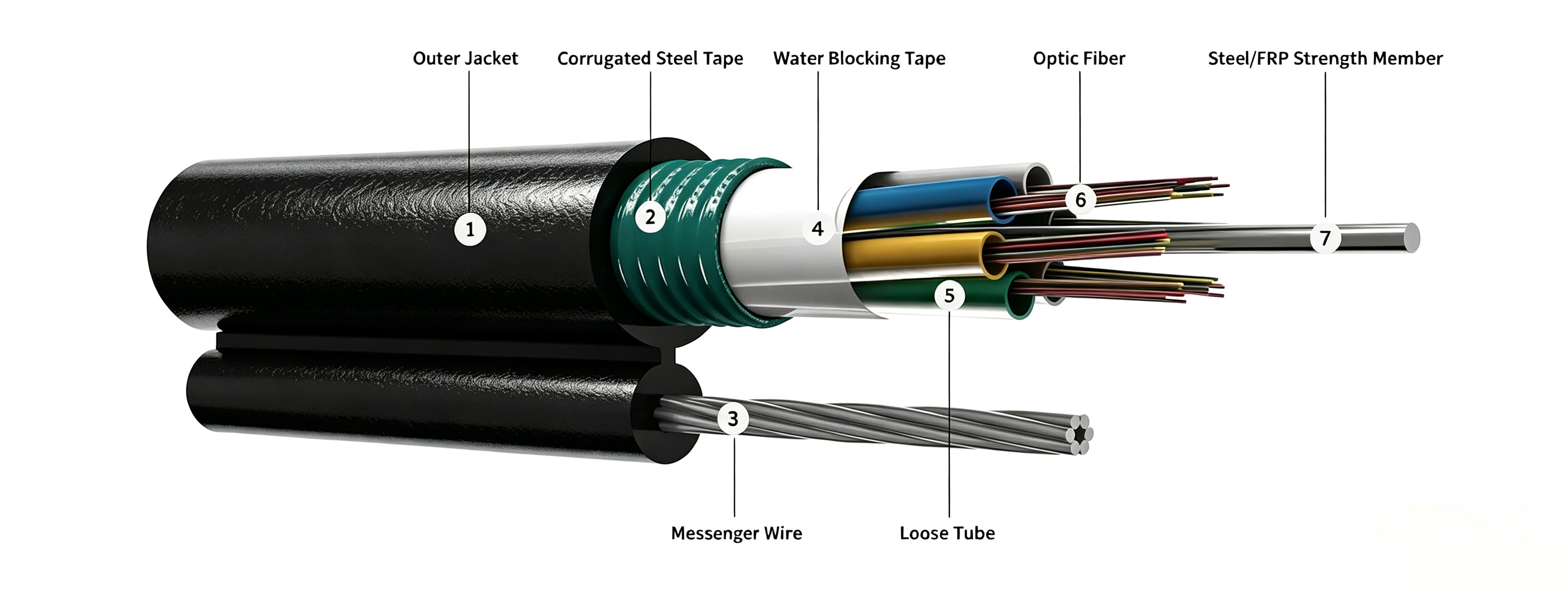

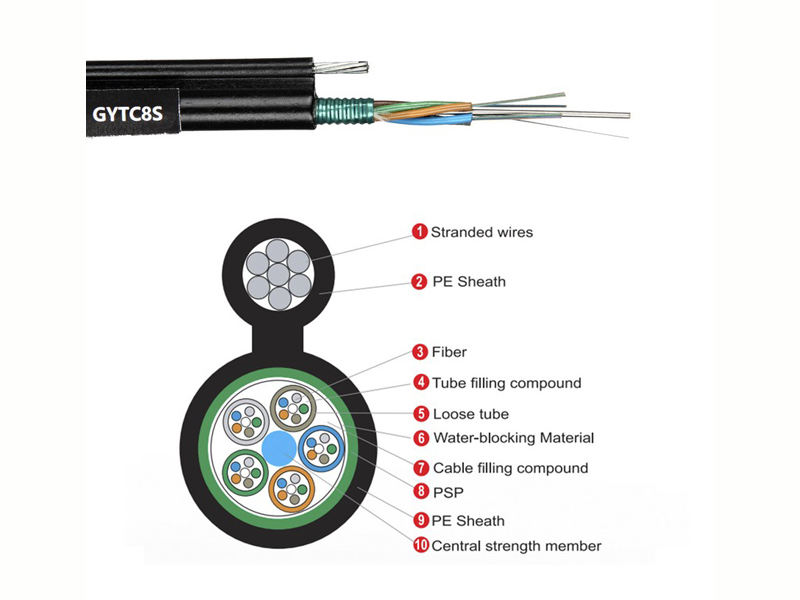

In the GY(F)TC8S/GY(F)TC8A cable, single-mode/multimode fibers are positioned in the loose tubes, While the loose tubes stranded together around central stength member into a compact and circular cable core, and the water-blocking materials are distrubuted into interests of it. After a PSP/ALP is longitudinally applied around the cable core, Then, this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure.
Self Supporting Aerial
1. Excellent mechanical and temperature performance
2. Critical protection to fibers
Comply with standard YD/T 1155-2001 as well as IEC 60794-2-1.
|
Cable Type |
Fiber Count | Cable Diameter MM | Cable Weight KG/KM |
Tensile Strength Long/Short Term N |
Crush Resistance Long/Short Term N/100MM |
Max. Fibers in Tubes | ||
| GYTC8S/A 2~30 | 2~30 | 9.5 × 19.1 | 160 | 2000 | 6000 | 300 | 1000 | 30 |
| GYTC8S/A 32~36 | 32~36 | 8.3 × 17.0 | 170 | 2000 | 6000 | 300 | 1000 | 36 |
| GYTC8S/A 38~60 | 38~60 | 10.8 × 20.4 | 180 | 2000 | 6000 | 300 | 1000 | 60 |
| GYTC8S/A 62~72 | 62~72 | 12.4 × 22.0 | 195 | 2000 | 6000 | 300 | 1000 | 72 |
| GYTC8S/A 74~96 | 74~96 | 13.1 × 22.7 | 222 | 2000 | 6000 | 300 | 1000 | 96 |
| GYTC8S/A 98~120 | 98~120 | 15.7 × 22.3 | 238 | 2000 | 6000 | 300 | 1000 | 120 |
| GYTC8S/A 122~144 | 122~144 | 15.5 × 25.1 | 273 | 2000 | 6000 | 300 | 1000 | 144 |
Optical Characteristics:
| Fiber Type | G.652 | G.655 | 50/125μm | 62.5/125μm | |
| Attenuation (+20℃) | 850 nm | ≤3.0 dB/km | ≤3.3 dB/km | ||
| 1300 nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| 1310 nm | ≤0.36 dB/km | ≤0.40 dB/km | |||
| 1550 nm | ≤0.22 dB/km | ≤0.23 dB/km | |||
| Bandwidth | 850 nm | ≥500 MHz-km | ≥200 Mhz-km | ||
| 1300 nm | ≥500 MHz-km | ≥500 Mhz-km | |||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||
| Cable Cut-off Wavelength λcc | ≤1260 nm | ≤1450 nm | |||
Product Specification:
| Fiber Count | Cable Diameter (mm) | Messenger Diameter (mm) | Cable Height (mm) | Cable Weight (kg/km) | Tension(N) | Crush(N/100mm) | Bending Radius(mm) | |||
| Long Term | Short Term | Long Term | Short Term | Static | Dynamic | |||||
| 2~30 | 9.5 | 5.0 | 16.5 | 155 | 3000 | 6000 | 1000 | 3000 | 10D | 20D |
| 32~36 | 9.8 | 5.0 | 16.8 | 170 | 3000 | 6000 | 1000 | 3000 | 10D | 20D |
| 38~60 | 10.0 | 5.0 | 17.0 | 180 | 3000 | 6000 | 1000 | 3000 | 10D | 20D |
| 62~72 | 10.5 | 5.0 | 17.5 | 198 | 3000 | 6000 | 1000 | 3000 | 10D | 20D |
| 74~96 | 12.5 | 5.0 | 19.5 | 265 | 3000 | 6000 | 1000 | 3000 | 10D | 20D |
| 78~120 | 14.5 | 5.0 | 21.5 | 320 | 3000 | 6000 | 1000 | 3000 | 10D | 20D |
| 122~144 | 16.5 | 5.0 | 23.5 | 385 | 3000 | 6000 | 1000 | 3000 | 10D | 20D |
Note: This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more detailed information.
