Alteoptic EPFU (enhanced performance fiber unit) is a air blown fiber optic cable unit. It’s used in end user’s network with a handheld air cable blower from fiber distribution point on the road to households.

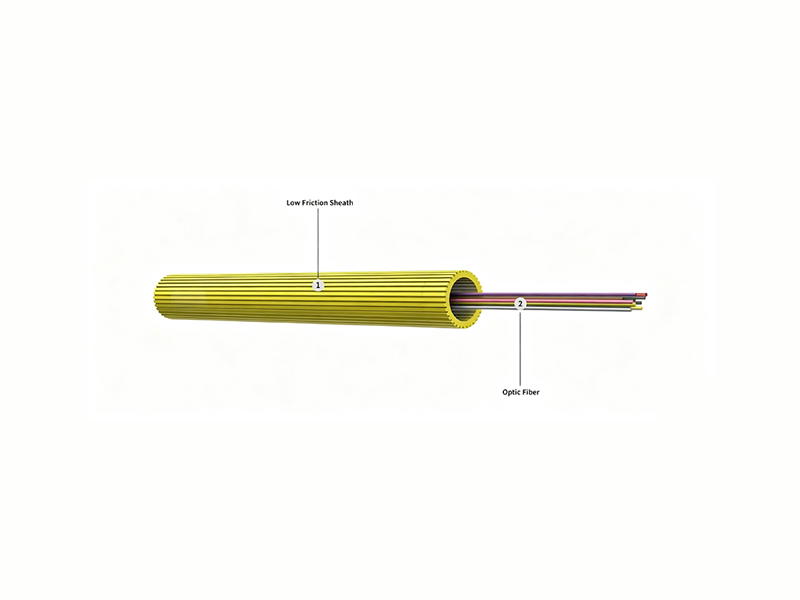

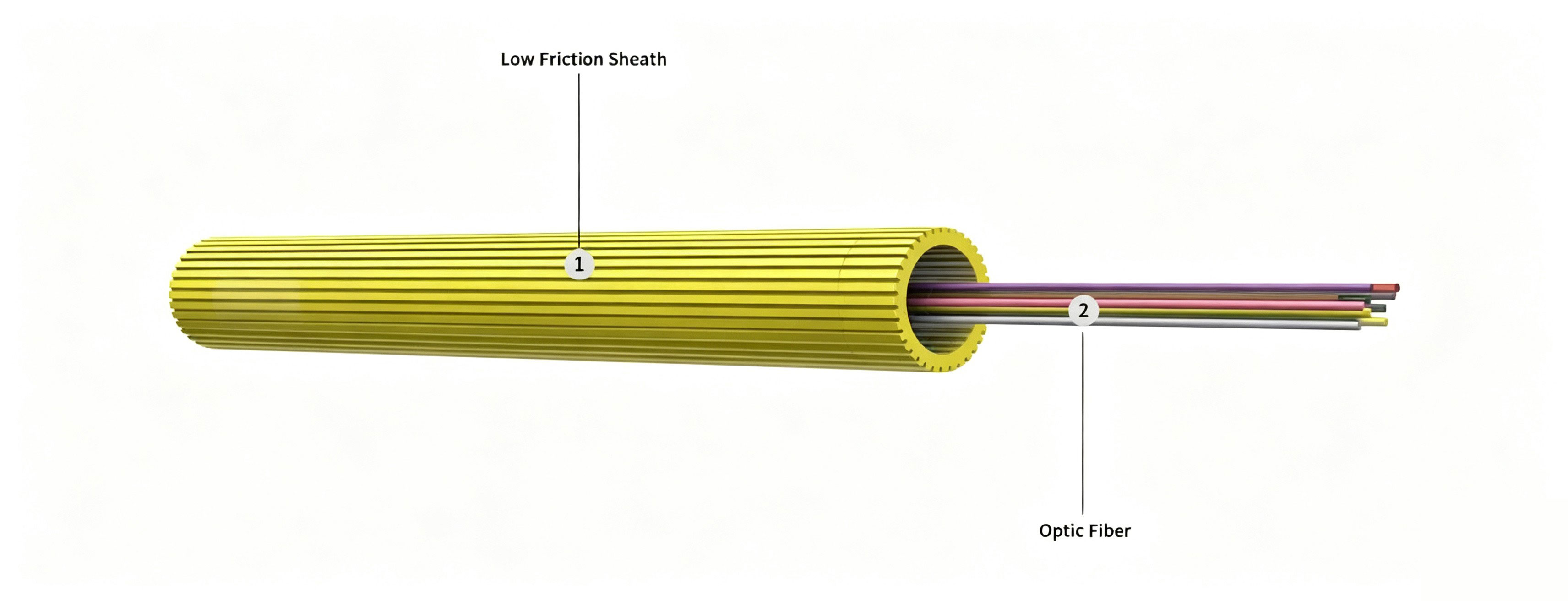

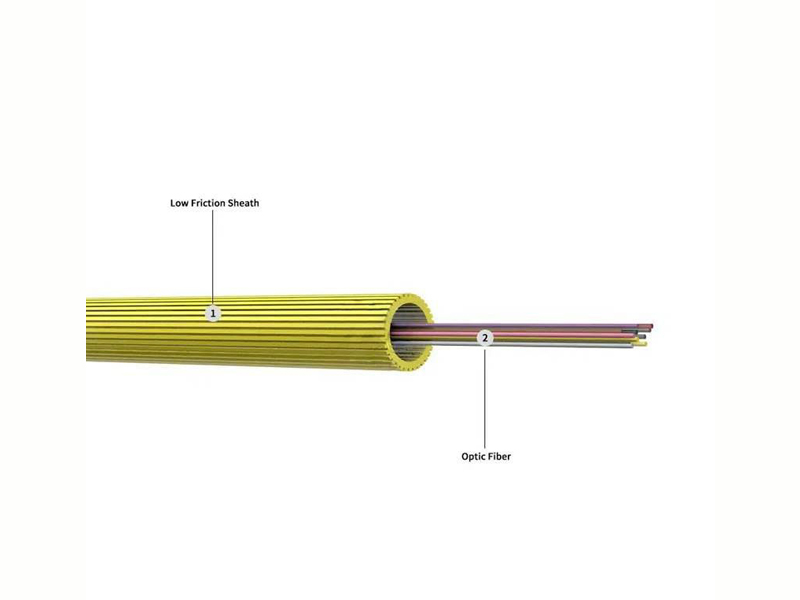

Fiber bundle of this cable is formed by curing optical fiber or fillers into photosensitive resin in a certain arrangement. And outside extruding a special low friction sheath.
EPFU Micro Duct Air Blowing Fiber Unit

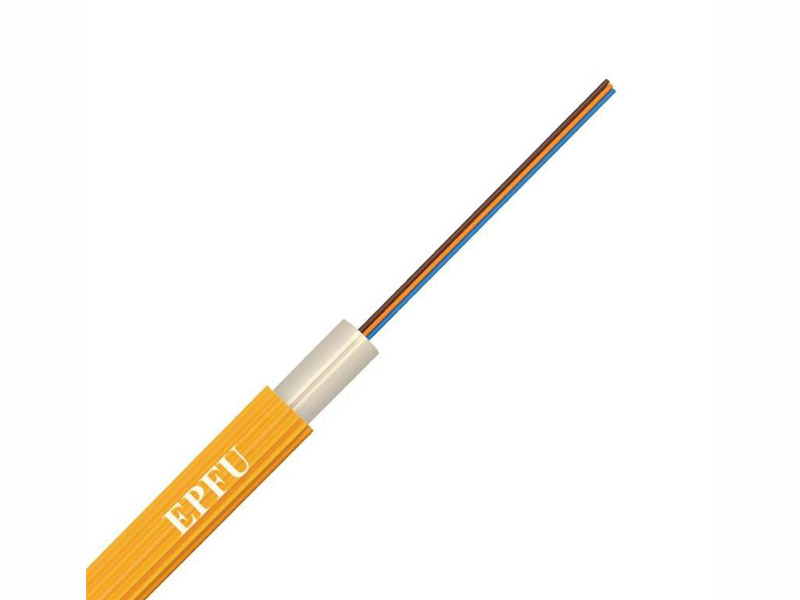

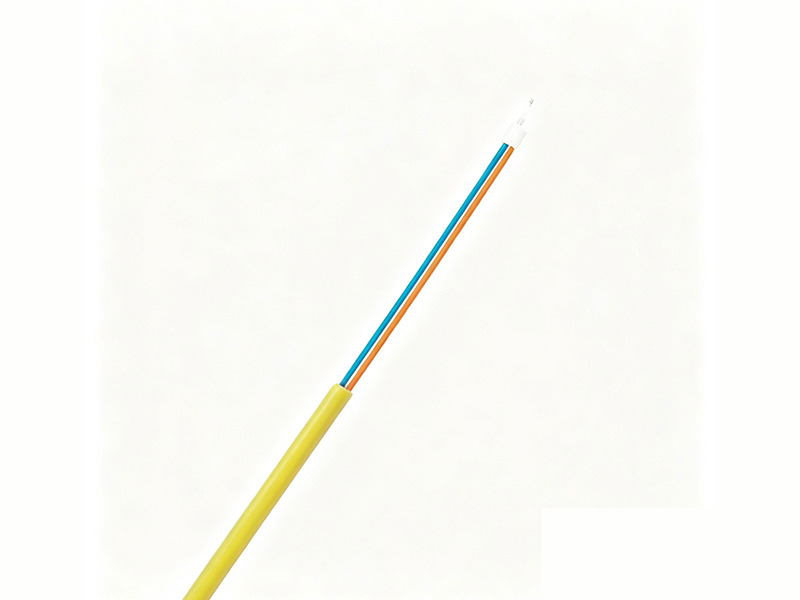

Alteoptic's Enhanced Performance Fiber Unit (EPFU) is small size, light weight, enhanced surface outer sheath fiber unit designed for blowing into micro tube bundles by air flow. The outer thermoplastic layer provides a high level of protection and excellent installation properties.
EPFU: cable type | 2-12: fiber count | G652D: G652D, G657A1, G657A2 available: fiber type | PE: sheath material
Product Details
Enhanced Performance Fiber Unit (EPFU) is a high-performance air-blown optical fiber bundle is formed by curing optical fibers or fillers into photosensitive resin in a certain arrangement, and then extruding a special low-friction sheath.

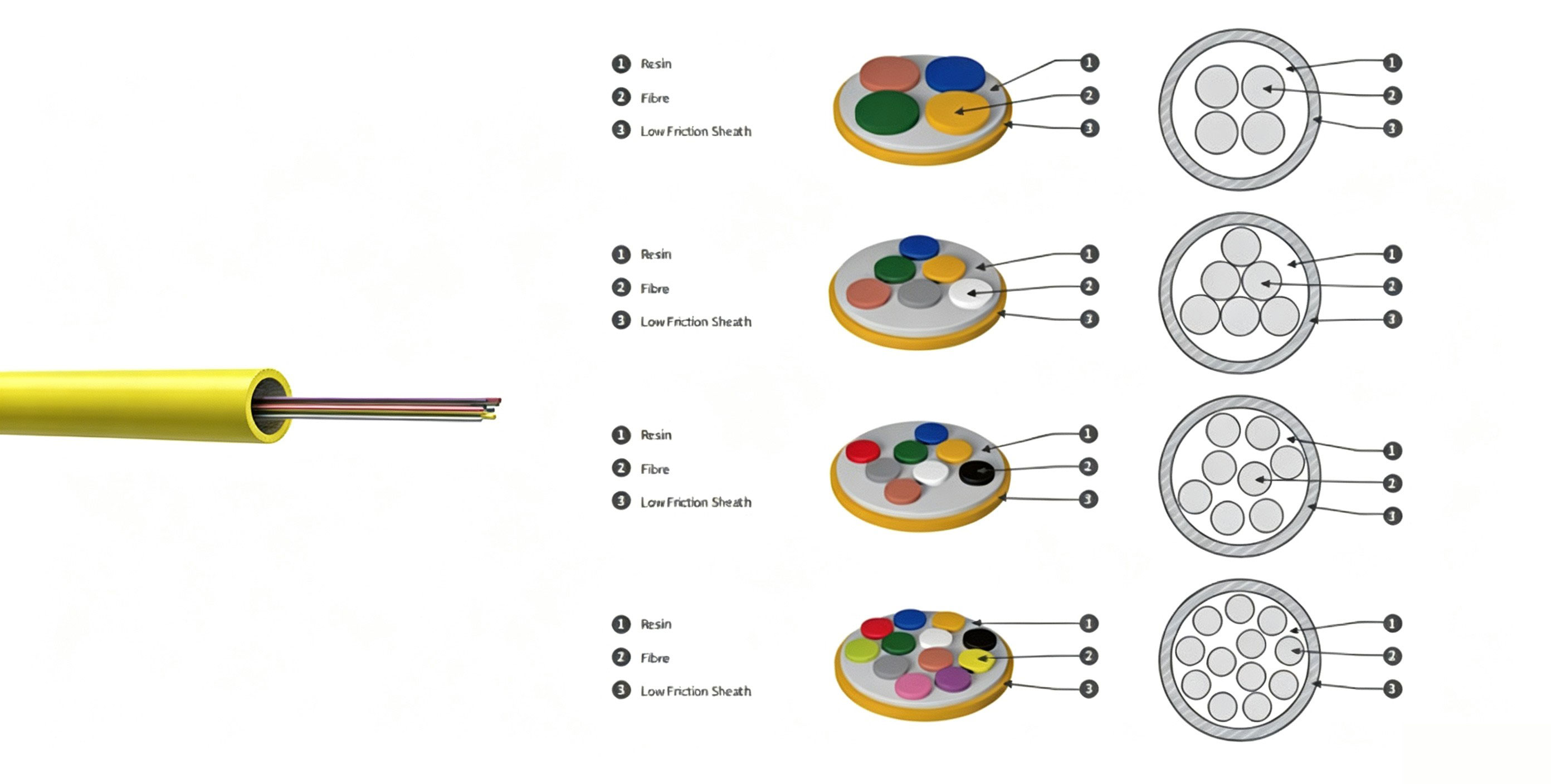

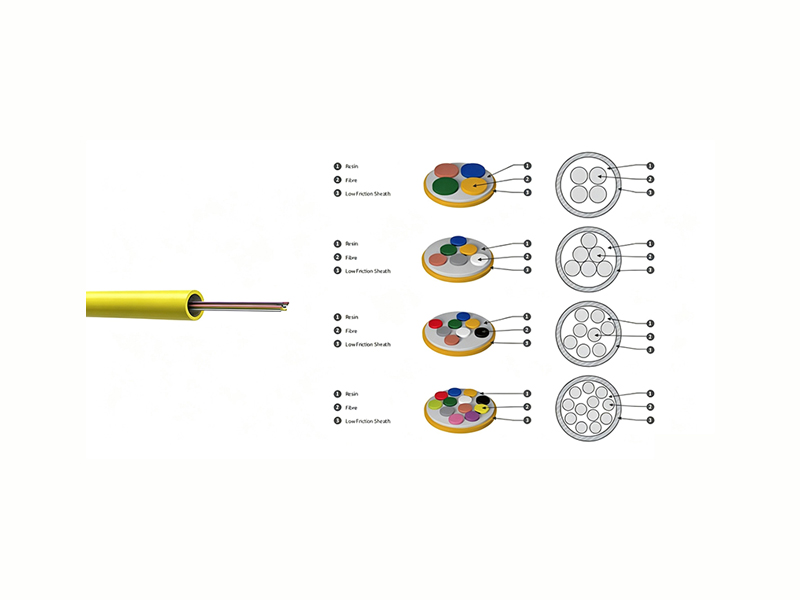

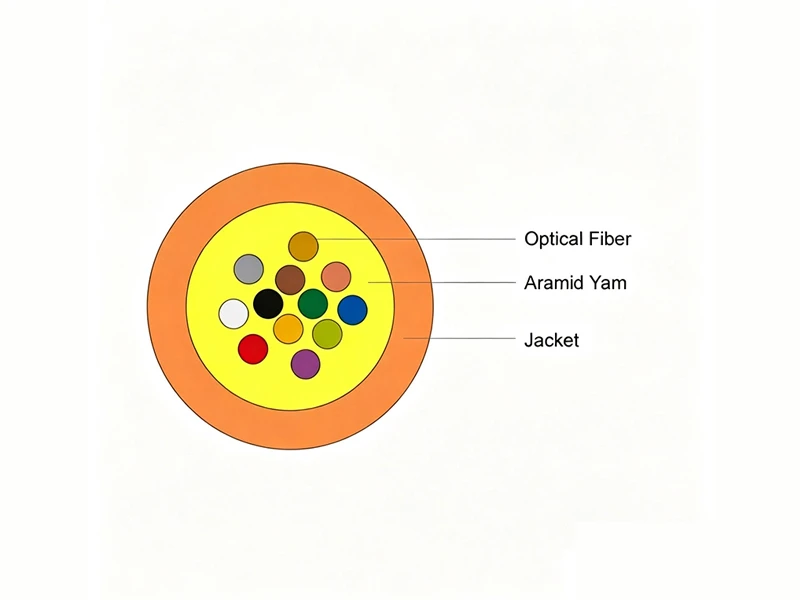

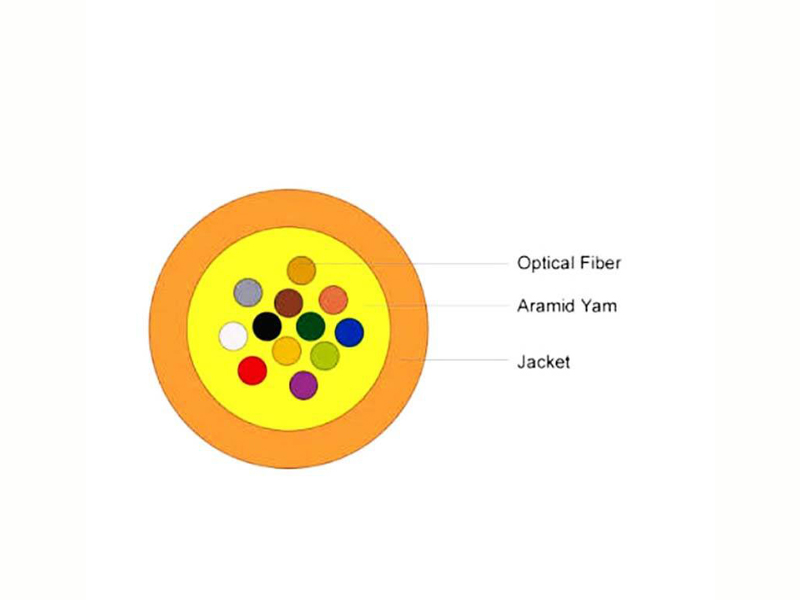

Cable Section:
Duct
1. Designed with special grooves to advance blowing distance.
2. Light weight and proper stiffness, repeat installation.
3. Designed with no gel, easy stripping and handling.
4. Better costs advantage compared to traditional product.
5. Complete accessories, less manpower, lower installation time.
Comply with standard IEC 60794-1.
|
Cable Type |
Cable Diameter (mm) | Weight (kg/km) |
Tensile Strength Short Term N |
Crush Resistance Short Term N/100mm |
Bending Radius Static/Dynamic mm |
|
| EPFU-2B1.3 | 1.13 | 1 | 5 | 100 | 10D | 20D |
| EPFU-2B1.3 | 1.18 | 1 | 5 | 100 | 10D | 20D |
| EPFU-4B1.3 | 1.18 | 1 | 5 | 100 | 10D | 20D |
| EPFU-6B1.3 | 1.35 | 1.3 | 5 | 100 | 10D | 20D |
| EPFU-8B1.3 | 1.55 | 1.8 | 5 | 100 | 10D | 20D |
| EPFU-12B1.3 | 1.65 | 2.2 | 5 | 100 | 10D | 20D |
YOUR VACATION IS HERE
Prepare your network for seamless 5G deployment. Get direct access to factory pricing, custom OEM/0DM solutions, and rapid prototyping,
Let's Build Your Optical Network, Kindly have a chat with our sales experts!
Get A Free Quote
Related Products
Photoelectric composite Outdoor optical cable

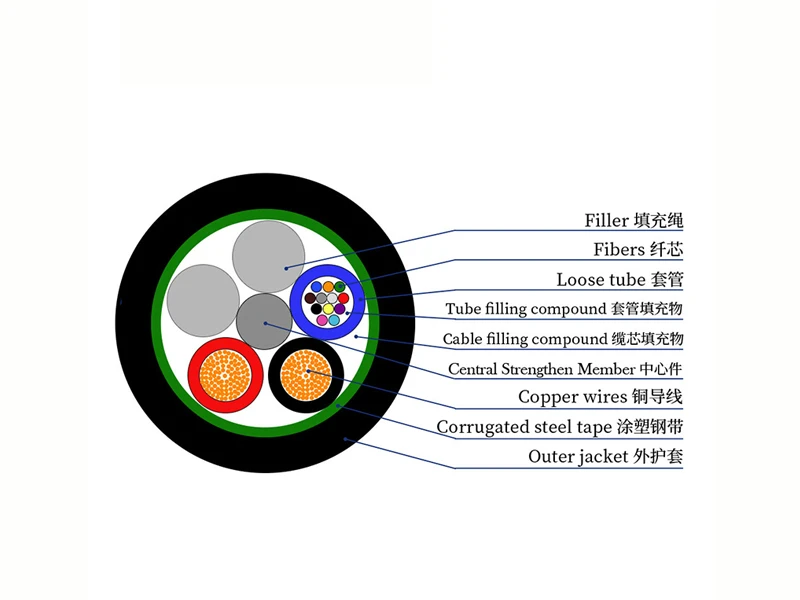

GDTS photoelectric hybrid cable is to put single-mode or multi-mode optical fiber into a loose sleeve made of high modulus polyester material, and the sleeve is filled with waterproof compound. The center of the cable core is a metal reinforced core. For optical cables with certain cores, a layer of polyethylene needs to be squeezed out of the metal reinforced core. The loose sleeve and the insulated copper wire of the required specification are twisted around the central reinforced core to form a compact circular cable core, and the gap in the cable core is filled with water blocking filler. Double-sided chrome-plated plastic-coated steel strip (PSP) is rolled and longitudinally wrapped and then extruded into a polyethylene sheath to form a cable.
View More

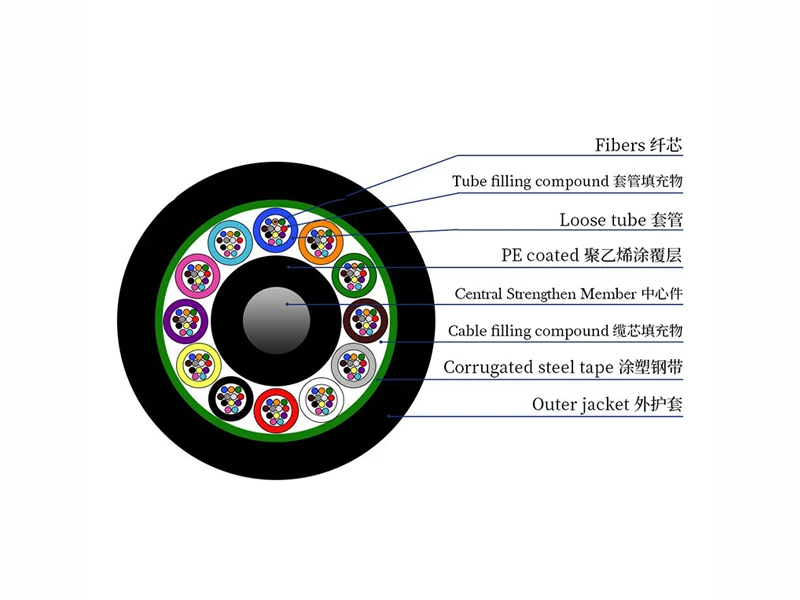

GYTS Stranded Loose Tube Light-armored Cable
GYTS outdoor fiber cable, 2-144 fibers central strength member (steel. jelly filed, fiber contained loose tube and PP filler (if necessary) stranded, water blocking jelly. longitudinally covered by copolymer steel tape, PE outer sheath. G65aD SM fiber.
View More

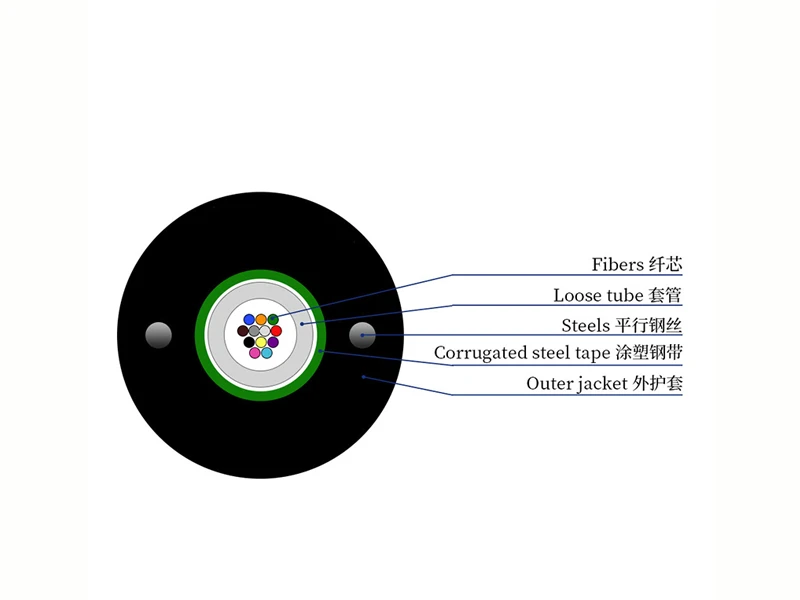

GYXTW Light-armored Duct Center bundle tube Outdoor optical cable
Central tube construction, jelly compound filled, water blocking tape and steel tape, then PE outer sheath incorporated with two steel wire strength elements.
View More

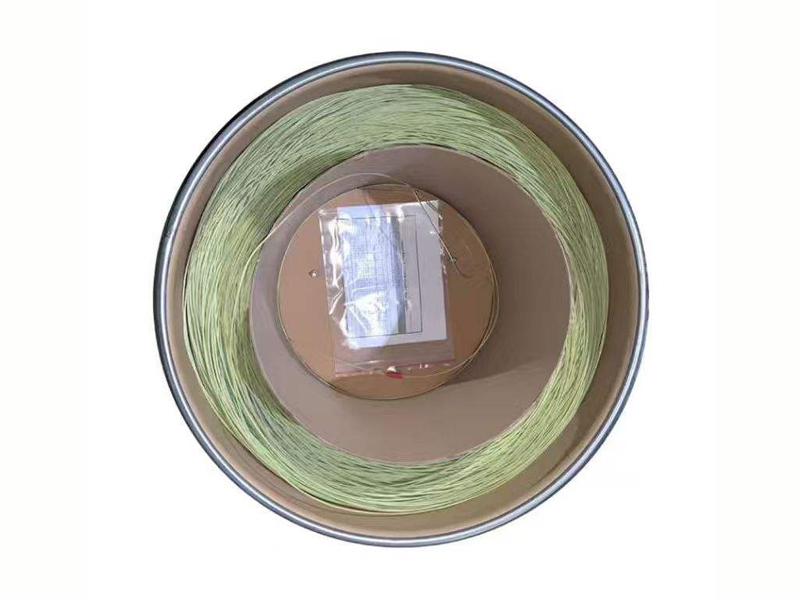

Air Blown Fiber Optic Cable Enhanced Performance Fiber Unit Micro Cable
Alteoptic's Enhanced Performance Fiber Unit (EPFU) is small size, light weight, enhanced surface outer sheath fiber unit designed for blowing into micro tube bundles by air flow. The outer thermoplastic layer provides a high level of protection and excellent installation properties.
View More
GCYFXTY Uni-tube Air-blown Micro Cable

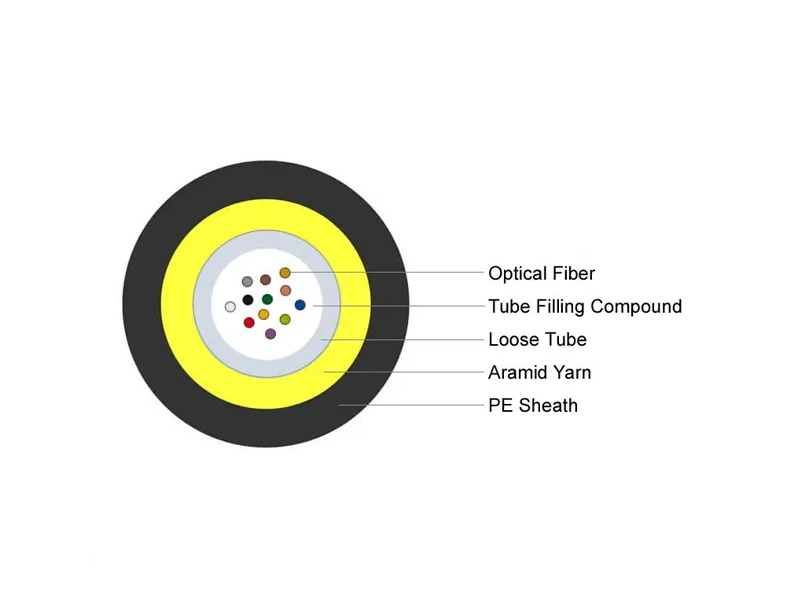

GCYFXTY Air Blown Cable is a loose tube made of a high modulus material with a 250µm single-mode or multi-mode fiber. The tube is filled with a non-toxic and harmless waterproof compound, and the loose tube is twisted with a non-metallic reinforcing element. Then extruded black or colored high-density polyethylene (HDPE) sheath into cable.
View More

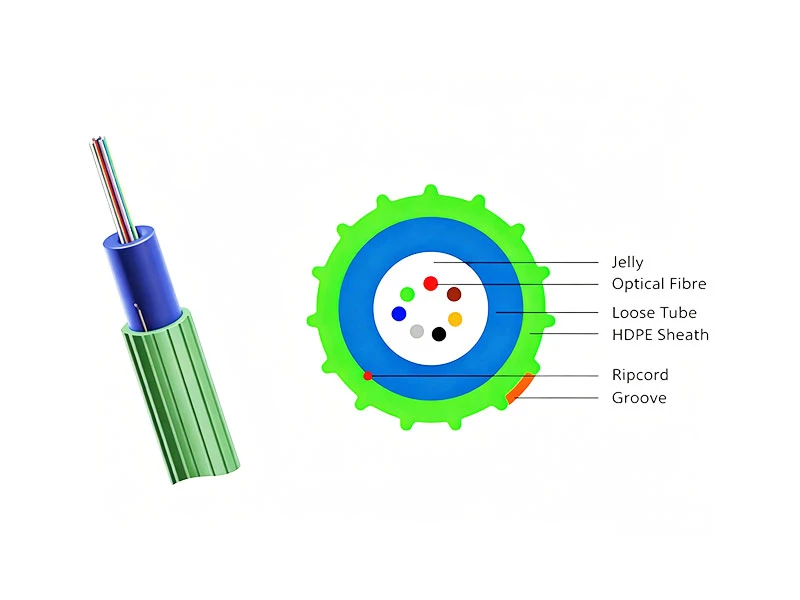

Underground Air Blowing Micro Cable
Air Blown Micro Cables are ultra lightweight with and small diameter and designed for metro feeder or access network to be blown into a micro duct by air-blown installation. As the cable allows the deployment of currently required fiber count, the micro cable provides a lower initial investment and the flexibility to install and upgrade to the latest fiber technologies after the initial installation.
View More

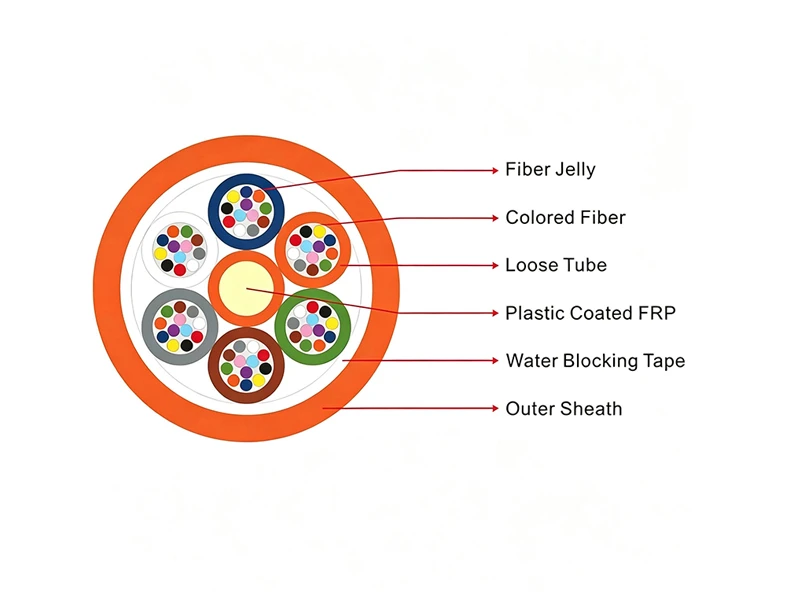

Loose Tube Air-Blown Micro Fiber Optic Cable (GCYFY)
The Loose Tube Air-Blown Micro Cable (GCYFY) contains optical fibers inside a loose tube made from high-modulus plastic, with a special tube-filling compound designed to protect the fibers. Additional support is provided by aramid yarns wrapped around the outside of the tube. The groove design of the outer sheath enhances blowing performance, making the Loose Tube Air-Blown Micro Cable (GCYFY) an excellent choice for phased installations and air-blown deployments.
View More

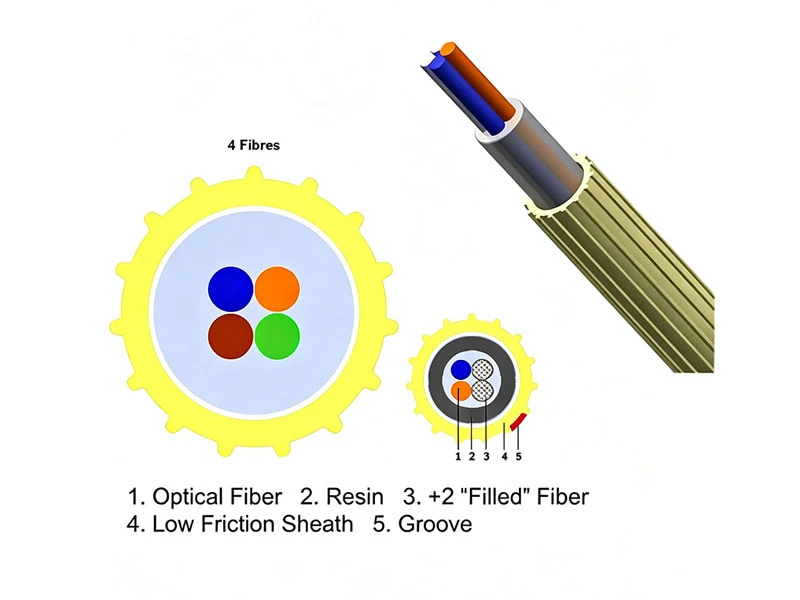

SFU Super Mini Micro Duct Air Blowing Fiber Unit Fiber Optic Cable
