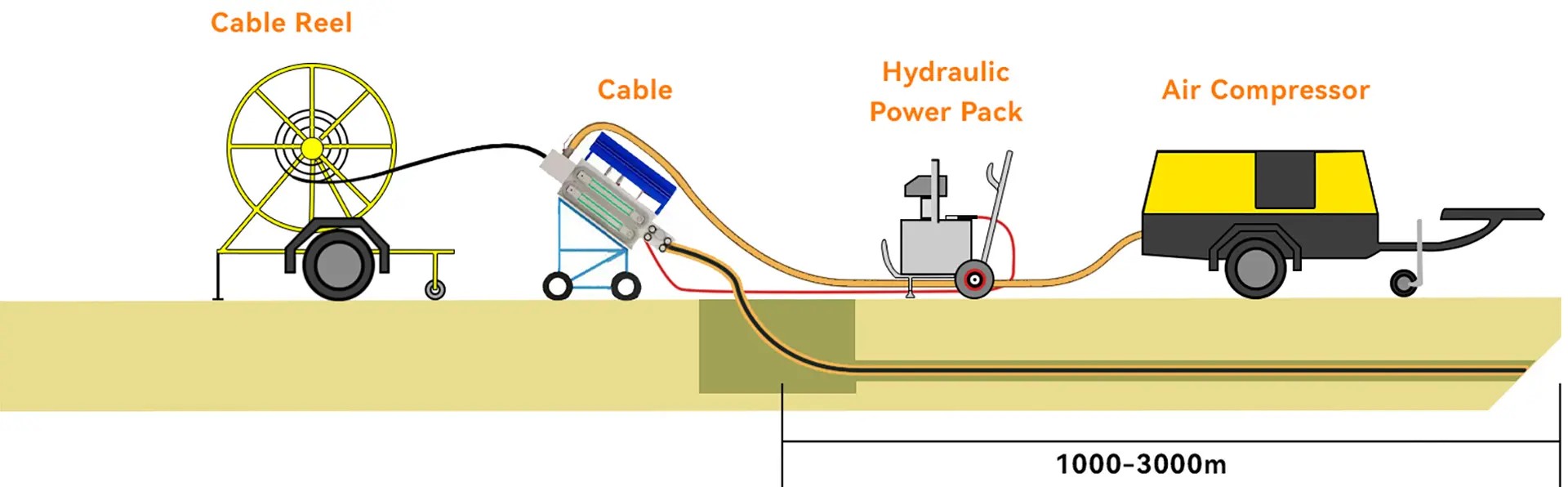

Air blown micro fiber cable enables to cut ducts anywhere and any time for distribution, and without influence on other cable in the same time. As results, it saves lots of costs on construction and splicing joints. To sum up, this cable is usually used in air blowing constructions in access network.

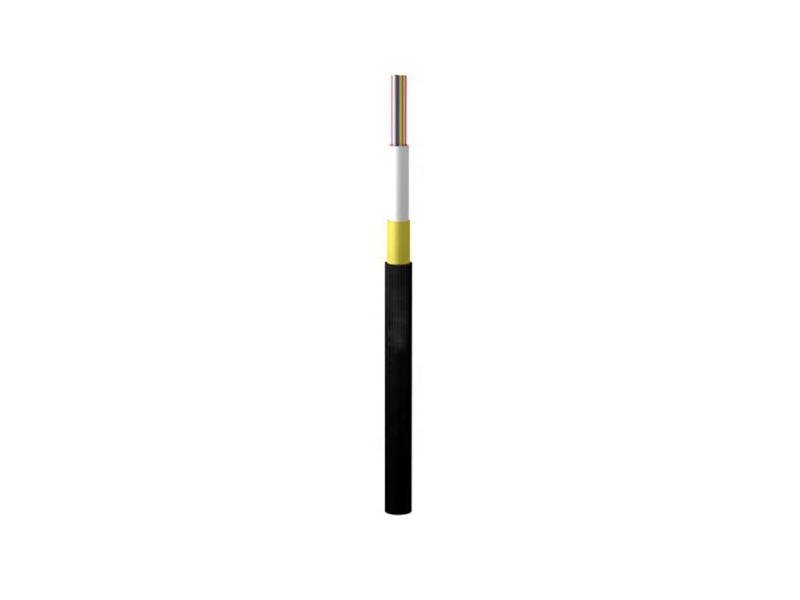

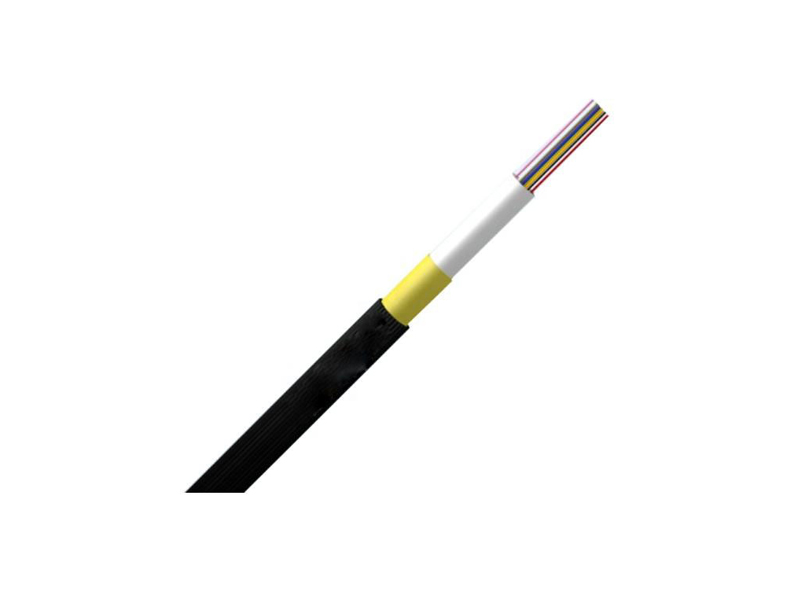

GCYFXTY Uni-tube Air-blown Micro Cable

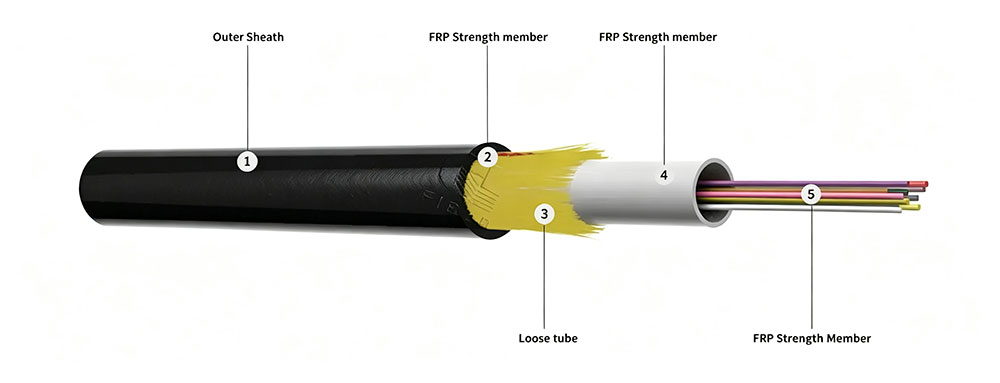

GCYFXTY Air Blown Cable is a loose tube made of a high modulus material with a 250µm single-mode or multi-mode fiber. The tube is filled with a non-toxic and harmless waterproof compound, and the loose tube is twisted with a non-metallic reinforcing element. Then extruded black or colored high-density polyethylene (HDPE) sheath into cable.
Product Details
Description:

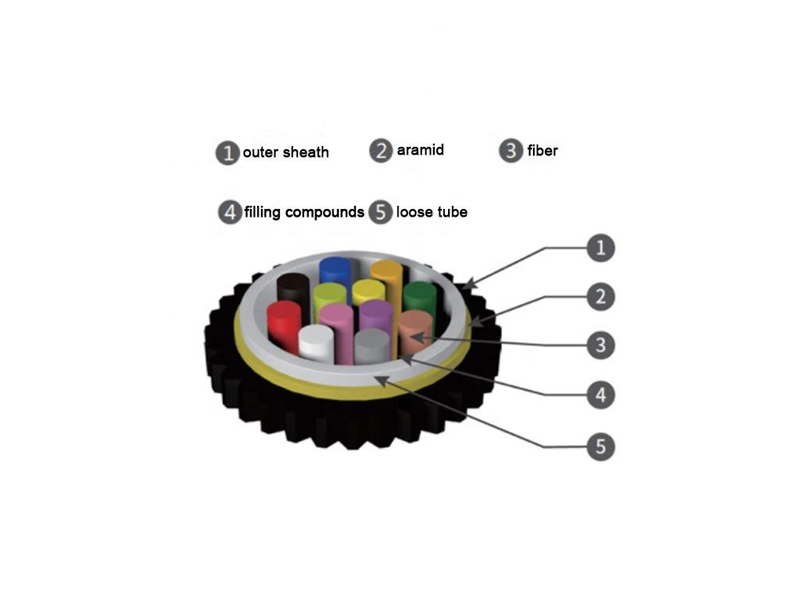

Optical fibres are housed in a loose tube that is made of thermoplastic PBT material with superior performance and filled with tube filing compound. Aramid yarns are placed outside the loose tube as the strength member, then a sheath with Nylon.

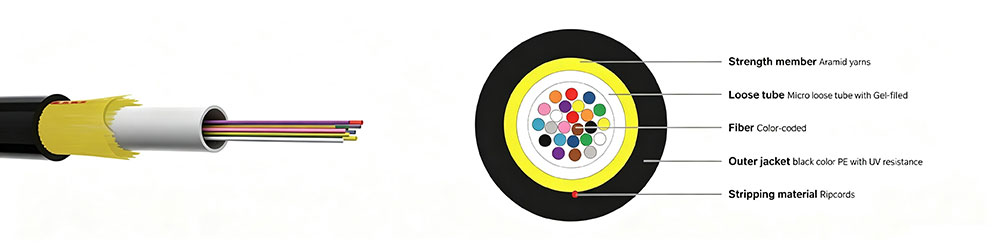

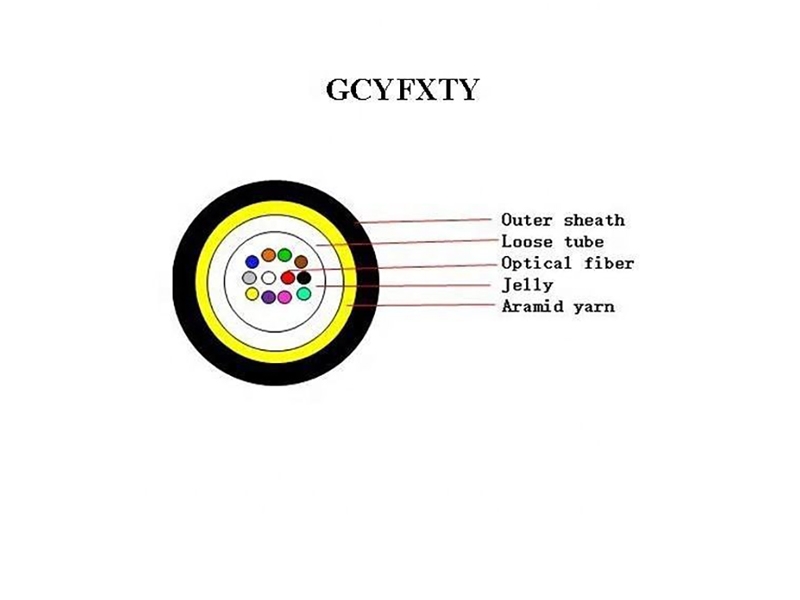

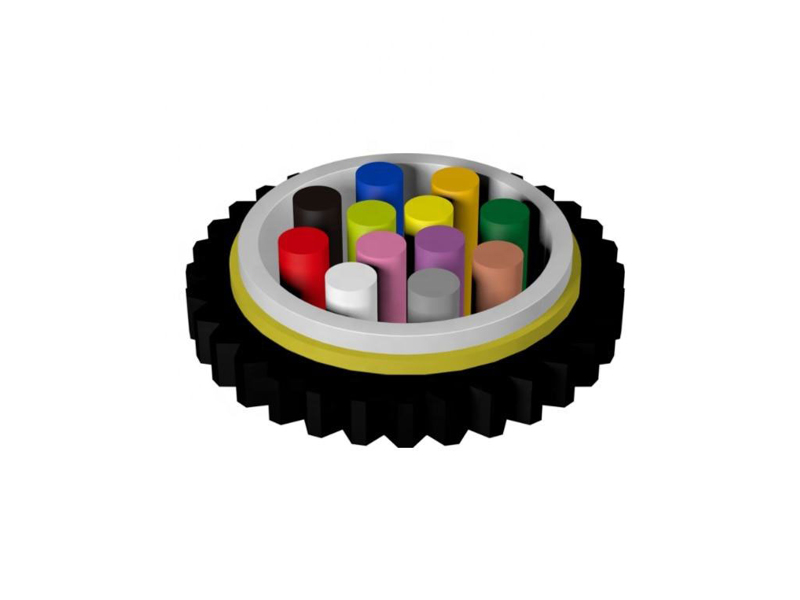

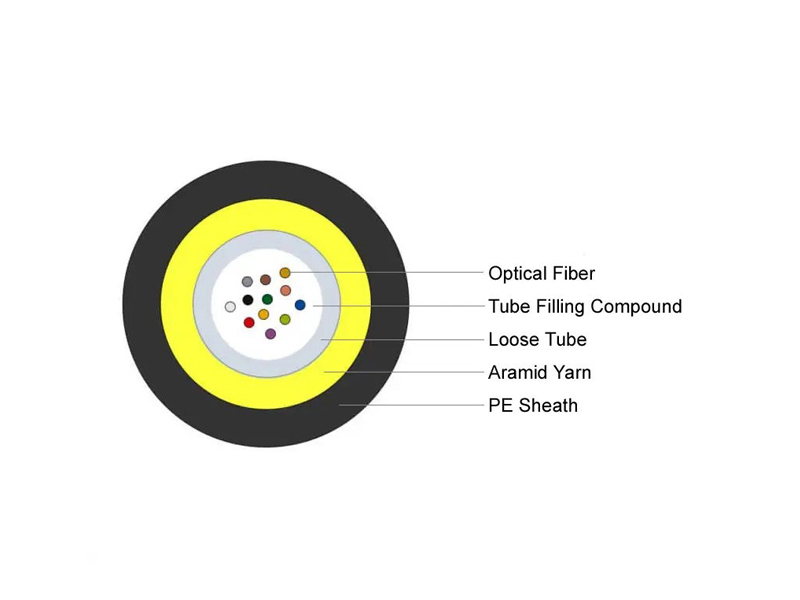

Cable Section:
Application:
Duct
Characteristic:
1. Smooth sheath reduces friction ensuring good air blowing performance
2. Simple structure, easy to strip.
3. Small cable diameter, high flexibility and low cost.
4. Aramid yarn increases tensile strength and is easy to handle.
5. The uniform thickness of the sheath makes it difficult to break when installed at right angles of complex street ducts.
Standards
Comply with standard IEC 60794-1.
Technical Parameters
|
Cable Type |
Cable Diameter (MM) |
Weight (KG/KM) |
Tensile Strength Long/Short Term N |
Crush Resistance Long/Short Term N/100MM |
Bending Radius Static/Dynamic MM |
|||
|
GCYFXTY-2B1.3 |
3 |
8 |
60 |
30 |
300 |
450 |
10D |
20D |
|
GCYFXTY-4B1.3 |
3 |
8 |
60 |
30 |
300 |
450 |
10D |
20D |
|
GCYFXTY-6B1.3 |
3 |
8 |
60 |
30 |
300 |
450 |
10D |
20D |
|
GCYFXTY-8B1.3 |
3 |
8 |
60 |
30 |
300 |
450 |
10D |
20D |
|
GCYFXTY-12B1.3 |
3 |
8 |
60 |
30 |
300 |
450 |
10D |
20D |
|
GCYFXTY-24B1.3 |
3.2 |
8.5 |
60 |
30 |
300 |
450 |
10D |
20D |
