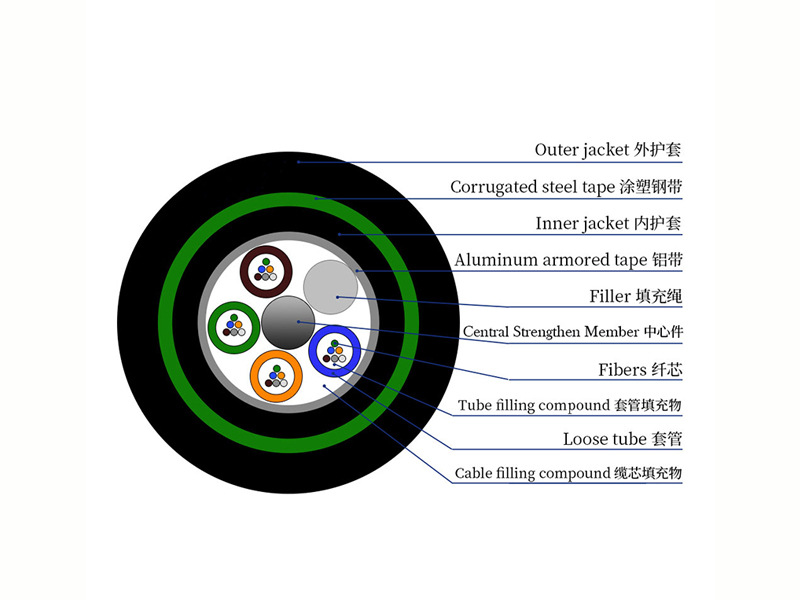

The structure of GYTA53 optical cable is to insert 250 μm optical fiber into a loose sleeve made of high modulus material, and the loose sleeve is filled with waterproof compound. The center of the cable core is a metal reinforced core. For optical cables with certain core numbers, a layer of polyethylene (PE) needs to be squeezed out of the metal reinforced core. The loose sleeve (and filling rope) is twisted around the central reinforcement core to form a compact and round cable core, and the gap in the cable core is filled with water blocking filler. Plastic-coated aluminum tape (APL) is longitudinally wrapped and a layer of polyethylene inner sheath is extruded, and double-sided plastic-coated steel tape (PSP) is longitudinally wrapped and then extruded into polyethylene sheath to form a cable.
GYTA53 Double Armor Double Jackets Direct Buried Fiber Cable
Product Details
Description:

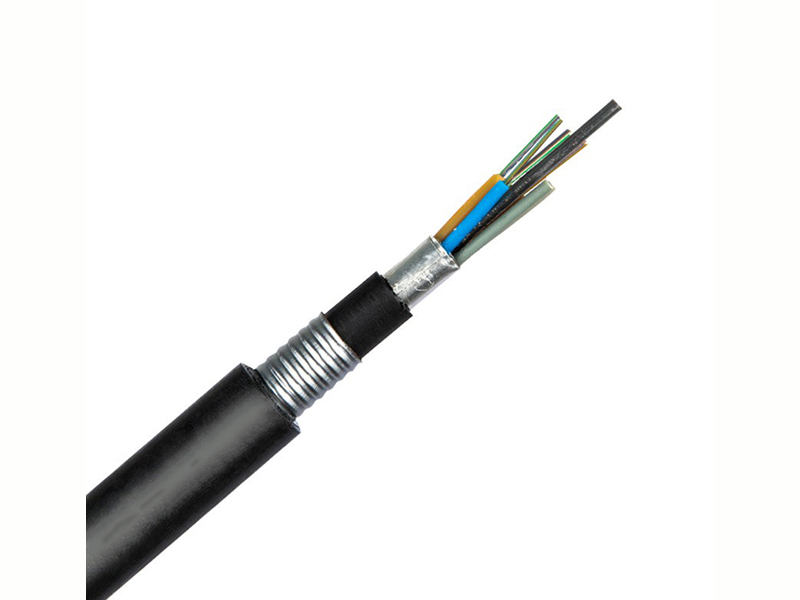

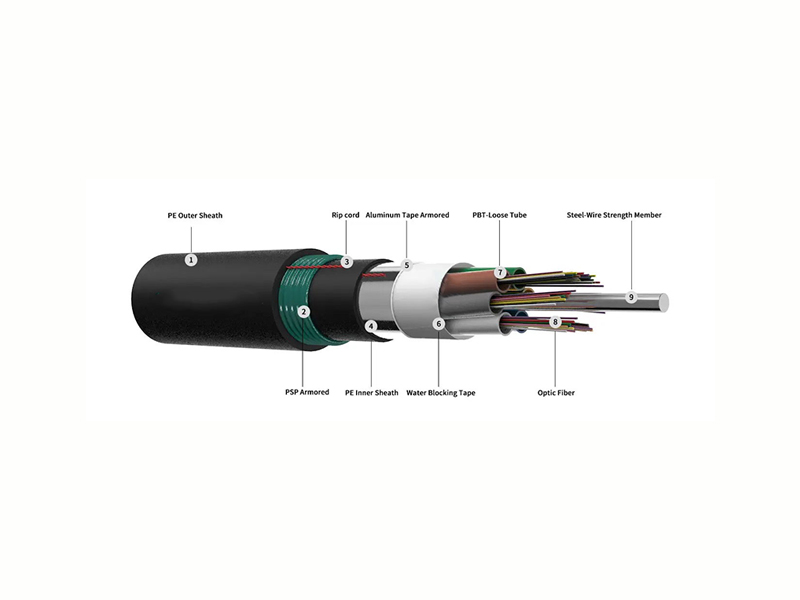

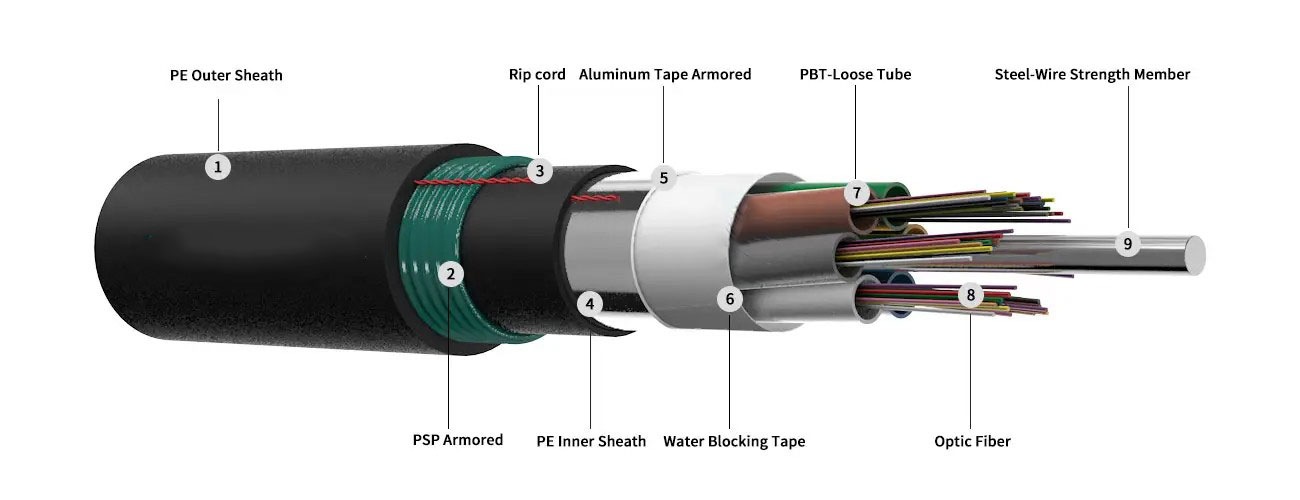

In the GYTA53 cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compund. Tubes and fillers are stranded around the strength member into a circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the core. Which is filled with the filling compound to protect it. Then the cable is completed with a thin PE sheath. After PSP is applied over the inner sheath, the cable is completed with a PE outer sheath.
Application:
Direct Buried
Characteristics:
The following measures are taken to ensure the water blocking performance of the cable
1. Single steel wire/FRP used as the central strength member
2. Special water-blocking filling compound in the loose tube
3. 100% cable core filling, APL and PSP moisture barrier
Standards
Comply with standard YD/T 901-2009 as well as IEC 60794-1.
Technical Parameters
|
Cable Type |
Fiber Count |
Cable Diameter MM |
Cable Weight KG/KM |
Tensile Strength Long/Short Term N |
Crush Resistance Long/Short Term N/100MM |
Bending Radius Static/Dynamic MM |
||
|
GYTA53 2~12 |
2~12 |
12.5 |
160 |
1000 |
3000 |
1000 |
3000 |
10D/20D |
|
GYTA53 14~36 |
14~36 |
12.8 |
165 |
1000 |
3000 |
1000 |
3000 |
10D/20D |
|
GYTA53 38~72 |
38~72 |
13.4 |
185 |
1000 |
3000 |
1000 |
3000 |
10D/20D |
|
GYTA53 74~96 |
74~96 |
14.9 |
220 |
1000 |
3000 |
1000 |
3000 |
10D/20D |
|
GYTA53 122~144 |
122~144 |
17.4 |
290 |
1000 |
3000 |
1000 |
3000 |
10D/20D |
|
GYTA53 146~216 |
146~216 |
17.7 |
300 |
1000 |
3000 |
1000 |
3000 |
10D/20D |
|
Cable Type |
|
Length (M) |
Fiber Count |
Outer Diameter (mm) |
||||
|
|
1000M |
2000M |
3000M |
4000M |
5000M |
|||
|
GYTA53 |
Net Weight (kg) |
200 |
400 |
600 |
800 |
1000 |
2-60 fibers |
13.6mm |
|
Gross Weight (kg) |
230 |
440 |
650 |
860 |
1060 |
|||
|
Reel Size (cm) |
80*70 |
100*70 |
120*70 |
130*80 |
140*80 |
|||
|
Net Weight (kg) |
220 |
440 |
660 |
880 |
1100 |
62-72 fibers |
13.6mm |
|
|
Gross Weight (kg) |
250 |
480 |
720 |
950 |
1150 |
|||
|
Reel Size (cm) |
80*70 |
100*70 |
120*70 |
130*80 |
140*80 |
|||
Above reel size is: diameter * width (cm)
