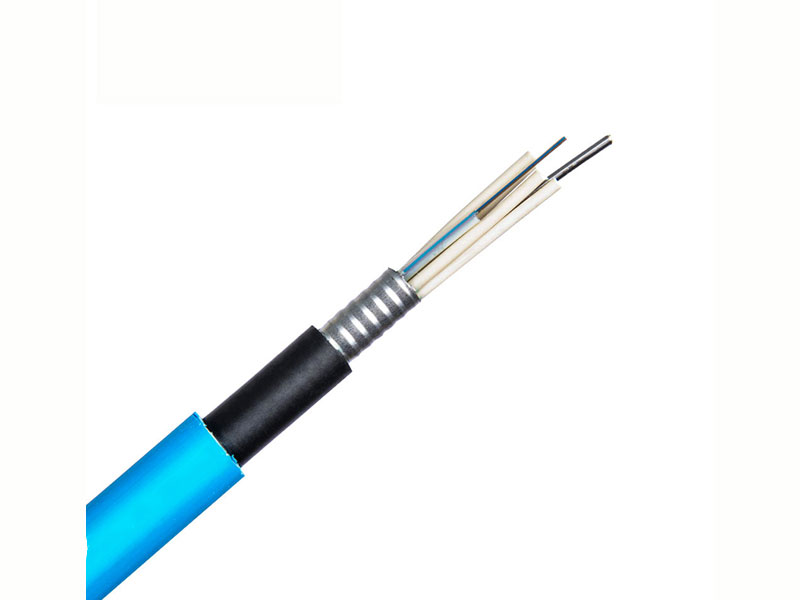

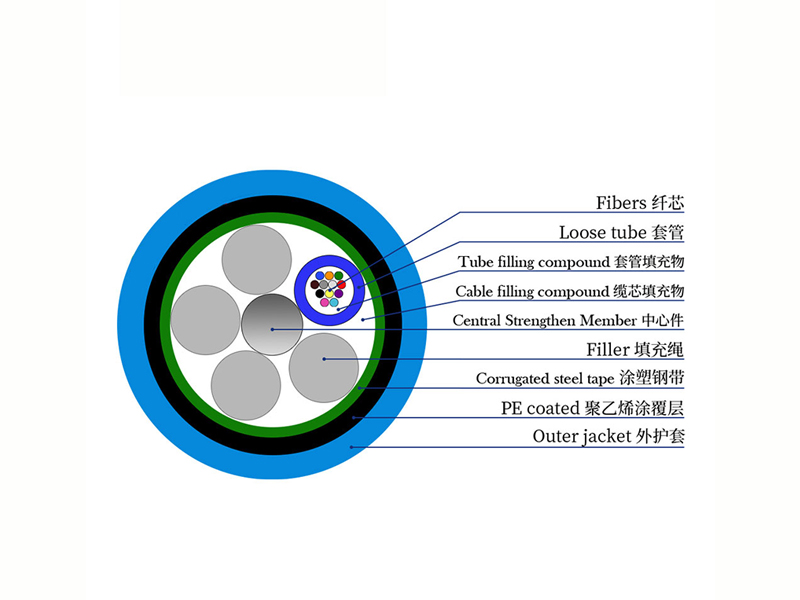

MGTS optical cable is to put 250 & micro; M optical fiber is sleeved into a loose sleeve made of high modulus material, and the loose sleeve is filled with waterproof compound. The center of the cable core is a metal reinforced core. For optical cables with certain core numbers, a layer of polyethylene (PE) needs to be squeezed out of the metal reinforced core. The loose sleeve (and filling rope) is twisted around the central reinforcement core to form a compact and round cable core, and the gap in the cable core is filled with water blocking filler. Double-sided plastic coated steel strip (PSP) is longitudinally wrapped and then squeezed into a flame retardant sheath to form a cable.
All-round Waterproof Protection: Multi-layer, protection including fiber gel filling in loose tubes, full core water blocking and metal armor moisture barrier completely eliminates moisture penetration and longitudinal water seepage, ensuring long-term stable operation in humid environments.
Product application
• Piercing
• Overhead
• Halogen-free flame retardant occasion
Product characteristics
• Has good mechanical properties and temperature characteristics.
• The loose sleeve material itself has good hydrolysis resistance and high strength.
• The pipe is filled with special ointment to protect the optical fiber critically.
• Specially designed tight optical cable structure effectively prevents sleeve retraction
• Good compression resistance and softness
• Special sheath materials have excellent flame retardant properties
• The following measures are adopted to ensure the waterproof performance of optical cables:
-Single steel wire center reinforcement core
-Loose sleeve filled with special waterproof compound
-Full core filling
-Double-sided plastic coated steel strip (PSP) improves moisture permeability of optical cables
Cable parameters
| Fiber Model | Tube No. | Max. fibers per tube | Cable OD. mm |
Weight kg/km |
Tensile resistance Long/short term N |
Crush resistance Long/short term N/100mm |
| MGTSV-2 ~ 36Xn | 6 | 12 | 10.0 | 95 | 800/2000 | 400/1000 |
| MGTSV-48 ~ 60Xn | 6 | 12 | 10.0 | 105 | 800/2000 | 400/1000 |
| MGTSV-64 ~ 72Xn | 6 | 12 | 12.0 | 120 | 1000/3000 | 600/2000 |
| MGTSV-96Xn | 8 | 12 | 13.5 | 140 | 1000/3000 | 600/2000 |
| MGTSV-122 ~ 144Xn | 12 | 12 | 16.5 | 240 | 1000/3000 | 600/2000 |
