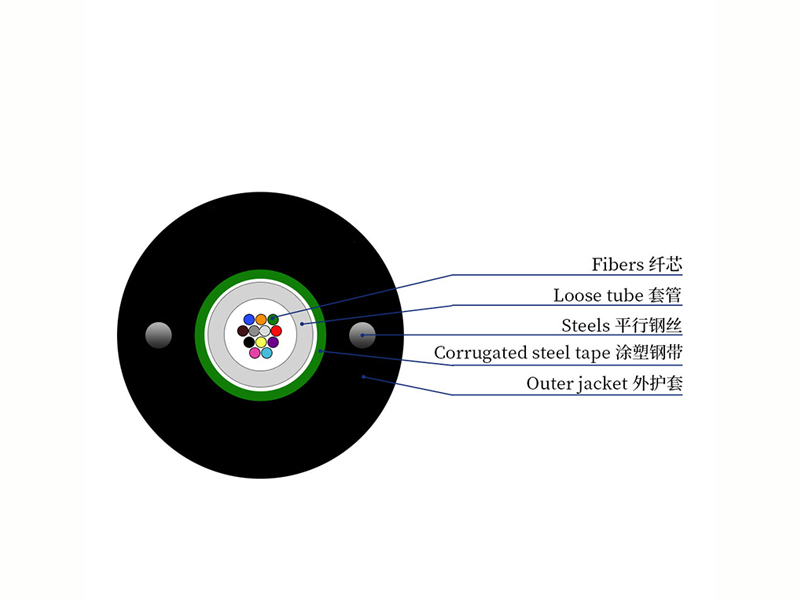

GYXTW optical cable is to insert 250 μm optical fiber into a loose sleeve made of high modulus material, and the loose sleeve is filled with waterproof compound. The loose sleeve is externally coated with a layer of double-sided plastic coated steel strip (PSP). Water blocking material is added between the steel strip and the loose sleeve to ensure the compactness and longitudinal water blocking of the optical cable. Two parallel steel wires are placed on both sides and then the polyethylene sheath is extruded to form a cable.

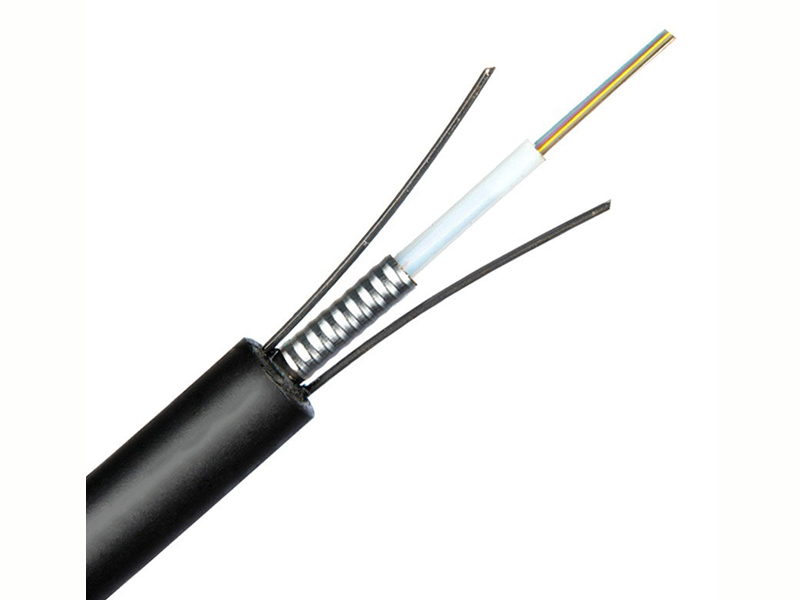

GYXTW Light-armored Duct Fiber Optic Cable
Product Details

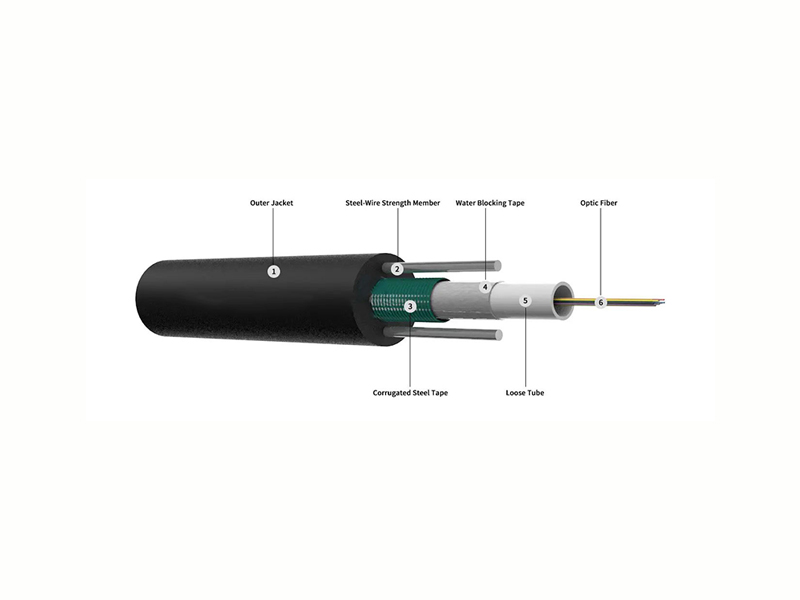

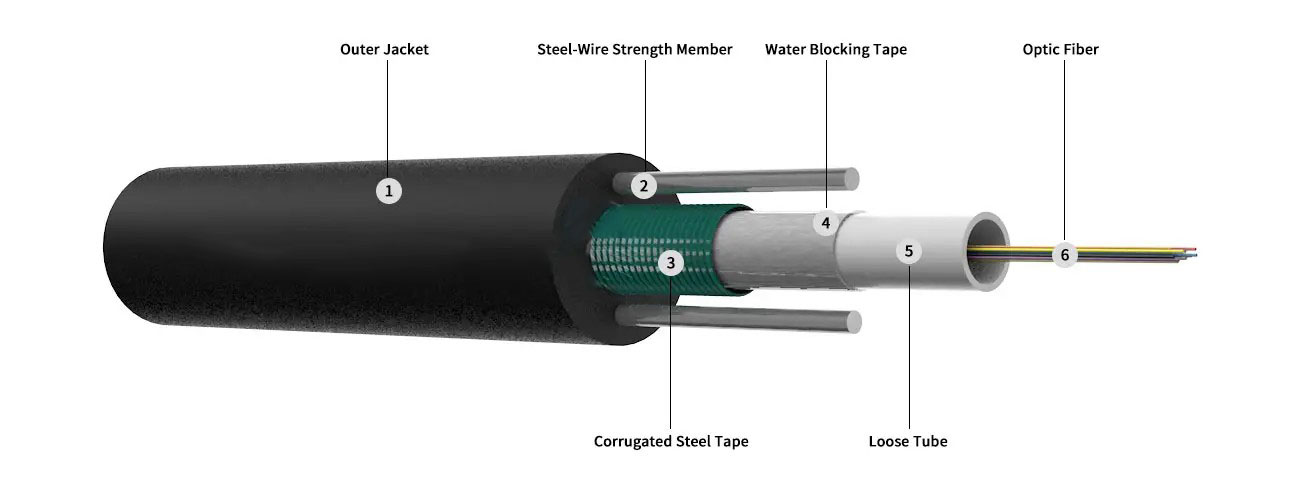

In the GYXTW cable, single-mode/multi-mode fibers are positioned in the loose tube. PSP is longitudinally applied around the loose tube.
Two parallel steel wires are placed at both sides of the cable core while PE sheath is extruded over it.

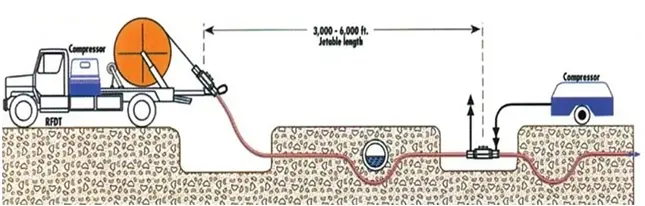

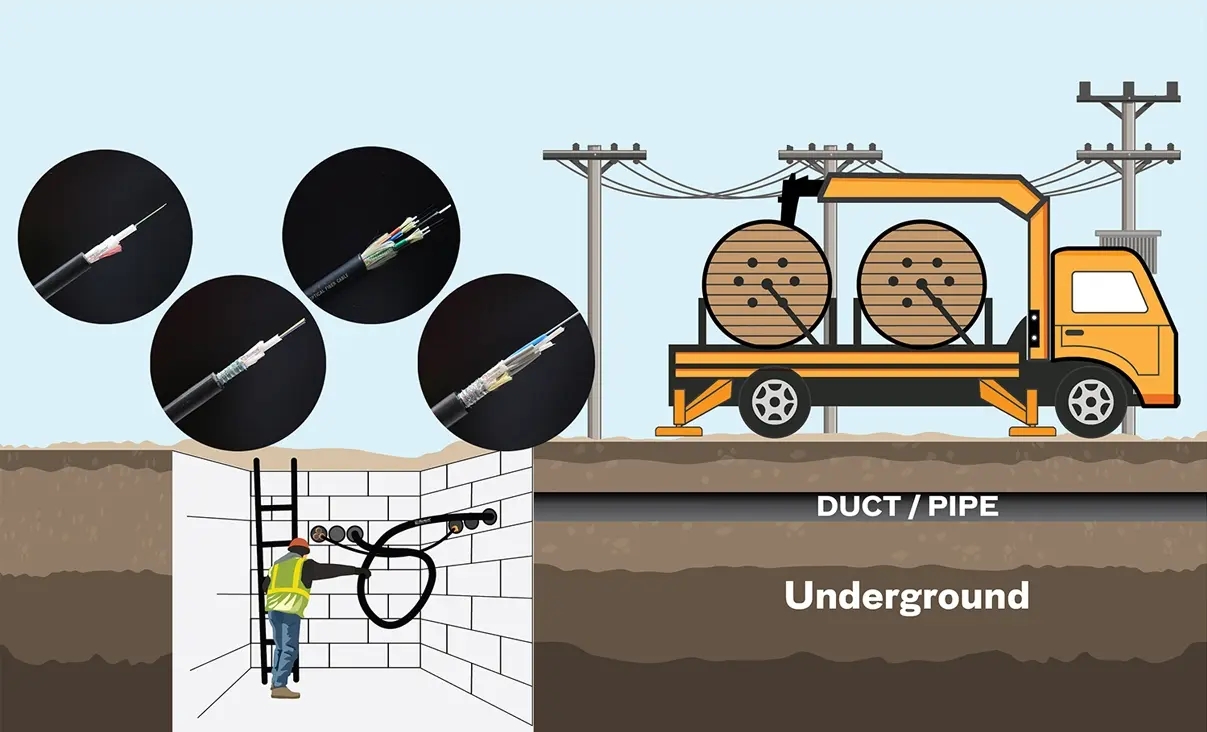

Aerial/Duct
1. Excellent mechanical and temperature performance
2. Critical protection to fibers, based on the excellent hydrolysis resistance
3. Excellent crush resistance and flexibility
4. PSP enhances the cable crush-resistance, impact-resistance and moisture-proof
5. Two parallel steel wires ensure tensile strength
6. Excellent ultraviolet prevention with PE sheath, small diameter, light weight and installation friendliness
Comply with standard IEEE 1222-2004 as well as IEC 60794-1.
|
Cable Type |
Fiber Count | Cable Diameter MM | Cable Weight KG/KM |
Tensile Strength Long/Short Term N |
Crush Resistance Long/ShortTerm N/100MM |
Bending Radius Static/Dynamic MM | ||
| GYXTW 2~12 | 2~12 | 7.8~8.0 | 78 | 600 | 1500 | 300 | 1000 | 10D/20D |
| Cable Type | Length (M) | Fiber Count | Outer Diameter (mm) | |||||
| 1000M | 2000M | 3000M | 4000M | 5000M | ||||
| GYXTW | Net Weight (kg) | 75 | 150 | 225 | 300 | 375 | 2-12 fibers | 9.0mm |
| Gross Weight (kg) | 90 | 175 | 260 | 340 | 425 | |||
| Reel Size (cm) | 60*60 | 80*70 | 90*70 | 100*70 | 110*70 | |||
Above reel size is: diameter * width (cm)
YOUR VACATION IS HERE
Prepare your network for seamless 5G deployment. Get direct access to factory pricing, custom OEM/0DM solutions, and rapid prototyping,
Let's Build Your Optical Network, Kindly have a chat with our sales experts!
Get A Free Quote
Related Products
GYXTW Light-armored Duct Center bundle tube Outdoor optical cable
Central tube construction, jelly compound filled, water blocking tape and steel tape, then PE outer sheath incorporated with two steel wire strength elements.
View More

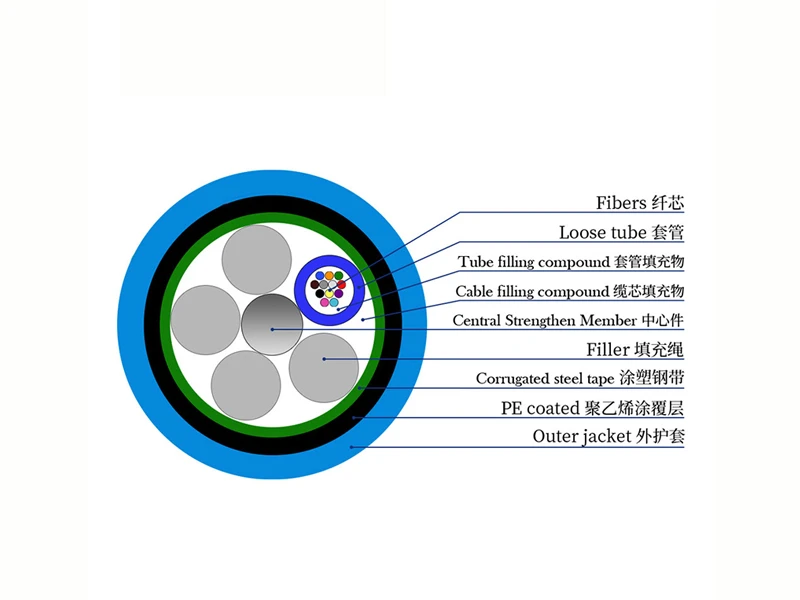

MGTS Flame Retardant Optical Cable for Mine
Excellent Mechanical Performance: With precisely controlled fiber excess length, it delivers outstanding tensile resistance and temperature stability. The armor layer resists side pressure, rodent biting and external damage, adapting to complex construction and wild environments.
View More

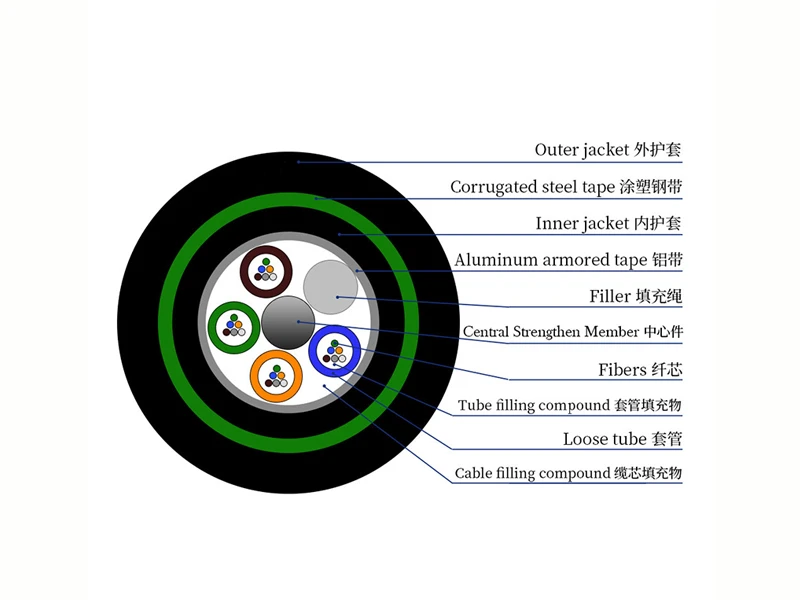

GYTA53 Double Armor Double Jackets Direct Buried Fiber Cable
