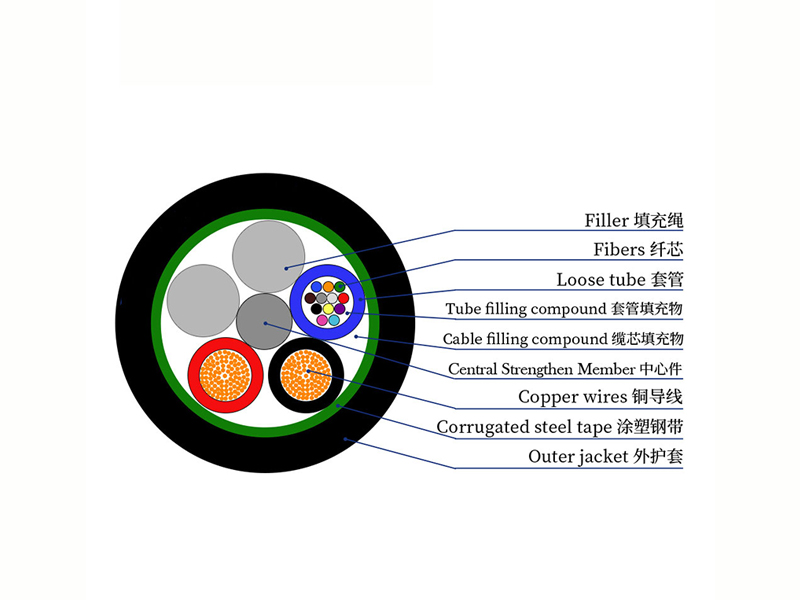

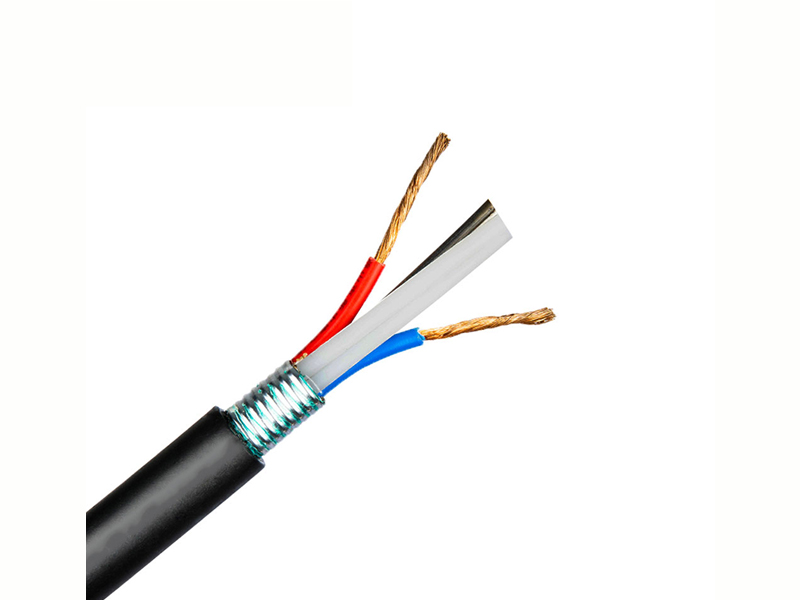

GDTS photoelectric hybrid cable is to put single-mode or multi-mode optical fiber into a loose sleeve made of high modulus polyester material, and the sleeve is filled with waterproof compound. The center of the cable core is a metal reinforced core. For optical cables with certain cores, a layer of polyethylene needs to be squeezed out of the metal reinforced core. The loose sleeve and the insulated copper wire of the required specification are twisted around the central reinforced core to form a compact circular cable core, and the gap in the cable core is filled with water blocking filler. Double-sided chrome-plated plastic-coated steel strip (PSP) is rolled and longitudinally wrapped and then extruded into a polyethylene sheath to form a cable.
Product application
• Overhead
• Pipeline
• Direct Buried
Product characteristics
• photoelectric integration solves the problems of equipment power consumption and signal transmission, and provides centralized monitoring and maintenance of equipment power supply.
• Improve the manageability of power supply and reduce power supply coordination and maintenance.
• Reduce procurement costs and save construction costs.
• The precise control of the fiber length ensures that the fiber optic cable has good tensile performance and temperature characteristics.
• Mainly used in distributed base station DC remote supply system, connecting BBU and RRU
• Suitable for pipeline or overhead laying
Cable parameters
| Fiber Model | Tube No. | Max. fibers per tube | Cable OD. mm |
Weight kg/km |
Tensile resistance Long/short term N |
Crush resistance Long/short term N/100mm |
| GDTS-2-24Xn+2*1.5 | 4 | 12 | 10.5 | 160 | 600/1500 | 300/1000 |
| GDTS-2-24Xn+2*2.5 | 4 | 12 | 11.2 | 200 | 600/1500 | 300/1000 |
| GDTS-2-24Xn+2*4.0 | 4 | 12 | 12.5 | 240 | 600/1500 | 300/1000 |
