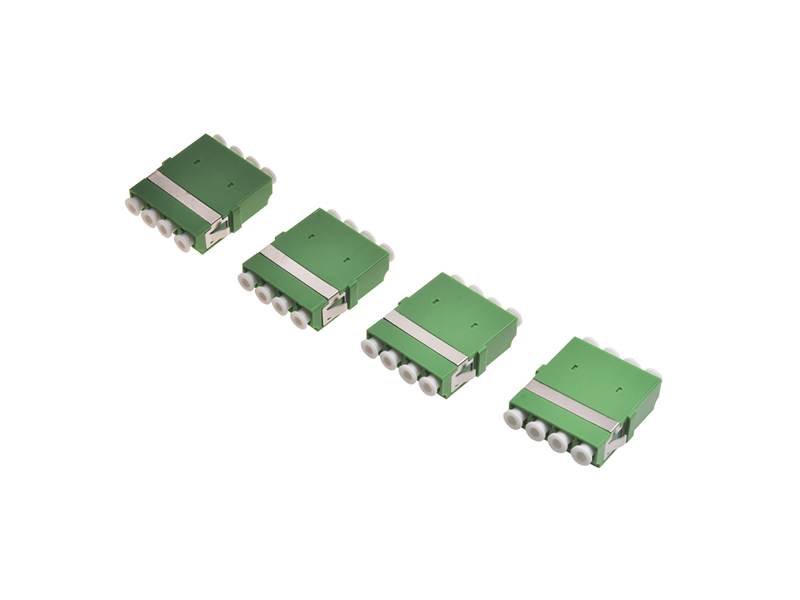

This LC APC SM quadruple high-low type fiber optic adapter is designed for reliable singlemode fiber connections in compact and high-density network environments. The green housing identifies APC singlemode applications, while the quad high-low structure supports multiple fiber channels in limited installation space. With optional Japanese ceramic, Chinese ceramic, and P.B sleeves, it delivers low insertion loss, stable durability, and precise fiber alignment. It is ideal for FTTH networks, optical distribution frames, telecom cabinets, data centers, and fiber patch panels.
| Feature | Description |
|---|---|
| LC Interface | Compact connector design for high-density fiber optic installations |
| APC Singlemode | Green housing identifies APC singlemode fiber applications |
| Quad High-Low Structure | Supports four-fiber connection in a compact high-low adapter layout |
| Low Insertion Loss | Helps maintain stable optical signal transmission with minimal loss |
| Multiple Sleeve Options | Available with Japanese ceramic, Chinese ceramic, or P.B sleeve |
| Customizable Options | Sleeve grade, housing color, and configuration can be customized |
| Optical Parameter | With Japanese Ceramic Sleeve | With Chinese Ceramic Sleeve | With P.B Sleeve |
|---|---|---|---|
| Insertion Loss | <0.10dB | <0.20dB | <0.30dB |
| Durability | <0.10dB typical change after 1,000 mating cycles | <0.20dB typical change after 1,000 mating cycles | <0.30dB typical change after 500 mating cycles |
| Operating Temperature | -20℃ to +75℃ | -20℃ to +75℃ | -20℃ to +75℃ |
| Storage Temperature | -40℃ to +85℃ | -40℃ to +85℃ | -40℃ to +85℃ |
| Code | Item | Option |
|---|---|---|
| ① | Adapter Type | LC = LC |
| ② | Fiber Mode | APC SM = Singlemode APC |
| ③ | Sleeve Type | C = Ceramic; P = P.B |
| ④ | Fiber Configuration | Q = Quad |
| ⑤ | Housing Color | Green |
| ⑥ | Sleeve Grade | P = Premium Japanese; A = A Grade Chinese Sleeve; B = B Grade Chinese Sleeve; C = P.B Sleeve |
