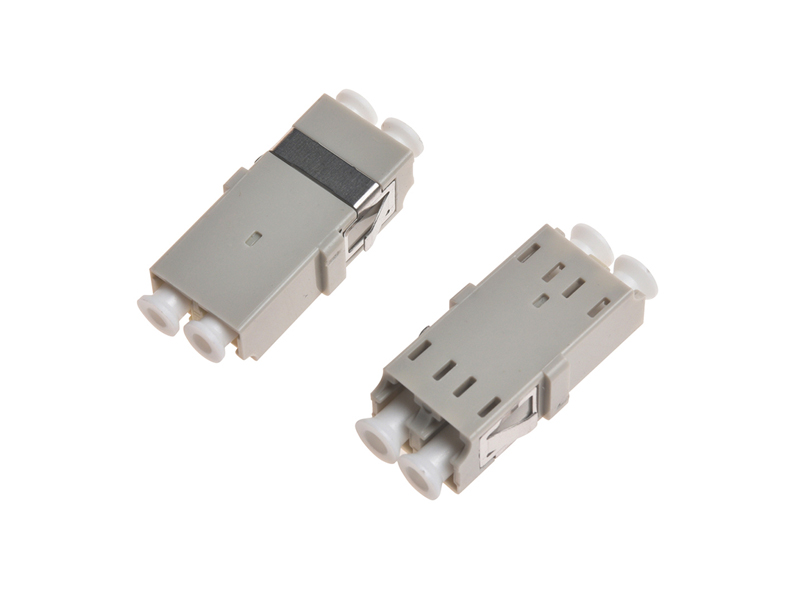

The LC MM DX fiber optic adapter provides precise alignment for reliable multimode duplex connections. It supports Japanese ceramic, Chinese ceramic, and P.B sleeves, delivering insertion loss as low as 0.10dB. Its compact gray-beige housing accommodates two fiber channels and operates reliably from -20℃ to +75℃. Ideal for data centers, LANs, patch panels, ODFs, equipment rooms, and multimode fiber distribution systems.
| Feature | Description |
|---|---|
| LC Interface | Provides stable connections between LC multimode fiber connectors |
| Multimode Application | Suitable for high-bandwidth, short-distance optical networks |
| Duplex Structure | Connects two fiber channels within one compact adapter |
| Low Insertion Loss | Reduces optical power loss for efficient signal transmission |
| Multiple Sleeve Options | Available with Japanese ceramic, Chinese ceramic, or P.B sleeves |
| Compact Housing | Supports high-density installation in panels and fiber enclosures |
| Optical Parameter | With Japanese Ceramic Sleeve | With Chinese Ceramic Sleeve | With P.B Sleeve |
|---|---|---|---|
| Insertion Loss | <0.10dB | <0.20dB | <0.30dB |
| Durability | <0.10dB typical change after 1,000 mating cycles | <0.20dB typical change after 1,000 mating cycles | <0.30dB typical change after 500 mating cycles |
| Operating Temperature | -20℃ to +75℃ | -20℃ to +75℃ | -20℃ to +75℃ |
| Storage Temperature | -40℃ to +85℃ | -40℃ to +85℃ | -40℃ to +85℃ |
| Code Position | Category | Available Options |
|---|---|---|
| ① | Adapter Type | LC = LC |
| ② | Fiber Mode | MM = Multimode |
| ③ | Sleeve Type | C = Ceramic; P = P.B |
| ④ | Fiber Configuration | D = Duplex |
| ⑤ | Housing Color | Gray/Beige |
| ⑥ | Sleeve Grade | P = Premium Japanese; A = A Grade Chinese Sleeve; B = B Grade Chinese Sleeve; C = P.B Sleeve |
