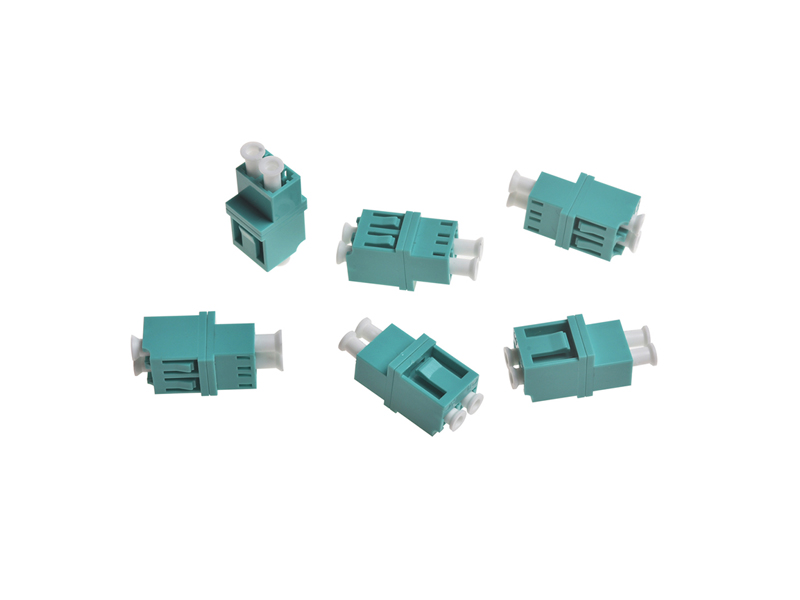

This LC OM3 fiber optic adapter is designed for reliable multimode fiber connections in high-density optical networks. With precision sleeve options including Japanese ceramic, Chinese ceramic, and P.B sleeve, it provides low insertion loss, stable durability, and consistent alignment performance. The aqua housing identifies OM3 multimode applications, making it suitable for data centers, telecom rooms, fiber distribution panels, and LAN cabling systems. Custom sleeve grades and housing options are available to meet different project requirements.
| Feature | Description |
|---|---|
| LC Interface | Compact design for high-density fiber optic network applications |
| OM3 Multimode | Aqua housing identifies OM3 multimode fiber applications |
| Duplex Structure | Supports two-fiber connection for efficient optical transmission |
| Low Insertion Loss | Ensures stable optical signal transmission with minimal loss |
| Multiple Sleeve Options | Available with Japanese ceramic, Chinese ceramic, or P.B sleeve |
| Customizable Options | Housing color, sleeve type, and sleeve grade can be customized |
| Optical Parameter | With Japanese Ceramic Sleeve | With Chinese Ceramic Sleeve | With P.B Sleeve |
|---|---|---|---|
| Insertion Loss | <0.10dB | <0.20dB | <0.30dB |
| Durability | <0.10dB typical change after 1,000 mating cycles | <0.20dB typical change after 1,000 mating cycles | <0.30dB typical change after 500 mating cycles |
| Operating Temperature | -20℃ to +75℃ | -20℃ to +75℃ | -20℃ to +75℃ |
| Storage Temperature | -40℃ to +85℃ | -40℃ to +85℃ | -40℃ to +85℃ |
| Code | Item | Option |
|---|---|---|
| ① | Adapter Type | LC = LC |
| ② | Fiber Mode | OM3 = Multimode |
| ③ | Sleeve Type | C = Ceramic; P = P.B |
| ④ | Fiber Configuration | D = Duplex |
| ⑤ | Housing Color | Aqua |
| ⑥ | Sleeve Grade | P = Premium Japanese; A = A Grade Chinese Sleeve; B = B Grade Chinese Sleeve; C = P.B Sleeve |
