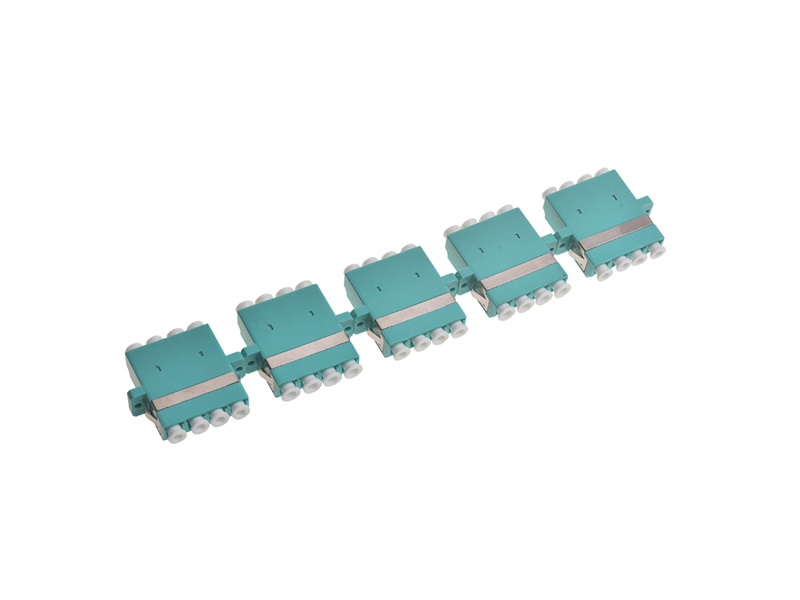

This LC OM3 quad fiber optic adapter is designed for stable multimode fiber connections in high-density optical network systems. The aqua housing identifies OM3 multimode applications, while the quad structure supports four-fiber connectivity in a compact adapter body. With optional Japanese ceramic, Chinese ceramic, and P.B sleeves, it provides low insertion loss, reliable durability, and precise fiber alignment. It is suitable for data centers, FTTH networks, telecom rooms, optical distribution frames, and fiber patch panels.
| Feature | Description |
|---|---|
| LC Interface | Compact connector design for high-density fiber optic installations |
| OM3 Multimode | Aqua housing identifies OM3 multimode fiber applications |
| Quad Structure | Supports four-fiber connection in one compact adapter body |
| Low Insertion Loss | Helps maintain stable optical signal transmission with minimal loss |
| Multiple Sleeve Options | Available with Japanese ceramic, Chinese ceramic, or P.B sleeve |
| Customizable Options | Sleeve grade, housing color, and configuration can be customized |
| Optical Parameter | With Japanese Ceramic Sleeve | With Chinese Ceramic Sleeve | With P.B Sleeve |
|---|---|---|---|
| Insertion Loss | <0.10dB | <0.20dB | <0.30dB |
| Durability | <0.10dB typical change after 1,000 mating cycles | <0.20dB typical change after 1,000 mating cycles | <0.30dB typical change after 500 mating cycles |
| Operating Temperature | -20℃ to +75℃ | -20℃ to +75℃ | -20℃ to +75℃ |
| Storage Temperature | -40℃ to +85℃ | -40℃ to +85℃ | -40℃ to +85℃ |
| Code | Item | Option |
|---|---|---|
| ① | Adapter Type | LC = LC |
| ② | Fiber Mode | OM3 = Multimode |
| ③ | Sleeve Type | C = Ceramic; P = P.B |
| ④ | Fiber Configuration | Q = Quad |
| ⑤ | Housing Color | Aqua |
| ⑥ | Sleeve Grade | P = Premium Japanese; A = A Grade Chinese Sleeve; B = B Grade Chinese Sleeve; C = P.B Sleeve |
