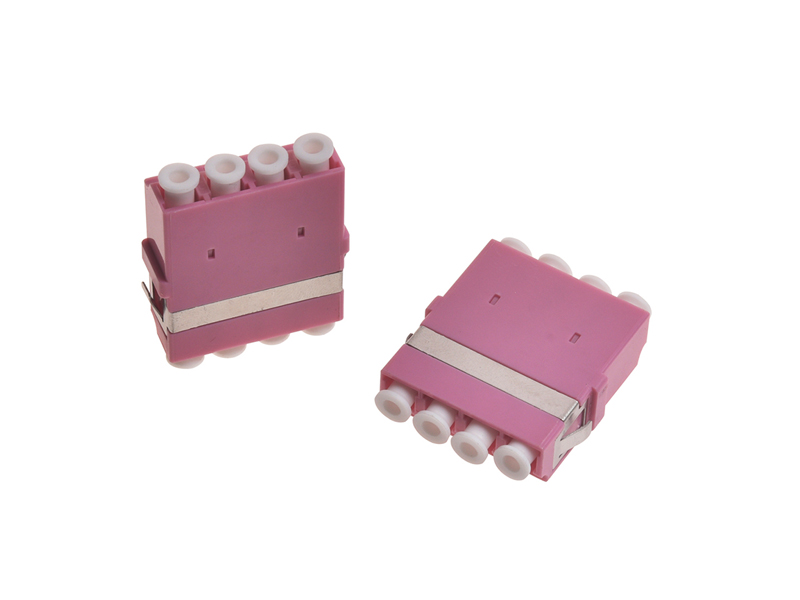

This LC OM4 quad fiber optic adapter is designed for high-density multimode fiber connections in modern optical network systems. The magenta housing identifies OM4 multimode applications, while the quad structure supports four-fiber connectivity in a compact adapter body. With optional Japanese ceramic, Chinese ceramic, and P.B sleeves, it offers low insertion loss, stable durability, and accurate fiber alignment. It is suitable for data centers, FTTH networks, telecom equipment rooms, optical distribution frames, and fiber patch panels.
| Feature | Description |
|---|---|
| LC Interface | Compact connector design for high-density fiber optic installations |
| OM4 Multimode | Magenta housing identifies OM4 multimode fiber applications |
| Quad Structure | Supports four-fiber connection in one compact adapter body |
| Low Insertion Loss | Helps maintain stable optical signal transmission with minimal loss |
| Multiple Sleeve Options | Available with Japanese ceramic, Chinese ceramic, or P.B sleeve |
| Customizable Options | Sleeve grade, housing color, and configuration can be customized |
| Optical Parameter | With Japanese Ceramic Sleeve | With Chinese Ceramic Sleeve | With P.B Sleeve |
|---|---|---|---|
| Insertion Loss | <0.10dB | <0.20dB | <0.30dB |
| Durability | <0.10dB typical change after 1,000 mating cycles | <0.20dB typical change after 1,000 mating cycles | <0.30dB typical change after 500 mating cycles |
| Operating Temperature | -20℃ to +75℃ | -20℃ to +75℃ | -20℃ to +75℃ |
| Storage Temperature | -40℃ to +85℃ | -40℃ to +85℃ | -40℃ to +85℃ |
| Code | Item | Option |
|---|---|---|
| ① | Adapter Type | LC = LC |
| ② | Fiber Mode | OM4 = Multimode |
| ③ | Sleeve Type | C = Ceramic; P = P.B |
| ④ | Fiber Configuration | Q = Quad |
| ⑤ | Housing Color | Magenta |
| ⑥ | Sleeve Grade | P = Premium Japanese; A = A Grade Chinese Sleeve; B = B Grade Chinese Sleeve; C = P.B Sleeve |
