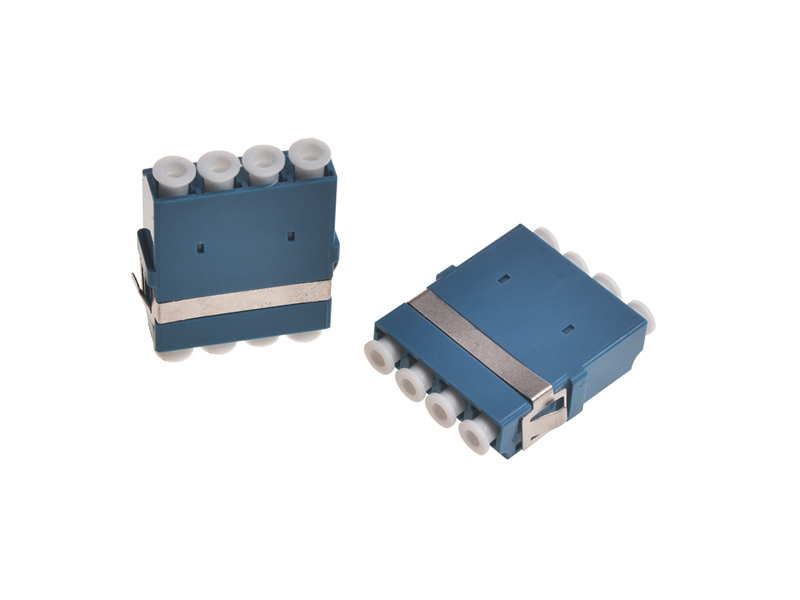

This LC UPC SM quad fiber optic adapter is designed for high-density singlemode fiber connections where stable alignment and compact installation are required. The blue housing identifies UPC singlemode applications, while the quad structure supports four-fiber connectivity in one adapter body. With Japanese ceramic, Chinese ceramic, and P.B sleeve options, it provides low insertion loss, reliable durability, and consistent optical performance. It is suitable for FTTH networks, data centers, optical distribution frames, telecom cabinets, and fiber patch panels.
| Feature | Description |
|---|---|
| LC Interface | Compact design for high-density fiber optic network applications |
| UPC Singlemode | Blue housing identifies UPC singlemode fiber applications |
| Quad Structure | Supports four-fiber connection in one compact adapter body |
| Low Insertion Loss | Ensures stable optical signal transmission with minimal loss |
| Multiple Sleeve Options | Available with Japanese ceramic, Chinese ceramic, or P.B sleeve |
| Customizable Options | Sleeve grade, housing color, and configuration can be customized |
| Optical Parameter | With Japanese Ceramic Sleeve | With Chinese Ceramic Sleeve | With P.B Sleeve |
|---|---|---|---|
| Insertion Loss | <0.10dB | <0.20dB | <0.30dB |
| Durability | <0.10dB typical change after 1,000 mating cycles | <0.20dB typical change after 1,000 mating cycles | <0.30dB typical change after 500 mating cycles |
| Operating Temperature | -20℃ to +75℃ | -20℃ to +75℃ | -20℃ to +75℃ |
| Storage Temperature | -40℃ to +85℃ | -40℃ to +85℃ | -40℃ to +85℃ |
| Code | Item | Option |
|---|---|---|
| ① | Adapter Type | LC = LC |
| ② | Fiber Mode | UPC SM = Singlemode UPC |
| ③ | Sleeve Type | C = Ceramic; P = P.B |
| ④ | Fiber Configuration | Q = Quad |
| ⑤ | Housing Color | Blue |
| ⑥ | Sleeve Grade | P = Premium Japanese; A = A Grade Chinese Sleeve; B = B Grade Chinese Sleeve; C = P.B Sleeve |
