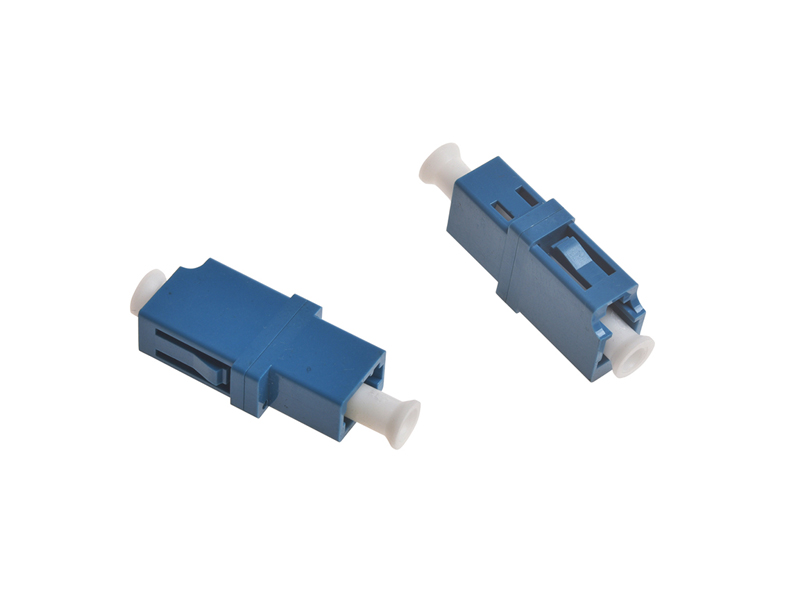

The LC UPC SM SX fiber optic adapter provides precise alignment for reliable singlemode simplex connections. It supports Japanese ceramic, Chinese ceramic, and P.B sleeves, achieving insertion loss as low as 0.10dB. Its compact blue housing enables quick UPC identification and high-density installation while operating reliably from -20℃ to +75℃. Ideal for FTTH networks, data centers, patch panels, ODFs, telecom equipment, and fiber distribution systems.
| Feature | Description |
|---|---|
| LC UPC Interface | Provides stable connections between LC UPC fiber connectors |
| Singlemode Application | Designed for reliable long-distance optical transmission |
| Simplex Structure | Supports one fiber channel in a compact adapter body |
| Low Insertion Loss | Minimizes optical power loss for efficient signal transmission |
| Multiple Sleeve Options | Available with Japanese ceramic, Chinese ceramic, or P.B sleeves |
| Compact Housing | Suitable for high-density patch panels and fiber enclosures |
| Optical Parameter | With Japanese Ceramic Sleeve | With Chinese Ceramic Sleeve | With P.B Sleeve |
|---|---|---|---|
| Insertion Loss | <0.10dB | <0.20dB | <0.30dB |
| Durability | <0.10dB typical change after 1,000 mating cycles | <0.20dB typical change after 1,000 mating cycles | <0.30dB typical change after 500 mating cycles |
| Operating Temperature | -20℃ to +75℃ | -20℃ to +75℃ | -20℃ to +75℃ |
| Storage Temperature | -40℃ to +85℃ | -40℃ to +85℃ | -40℃ to +85℃ |
| Code Position | Category | Available Options |
|---|---|---|
| ① | Adapter Type | FC = FC; SC = SC; ST = ST; LC = LC; MT = MTRJ |
| ② | Connector Finish | P = PC/UPC; A = APC |
| ③ | Sleeve Type | C = Ceramic; P = P.B |
| ④ | Fiber Core | S = Simplex; D = Duplex; Q = Quad |
| ⑤ | Housing Color | W = White/Beige; B = Blue; G = Green; M = Metal |
| ⑥ | Sleeve Grade | P = Premium Japanese; A = A Grade Chinese Sleeve; B = B Grade Chinese Sleeve; C = P.B Sleeve |
