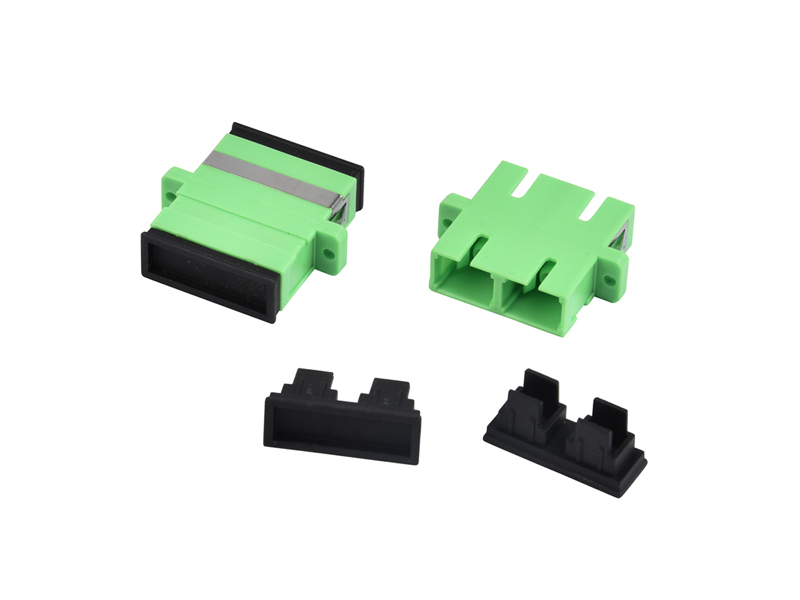

The SC APC DX fiber optic adapter provides precise duplex alignment for reliable singlemode fiber connections. It supports Japanese ceramic, Chinese ceramic, and P.B sleeves, offering insertion loss as low as 0.10dB. The durable green housing enables quick APC identification and stable operation from -20℃ to +75℃. Ideal for FTTH networks, patch panels, ODFs, wall boxes, telecom systems, and fiber distribution equipment.
| Feature | Description |
|---|---|
| SC APC Interface | Designed for stable SC APC singlemode fiber connections |
| Duplex Structure | Connects two fiber channels within one compact adapter |
| Low Insertion Loss | Supports efficient optical signal transmission with minimal loss |
| Multiple Sleeve Options | Available with Japanese ceramic, Chinese ceramic, or P.B sleeves |
| High Durability | Maintains reliable performance through repeated connection cycles |
| Green APC Housing | Provides quick identification in fiber distribution systems |
| Optical Parameter | With Japanese Ceramic Sleeve | With Chinese Ceramic Sleeve | With P.B Sleeve |
|---|---|---|---|
| Insertion Loss | <0.10dB | <0.20dB | <0.30dB |
| Durability | <0.10dB typical change after 1,000 mating cycles | <0.20dB typical change after 1,000 mating cycles | <0.30dB typical change after 500 mating cycles |
| Operating Temperature | -20℃ to +75℃ | -20℃ to +75℃ | -20℃ to +75℃ |
| Storage Temperature | -40℃ to +85℃ | -40℃ to +85℃ | -40℃ to +85℃ |
| Code Position | Category | Available Options |
|---|---|---|
| ① | Adapter Type |
FC = FC; SC = SC; ST = ST; MT = MTRJ |
| ② | Connector Finish | P = PC; A = APC |
| ③ | Sleeve Type | C = Ceramic; P = P.B |
| ④ | Fiber Core | S = Simplex; D = Duplex; Q = Quad |
| ⑤ | Housing Color | W = White/Beige; B = Blue; G = Green; M = Metal |
| ⑥ | Sleeve Grade | P = Premium Japanese; A = A Grade Chinese Sleeve; B = B Grade Chinese Sleeve; C = P.B Sleeve |
