Product Overview

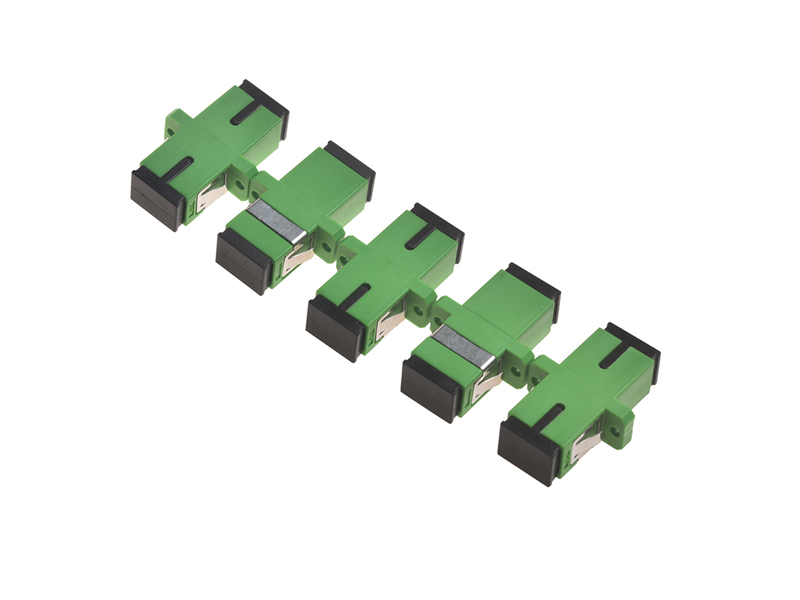

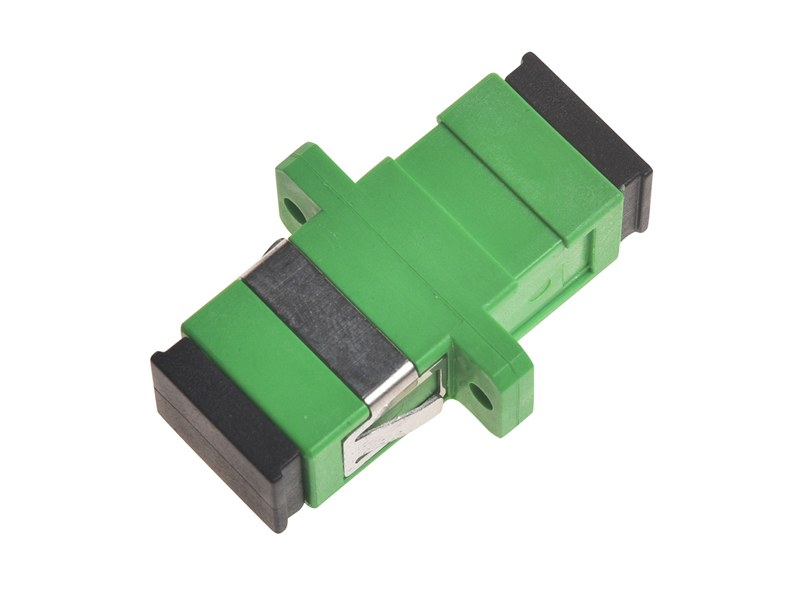

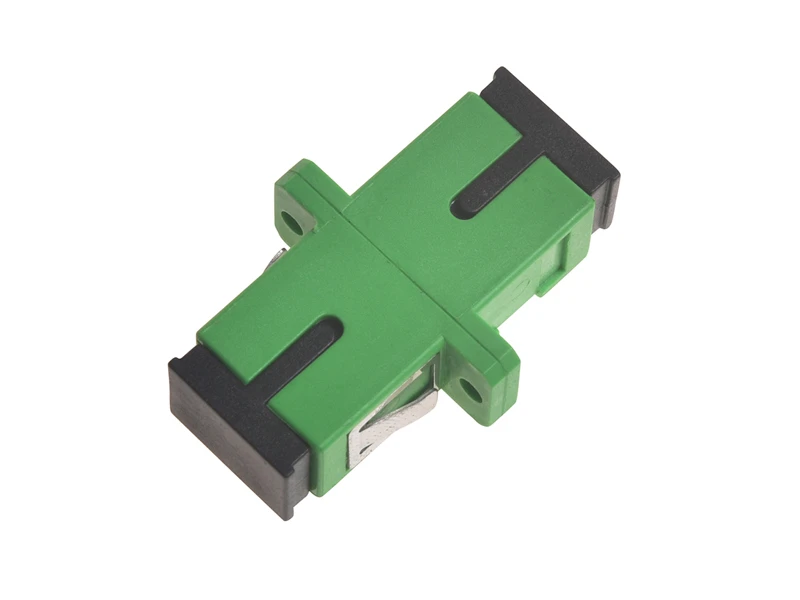

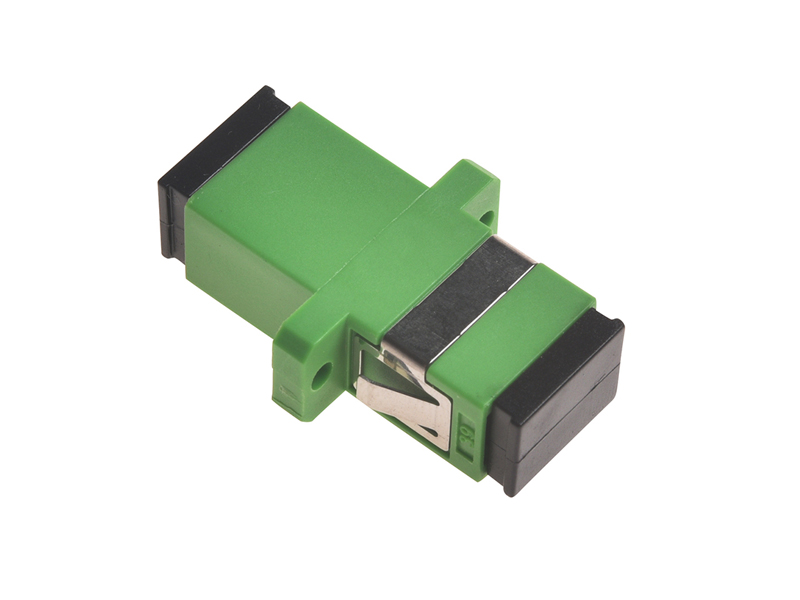

This SC APC fiber optic adapter is designed for reliable singlemode fiber connection in FTTH, telecom, and data center networks. It supports low insertion loss with options for Japanese ceramic sleeve, Chinese ceramic sleeve, or P.B sleeve, meeting different performance and budget requirements. The simplex structure provides stable SC APC alignment, while the green housing makes it easy to identify APC connections. Suitable for patch panels, ODFs, wall boxes, and fiber distribution systems.
| Feature | Description |
|---|---|
| SC APC Interface | Provides stable connection for SC APC fiber optic patch cords and pigtails |
| Singlemode Application | Designed for singlemode optical networks with APC connection requirements |
| Simplex Structure | Suitable for one-channel fiber connection in FTTH and telecom systems |
| Low Insertion Loss | Supports efficient optical transmission with sleeve options for different performance levels |
| Multiple Sleeve Options | Available with Japanese ceramic sleeve, Chinese ceramic sleeve, or P.B sleeve |
| Easy Identification | Green housing helps identify APC singlemode connections quickly during installation |
| Optical Parameter | W/ Japanese Ceramic Sleeve | W/ Chinese Ceramic Sleeve | W/ P.B Sleeve |
|---|---|---|---|
| Insertion Loss | < 0.10 dB | < 0.20 dB | < 0.30 dB |
| Durability | < 0.10 dB typical change, 1000 times | < 0.20 dB typical change, 1000 times | < 0.30 dB typical change, 500 times |
| Operating Temp. | -20℃ ~ +75℃ | -20℃ ~ +75℃ | -20℃ ~ +75℃ |
| Storage Temp. | -40℃ ~ +85℃ | -40℃ ~ +85℃ | -40℃ ~ +85℃ |
| Code | Item | Options |
|---|---|---|
| ① | Adapter Type | FC = FC, SC = SC, ST = ST, MT = MTRJ |
| ② | Connector Finish | P = PC, A = APC |
| ③ | Sleeve Type | C = Ceramic, P = P.B |
| ④ | Fiber Core | S = Simplex, D = Duplex, Q = Quad |
| ⑤ | Housing Color | W = White / Beige, B = Blue, G = Green, M = Metal |
| ⑥ | Sleeve Grade | P = Premium Japanese, A = A Grade Chinese Sleeve, B = B Grade Chinese Sleeve, C = P.B Sleeve |
