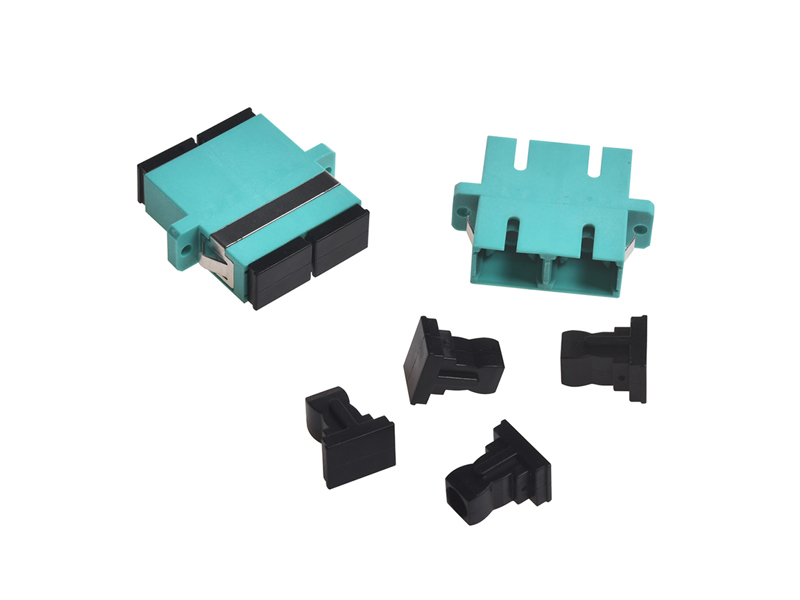

The SC OM3 DX fiber optic adapter provides precise duplex alignment for high-speed multimode fiber connections. It supports Japanese ceramic, Chinese ceramic, and P.B sleeves, delivering insertion loss as low as 0.10dB. Its aqua flange-mounted housing enables quick OM3 identification and accommodates two fiber channels. Suitable for data centers, LANs, equipment rooms, patch panels, ODFs, and high-bandwidth fiber distribution networks.
| Feature | Description |
|---|---|
| SC OM3 Interface | Designed for stable SC multimode fiber connections |
| OM3 Multimode Application | Suitable for high-speed, short-distance optical networks |
| Duplex Structure | Connects two fiber channels within one compact adapter |
| Low Insertion Loss | Reduces optical power loss for efficient signal transmission |
| Multiple Sleeve Options | Available with Japanese ceramic, Chinese ceramic, or P.B sleeves |
| Aqua Housing | Allows quick identification of OM3 multimode connections |
| Optical Parameter | With Japanese Ceramic Sleeve | With Chinese Ceramic Sleeve | With P.B Sleeve |
|---|---|---|---|
| Insertion Loss | <0.10dB | <0.20dB | <0.30dB |
| Durability | <0.10dB typical change after 1,000 mating cycles | <0.20dB typical change after 1,000 mating cycles | <0.30dB typical change after 500 mating cycles |
| Operating Temperature | -20℃ to +75℃ | -20℃ to +75℃ | -20℃ to +75℃ |
| Storage Temperature | -40℃ to +85℃ | -40℃ to +85℃ | -40℃ to +85℃ |
| Code Position | Category | Available Options |
|---|---|---|
| ① | Adapter Type | FC = FC; SC = SC; ST = ST; MT = MTRJ |
| ② | Connector Finish | P = PC; A = APC |
| ③ | Sleeve Type | C = Ceramic; P = P.B |
| ④ | Fiber Core | S = Simplex; D = Duplex; Q = Quad |
| ⑤ | Housing Color | W = White/Beige; B = Blue; G = Green; M = Metal |
| ⑥ | Sleeve Grade | P = Premium Japanese; A = A Grade Chinese Sleeve; B = B Grade Chinese Sleeve; C = P.B Sleeve |
