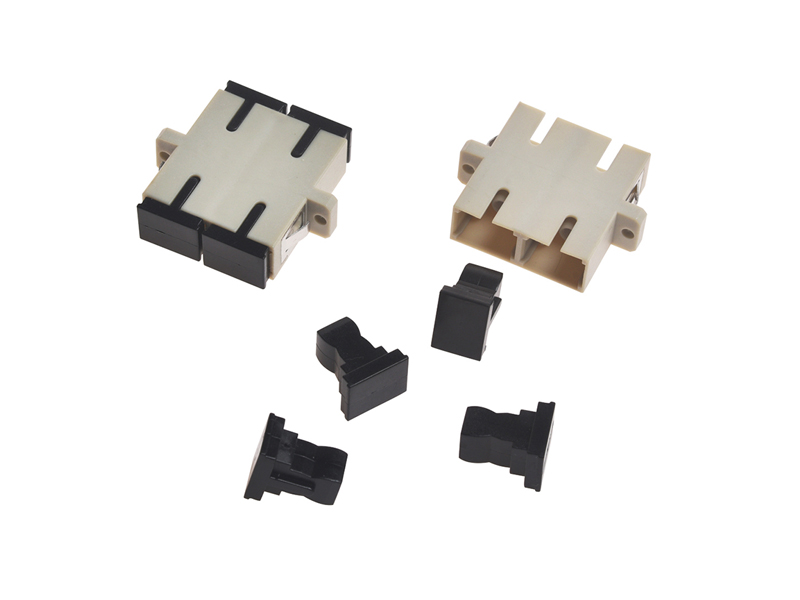

The SC OM1 DX fiber optic adapter provides precise duplex alignment for reliable OM1 multimode fiber connections. It supports Japanese ceramic, Chinese ceramic, and P.B sleeves, delivering insertion loss as low as 0.10dB. Its gray-beige flange-mounted housing accommodates two fiber channels and operates from -20℃ to +75℃. Ideal for legacy LANs, data networks, patch panels, ODFs, equipment rooms, and multimode fiber distribution systems.
| Feature | Description |
|---|---|
| SC OM1 Interface | Designed for stable SC OM1 multimode fiber connections |
| OM1 Multimode Application | Suitable for 62.5/125μm multimode fiber networks |
| Duplex Structure | Connects two fiber channels within one compact adapter |
| Low Insertion Loss | Reduces optical power loss for efficient signal transmission |
| Multiple Sleeve Options | Available with Japanese ceramic, Chinese ceramic, or P.B sleeves |
| Flange-Mounted Housing | Supports secure installation in panels and fiber enclosures |
| Optical Parameter | With Japanese Ceramic Sleeve | With Chinese Ceramic Sleeve | With P.B Sleeve |
|---|---|---|---|
| Insertion Loss | <0.10dB | <0.20dB | <0.30dB |
| Durability | <0.10dB typical change after 1,000 mating cycles | <0.20dB typical change after 1,000 mating cycles | <0.30dB typical change after 500 mating cycles |
| Operating Temperature | -20℃ to +75℃ | -20℃ to +75℃ | -20℃ to +75℃ |
| Storage Temperature | -40℃ to +85℃ | -40℃ to +85℃ | -40℃ to +85℃ |
| Code Position | Category | Available Options |
|---|---|---|
| ① | Adapter Type | FC = FC; SC = SC; ST = ST; MT = MTRJ |
| ② | Connector Finish | P = PC; A = APC |
| ③ | Sleeve Type | C = Ceramic; P = P.B |
| ④ | Fiber Core | S = Simplex; D = Duplex; Q = Quad |
| ⑤ | Housing Color | W = White/Beige; B = Blue; G = Green; M = Metal |
| ⑥ | Sleeve Grade | P = Premium Japanese; A = A Grade Chinese Sleeve; B = B Grade Chinese Sleeve; C = P.B Sleeve |
