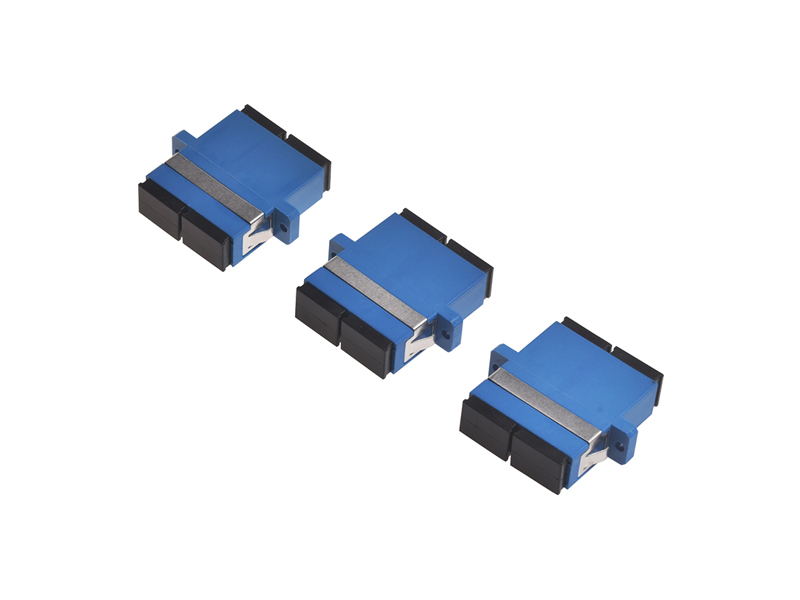

The SC UPC SM DX fiber optic adapter provides precise duplex alignment for reliable singlemode fiber connections. It supports Japanese ceramic, Chinese ceramic, and P.B sleeves, delivering insertion loss as low as 0.10dB. Its blue flange-mounted housing accommodates two fiber channels and allows quick UPC identification. Suitable for FTTH networks, telecom systems, patch panels, ODFs, network cabinets, and fiber distribution equipment.
| Feature | Description |
|---|---|
| SC UPC Interface | Provides stable connections between SC UPC fiber connectors |
| Singlemode Application | Designed for reliable long-distance optical transmission |
| Duplex Structure | Connects two fiber channels within one compact adapter |
| Low Insertion Loss | Minimizes optical power loss for efficient signal transmission |
| Multiple Sleeve Options | Available with Japanese ceramic, Chinese ceramic, or P.B sleeves |
| Blue UPC Housing | Enables quick identification in singlemode fiber systems |
| Optical Parameter | With Japanese Ceramic Sleeve | With Chinese Ceramic Sleeve | With P.B Sleeve |
|---|---|---|---|
| Insertion Loss | <0.10dB | <0.20dB | <0.30dB |
| Durability | <0.10dB typical change after 1,000 mating cycles | <0.20dB typical change after 1,000 mating cycles | <0.30dB typical change after 500 mating cycles |
| Operating Temperature | -20℃ to +75℃ | -20℃ to +75℃ | -20℃ to +75℃ |
| Storage Temperature | -40℃ to +85℃ | -40℃ to +85℃ | -40℃ to +85℃ |
| Code Position | Category | Available Options |
|---|---|---|
| ① | Adapter Type | FC = FC; SC = SC; ST = ST; LC = LC; MT = MTRJ |
| ② | Connector Finish | P = PC/UPC; A = APC |
| ③ | Sleeve Type | C = Ceramic; P = P.B |
| ④ | Fiber Core | S = Simplex; D = Duplex; Q = Quad |
| ⑤ | Housing Color | W = White/Beige; B = Blue; G = Green; M = Metal |
| ⑥ | Sleeve Grade | P = Premium Japanese; A = A Grade Chinese Sleeve; B = B Grade Chinese Sleeve; C = P.B Sleeve |
