This ST SM SX fiber optic adapter is designed for stable singlemode fiber connections in optical communication and distribution systems. The ST interface uses a round bayonet-style locking structure for secure mechanical connection, while the simplex design supports one-fiber connectivity with accurate optical alignment. With optional Japanese ceramic, Chinese ceramic, and P.B sleeves, it provides low insertion loss, reliable durability, and consistent signal transmission. It is suitable for FTTH networks, ODF systems, telecom equipment, fiber patch panels, and industrial optical applications.
| Feature | Description |
|---|---|
| ST Interface | Round bayonet-style locking structure provides secure mechanical connection |
| Singlemode Application | Designed for stable singlemode fiber optic network connections |
| Simplex Structure | Supports one-fiber connection with precise optical alignment |
| Low Insertion Loss | Helps maintain stable optical signal transmission with minimal loss |
| Multiple Sleeve Options | Available with Japanese ceramic, Chinese ceramic, or P.B sleeve |
| Customizable Options | Sleeve grade, housing color, and configuration can be customized |
| Optical Parameter | With Japanese Ceramic Sleeve | With Chinese Ceramic Sleeve | With P.B Sleeve |
|---|---|---|---|
| Insertion Loss | <0.10dB | <0.20dB | <0.30dB |
| Durability | <0.10dB typical change after 1,000 mating cycles | <0.20dB typical change after 1,000 mating cycles | <0.30dB typical change after 500 mating cycles |
| Operating Temperature | -20℃ to +75℃ | -20℃ to +75℃ | -20℃ to +75℃ |
| Storage Temperature | -40℃ to +85℃ | -40℃ to +85℃ | -40℃ to +85℃ |
| Code | Item | Option |
|---|---|---|
| ① | Adapter Type | ST = ST |
| ② | Fiber Mode | SM = Singlemode |
| ③ | Sleeve Type | C = Ceramic; P = P.B |
| ④ | Fiber Configuration | S = Simplex |
| ⑤ | Housing Color | Red / Yellow / Metal |
| ⑥ | Sleeve Grade | P = Premium Japanese; A = A Grade Chinese Sleeve; B = B Grade Chinese Sleeve; C = P.B Sleeve |
YOUR VACATION IS HERE
Prepare your network for seamless 5G deployment. Get direct access to factory pricing, custom OEM/0DM solutions, and rapid prototyping,
Let's Build Your Optical Network, Kindly have a chat with our sales experts!
Get A Free Quote
Related Products
FTTH ST SM SX Fiber Optic Singlemode Simplex Adapter
ST singlemode simplex adapter with bayonet-style locking and low insertion loss for stable fiber optic connections.
View MoreFTTH FC APC SM SX Fiber Optic Singlemode Simplex Adapter
FC APC singlemode simplex adapter with screw-type connection and low insertion loss for stable optical networks.
View MoreFTTH FC UPC D Type Fiber Optic Singlemode Adapter
FC UPC D type singlemode adapter with secure screw connection and low insertion loss for panel-mounted fiber networks.
View MoreFTTH FC UPC SM SX Fiber Optic Singlemode Simplex Adapter
FC UPC singlemode simplex adapter with secure alignment and low insertion loss for stable fiber optic connections.
View MoreFTTH LC MM SX Fiber Optic Multimode Simplex Adapter
LC multimode simplex adapter with low insertion loss and stable alignment for compact fiber optic network applications.
View MoreFTTH LC UPC SM DX Fiber Optic Singlemode Duplex Adapter
LC UPC singlemode duplex adapter with low insertion loss and stable alignment for compact fiber optic networks.
View More

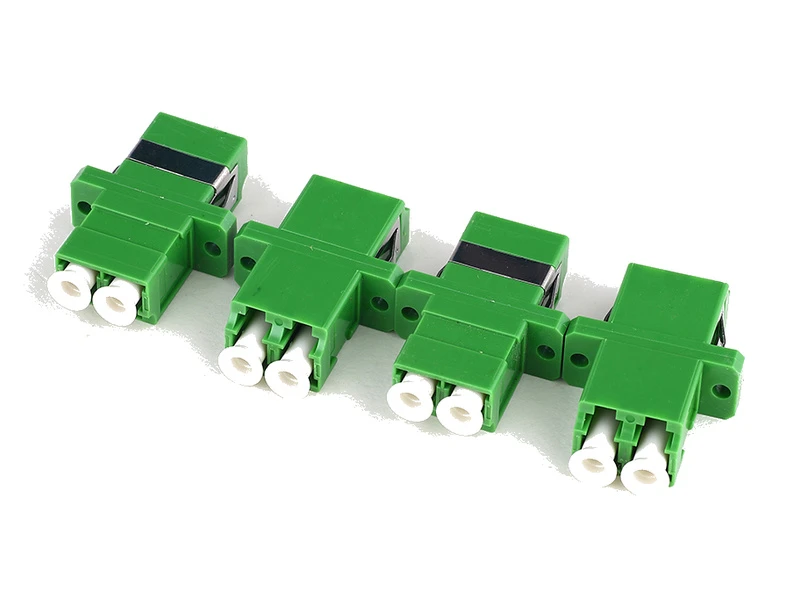

FTTH LC APC SM DX High-Low Type Fiber Optic Singlemode Duplex Adapter
LC APC singlemode duplex high-low adapter with low insertion loss and stable alignment for compact fiber networks.
View More

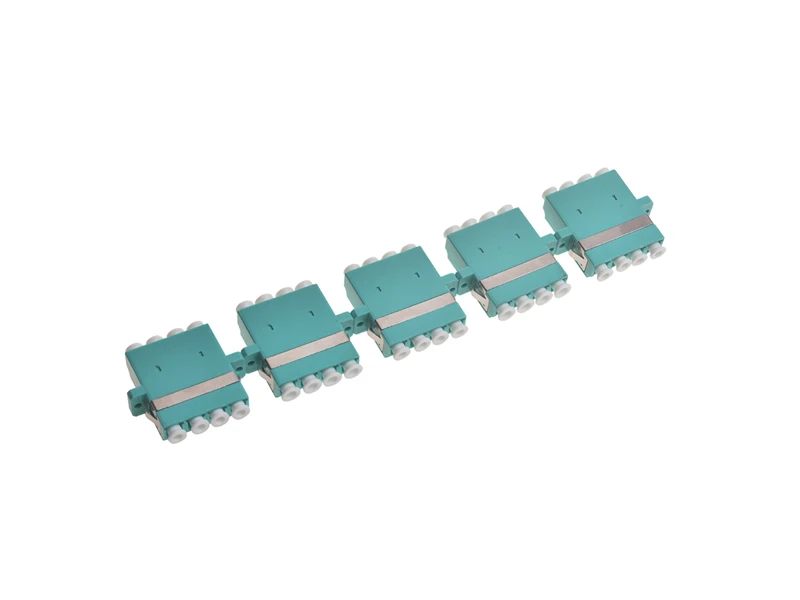

FTTH LC OM3 Quad Fiber Optic Multimode Quad Adapter
LC OM3 multimode quad adapter with low insertion loss and stable alignment for high-density fiber optic networks.
View More
FTTH LC MM Quad Fiber Optic Multimode Quad Adapter
LC multimode quad adapter with low insertion loss and stable alignment for high-density fiber optic network applications.
View More

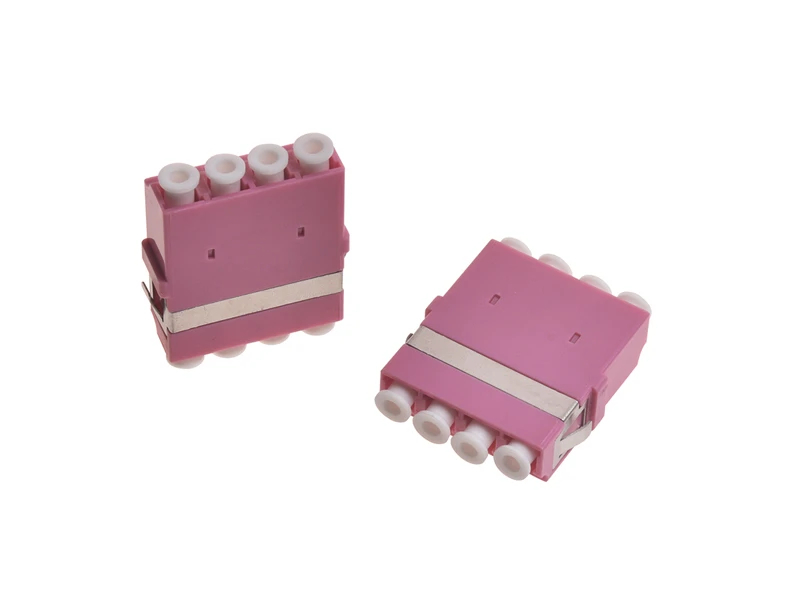

FTTH LC OM4 Quad Fiber Optic Multimode Quad Adapter
