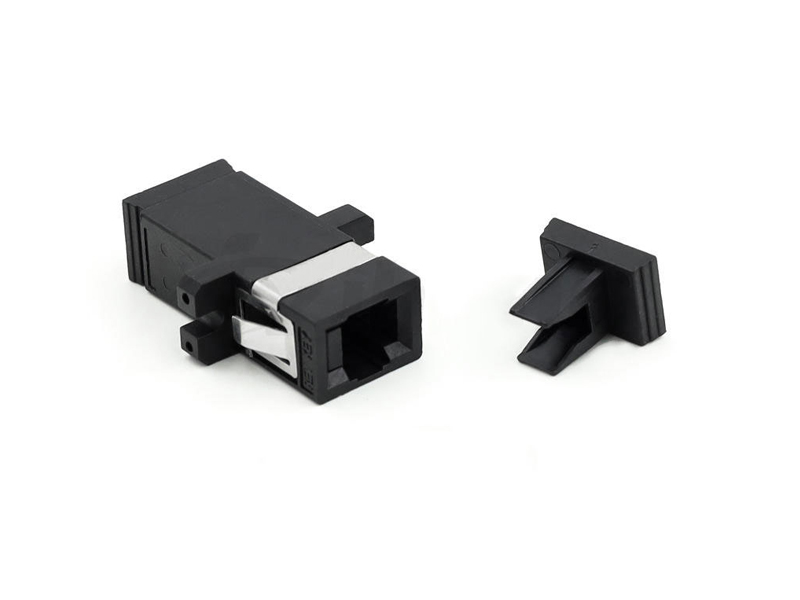

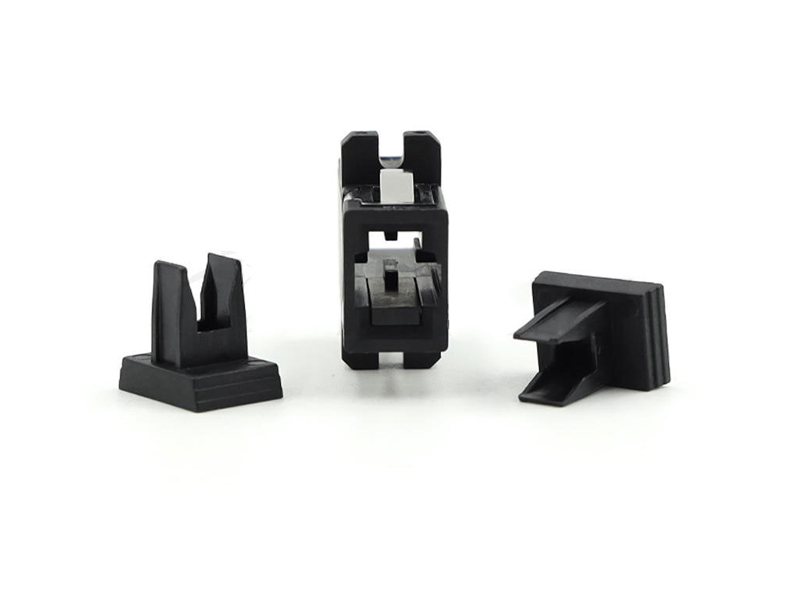

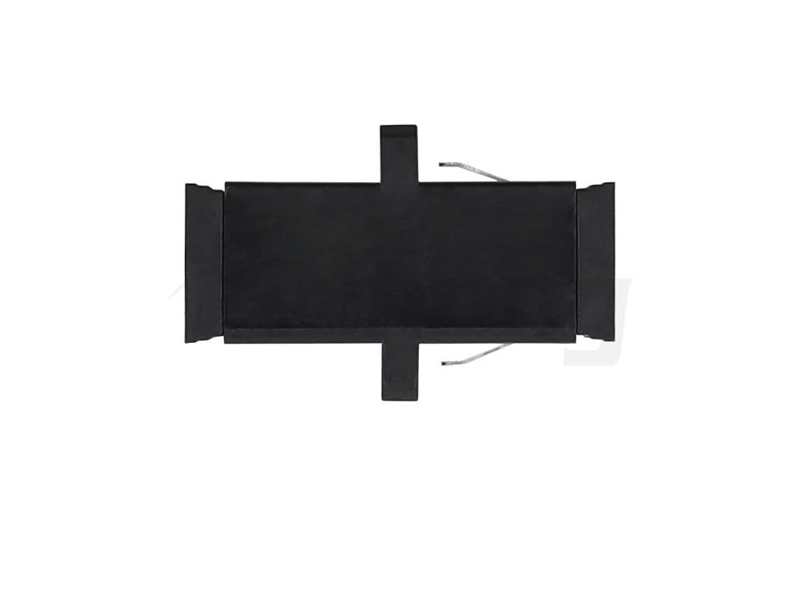

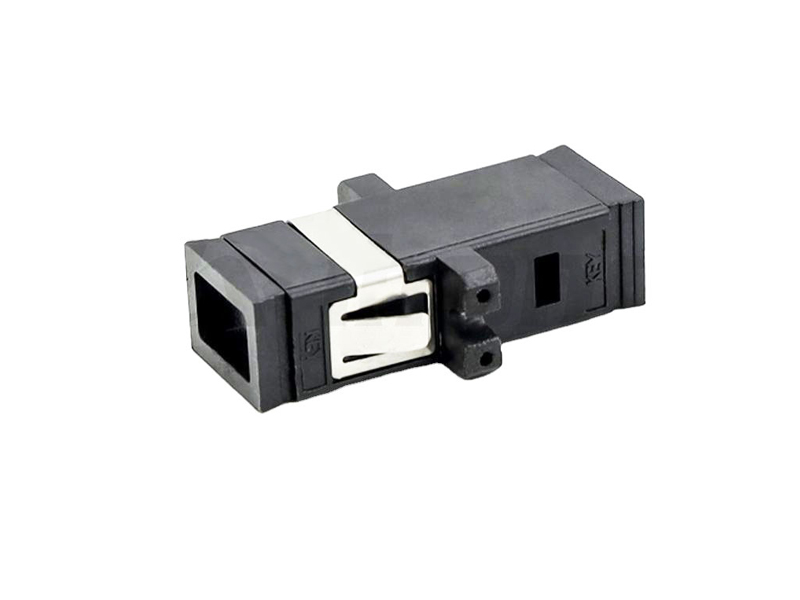

Optical fiber connectors are the most widely used optical passive components in optical fiber communication systems. Most optical fiber connectors are composed of three parts: two optical fiber connectors and a coupler. Two optical fiber connectors are installed into the two optical fiber tail ends; the coupler acts as an alignment sleeve. In addition, the couplers are mostly equipped with metal or non-metal flanges to facilitate the installation and fixation of the connectors.
Feature
-Low insertion loss and back reflection loss;
-Ferrule end surface pre-domed;
-Precision anti-rotation key and corrosion resistant body;
-UL-rated plastic housing;
-Telcordia style boots;
-Free-floating ceramic ferrule;
-Zirconia sleeves or Phosphor bronze sleeves;
-D-shaped easily installs into panel mount;
-RoHS compliant.
Application
-Fiber Optic Telecommunications;
-LAN (Local Area Network);
-FTTH (Fiber To The Home);
-CATV&CCTV System;
-High speed transmission systems;
-Fiber optic sensing;
-Industtial, Mechanical and Military.
|

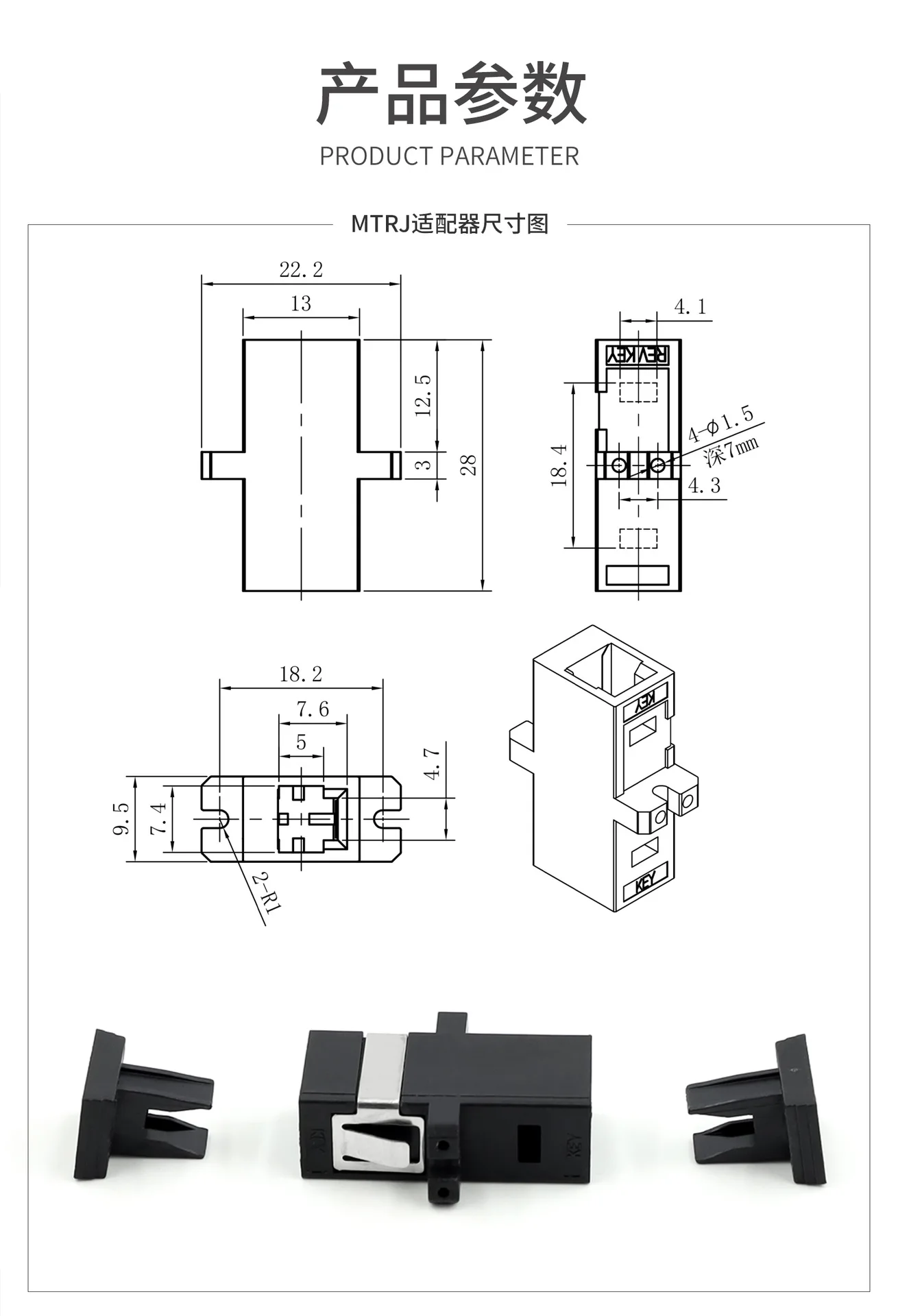

Parameter |
Unit |
Description |
|
Insertion Loss (Typical) |
dB |
≤0.2 |
|
Return Loss |
dB |
PC≥45 UPC≥50 APC≥60 |
|
Mechanical endurance (500T) |
dB |
≤0.2 |
|
Exchangeability |
dB |
≤0.2 |
|
Operating temperature |
℃ |
-40~75 |
|
Storage temperature |
℃ |
-40~75 |
|
Relative humidity |
% |
95 |
