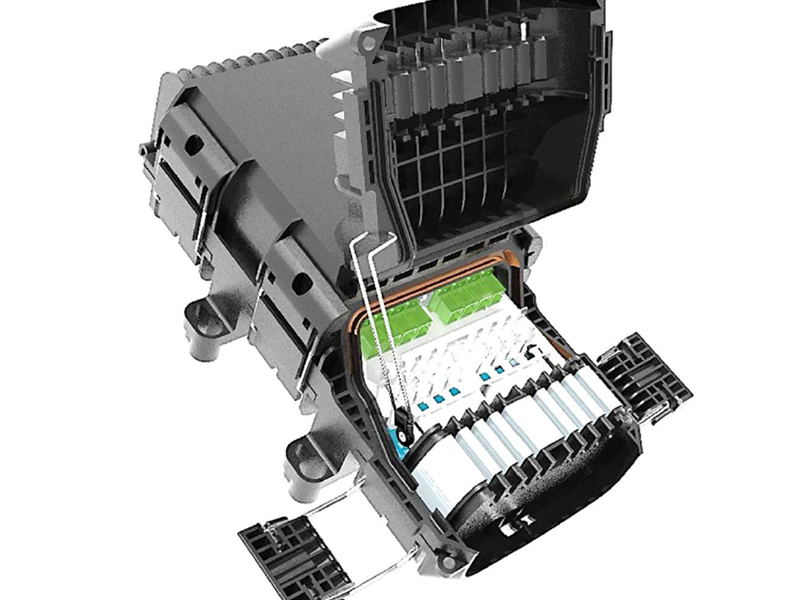

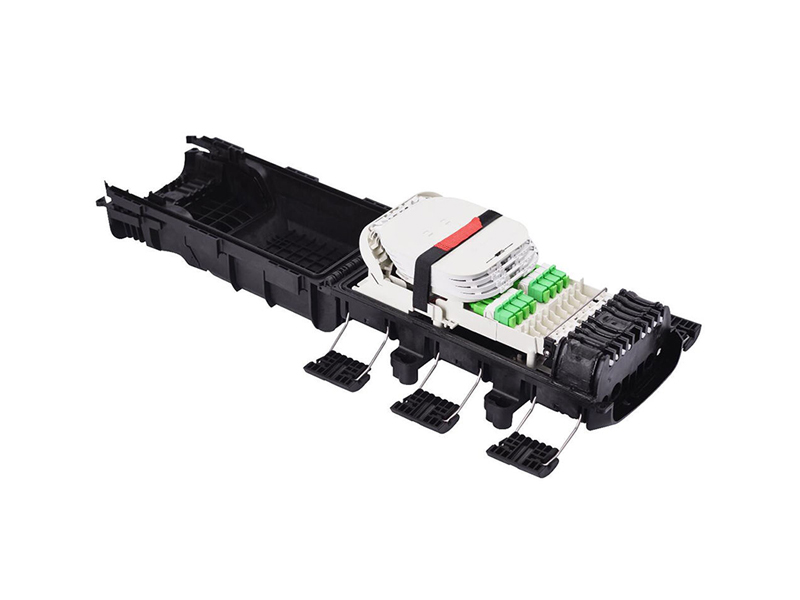

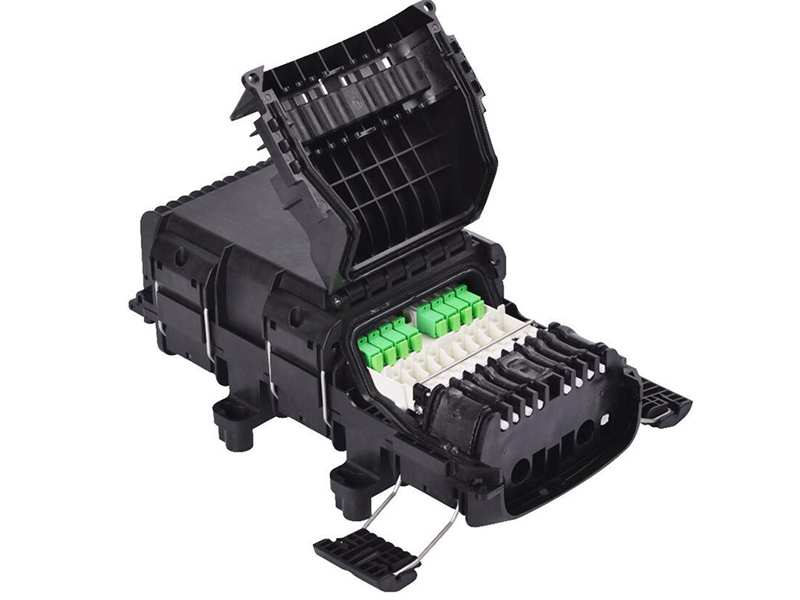

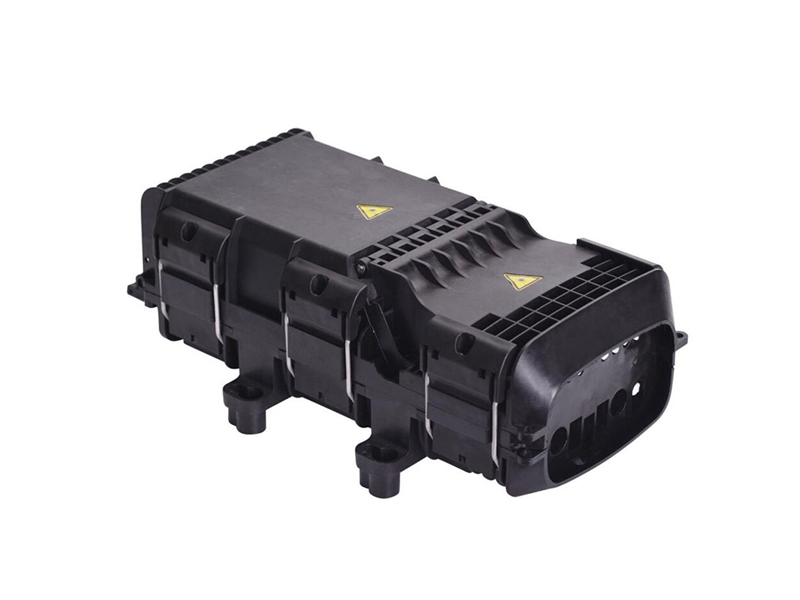

The Alteoptic 8-Port Gel-Sealed Fiber Optic Splice and Patch Closure integrates fiber splicing, patching, splitting, storage and drop cable distribution within a compact outdoor enclosure.It is equipped with eight SC/APC simplex adapters and supports feeder cable splicing, one 1×8 PLC splitter or two 1×4 PLC splitters. The compressed gel cable sealing system enables fast installation and convenient re-entry without heat-shrink tools. Wall, pole and aerial strand mounting options are available.
Fetures
Eight pre-installed SC/APC simplex adapters
Eight drop cable connection positions
Compressed gel cable sealing technology
No flame, electricity or heat-shrink tools required for cable sealing

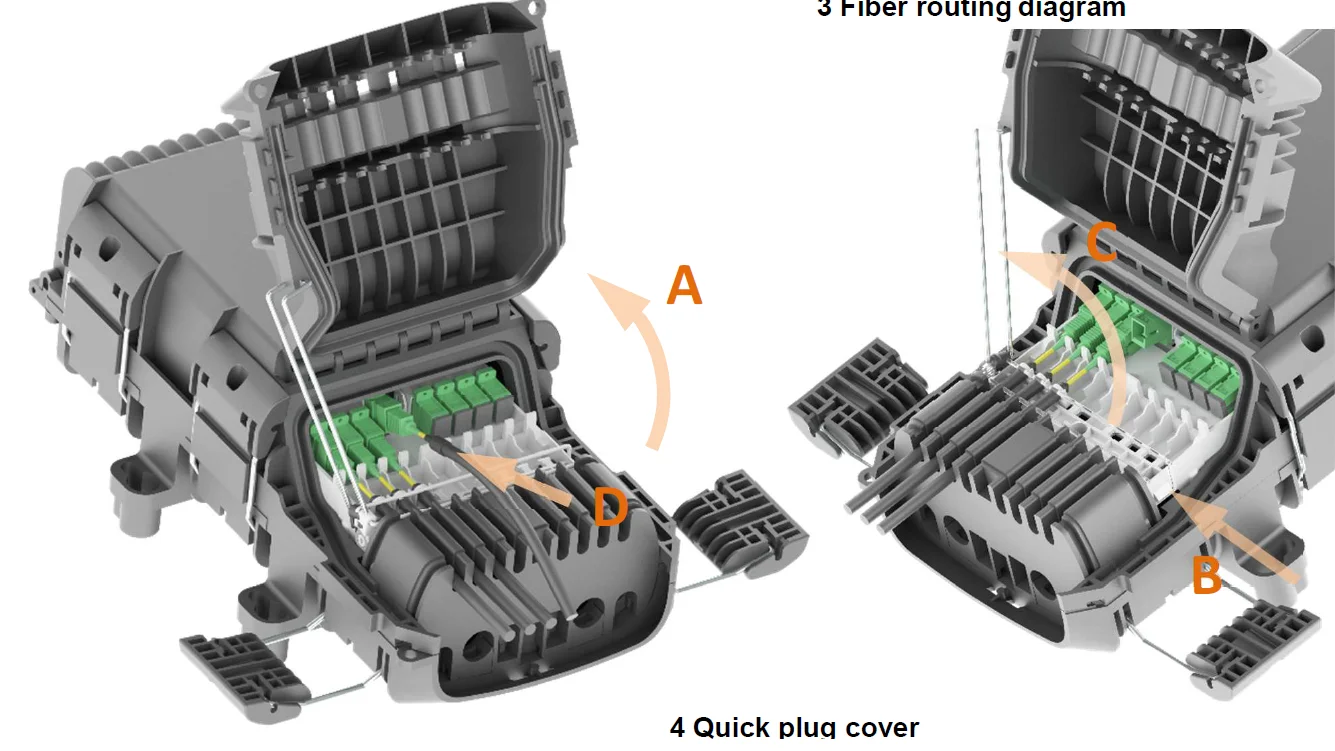

Easy enclosure opening and cable re-entry
Feeder cable splicing and patching configuration available
Supports one 1×8 PLC splitter
Supports up to two 1×4 PLC splitters
Maximum fiber splicing capacity of 72 fibers
Supports 12-fiber or 24-fiber splice trays
Two main cable ports for Ø5–15 mm cables
Two branch cable ports for Ø4–11 mm cables
Eight outlets for Ø2 mm or Ø5 mm soft drop cables
Supports feeder cable entry, branching and pass-through applications

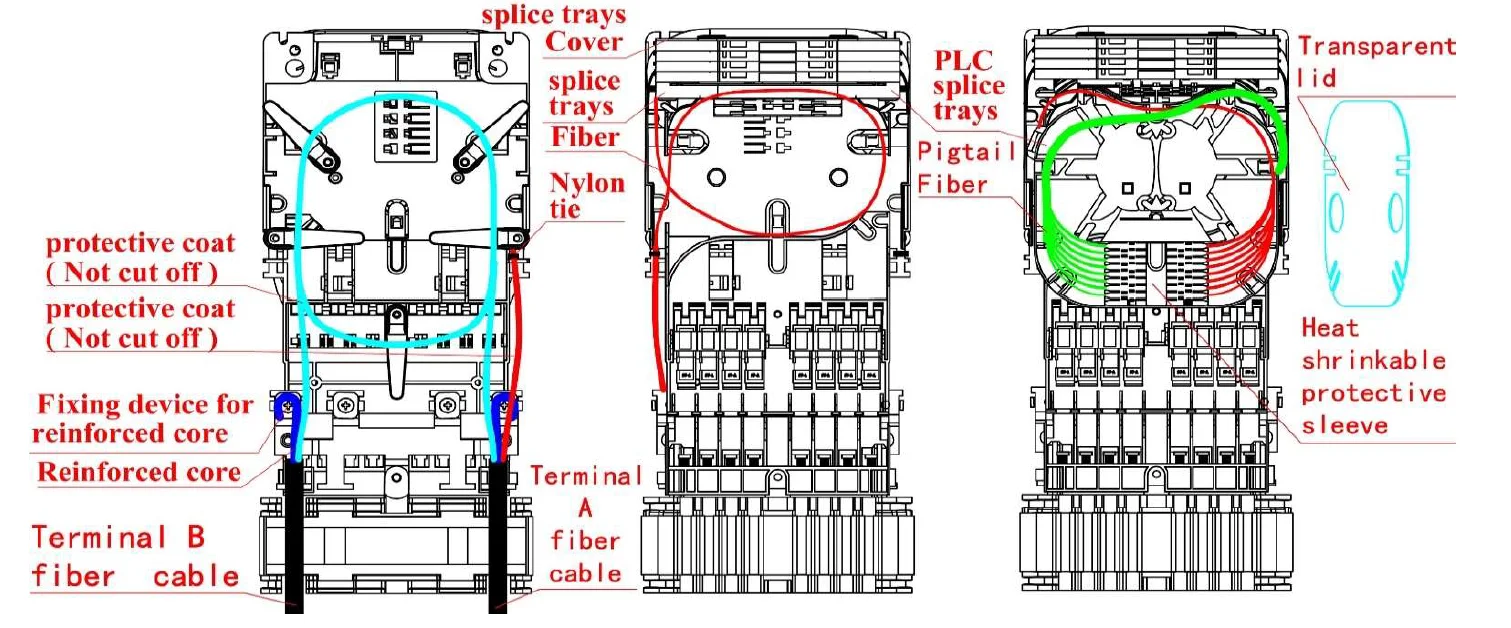

Separate areas for cable storage, splicing, splitting and patching
Clear and organized internal fiber routing
Wall, pole and aerial strand mounting options
Durable PP+GF engineering plastic housing
UV-, impact- and deformation-resistant construction
Compact single-ended design for FTTH access networks
Technical Specification
|
Product Type |
Fiber Optic Splice and Patch Closure |
|
Closure Style |
Single-ended rectangular closure |
|
Maximum Adapter Capacity |
8 SC simplex adapters |
|
Adapter Type |
SC/APC |
|
Drop Connection Capacity |
8 |
|
Cable Sealing Type |
Compressed gel |
|
Closure Sealing Type |
Hinged cover with latches |
|
Main Cable Ports |
2 |
|
Main Cable Diameter |
Ø5–15 mm |
|
Branch Cable Ports |
2 |
|
Branch Cable Diameter |
Ø4–11 mm |
|
Applicable Drop Cable Diameter |
Ø2 mm or Ø5 mm soft cable |
|
Splice Tray Options |
12F or 24F |
|
Maximum Splicing Capacity |
72 fibers |
|
Supported Splicing Method |
Single-fiber fusion splicing |
|
Splitter Options |
1 × 1×8 or 2 × 1×4 PLC splitters |
|
Housing Material |
PP+GF engineering plastic |
|
Protection Class |
IP67 |
|
Operating Temperature |
-40°C to +65°C |
|
Installation Methods |
Wall, pole and aerial strand mounting |
|

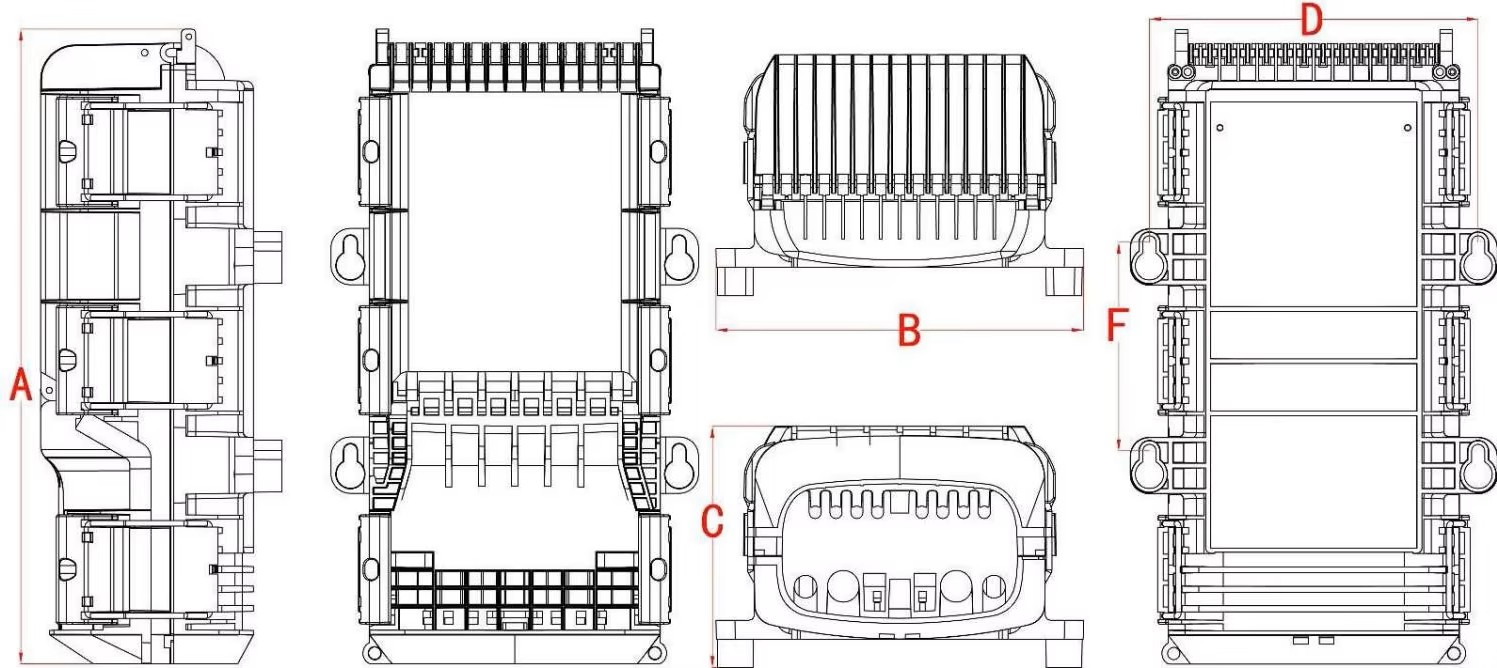

Dimensions |
339 × 194 × 128 mm |
|
Color |
Black |
Product Advantages
- Made of high quality engineer plastic material (PP),Good mechanical strength, Elegant appearance, sturdiness and durability.
- Suitable for indoor or outdoor ,wall-mounted , pole installation.
- Built-in Stacked splice tray, easy for open, the splice tray can be taken down, easy for installation and maintenance.
- Fiber routing is reasonable. - Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
Configuration Selection
PLC Splitter Configuration

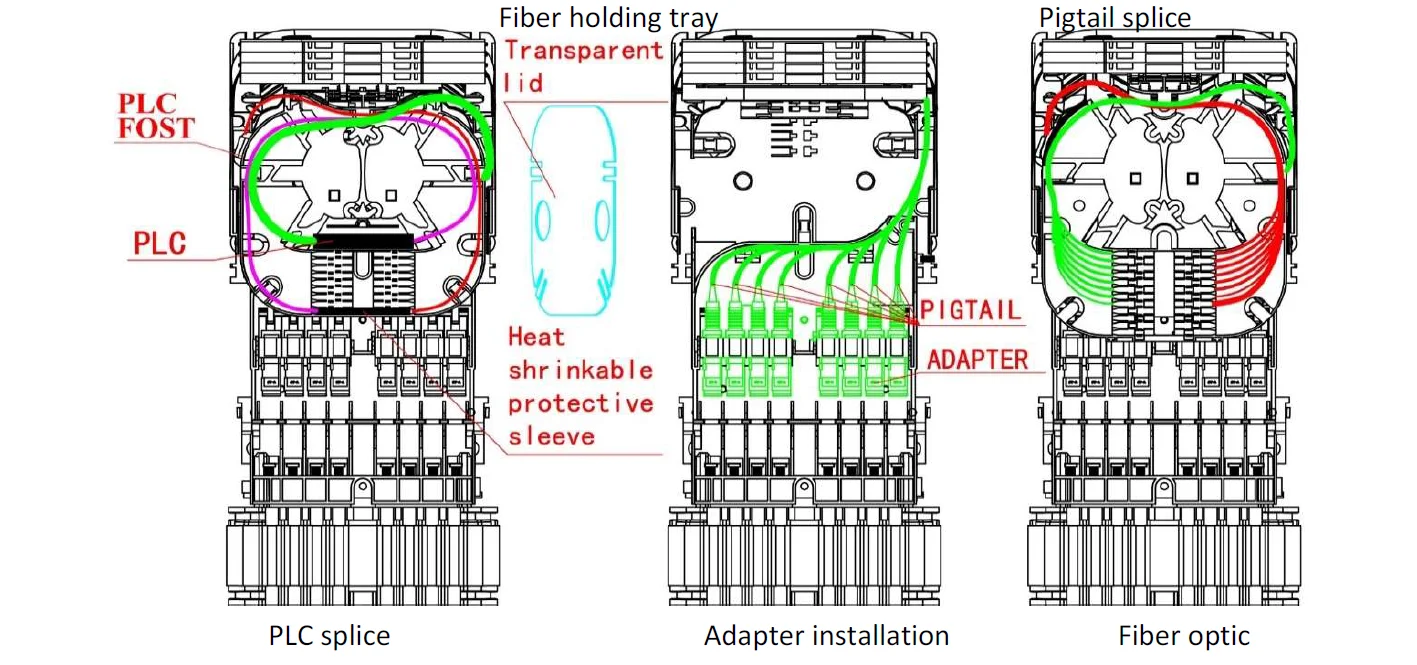

The PLC splitter configuration can be equipped with one 1×8 PLC splitter or two 1×4 PLC splitters. The incoming feeder fiber is connected to the splitter input, while the splitter outputs are routed to eight internal SC/APC adapters through optical pigtails.
This configuration is suitable for distributed-split FTTH networks where optical splitting is performed close to subscriber premises.
Feeder Cable Splice Configuration
The feeder cable splice configuration does not include an optical splitter. Individual feeder fibers are fusion-spliced directly to the pigtails connected to the eight internal SC/APC adapters.
This configuration is suitable for point-to-point networks, centralized-split architectures and applications where optical splitting is performed at another network location.
|
Configuration |
Adapter Configuration |
Optical Configuration |
Typical Application |
|
Splice and Patch Version |
8 × SC/APC simplex |
Feeder cable splicing without splitter |
Direct fiber distribution and patching |
|
1×8 Splitter Version |
8 × SC/APC simplex |
1 × 1×8 PLC splitter |
Distribution to eight subscriber drops |
|
Dual 1×4 Splitter Version |
8 × SC/APC simplex |
2 × 1×4 PLC splitters |
Two-group or cascading fiber distribution |
Application
FTTH and FTTx access networks
Fiber feeder cable termination
Subscriber drop cable distribution
Fiber cable branching and pass-through applications
Centralized splitting networks
Distributed splitting networks
Outdoor fiber distribution points
Residential broadband deployment
Fiber network expansion projects
Wall-mounted fiber distribution
Pole-mounted FTTH networks
Aerial strand-mounted fiber networks
Point-to-point fiber distribution
Point-to-multipoint optical distribution
