Model No. FTB-13A-2 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 8 users requirements. It can help splicing, splitting, storage and management with suitable space.

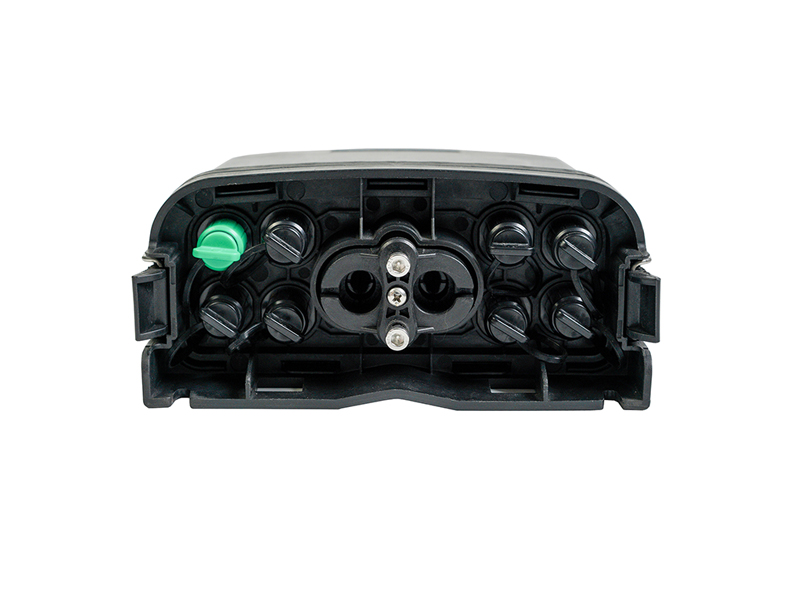

Model No.:FTB-13A-2
1 Overview
Model No. FTB-13A-2 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 8 users requirements. It can help splicing, splitting, storage and management with suitable space.
Design And Customization Services
2 Technical Index
|
Model No. |
FTB-13A-2 |
Color |
Black |
|
Capacity |
8 cores |
Protection Level |
IP68 |
|
Material |
PP+GF |
Inlet/outlet |
2+8 |
|
Dimension(MM) |
297*237*98 |
Sealing Method For Inlets |
mechanical seal |
|
Inlet cable port |
Ф6-Ф13 |
Outlet cable port |
8SC-Huawei head |

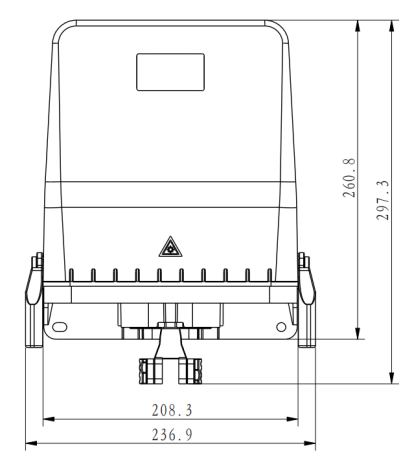

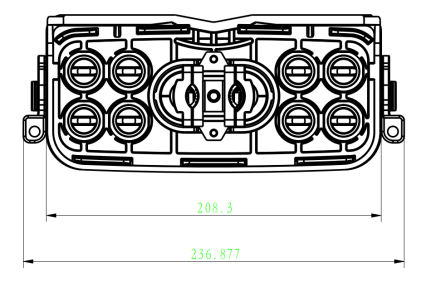

The dimension diagram:(mm)
|
|
|
|
|
Pic#1: Top View |

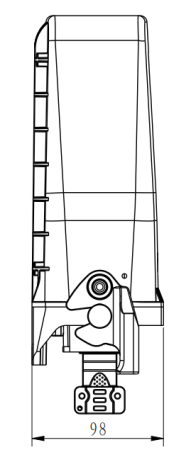

Pic#2: Side View |
Pic#3: Front View |
3 Features
3.1 The body is made of high quality engineering plastic with good strength;
3.2 The box adopts a sturdy and durable self-locking type, which is easy to open and has good waterproof performance, suitable for indoor and outdoor natural environments (see Figure 4 for details);
3.3 With the independent rubber sealing plug for drop cable, better waterproof performance ( Pic#5 for details);

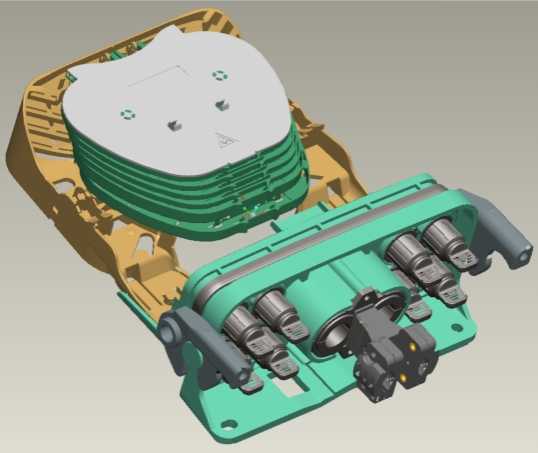

3.4 Adopting a cap type box self-locking design, the box body is easy to install and maintain, and the fusion and end connections are completely separated (see Figure 6 for details);
3.5 The drop leaf can accommodate one 1 *8 and one 2 * 8 modular splitter (see Figure 7 for details);
Pictures for reference:
|
|
|
|

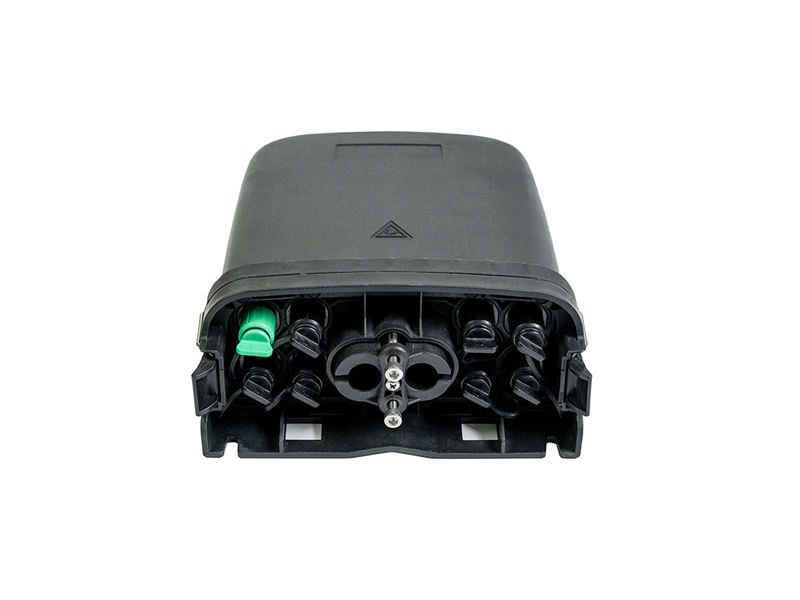

Pic#4 |

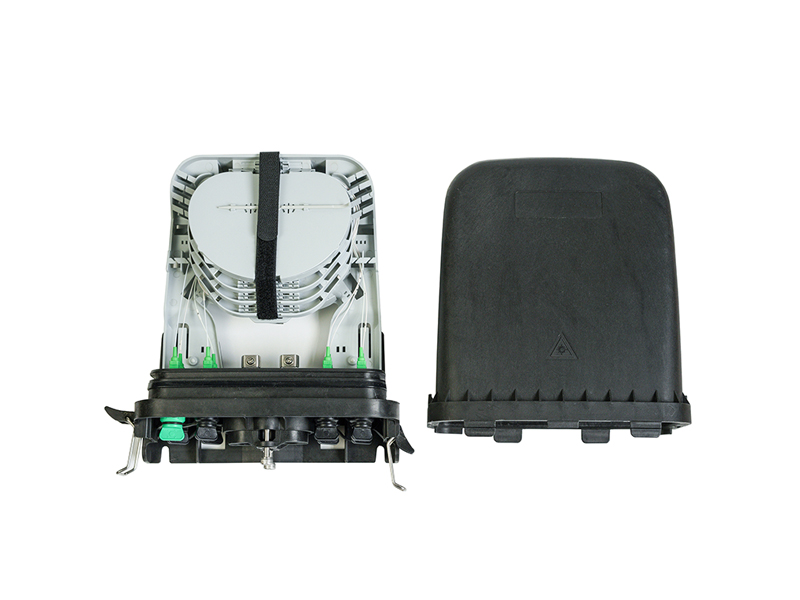

Pic#5 |
|
|
|
|

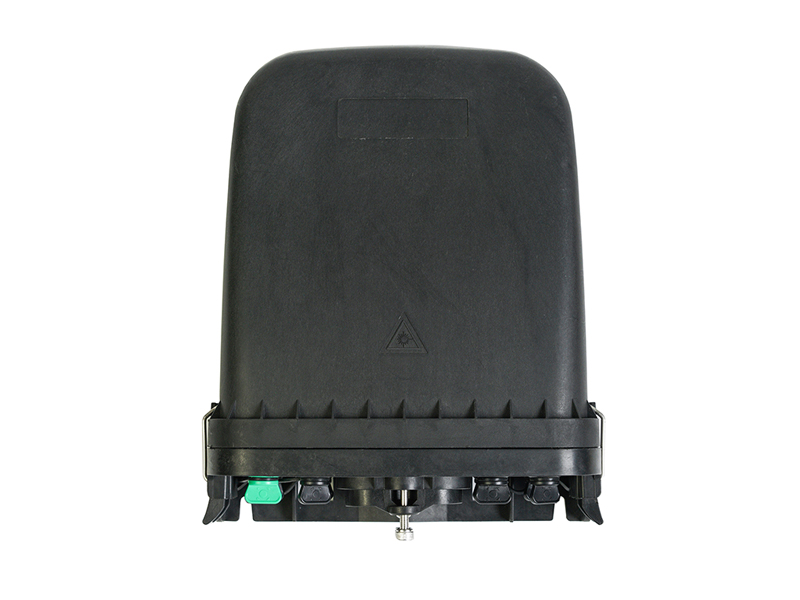

Pic#6 |

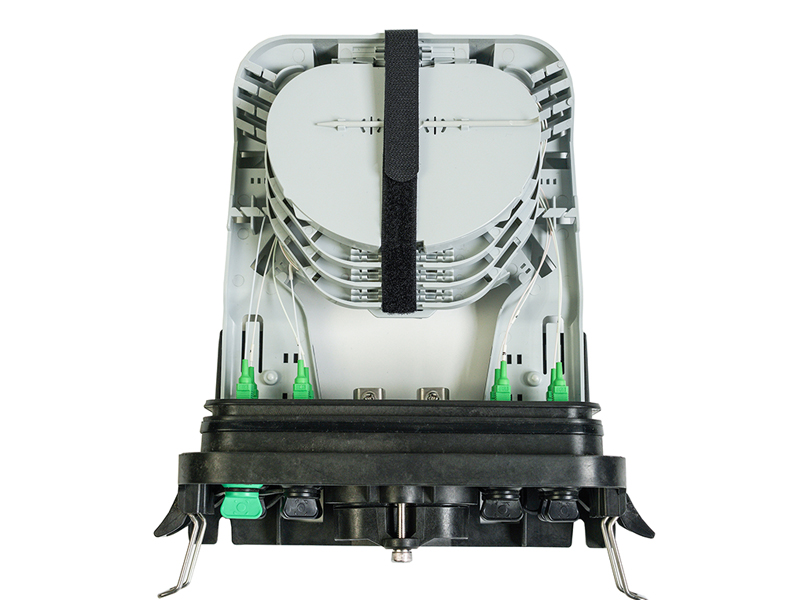

Pic#7 |
4 Accessory
Standard accessories （Picture only for refer）
|
Item |
Description |
Qty |
Picture |
|
1 |
Self sealing bag |
1 |
|
|
2 |
Splicing protective tube |
12 |
|
|
3 |
Nylon cable tie |
10 |
|
|
Wall mounting kit |
|||
|
1 |
Self tapping screws |
2 |
|
|
2 |
ST4*35 Plastic expansion |
2 |
|
Optional accessory
|
Item |
Description |
Qty |
Picture |
||
|
Pole-mounting kit |
|||||
|
1 |
Pole mounting hoop |
2 |
|
||
|
2 |
Pole mounting plate |
2 |
|
||
|
Aerial-mounting kit |
|||||
|
1 |
Aerial mounting plate |
2 |
|
||
5 Package Information
|
Model No. |
Product size |
Inner Carton size |
Outer carton size |
Weight of each outer box |
|
FTB-13A-2 |
297*237*98mm |
310*245*125mm(1pcs) |
500*330*645mm(10pcs) |
19kg |
