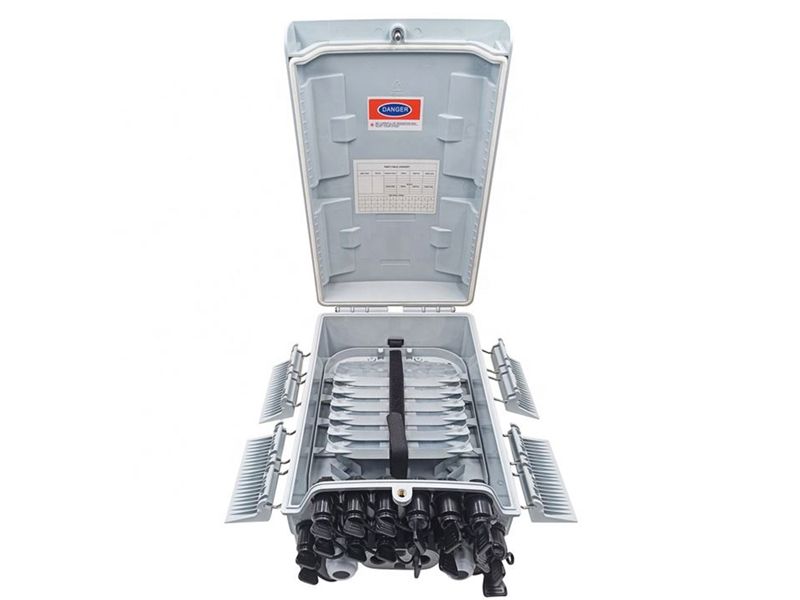

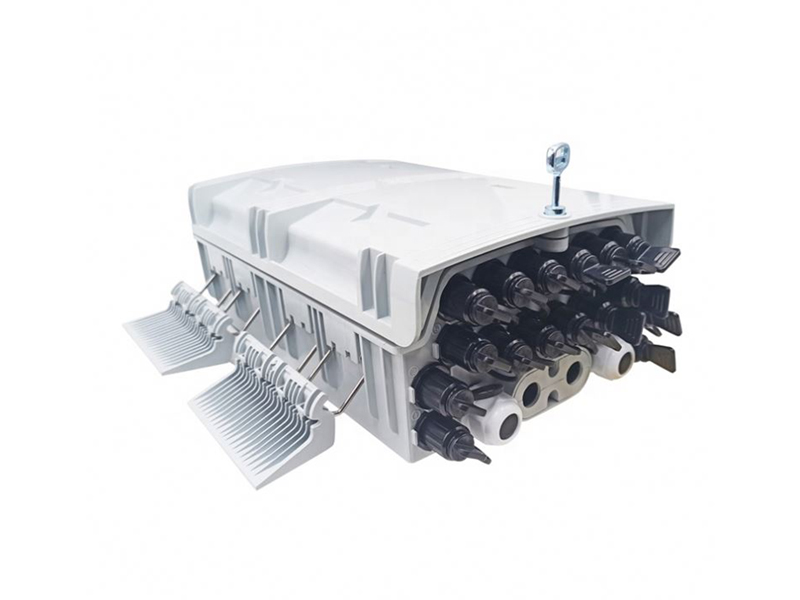

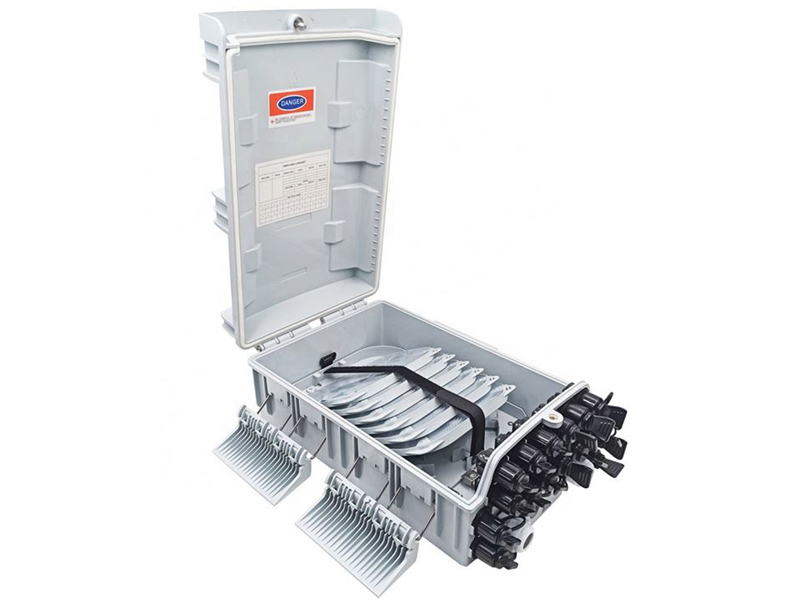

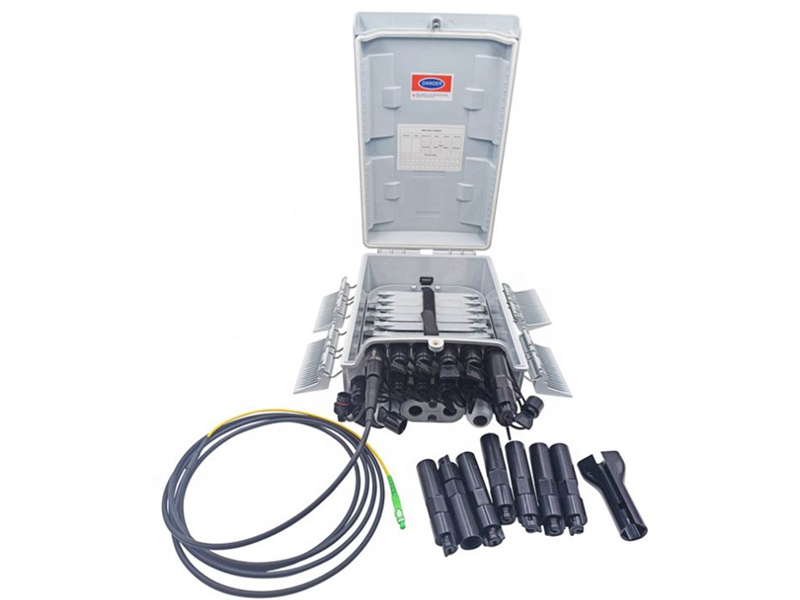

AT-16OC fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber
1. Advanced structure design, easy operation and reasonable routing.
2. Material: PC+ABS.
3. Moisture proof, waterproof, dust-proof, anti-aging.
4. Protection level up to IP65.

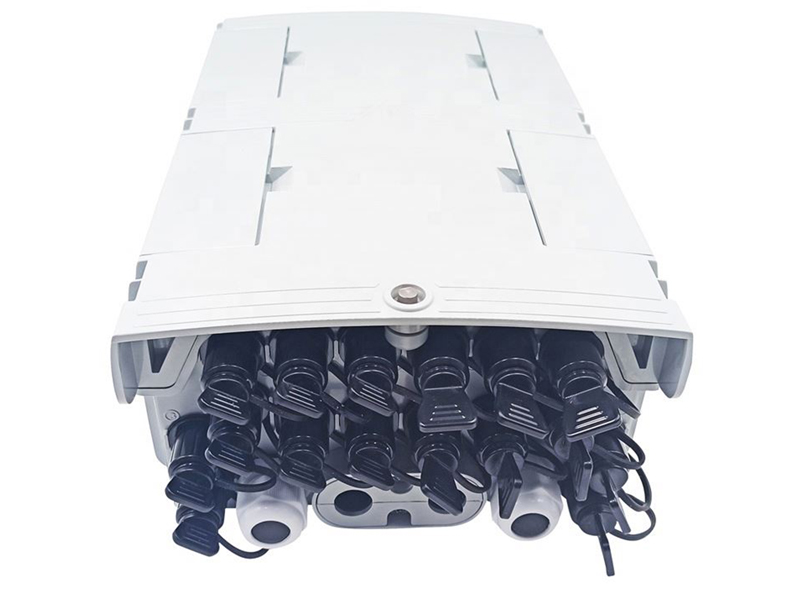

5. 1 oval optical cable entry, 2 PG19 waterproof joint and 16 pre-connected adapters.
6. Installation method: pole-mounted, wall-mounted.
Specification
|
Item |
Specifications |
Remark |
|

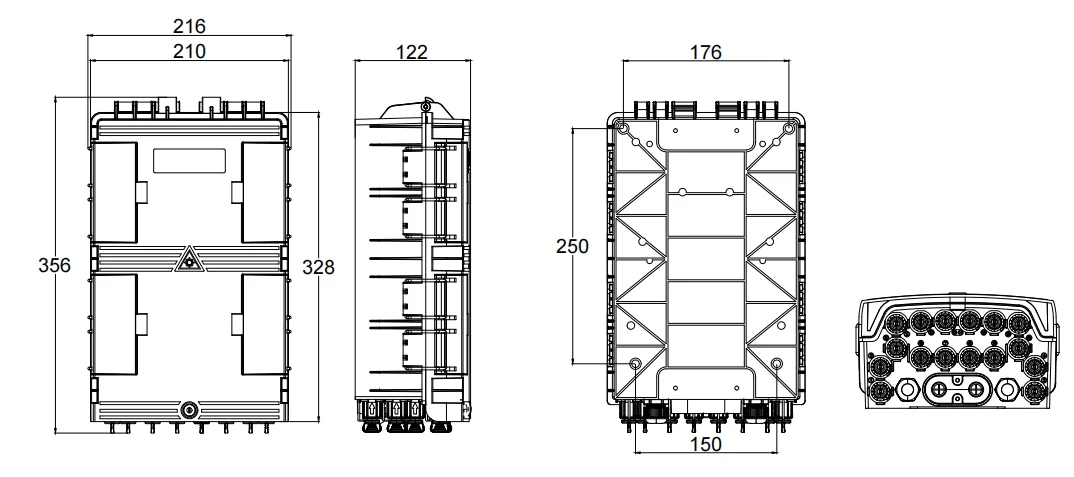

External dimension(mm) |
356*216*122 |
|
|
Installation hole position(mm) |
176*150*250 |
|
|
Color |
PANTONE 428C |
Customizable |
|
Size and quantity of optical cable hole |
1 oval optical cable entry, 2 branch optical cable entries and 16 pre-connected adapters |
|
|
Capacity(Max) |
72 |
|
|
Specification of turnover plate |
Each copy can be welded with 12 cores and a PLC can be stuck |
There are five trays in a box |
|
Into the largest cable diameter (mm) |
ᴓ15 |
|
|
type of output |
Pre-connected adapters |
|
|
IP protection level |
IP65 |
|
|
Flammability |
HB(Conventional) |
can be customized according to requirements |
|
Neutral salt spray test (NSS) |
48 h |
YOUR VACATION IS HERE
Prepare your network for seamless 5G deployment. Get direct access to factory pricing, custom OEM/0DM solutions, and rapid prototyping,
Let's Build Your Optical Network, Kindly have a chat with our sales experts!
Get A Free Quote
Related Products

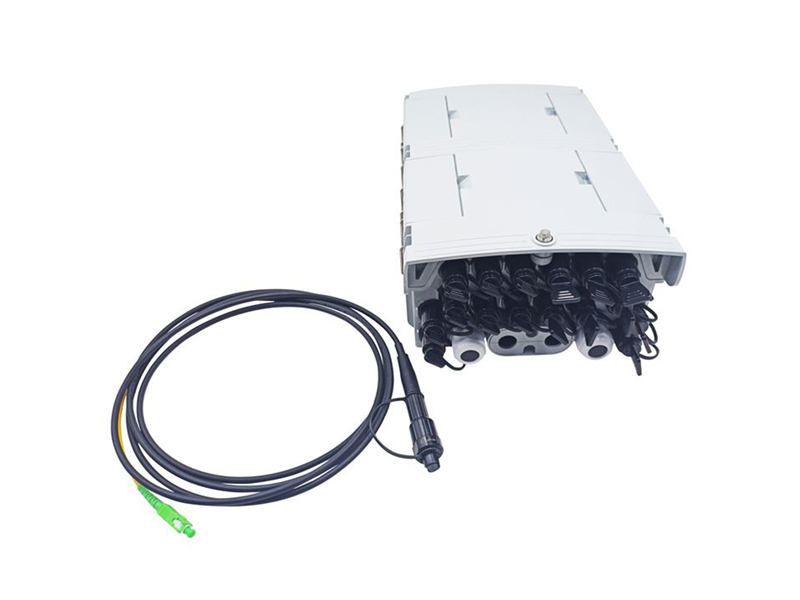

FTTH 16 Port Fiber Optic NAP Box PC+ABS Cable Distribution Box
The equipment is used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.
View More

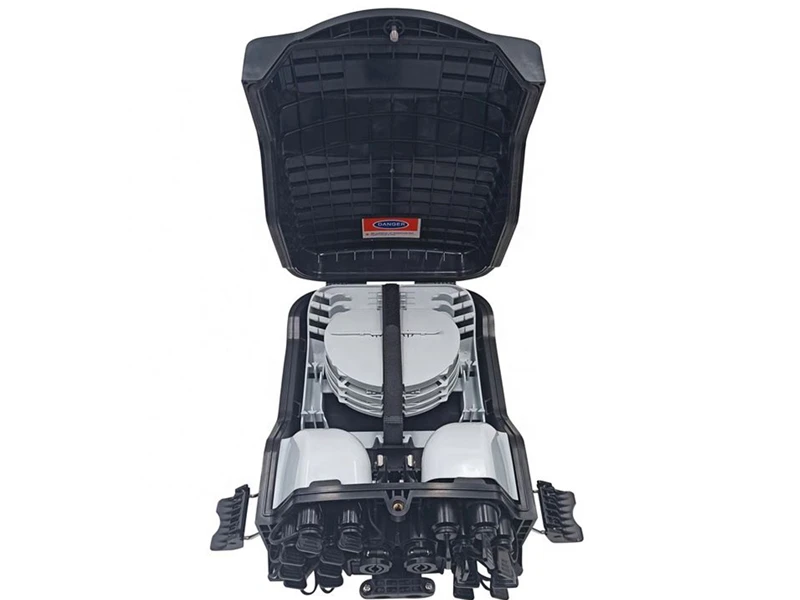

Outdoor Wall Mounting 16 Cores Waterproof Fiber Distribution Box with micro PLC splitter
Pre-terminated optical distribution box, as the most advanced FTTx network distribution node equipment, provides fast and reliable connection, good protection and management for FTTX network.
View More
fiber optical pedestal is designed specifically for the housing of fiber access terminals to provide an additional protection to the fiber passive equipments installed, the green environment-friendly appearance makes itself perfectly suitable for FTTH.
View More

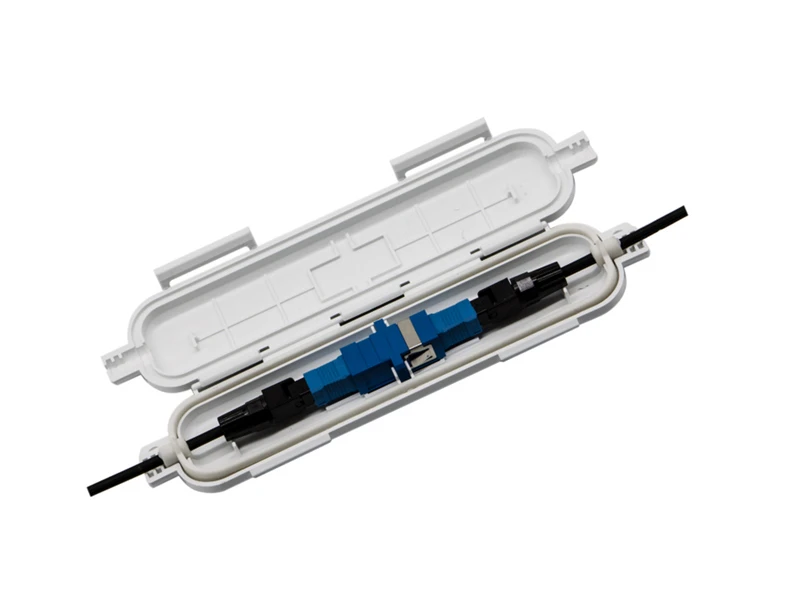

FTTH Outdoor Waterproof Fiber Optic Protection Box for Drop Cable Splicing
1 in 1 Output FTTH Drop Cable Splice Box (AT-FDB-801),Suitable for 1Core FTTH Drop Cable OR indoor 0.9MM,2.0MM,3.0MM optical cable,Empty Box OR With 1PCS SC/APC OR SC/UPC Adapter is optional.Box Color:Black or Whithe is optional.
View More
Pre-connectorized ODN Boxes Caja NAP CTO Preconectorizada offers a versatile solution for linking drop cables and feeder cables in Fttx networks. It can accommodate the needs of at least 16 users. It as the most advanced FTTX network distribution node equipment, provide quick and reliable connection, good protection and management for the FTTX network.
View More
Optical fiber distribution box Is designed to connect feeder/distribution cable to subscriber’s drop cable using PLC splitter in FTTx networks. It is easy to install on the wall or pole .The rear tray is for splicing a fiber of feeder cable with splitter tray and the front tray is for connecting subscriber’s drop cable through adaptor plate or splitter plate on the tray.
View More
Durable HDPE Fiber Optic Underground Pedestal 16cores ODP Underground Distribution Use
The box is suitable for the protection of optical cable and optical communication equipment connection. Through the pigtail spliced with the incoming cable inside the box, the signal is led lead out directly to realize the wiring function. lt is suitable for floor installation outdoors.
View More

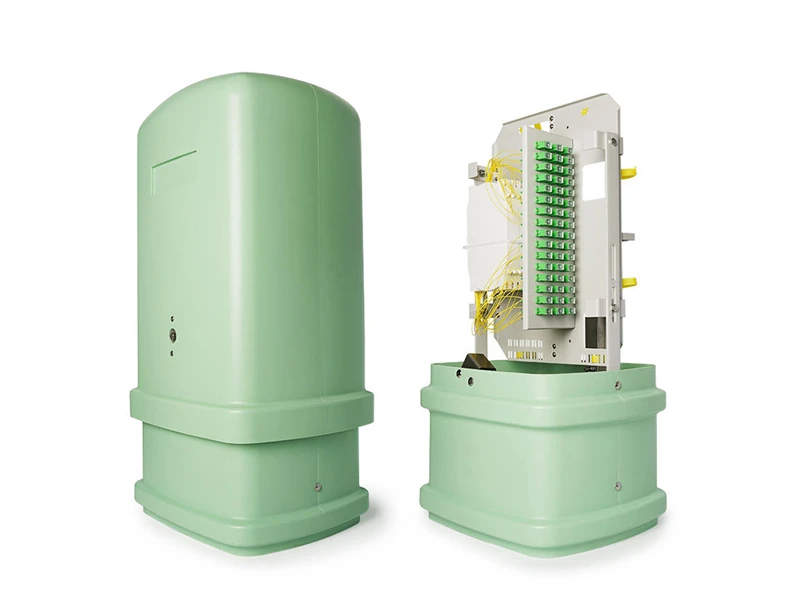

Waterproof Outdoor Pedestal Optical Fiber For Protection Fiber Optic Cable Distribution Box
