Description

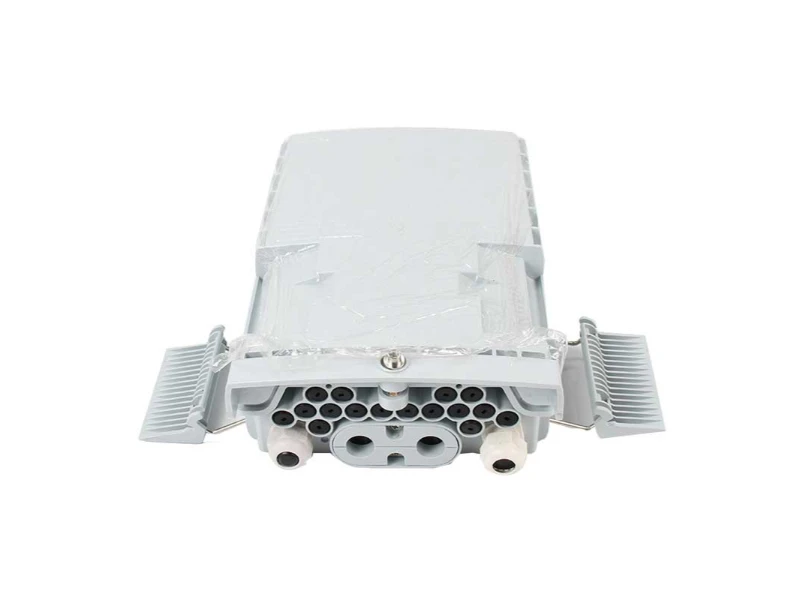

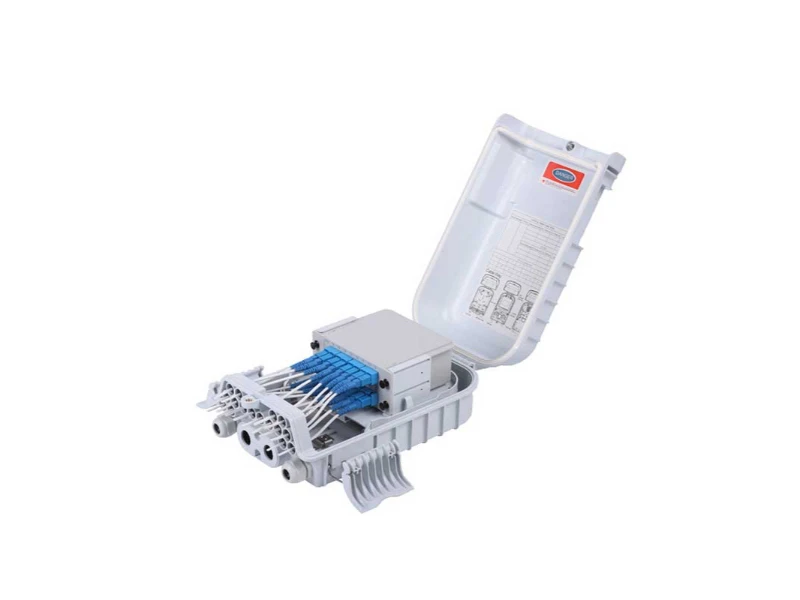

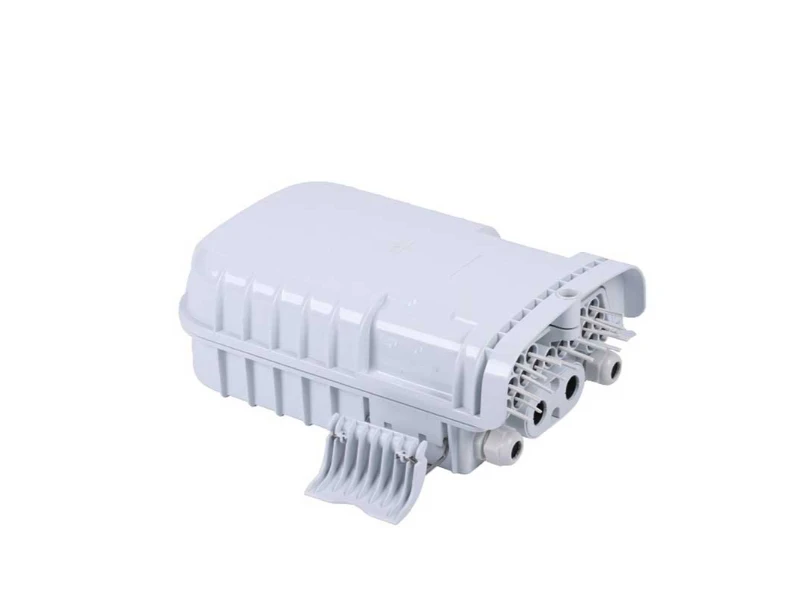

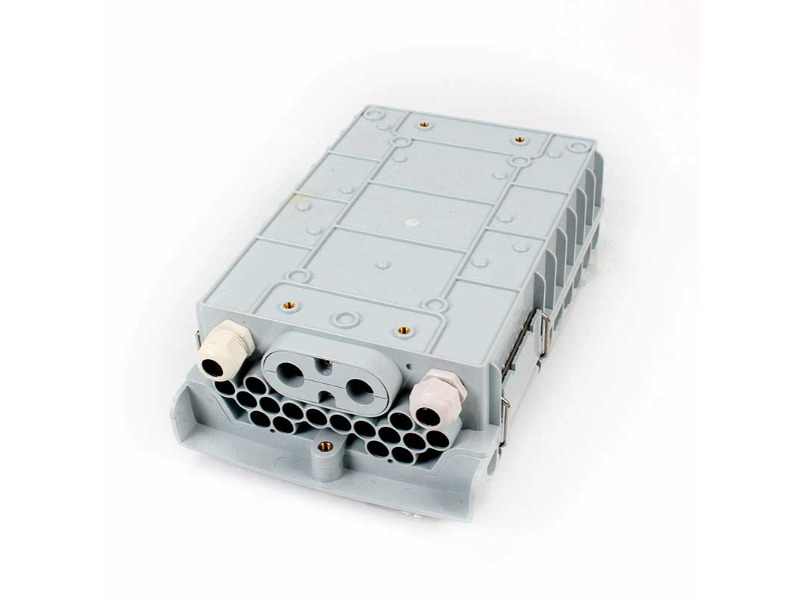

AT-FBT16W fiber distribution NAP box is able to hold up to 16subscribers and 96splicing fiber. It is used as a splicing closure and a termination box for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Note
| The letter X stand for | The Letter Y Stand for | The Letter Z Stand for |
| L: LGX Splitter Type | 8: 1piece 1x8 splitter | G: Grey color |
| A: Adapter Plate Type | 16: 1piece 1x16 splitter | B: Black color |
Features
Water-proof design with IP-65 Protection Level
Integrated with flap-up splice cassette and adaptor holder
All stainless metal plate and anti-rusting bolts, nuts
Fiber bend radius control more than 40mm
Suitable for the fusion splicer or mechanical splice
2Pcs of 1*8 Splitter can be installed as an option
Mechanical sealing structure and mid-span cable entry.

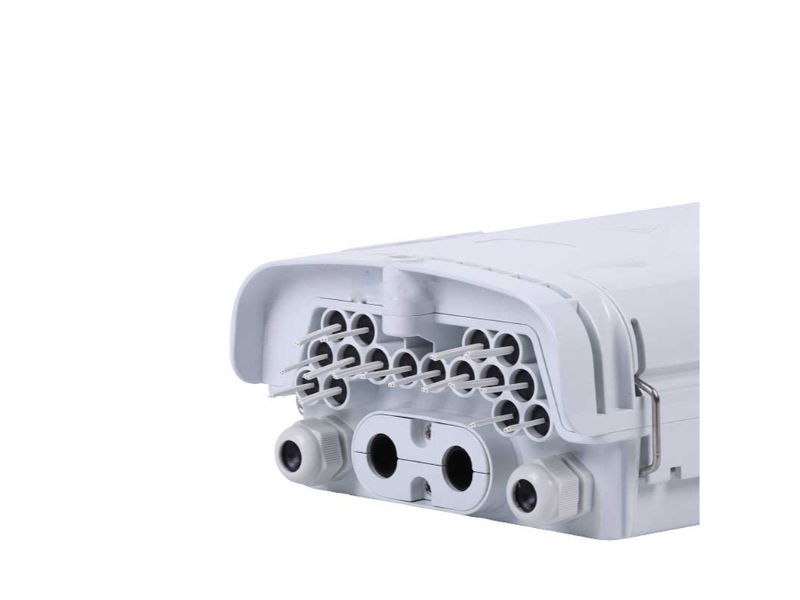

16 ports cable entrance for drop cable
16 adapters for drop cable patching

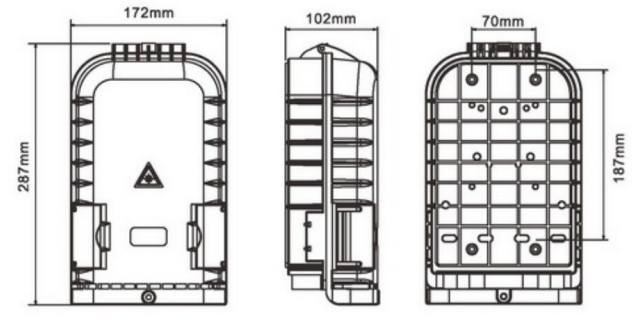

Dimension Drawing
Configuration:
|
Material |
Size |
Max Capacity |
Nos of Adaptor |
Wight |

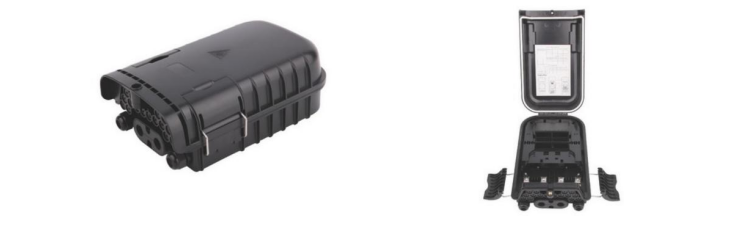

Color |
|
|
ABS/PC |
|
Splice 16 Fibers (1trays, 16fiber/tray) |
2pc of 1*8 PLC Splitter
|
16pc of SC |
1.15kg |
Grey/black |
Applications:
Wall mounting and pole mounting installation
FTTH pre-installation and filed installation
2*3mm indoor FTTH drop cable and outdoor figure-8FTTH self-supporting drop cable
Standard Accessories:
Splice cassette and cable management tool,
Installation nuts and bolts, protection sleeves hose clamp.
Cable tube, wrench, cover, holder, rubber seal for cable entrance
Packing:
|
Model |
Net Weight |
Outer Carton Size |
Outer Carton G.W |
PCS/CTN |
|
AT-FBT16W |
1.00kg/pcs |
700*380*320mm |
12.0kg |
10pcs |
YOUR VACATION IS HERE
Prepare your network for seamless 5G deployment. Get direct access to factory pricing, custom OEM/0DM solutions, and rapid prototyping,
Let's Build Your Optical Network, Kindly have a chat with our sales experts!
Get A Free Quote
Related Products
FTTH 16 ports Huawei mini SC optical drop distribution box
Model No. FTB-16F can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 16 users requirements.
View More
FTTH Patent Design 16 Port Indoor Outdoor Termination Cto Box
Model No. FTB-16M-1 can connect the drop cable with feeder cable as the termination point in the Fttx network
View More
FTTH 24 Port ODP / ODB / FDB / NAP Fiber Optic Termination Box
AT-1608-24N This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
View More
FTTH FTTB FTTX 24 core wall mounted optical distribution box
24 cores distribution box is able to hold up to 24 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system.
View More
FTTH 24 Port Outdoor FDB Fiber Optic Terminal Junction Box
AT-1606-24A This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
View More

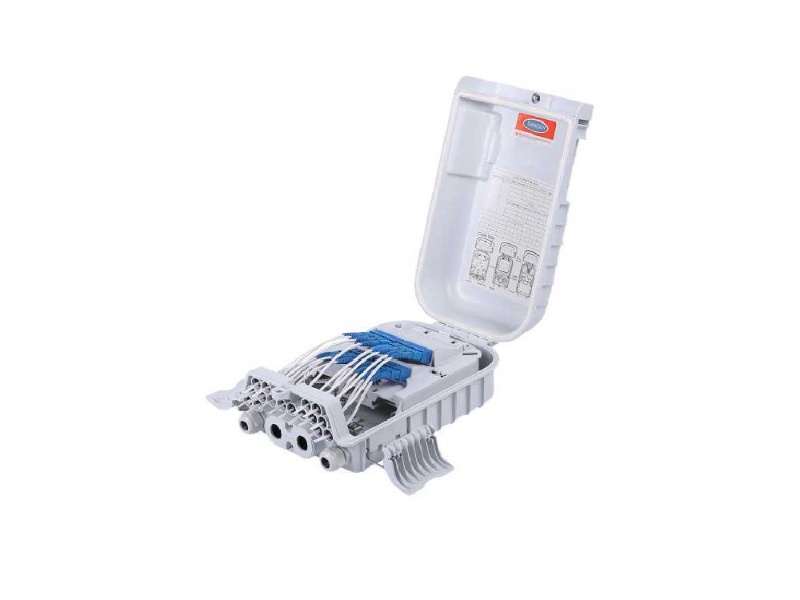

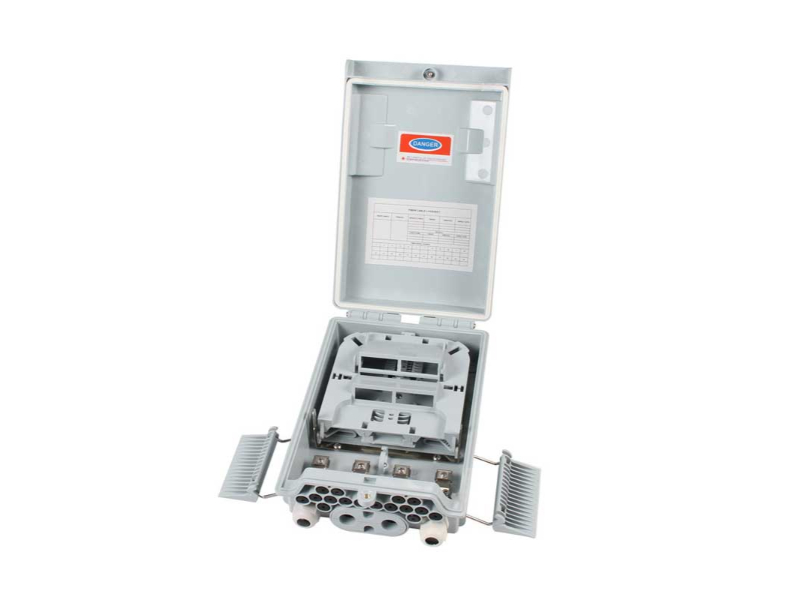

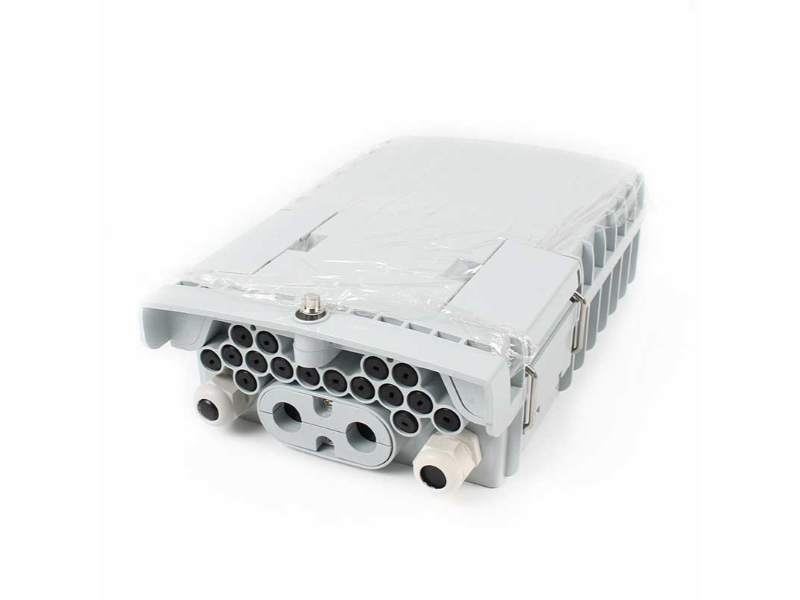

FTTH 16 core Fiber NAP outdoor distribution box for FTTX system
