Overview

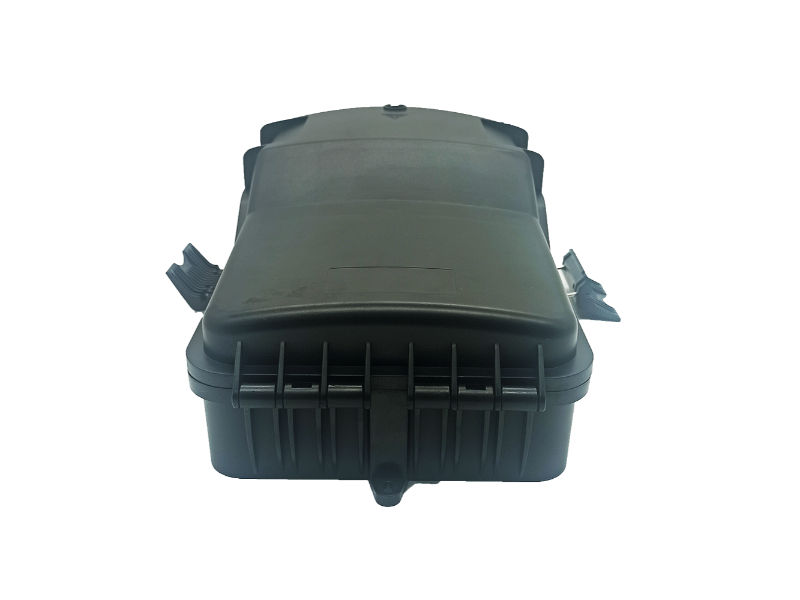

Model No. FTB-16F can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 16 users requirements. It can help splicing, splitting, storage and management with suitable space.
Technical Index
| Model No. | FTB-16F | Color | Black, Grey White.. |
| Capacity | 16cores | Protection Level |
IP65 |
| Material | PC+ABS, ABS | Flame retardant performance | Non-flame retardant |
| Dimension (L*W*D, MM) | 308*190*121.5 | Splitter | Can be with 2x1:8 tube splitter |

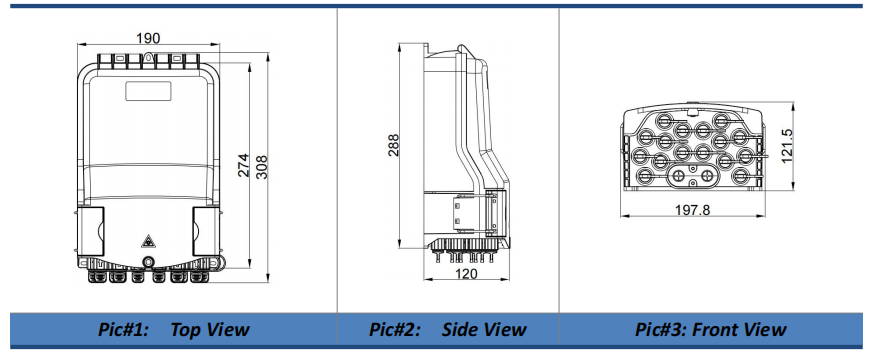

The dimension diagram: (mm)
Features
The body is made of high quality engineering plastic with good strength;

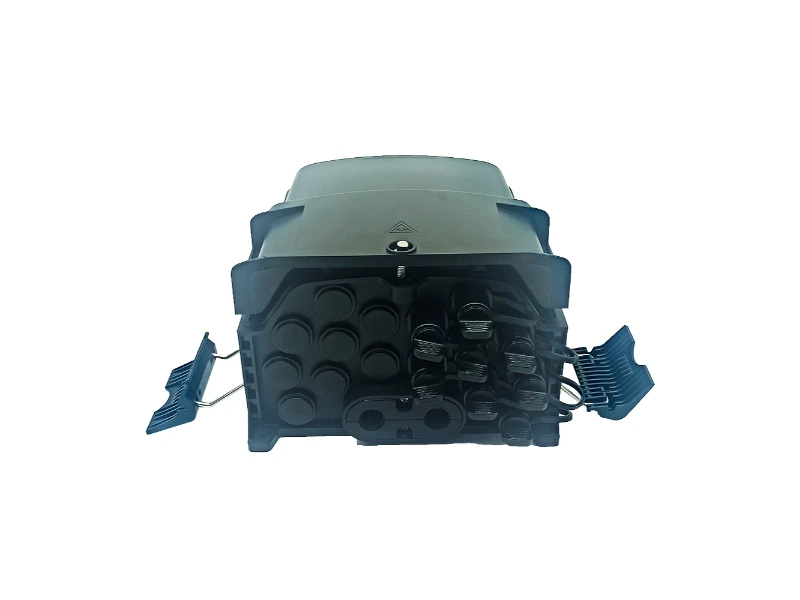

With safe special-shaped lock, the box can be opened easily and has good water-proof performance, suitable for indoor and outdoor natural environments (Pic#4 for details);

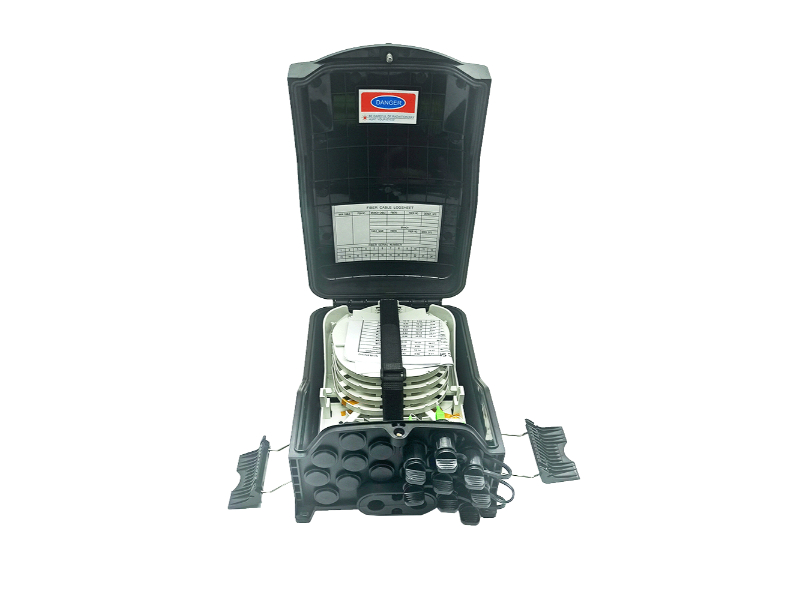

With water-proof adapter, the box can be operated more conveniently ( Pic#5 for details);

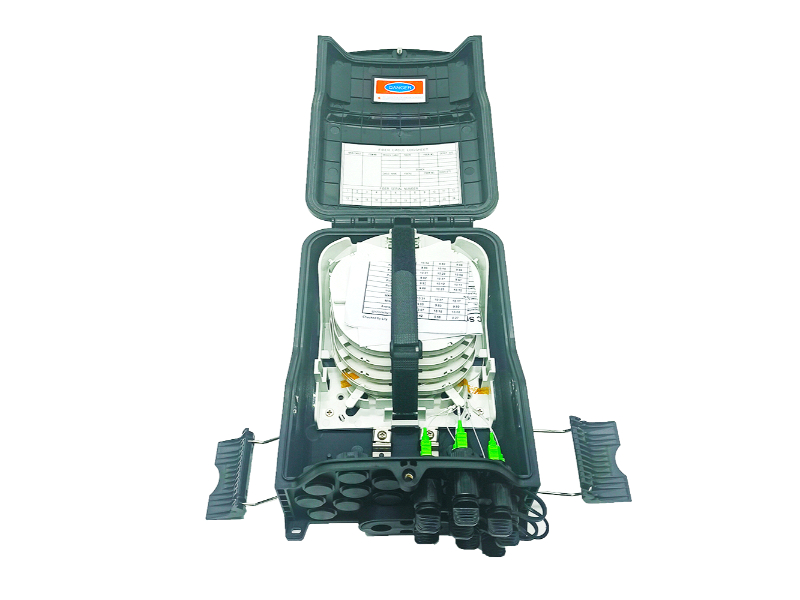

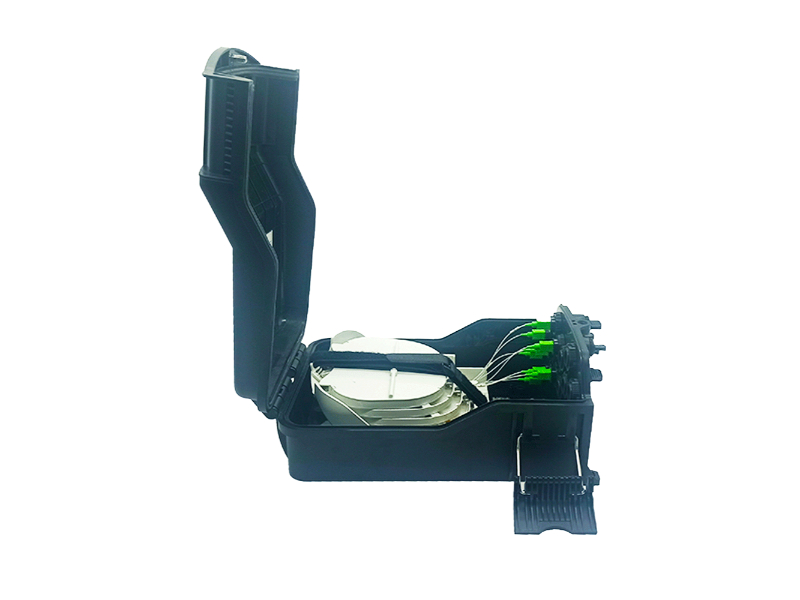

The welding tray adopts a page-turning structure, which is convenient and quick to construct ( Pic#6 for details);

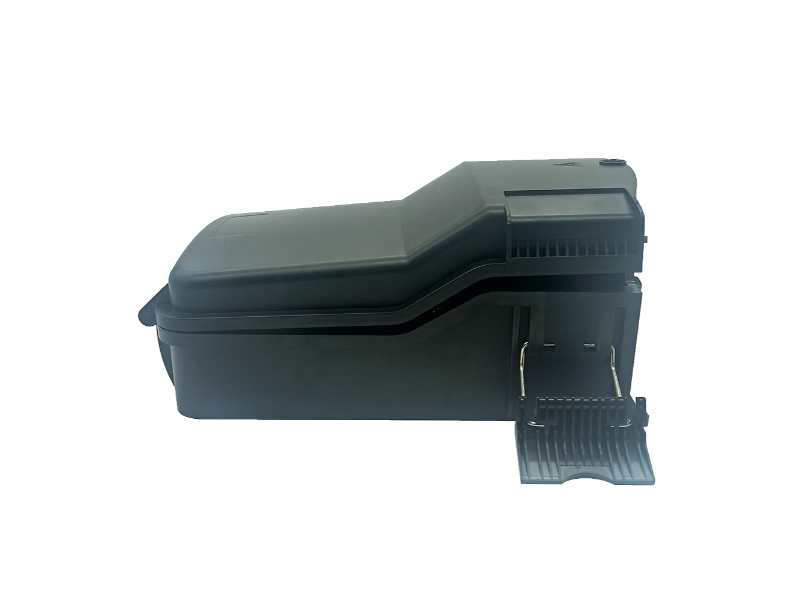

The drop leaf can be installed 2 pcs of 1*8 tube splitter or 1 pcs of 1*16 tube splitter( Pic#7 for details);
Suitable for optical cables with a diameter of Φ8mm～Φ11mm;
Package Information
Plastic bag size: 350*400mm
Inner box with single corrugated size: 320×200×130mm
Carton with double corrugated size:550×335×430mm(8PCS/Box)
