Description
AT-1608-24N This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building.
Technical Data
|
Model |
AT-1608-24N |
|
Material |
PC+ABS |
|
Size |
340*220*95 |
|
PLC |
3pcs 1x8 steel tube PLC Splitter |
|
Adapter |
24pcs SC/UPC or SC/APC Adapters |
|
Color |
Gray/Black |
|
Net. Weight |
1.85kg |
|
Work Temperature |
-40 ⁰ C ~+75 ⁰ C |
|
Max Capacity |
Splice 120 Fibers (5 trays,24fiber/tray) |
|
Relative Humidity |
≤ 85% (+30 ⁰ C) |
|
Atmospheric Pressure |
70Kpa~106Kpa |
|
Insert Loss |
≤ 0.2dB |
|
UPC Return Loss |
≥ 50dB |
|
APC Return Loss |
≥ 60dB |
|
Insert and Pull out Life |
≥ 1000 times |
|
Insulation |
The grounding device is insulated with the Termination box, IR ≥1000m Ω/500V (direct current) |
|
Withstand Voltage |
Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover. U ≥3000V (direct current) |
Standard Accessories
Splice cassette and cable management tools, Installation nuts and bolts, Protection sleeves, hose clamp, cable tube, key.
Features
Water-proof design with IP65 Protection level
Integrated with splice trays.
Maximum 120 fiber splice capacity, stainless anti-rust bolts and nuts
Easy for maintenance and expansion, neat cabling.
Fiber bend radius control more than 40mm.
180 degree access with buckled lock structure.
3pcd 1x8 PLC Splitter can be installed.
24 pcs of mechanical ports for 3-7mm drop cable.
1 mid-span cable entrance(10-16.5mm) for uncut cable and 2 reserved cable entrances for distribution cable gland(8-13.5mm)
YOUR VACATION IS HERE
Prepare your network for seamless 5G deployment. Get direct access to factory pricing, custom OEM/0DM solutions, and rapid prototyping,
Let's Build Your Optical Network, Kindly have a chat with our sales experts!
Get A Free Quote
Related Products
8-Port Gel-Sealed Fiber Optic Splice and Patch Closure with SC/APC Adapters
AT01135 Fiber Optic Splice Closure is a wiring line device of user distributions in FTTH system, it provides protection and management for fiber cable, and be used for terminating, cable branching, cross connection.It is mainly used for user access point in FTTH-ODN network , it can be divided into indoor and outdoor type according to the installation scenario, and can be divided into distribution type and optic-split type according to thefunction.AT01135 is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for FTTx network building.
View More
Fiber Network Interface Device (Fiber NID)
Alteoptic’s Fiber Network Interface Device (Fiber NID) is a high-performance outdoor fiber optic enclosure specifically engineered for FTTH, FTTB, and FTTP networks. This outdoor Fiber NID enclosure delivers secure, weather-resistant protection, providing a reliable demarcation point between the service provider’s fiber optic network and the customer premises.
View More
Compact outdoor Fiber NID with a built-in reel design. The drop cable is pre-wound on the internal reel and factory-terminated with SC/APC connectors on both ends, available up to 150 ft. The enclosure features IP55 protection with foam strip sealing, helping protect the fiber connection point while reducing field splicing, simplifying installation, and keeping excess cable neatly stored inside the box.
View More
48 Core ABS Black Fiber Optic Splitter Box
In the FTTX communication network system, it is used as the terminal point where the feeder cable is connected to the incoming cable. The product is used to connect optical fiber distribution cables to butterfly home optical cables through optical splitters, thus meeting the needs of users for high bandwidth bandwidth service openness. Fiber splicing splitting, distribution can be done in this box, while providing solid protection and management for FTTX network construction.
View More
8 Port pro-connection Fiber Optic Terminal Box SUB box
Fiber Access Terminal as the most advanced FTTX network distribution node equipment, provide quick and reliable connection, good protection and management for the FTTX
View More
13 Ports Fiber Optic Pre-connnected Hub Box of Nap SC MPO Optical Termination Distribution Box
Model No. FTB-13A-1 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 13 users requirements. It can help splicing, splitting, storage and management with suitable space.Model No. FTB-13A-1 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 13 users requirements. It can help splicing, splitting, storage and management with suitable space.
View More
Outdoor Waterproof 18 Ports Fiber Access Terminal Distribution Box Pre-terminated FDB
Manufacturers supply indoor and outdoor 1:16 optical fiber box terminal box IP 65,ABS, ABS + PC, be anti-uv material
View More
H8 Fiber Optic Splitter Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
View More

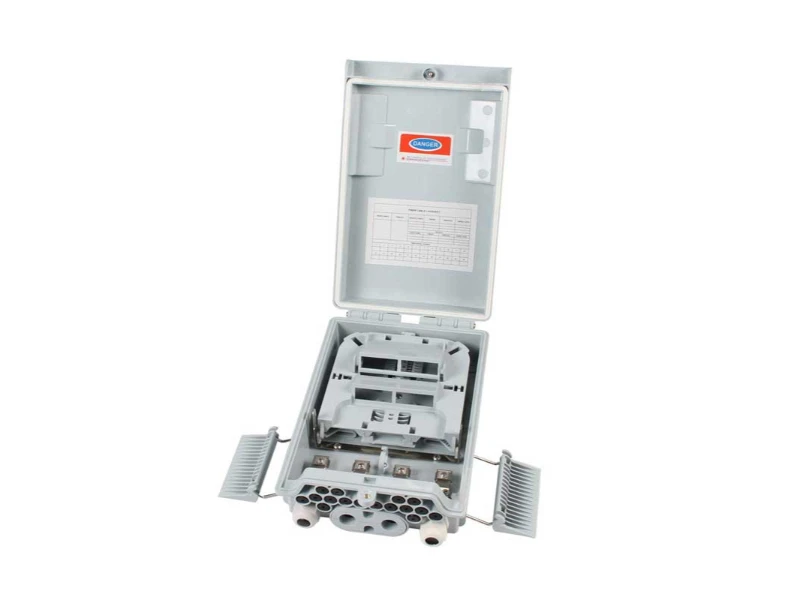

FTTH 16 Port Fiber Optic NAP Box PC+ABS Cable Distribution Box
