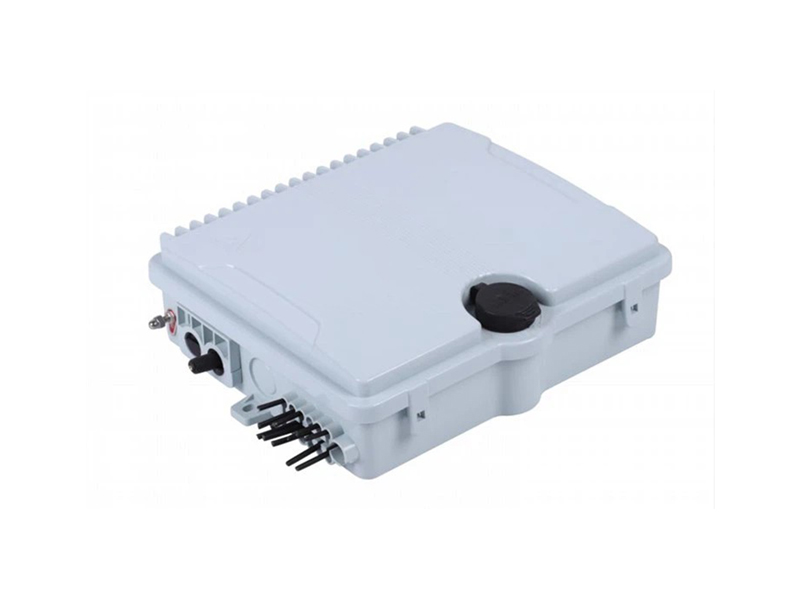

This box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building
Features
* PC+ABS material used ensures the body strong and light..
* Wet-proof, water-proof, dust-proof, anti-aging
* Easy installations: Ready for wall mount – installation kits provided
* Space saving: Double-layer design for easier installation and maintenances
* Easy installations: Ready for wall mount – installation kits provided.
* Protection level up to IP55
* Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
* Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
* Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC adapt or installation, easy maintenance.…
|
Item No. |
FTB-12B-1 |
|
Max Capacity |
12 cores |
|
Material |
ABS+PC |
|
Dimension,W*H*D(mm) |
235*212*70 |
|
Inlets/Outlets |
2/12 |
|
Input Cable Diameter |
|
|
Installation |
Pole-mounting/Wall-mounted |
|
Optional Accessories |
Pigtail, Adapter |
|
Protection Level |
IP55 |
|
Input Cable Method |
Uncut |
|
PLC Splitter Available |
Yes |
