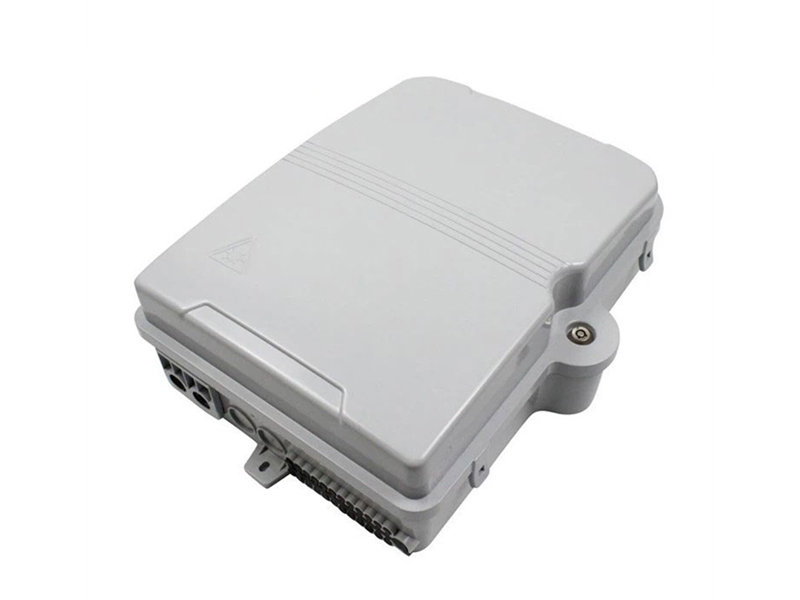

Alteoptic outdoor FTB-AT24G-1 fiber termination box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. Lightweight economic solution for small termination capacity, NAP CTO box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.
Technical Index
|
Model No. |
FTB-AT24G-1 |
Color |
Black, Grey White.. |
|
Capacity |
24cores |
Protection Level |
IP65 |
|
Material |
PC+ABS, ABS |
Flame retardant performance |
Non-flame retardant |
|
Dimension(L*W*D,MM) |
316*274*102 |
Splitter |
Can be with 2x1:8 tube splitter |
The dimension diagram:(mm)
3 Features:
3.1 The body of fiber box splitter is made of high-quality engineering plastic with good strength;
3.2 LCP Cajas de distribution 24F with safe special-shaped lock, the fiber optic splice box can be opened easily and has good waterproof performance, suitable for indoor and outdoor natural environments (Pic#4 for details);

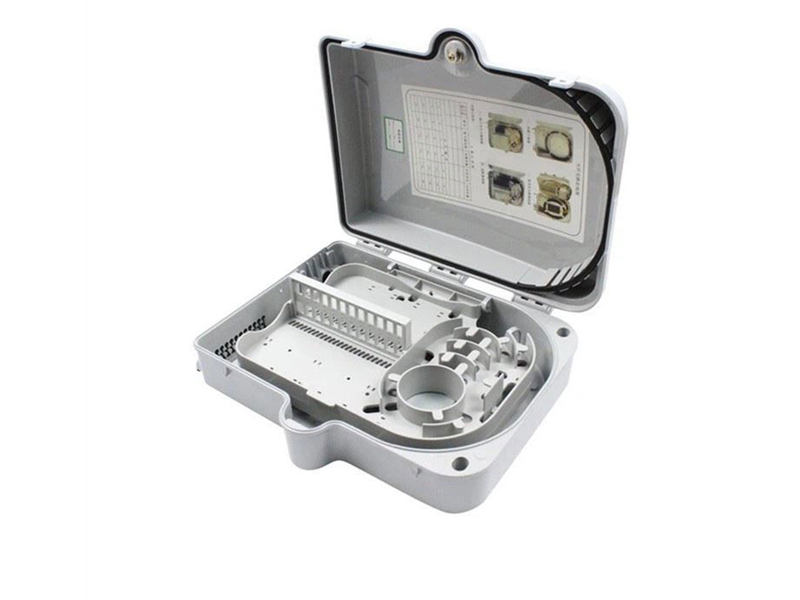

3.3 Terminal box outdoor with the independent rubber sealing plug for drop cable, the box can be installed and maintained easily, the fusion and termination are completely separated with patch panel can be installed 24 port SC-APC, LC-UPC pigtails&adpater ( Pic#5 for details);

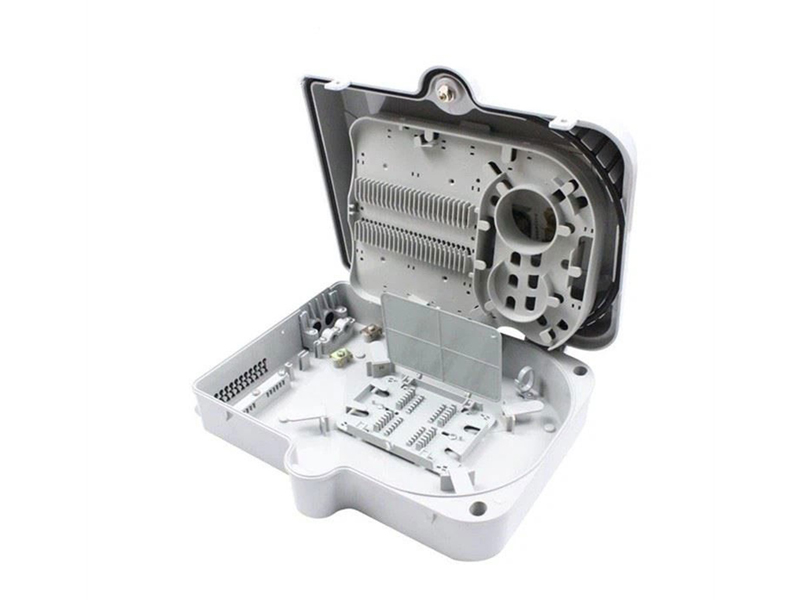

3.4 16cores NAP jc box fiber optical with double-page design, the splicing field is designed in the back of patch panel and extra 1pcs*24F splice tray can be optional( Pic#6 for details);
3.5 The drop leaf can be installed 2 pcs of 1*8 tube splitter( Pic#6 for details);
3.6 24 cores fiber distribution box distributing optic into 2-48 paths by PLC splitter, protecting optic fiber to terminal, easy to operate;
3.7 Optical fiber FTTH access terminal box with IP65 Protection Rating, antirust, dustproof, impact resistance, excellently stable performance, long lifespan;
3.8 OEM and customer's designation are acceptable by YIPU factory;
Pictures for reference:
