Sheet moulding compound (SMC) or sheet moulding composite is a ready-to-mould glass-fiber reinforced polyester material primarily used in compression moulding. Compared to plastic and metal ones, Alteoptic's SMC fiber optic distribution boxes are not only excellent in physical properties like impact, yield and compressive strengths, but also cost effective.

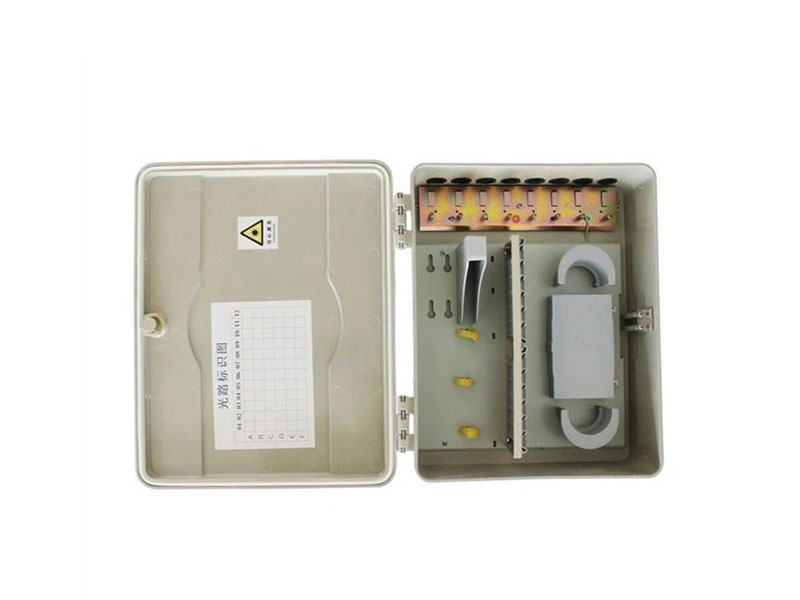

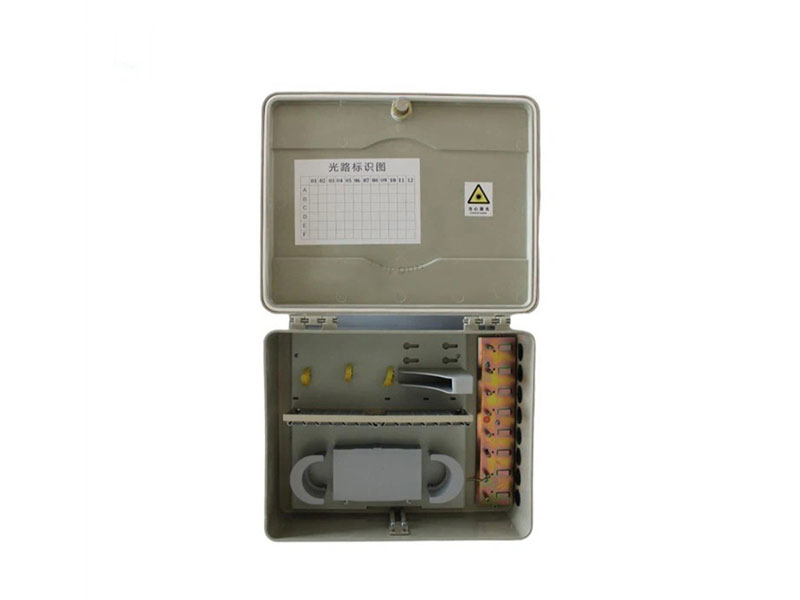

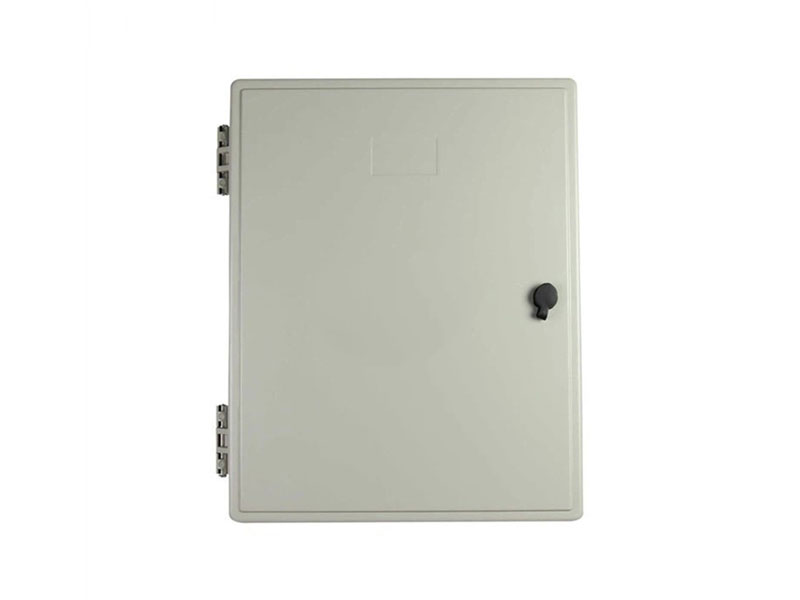

Outdoor NAP 72 Cores 6port Wall Mounted splitter Access terminal fiber optical distribution joint box Point LC/SC Adapters
1.Overview:
Sheet moulding compound (SMC) or sheet moulding composite is a ready-to-mould glass-fiber reinforced polyester material primarily used in compression moulding. Compared to plastic and metal ones, Alteoptic's SMC fiber optic distribution boxes are not only excellent in physical properties like impact, yield and compressive strengths, but also cost effective.
2. Specification:
|
Model No. |
FTB-72ATA-1 |
Color |
Grey |
|
Capacity |
72cores |
Protection Level |
IP65 |
|
Material |
SMC |
Flame retardant performance |
Non-flame retardant |
|
Dimension(L*W*D,MM) |
490*405*160 |
Splitter |
Can be with 8x1:8 tube splitter |
3. Features:
* The body is made of high quality engineering plastic with good strength;
* With safe special-shaped lock, the box can be opened easily and has good water-proof performance, suitable for indoor and outdoor natural environments.
* With the side of left and right in box with different function design, the box can be installed and maintained easily, the fusion and termination are completely separated.
