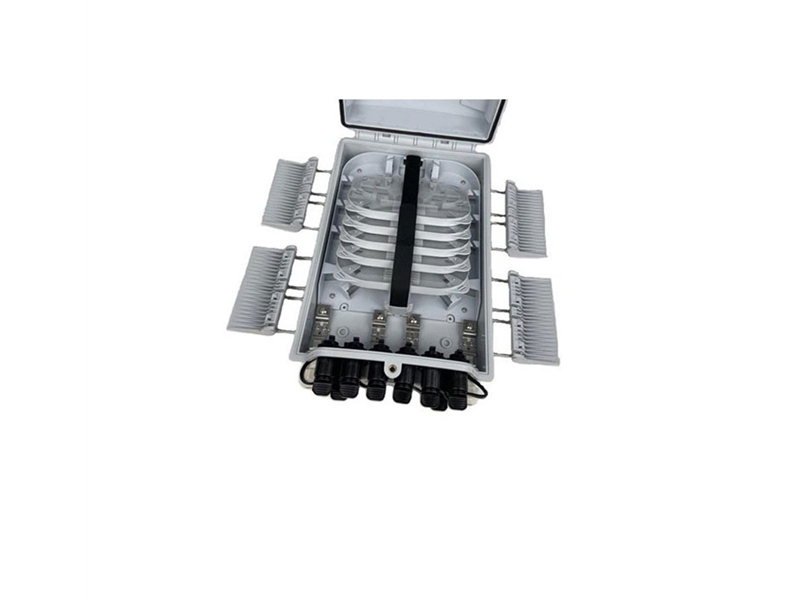

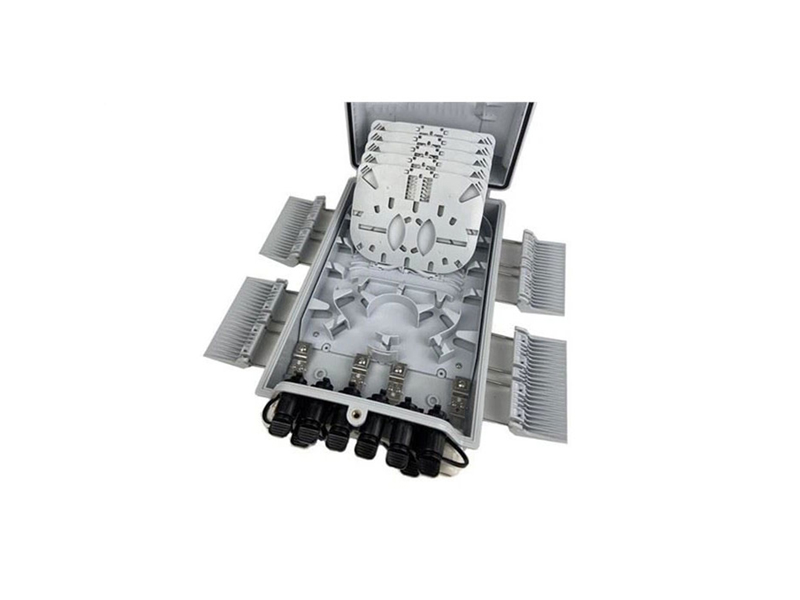

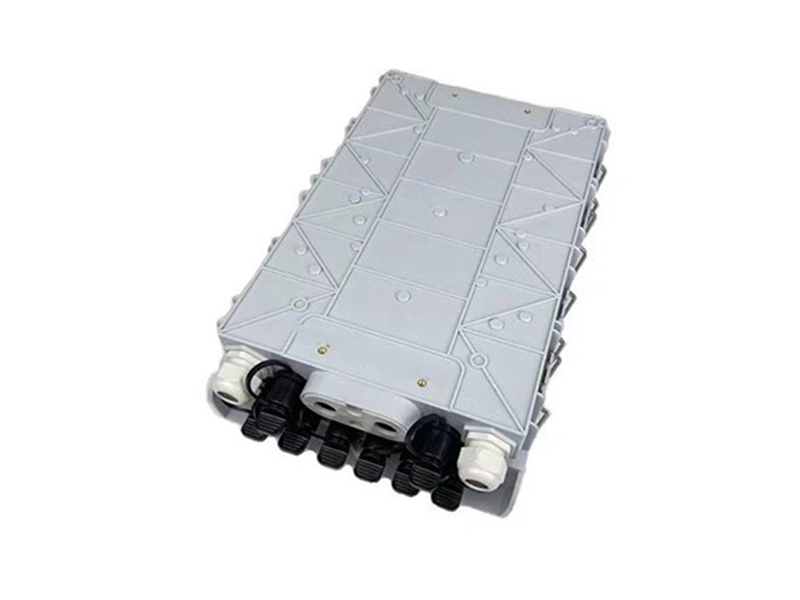

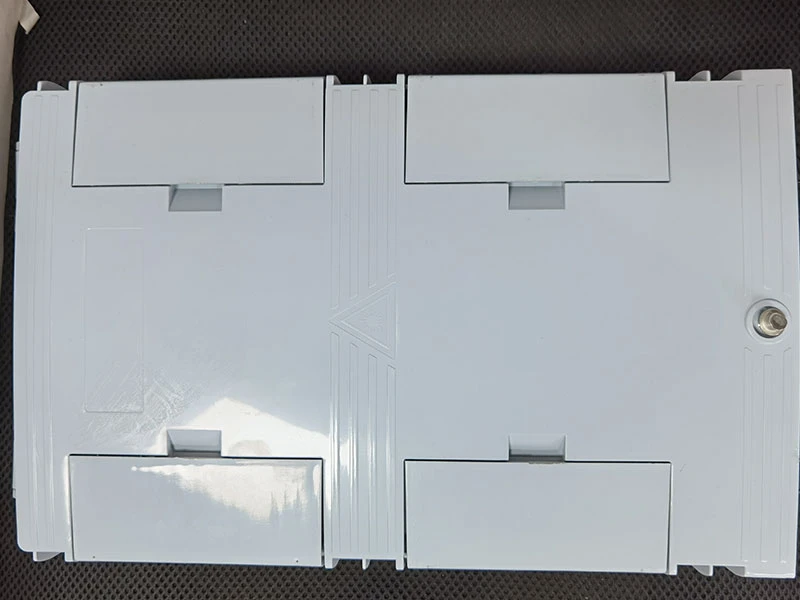

Alteoptic Model No. FTB-AT08Q-1 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 8 users requirements. It can help splicing, splitting, storage and management with suitable space.
Specification
|
Model No. |
FTB-AT08Q-1 |
Color |
Black, Grey ,White.. |
|
Capacity |
8 cores |
Protection Level |
IP65 |
|
Material |
PC+ABS, ABS |
Flame retardant performance |
Non-flame retardant |
|
Dimension(L*W*D,MM) |
341*210*87 |
Splitter |
Can be with 5x1:8 tube splitter |
Features
*Water-proof design with IP-55 Protection level,
*Integrated with splice cassette and cable management rods.,
*Manage fibers in a reasonable fiber radius condition,
*Easy to maintain and extend the capacity,
*Fiber bend radius control more than 40 mm,
*Suitable for the fusion splice or mechanical splice,
*5x1:8 tube splitter can be installed as an option,
*Efficient cable management,
*8 ports cable entrance for drop cable.
Apply To
FTTH, FTTB network and CATV system,Local/Wide Area networks,Data Communications Networks,Optical Telecommunication Networks,Suitable for corridor, basement room and building's outer wall.
