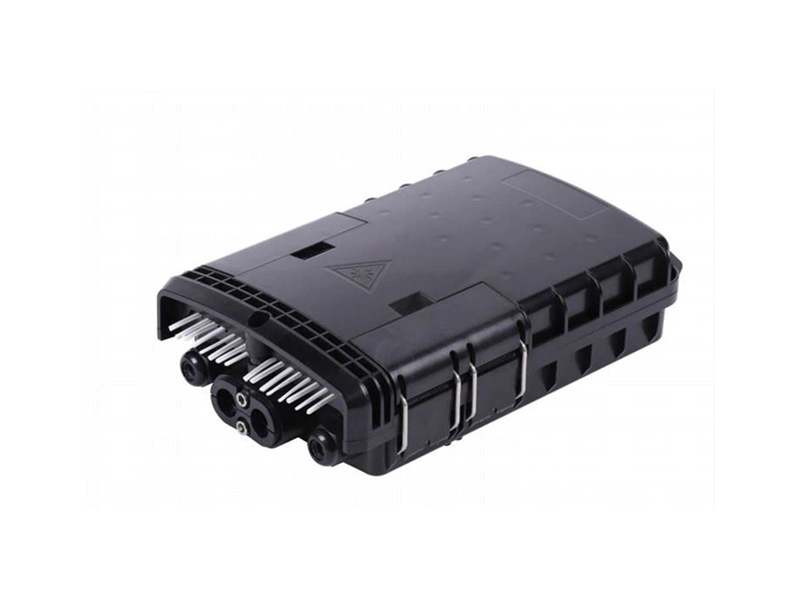

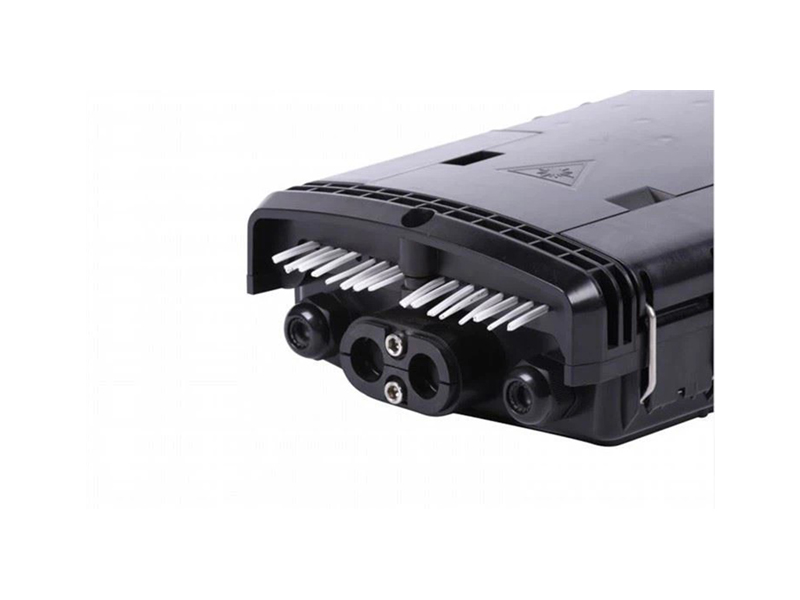

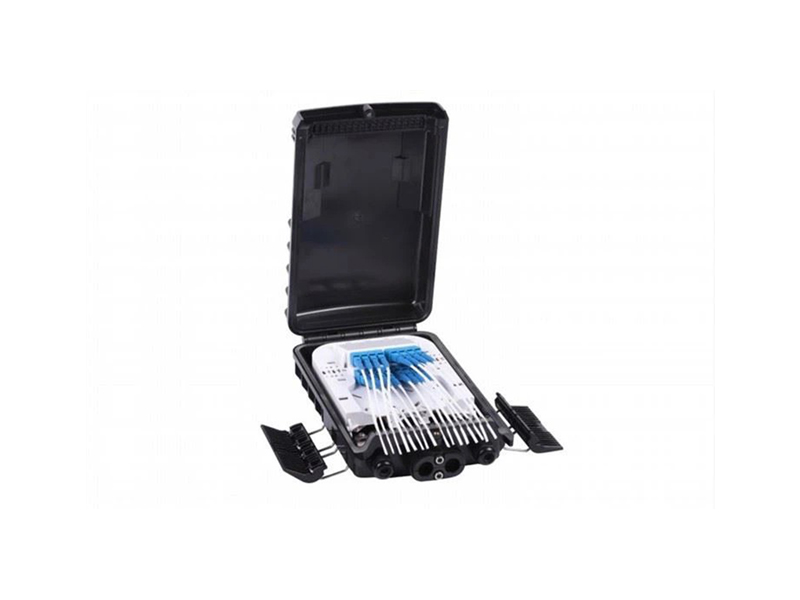

Optical Termination Closure has the purpose of accommodating and protecting optical splice between the distribution cable and the drops of an optical termination network. It is used as a distribution box and a termination point for the feeder cable to connect with drop cable in FTTX network system.It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
As an optical access for FTTH, an optical fiber distribution box can implement connection and distribution of backbone cables and subscriber cables.AT16W-1 Model can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 16 users requirements. It can help splicing, splitting, storage and management with suitable space.
Feature
●Water-proof design with IP-65 Protection Level.
●16 outports for drop cable
●All stainless metal plate and anti-rusting bolts, nuts
●Fiber bend radius control more than 40mm
●Suitable for the fusion splicer or mechanical splice
●2 Pcs of 1*8 Splitter can be installed as an option
●Mechanical sealing structure and mid-span cable entry.
●Can be used indoor and outdoor, wall mount and pole mount
|
Item No. |
FTB-AT16W-1 |
|
Max Capacity |
16 cores |
|
Material |
PP+FG |
|
Dimension,W*H*D(mm) |
295*180*85 |
|
Inlets/Outlets |
4/16 |
|
Input Cable Diameter |
|
|
Installation |
Pole-mounting/Wall-mounted |
|
Optional Accessories |
Pigtail, Adapter |
|
Protection Level |
IP65 |
|
Input Cable Method |
Uncut |
|
PLC Splitter Available |
Tube splitter |
