Alteoptic Model OTB-AT12B is a box that splits an optical cable into a single optical fiber. It is installed on the wall for user termination. Its function is to provide optical fiber fusion and pigtail fusion. It also provides mechanical protection and environmental protection for optical fibers and their components.
FTTH mini fiber optic termination box 8 12 cores 12 port fiber terminal box
1 Overview:
Alteoptic Model OTB-AT12B is a box that splits an optical cable into a single optical fiber. It is installed on the wall for user termination. Its function is to provide optical fiber fusion and pigtail fusion. It also provides mechanical protection and environmental protection for optical fibers and their components.
2 Specification:
|
Model No. |
OTB-AT12B |
Color |
Black, Grey, White.. |
|
Capacity |
8cores |
Protection Level |
IP65 |
|
Material |
ABS |
Flame retardant performance |
Non-flame retardant |
|
Dimension(L*W*D,MM) |
198x112x45 |
Splitter |
/ |
3 Features:
3.1 The body of CTO splitter 8cores is made of high-quality engineering plastic with good strength;

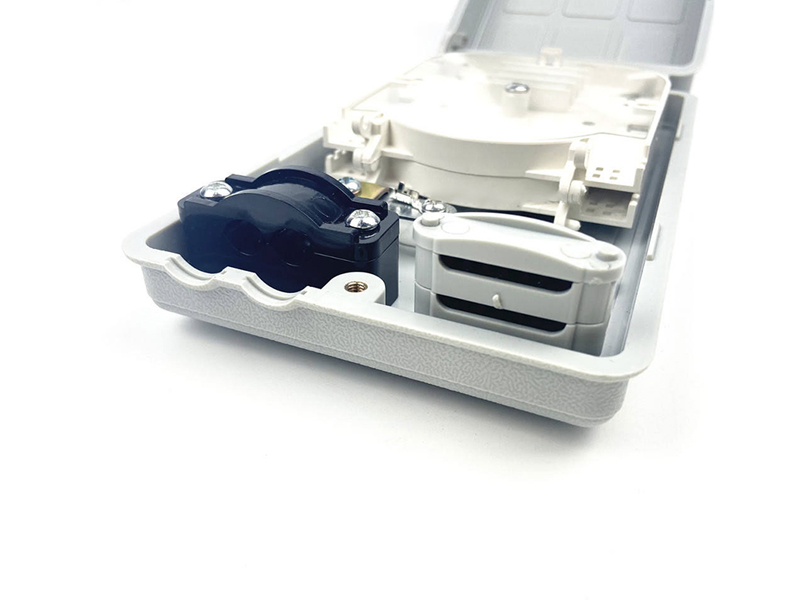

3.2 The adapters and pigtail of NAP enclosure outlet Compatible(Pic#4 for details);

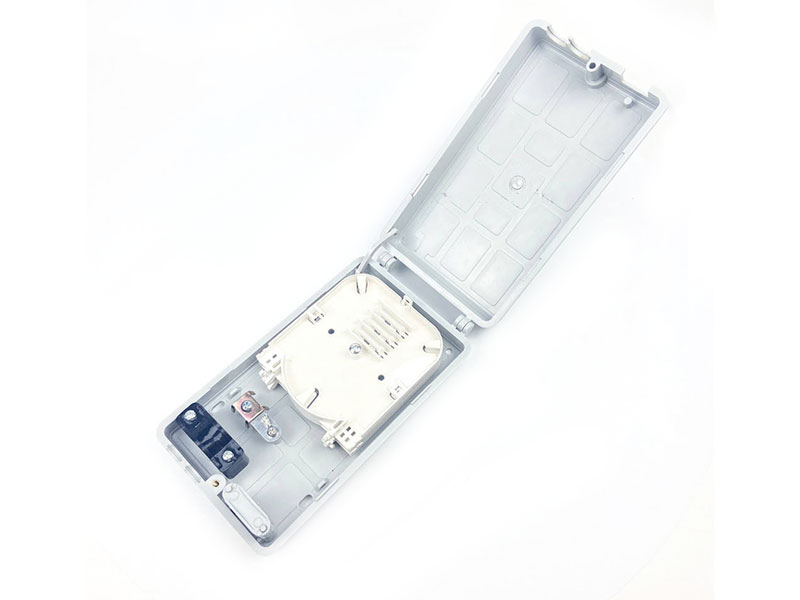

3.3 FTB splitter box with the multilayered design, the 12 port indoor fiber distribution box can be installed and maintained easily, the fusion and termination are completely separated( Pic#5 for details);
3.4 The drop leaf of distribution box ftth fiber optic terminal can be installed 2 pcs*6F splice trays( Pic#6 for details);
