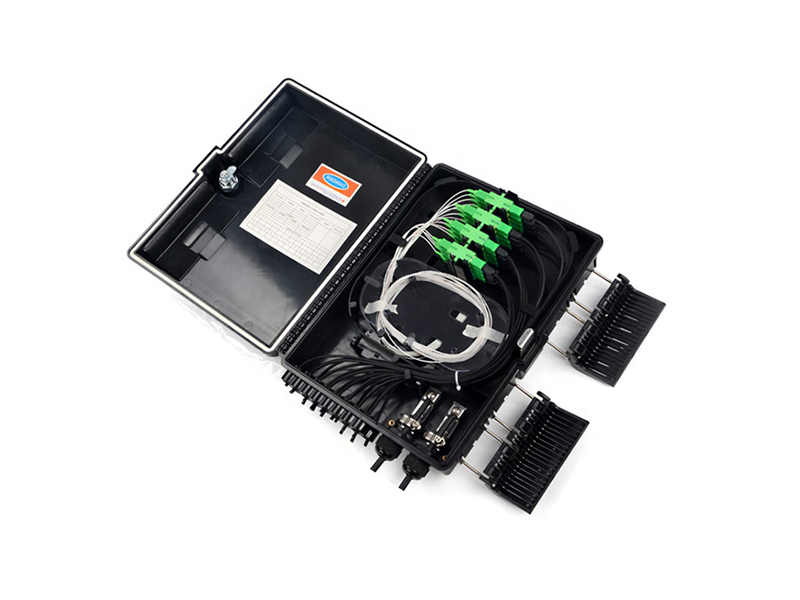

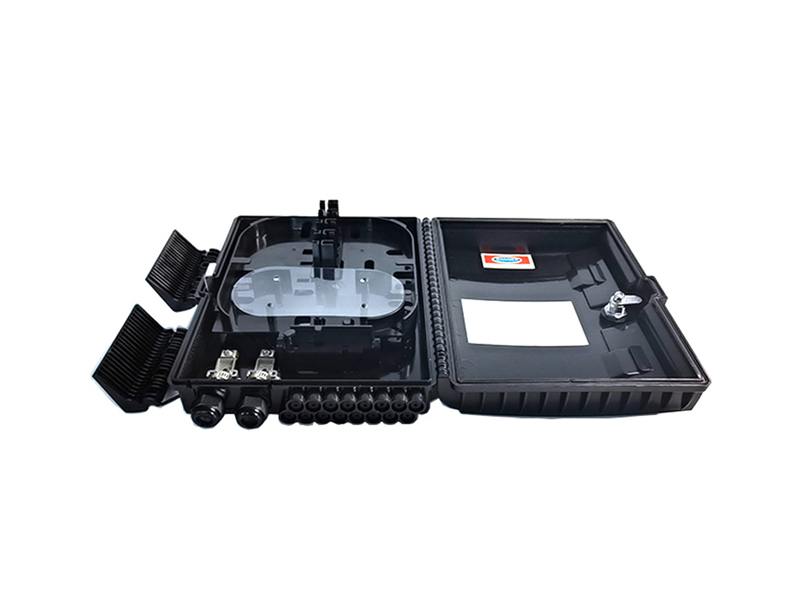

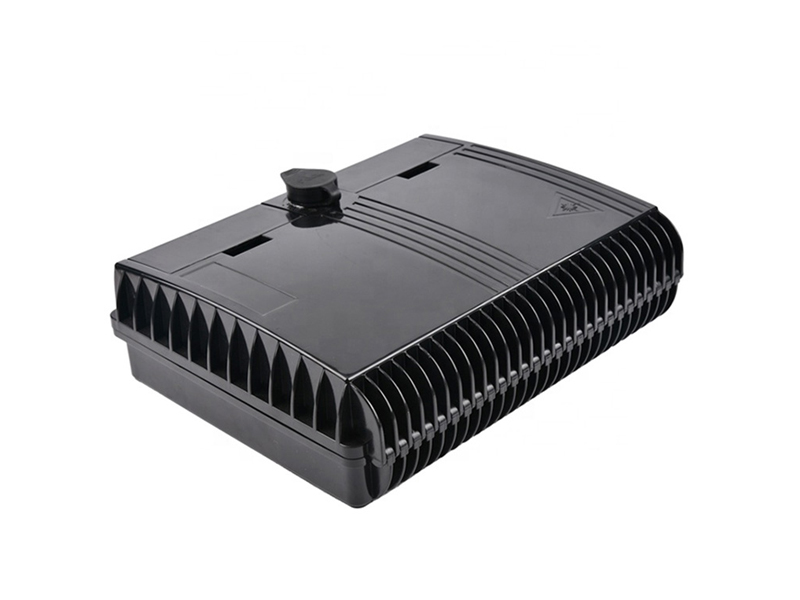

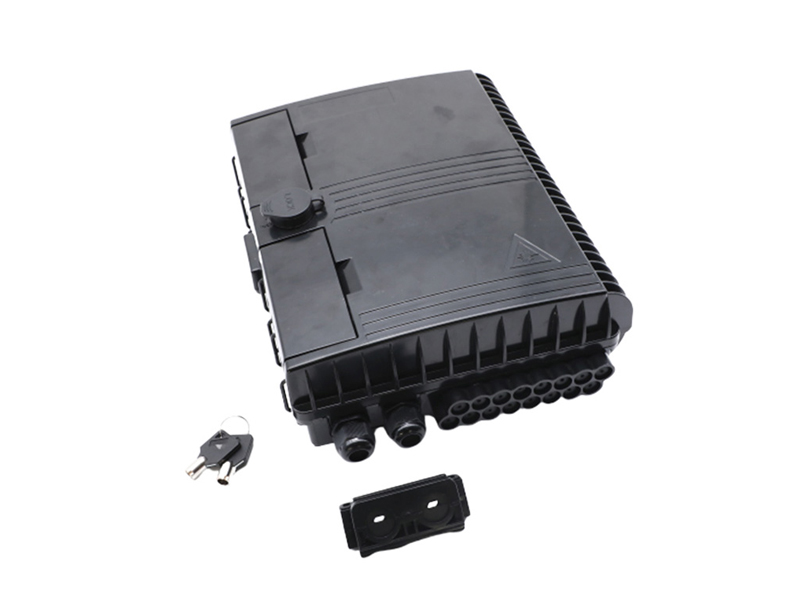

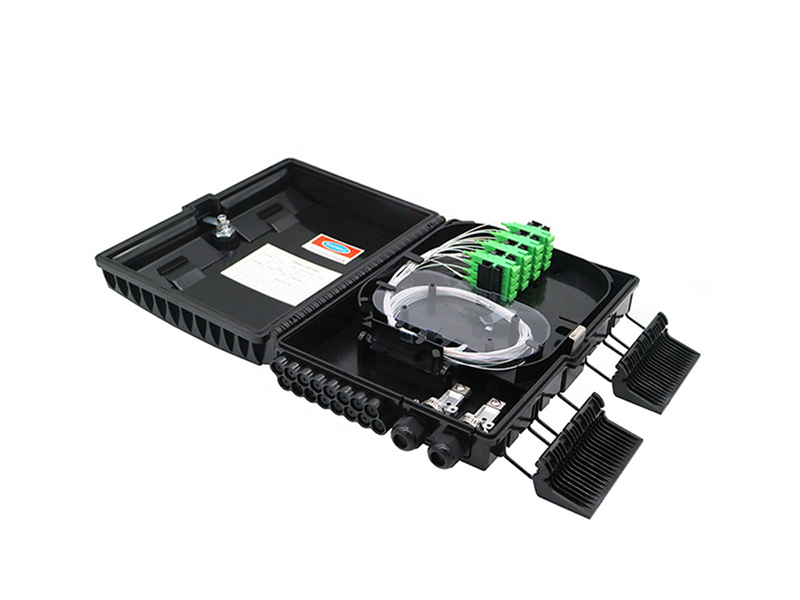

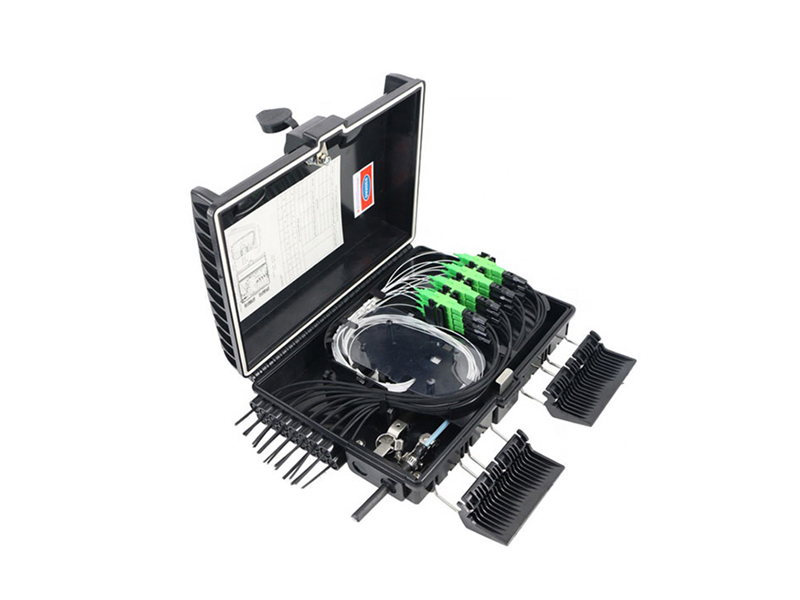

This 16-core Fiber Distribution Box (FDB) is a professional outdoor optical termination enclosure designed for FTTH access networks. Made of high-quality PC+ABS plastic with UV-resistant and waterproof properties (IP65 rated), it provides reliable protection for fiber splicing, splitting, and distribution. The box supports up to 16 drop cables, pre-installed with SC/APC adapters, and is compatible with 1×16 PLC splitters, ideal for both wall and pole mounting applications.
Features:
1). Total enclosed structure, be in nice shape.
2). Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65
3). Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one
4). Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance.
5). Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
Application:
FTTH, FTTB, FTTC
Telecommunication Network
Local Area Network
CATV
Specification:
|
Environmental Requirement |
|||
|
Dimension(L*W*H) |
295*220*85MM |
||
|
Installation |

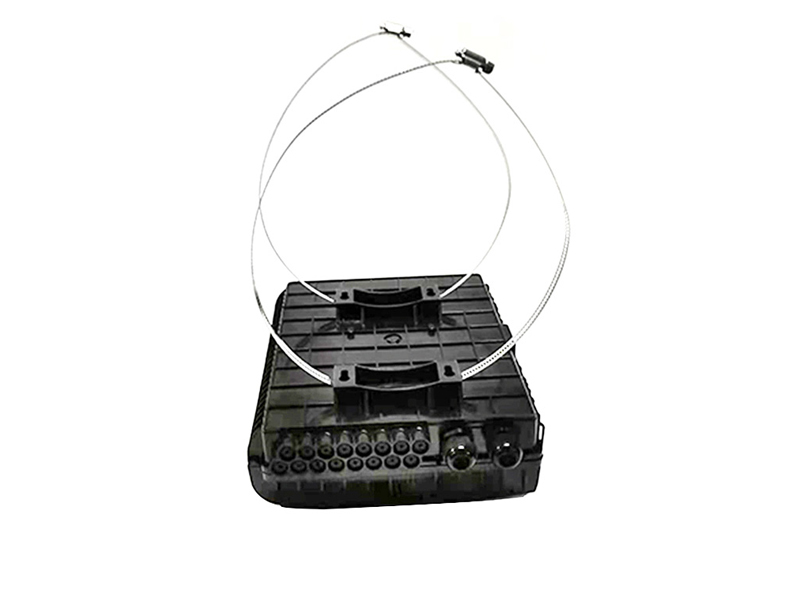

Wall/pole mouting(outdoor &indoor) |
||
|
Cable entries |
Supporting uncut mid-span |
||
|
Working temperature |
-40℃~ +75℃ |
||
|
Relative humidity |
≤85% (+30℃) |
||
|
Atmospheric pressure |
70KPa~106KPa |
||
|
Insertion loss |
≤0.2dB |
||
|
UPC return loss |
≥50dB |
||
|
APC return loss |
≥60dB |
||
|
Packing information |
GW:16.8KG QTY:10pcs MEAS:590*330*510mm |
||
