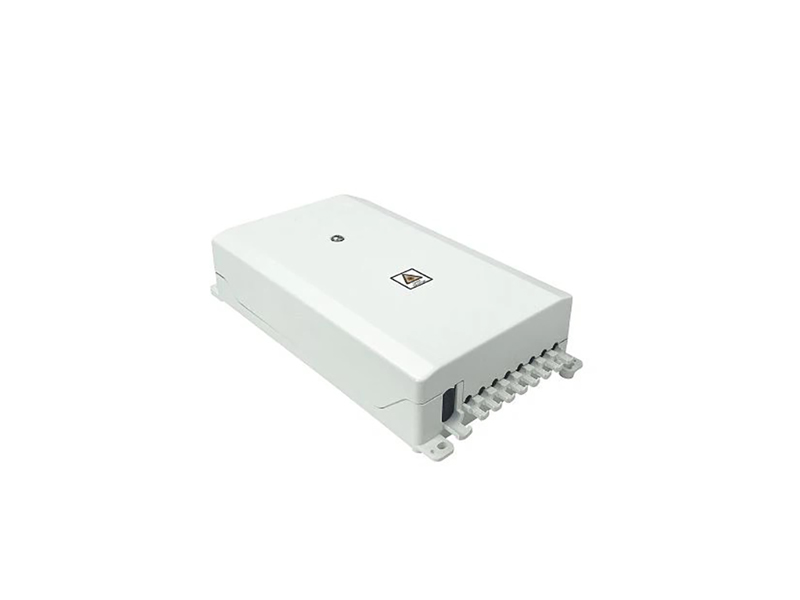

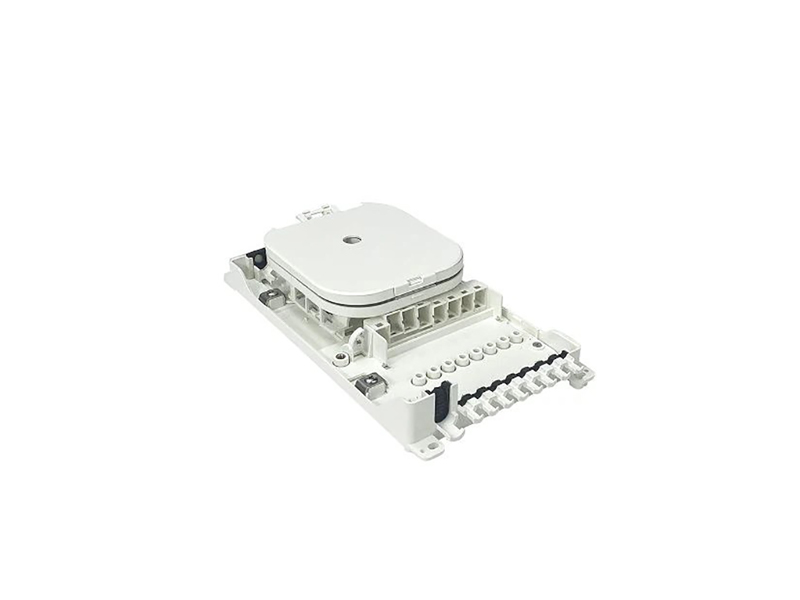

Alteoptic new type OTB-AT08A 8 cores optical termination box (FTB)can be installed 2 pcs of 1*4 tube splitter,which is a small size and compact fiber management product used in FTTx ( (Fiber to the x, including FTTH, FTTB etc.,) cabling—fiber cabling and cable management.
8 ports Indoor termination box is designed for use in residential, small and large businesses premises. The unit houses allows to break out fiber from certain riser cables by making a window cut not larger than 70 mm without interrupting the strength member.
To connect the drop to the raiser fibers splices or drop connectors can be used. The unit can be quickly installed within a home, office or communication room environment. Internal or external cable can enter the unit from the bottom of the box or through the wall.
The dimension diagram:(mm)
Features
1.Adapters and pigtail outlet Compatible ;
2.The drop leaf can be installed 2 pcs of 1*4 tube splitter;
3.Removable cover for easy access
4.Drop cables are terminated individually
5.Separate storage of un-connected fibers from spliced drop fibers
6.Main cable up to 11 mm diameter
7.Drop cable up to 6 mm diameter
The main technical parameter
|
Model No. |
OTB-AT08A |
Color |
Black, Grey White.. |
|
Capacity |
8cores |
Protection Level |
IP4X |
|
Material |
PC+ABS, ABS |
Flame retardant performance |
Non-flame retardant |
|
Dimension(L*W*D,MM) |
210*126*50 |
Splitter |
Can be with 2x1:4 tube splitter |
