Fiber box that provides a cost-effective secure solution for the feeder cable to connect with drop cable in FTTx communication network system. The cajas de distribucion is designed to accommodate one mid-span cable as feeder cable and 8 drop cables, it uses outdoor reinforced adpter cover, and have an advantage in filed assembly by using common pre-terminated patch cord. Fiber optic termination box is great for joint fiber cable ang pigtails. They provide a safe and secure housing that protects fiber optic splices and enable easy distribution. Alteoptic fiber optic joint box are primarily used within the telecommunications in dustry and network equipment rooms.
Description:

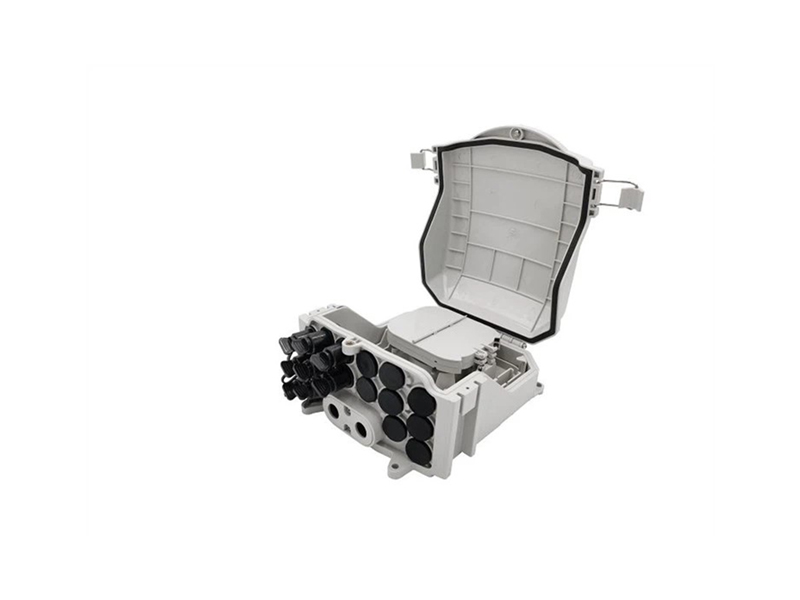

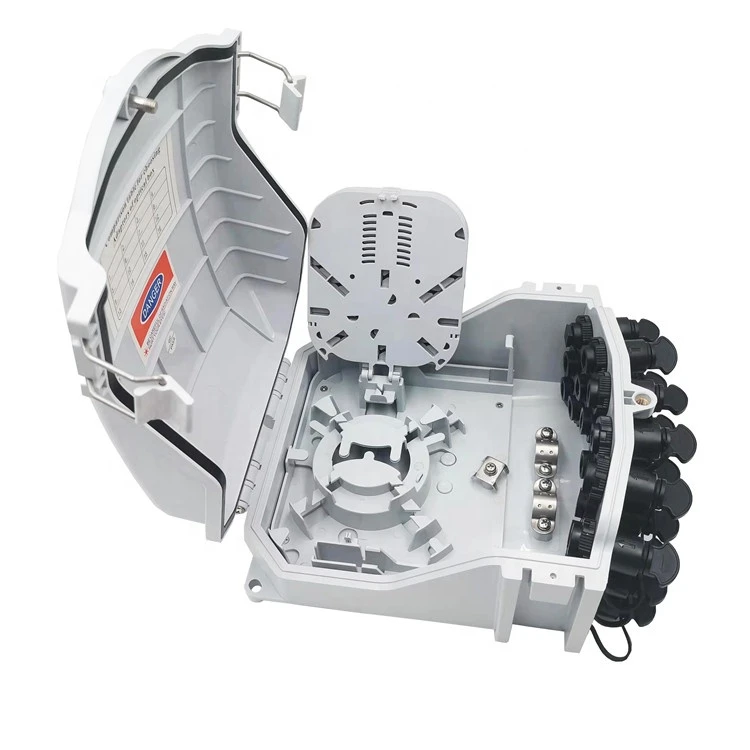

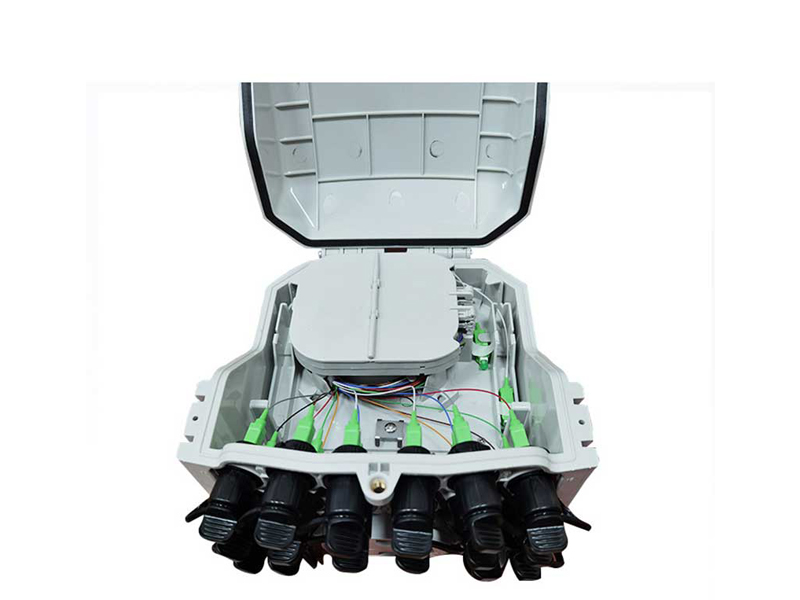

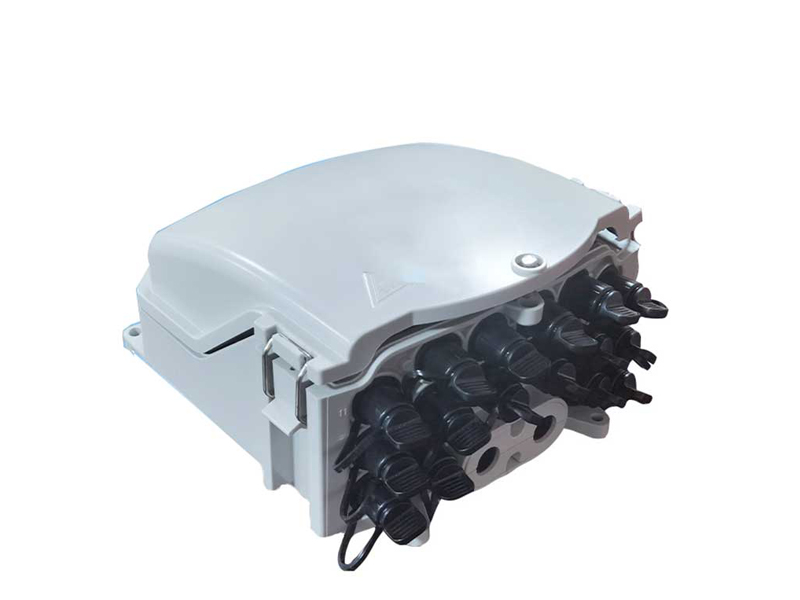

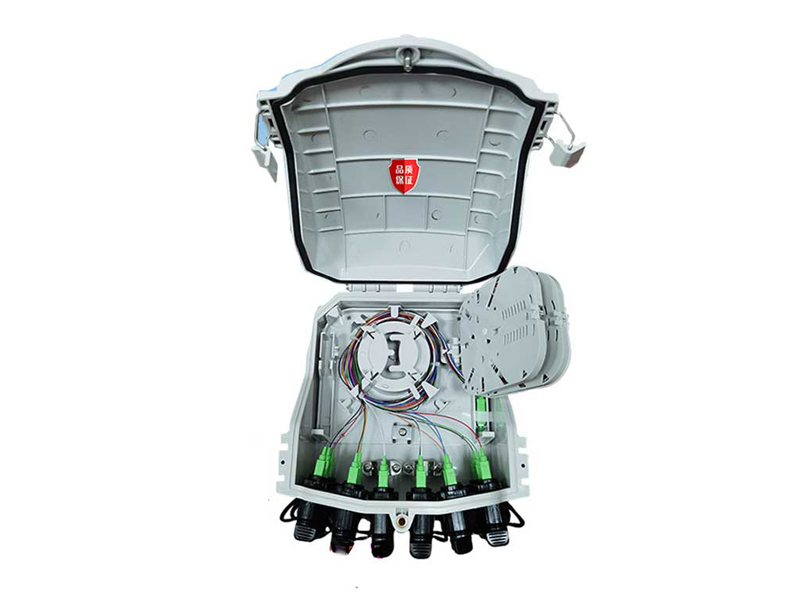

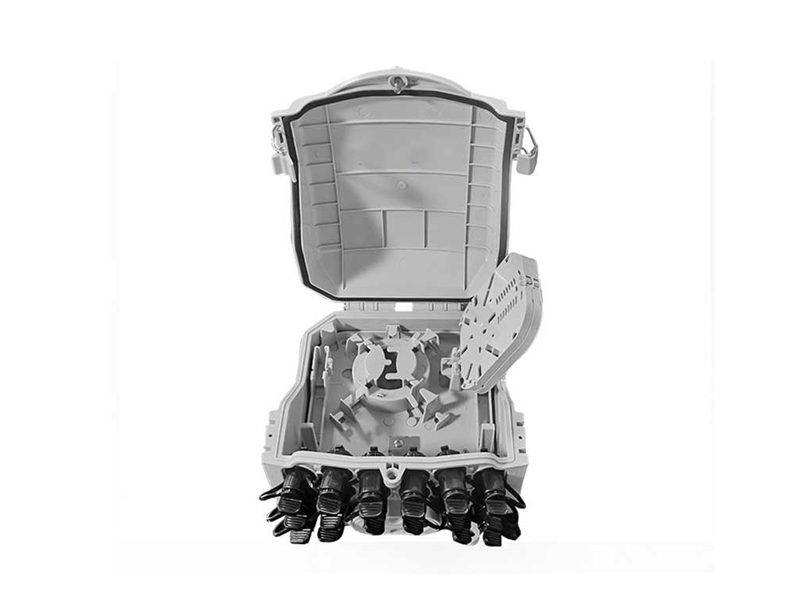

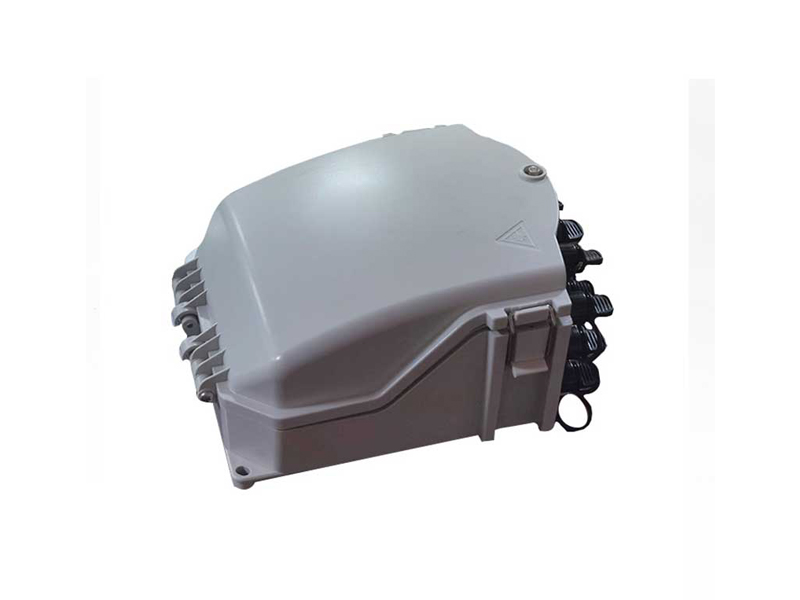

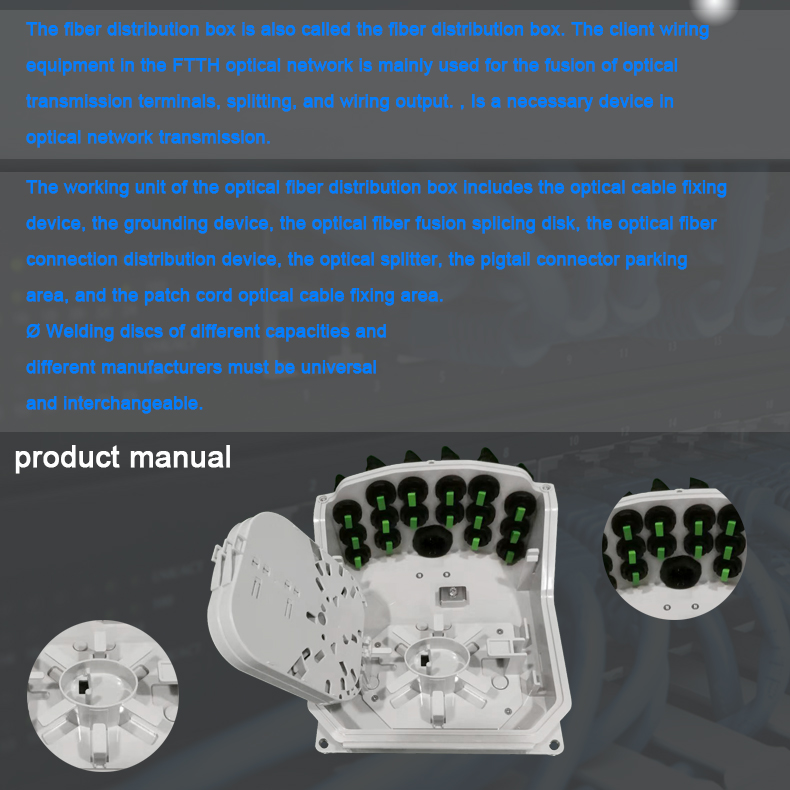

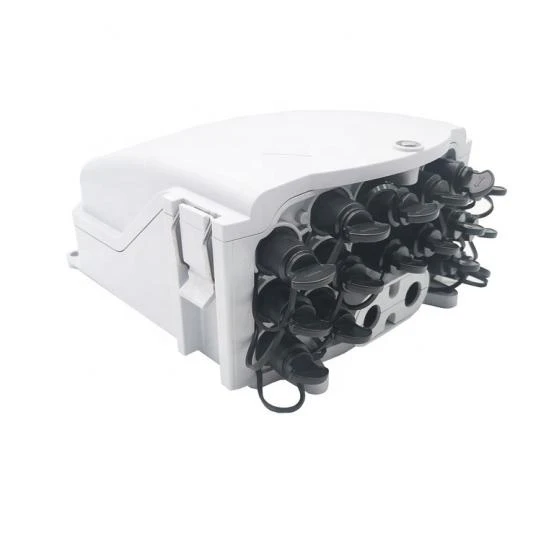

Fiber Optic Distribution Box AT-HW-16 is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.
Max Capacity: 16 Core, Huawei Mini SC IP rated Waterproof connectors,
Into the largest cable diameter:12mm,
Output Port Suitable for HUAWEI Type Waterproof Connector,
(Model-1:Without PLC,4PCS SC/APC Adapter),
(Model-2:Without PLC, 8PCS SC/APC Adapter),
(Model-3:Without PLC,16PCS SC/APC Adapter),
(Model-4: 1PCS 1x4 PLC Splitter-SC/APC,4PCS SC/APC Adapter),
(Model-5: 2PCS 1x4 PLC Splitter-SC/APC,8PCS SC/APC Adapter),
(Model-6: 1PCS 1x8 PLC Splitter-SC/APC,8PCS SC/APC Adapter),
(Model-7: 2PCS 1x8 PLC Splitter-SC/APC,16PCS SC/APC Adapter),
(Model-8: 1PCS 1x16 PLC Splitter-SC/APC,16PCS SC/APC Adapter).
Features:
1. Total enclosed structure.
2. Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage,
distribution...etc all in one.

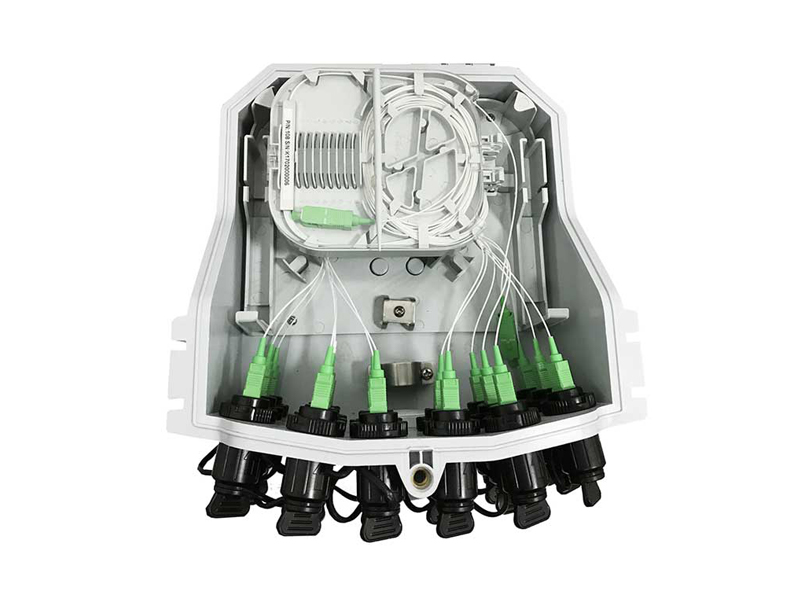

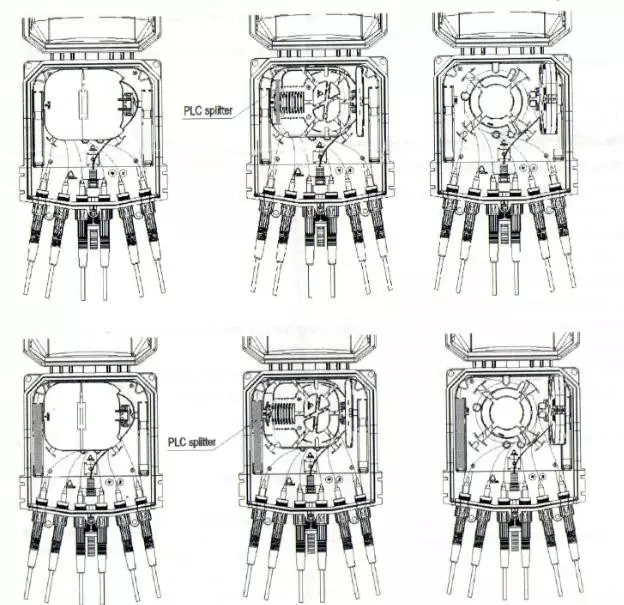

4. Cable, pigtails, and patch cords are running through their own paths without AT-HW-16disturbing each other, micro type PLC splitter installation, easy maintenance.

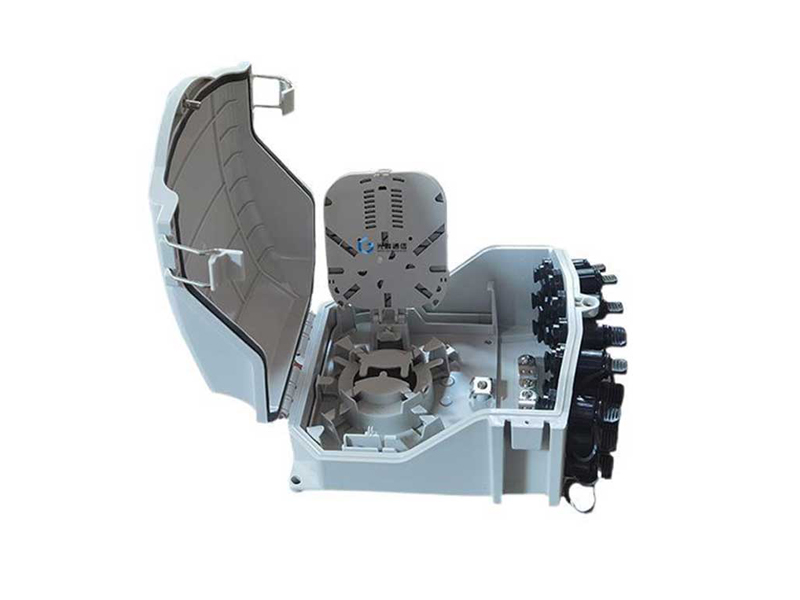

5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

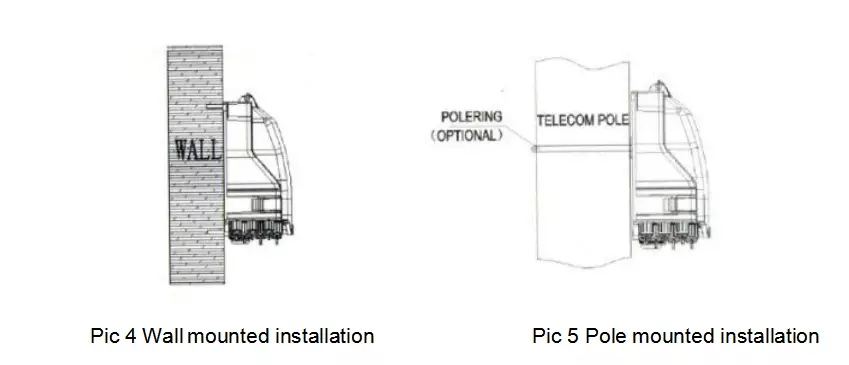

6. The box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.

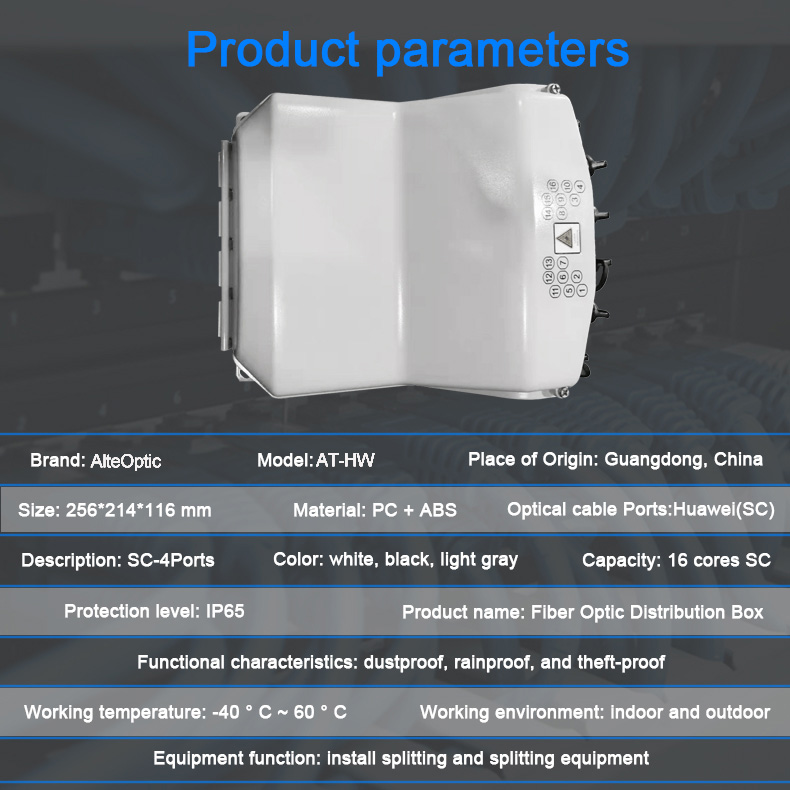

Specification:
|
Name |
FTTA Nap Fiber Distribution Box with Huawei Waterproof Connectors |
|
Model |
AT-HW-16 |
|
Size (Pic 1) A*B*C(mm) |
208X241X117mm |
|
Installation Size(Pic 2) (mm) |
D*E*F: 179*212*126 G*H: 21*52 |
|
Capacity |
16 Core, Huawei Mini SC IP rated Waterproof connectors |
|
In-put Port |
Cable diameter:12mm |
|
Output Port |
Suitable for HUAWEI Type Waterproof Connector |
|
Color for Port |
IN: red; NIX: green |
|
Material |
PC+ABS |
|
Weight |
1.3Kgs |
|
Protection Grade |
IP68 |
|
Order Information |
|||
|
DAYTAI Model |
PLC |
Adapter |
Installation |
|
AT-HW-16 |
Without |
4PCS SC/APC Adapter,Suitable for HUAWEI Waterproof Connector |
Wall Mounting or Add Telegraph Pole Mounting is optional. |
|
AT-HW-16-08 |
Without |
8PCS SC/APC Adapter,Suitable for HUAWEI Waterproof Connector |
|
|
AT-HW-16-016 |
Without |
16PCS SC/APC Adapter,Suitable for HUAWEI Waterproof Connector |
|
|
AT-HW-16-14 |
1PCS 1x4 PLC Splitter-SC/APC |
4PCS SC/APC Adapter,Suitable for HUAWEI Waterproof Connector |
|
|
AT-HW-16-24 |
2PCS 1x4 PLC Splitter-SC/APC |
4PCS SC/APC Adapter,Suitable for HUAWEI Waterproof Connector |
|
|
AT-HW-16-18 |
1PCS 1x8 PLC Splitter-SC/APC |
8PCS SC/APC Adapter,Suitable for HUAWEI Waterproof Connector |
|
|
AT-HW-16-28 |
2PCS 1x8 PLC Splitter-SC/APC |
16PCS SC/APC Adapter,Suitable for HUAWEI Waterproof Connector |
|
|
AT-HW-16-16 |
1PCS 1x16 PLC Splitter-SC/APC |
16PCS SC/APC Adapter,Suitable for HUAWEI Waterproof Connector |
|
