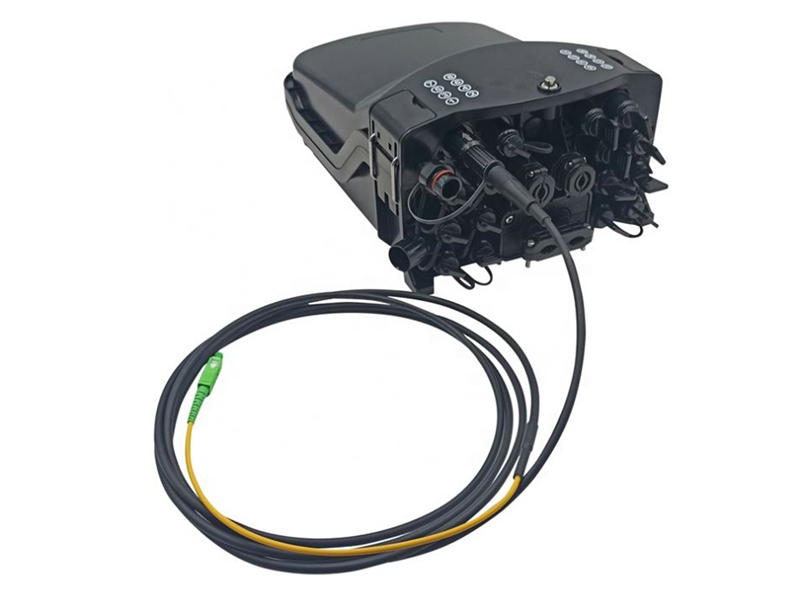

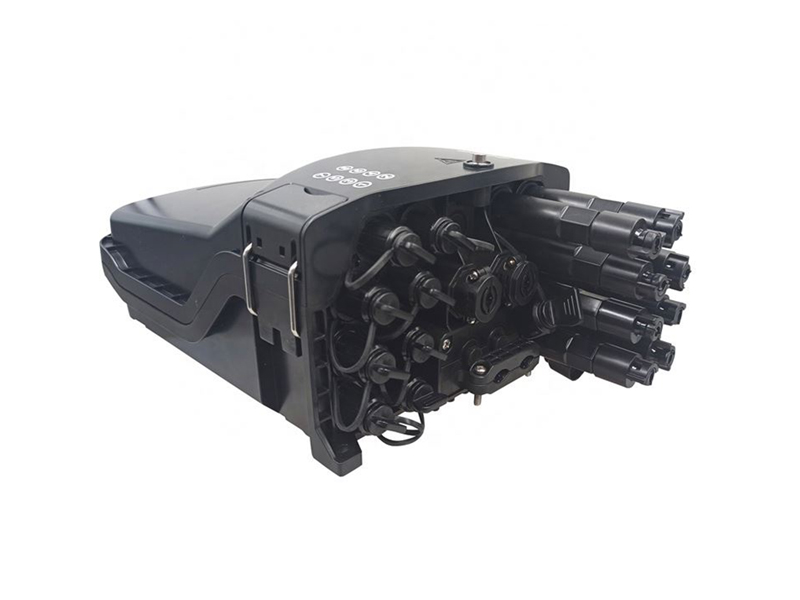

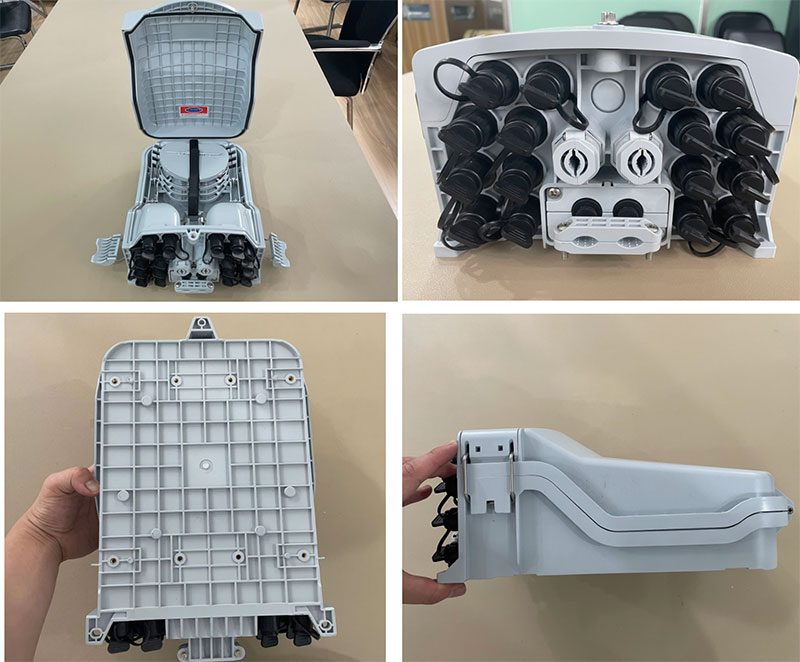

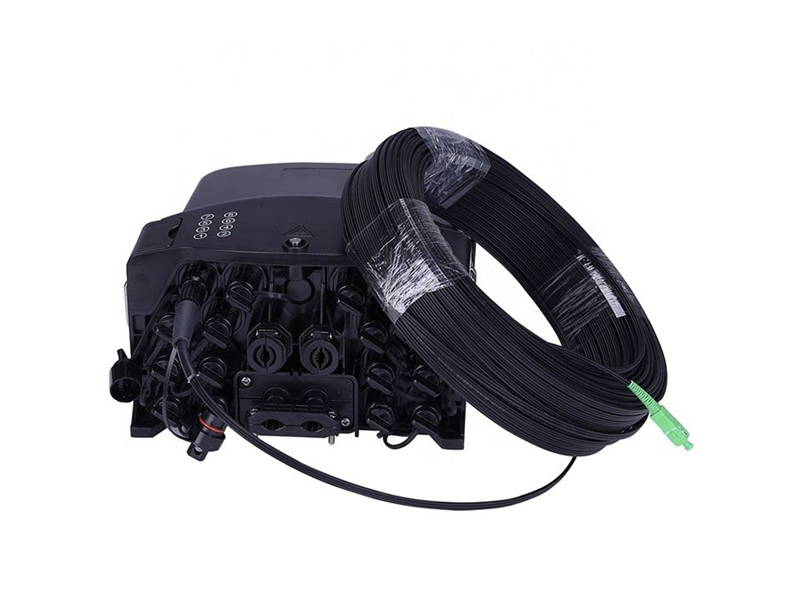

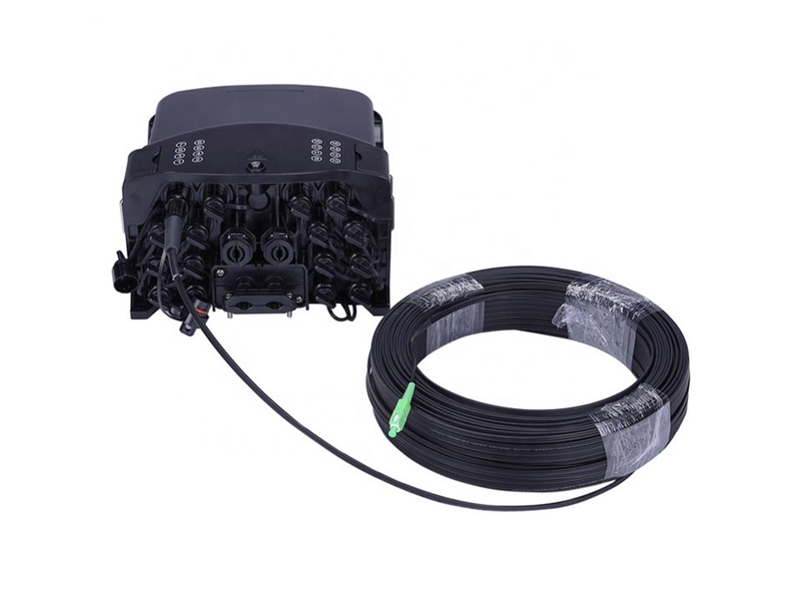

The 16 Ports CTO NAP Fiber Termination Box for Mini SC is used as Pre-connectorized optical distribution box for the feeder cable to connect with round drop cable in FTTx communication network system. The fiber terminal box allows 16pcs round drop cable with pre-connectorized IP68 Mini SC Waterproof connectors as output ports. The fiber distribution box can splice and connect the optical fibers in pole or wall mounted & aerial mounted for both indoor and outdoor use with IP65 protection level.
|
item
|
spec
|
observation
|
|
External dimensions (mm)
|
319.3*214*133(A*B*C)
|
319.3*214*133(A*B*C)
|
|
installation (mm)
|
52*166*166(DxExF)
|
|
|
COLOR
|
white/black
|
|
|
Size and number of holes for optical cable
|
1 oval optical cable entry, 2 branch optical cable entries 16 pre-attached adapters
|
|
|

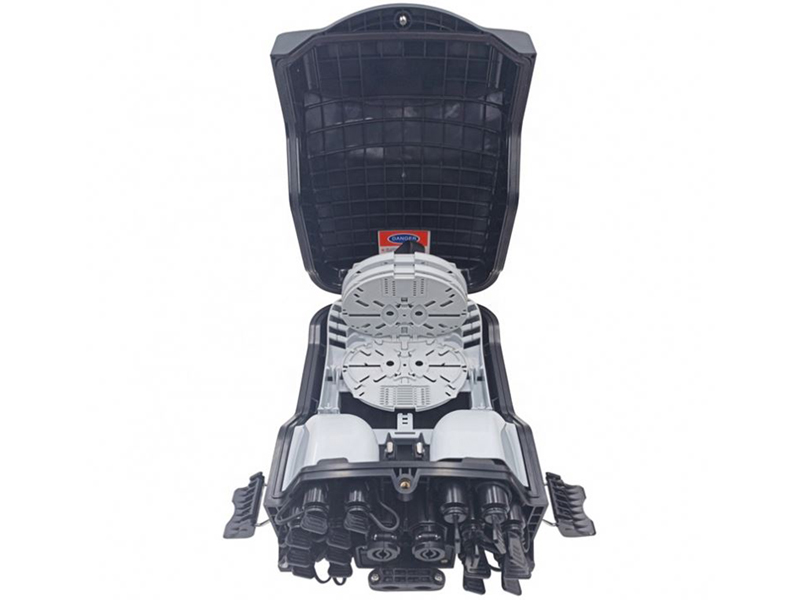

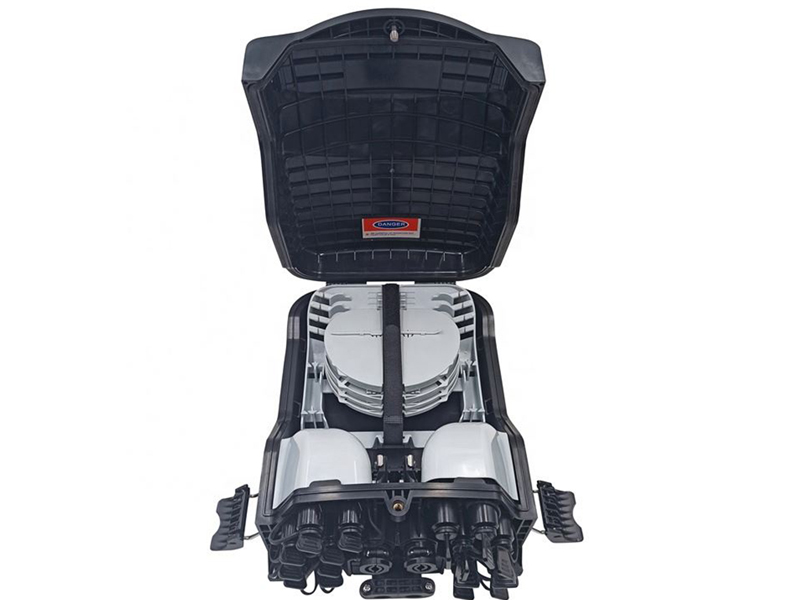

Fusion Capacity (Max)
|
48
|
Tray A, 12x4=48, 2 layers of shrinkable splice protector handle.
|
|
|
64
|
Tray B, 8x8=64, 1 layer of heat shrinkable splice protector handle
|
|
|
96
|
Tray C, 8x12=96, 1 layer of heat shrinkable splice protector handle
|
|
|
96
|
Tray D and Tray E, 24x4=96, 2 layers of heat-shrink splice protector.
|
|
micro PLC splitter
|
1x2
|
Splitter size 60x7x4mm. Can be installed in type A and type E splice tray, 1 piece per splice tray
|
|
|
1x4
|
|
|
|
1x8
|
|
|
|
1x16
|
Splitter size 60x7x4mm. Can be installed in type A-1 and type E-1 splice tray, 1 piece per splice tray
|
|
Largest cable diameter(mm)
|
8-14mm
|
|
|
Maximum branch hole size (mm
|
16mm
|
|
|
IP protection level
|
IP65
|
|
|
Inflammability
|
HB(conventinal)
|
|
|
Neutral salt spray test(NSS)
|
48H
|
according to the requirements
|

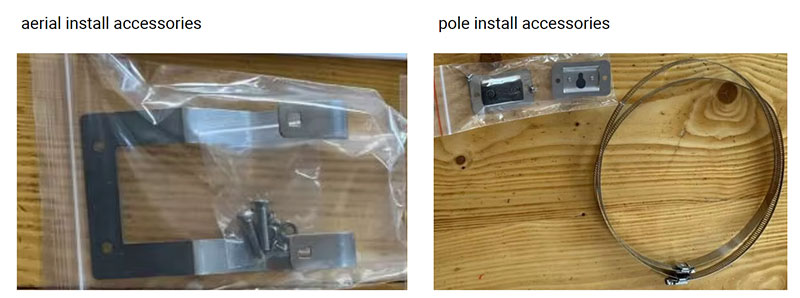

Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
