* Water-proof design with IP65 Protectionlevel
* Integrated with splice tray and cable managementsystem
* Fiber bending radius control more than40mm
* Suitable for the fusion splice or mechanical splice
* 1x8PLC / 1x18 PLC Splitter spitter can be installed as an option
1) Water-proof design with IP65 Protection grade.
2) Integrated with splice cassette and cable management system.
3) Manage fibers in a reasonable fiber radius condition.
4) Fiber bend radius control more than 35mm.
5) 1 uncut cable port for feeder cables.
|
odel |
Alte-PT18 |
Alte-PT8 |
|
Adapter |
SC/LC |
SC/LC |
|
Max. Capacity |
48 fibers |
48 fibers |
|
Splitter (Micro Type ) |
1pc of 1*18 Hybrid Splitter |
1pc of 1*8 Splitter |
|
Max Capacity |
24 fibers/tray |
24 fibers/tray |
|
Input/Output Ports |
5 Ports/18 Ports |
5 Ports/8 Ports |
|
Out Cable Size |
Drop Cable: 2*3mm Round Cable: Φ3-8mm |
Drop Cable: 2*3mm Round Cable: Φ3-8mm |
|
Max. Inlet Cable Diameter |
16.5mm |
16.5mm |
|
Water proof level |
IP65 |
IP65 |
|

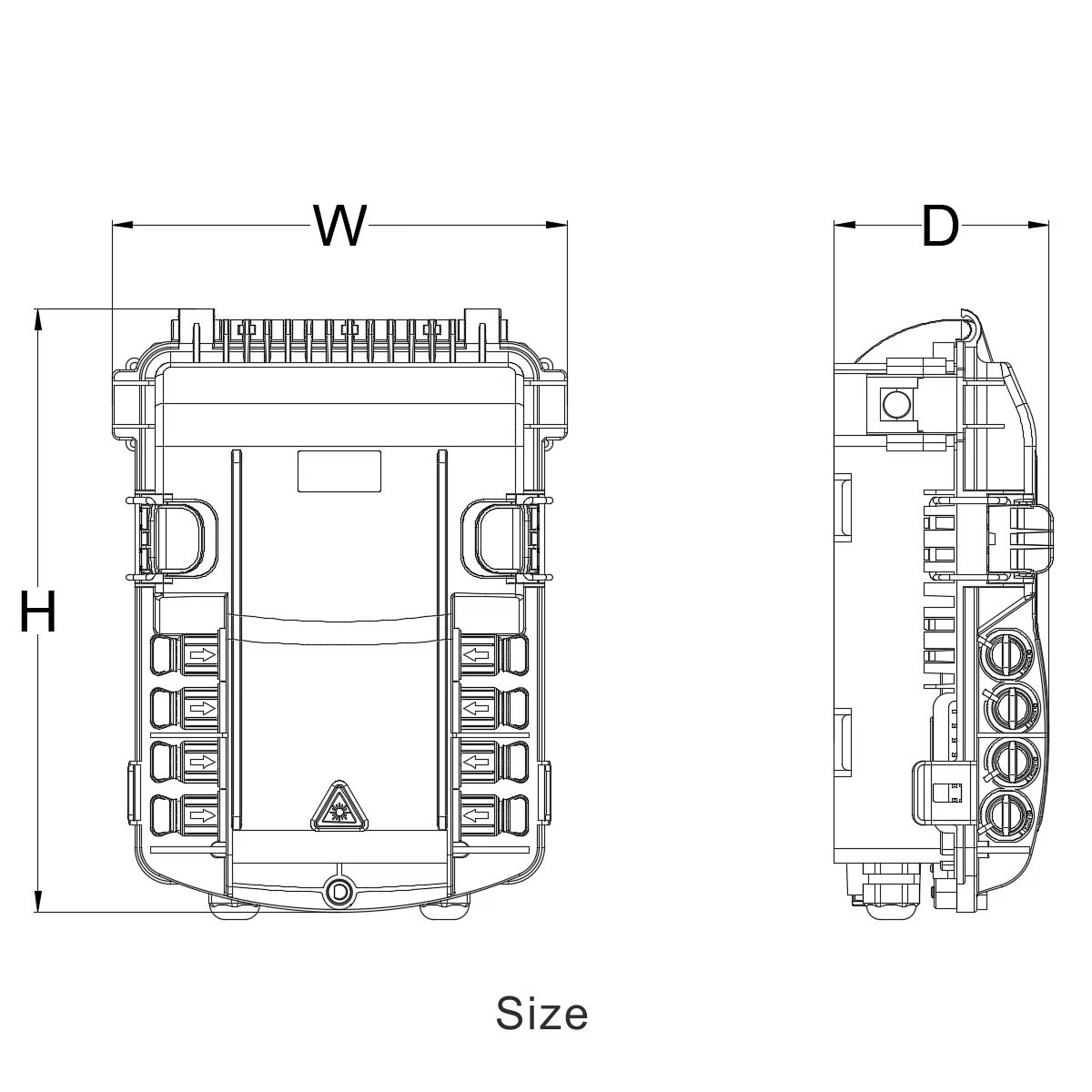

Dimension (mm) |
270*230*150 |
270*230*120 |
|
Installation Method |
Aerial/Wall/Pole mounting |
Aerial/Wall/Pole mounting |
