Alteoptic Model No. FTB-AT10B-2 Fiber Hub Terminal Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Pre-connectorized waterproof ip65 ftth nap box 10 cores/port connector fiber optic huawei distribution box
1 Overview:
Alteoptic Model No. FTB-AT10B-2 Fiber Hub Terminal Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
2 Specification:
Technical Index
|
Model No. |
FTB-AT10B-2 |
Color |
Gray,White,Black |
|
Capacity |
10cores |
Protection Level |
IP65 |
|
Material |
ABS/PC |
Flame retardant performance |
Non-flame retardant |
|
Dimension(L*W*D,MM) |
209*205*86 |
Splitter |
Can be with 1x1:8 Micro splitter |
3 Features:
3.1 Pre-assembled in factory, can be used directly without opening the box;
3.2 Once prepared the splitters inside, just plug the drop cables outside;
3.3 Independent routing channels for easy maintenance and management;
3.4 8 outcoming cable ports ( prefabricated connector);
3.5 Material: ABS/PC, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65 3.6 Box can be installed by the way of wall-mounted or poled-mounted,suitable for both indoor and outdoor using;

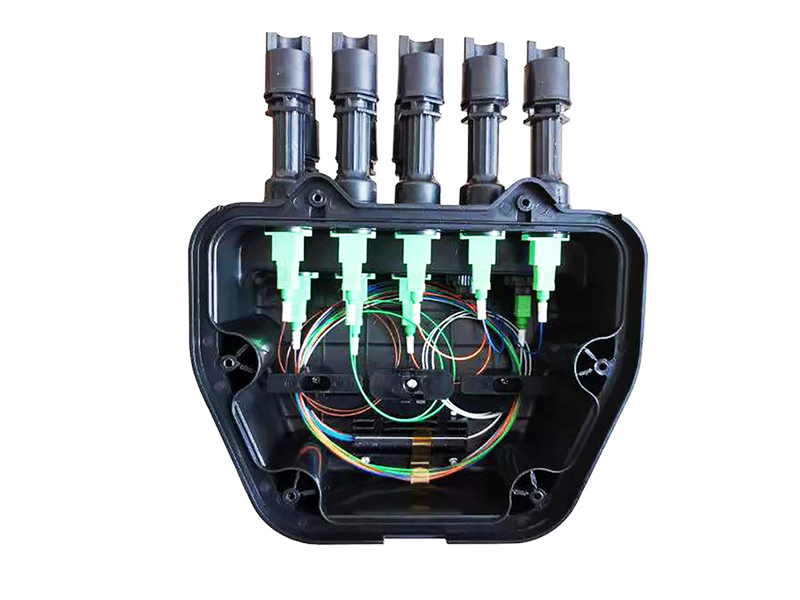

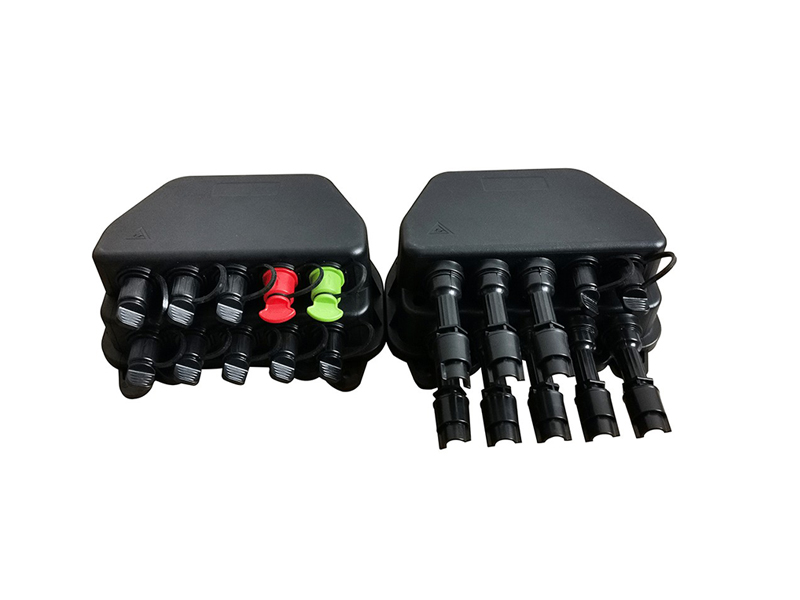

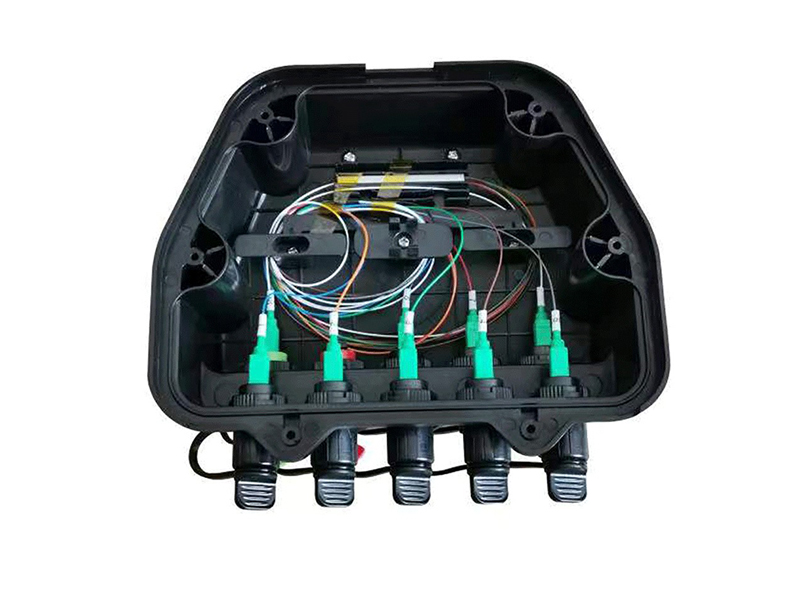

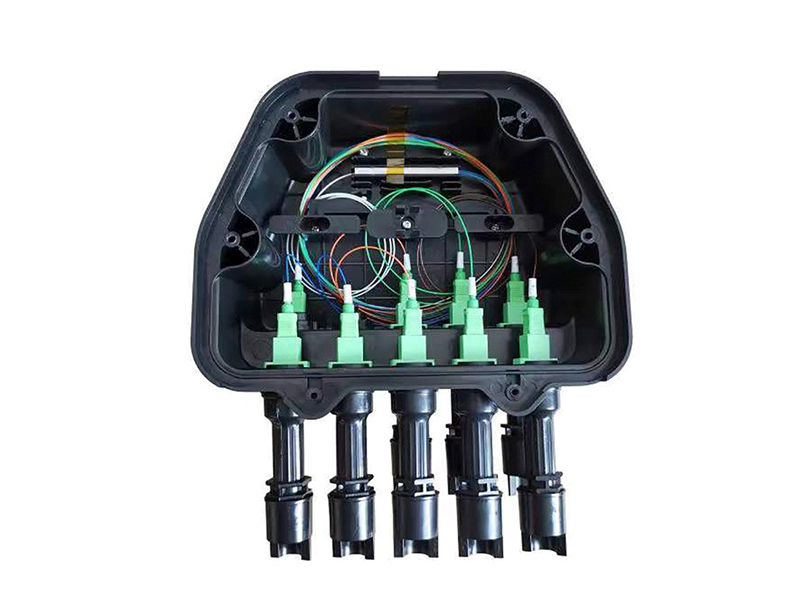

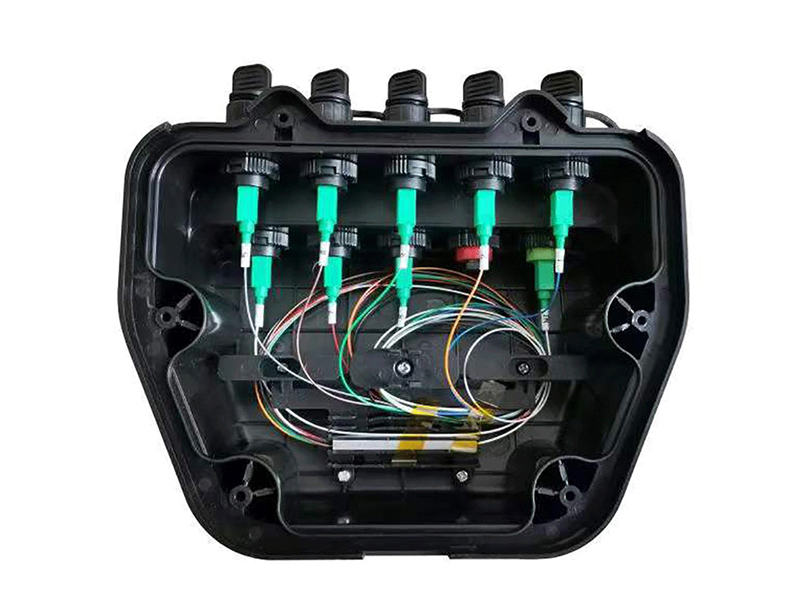

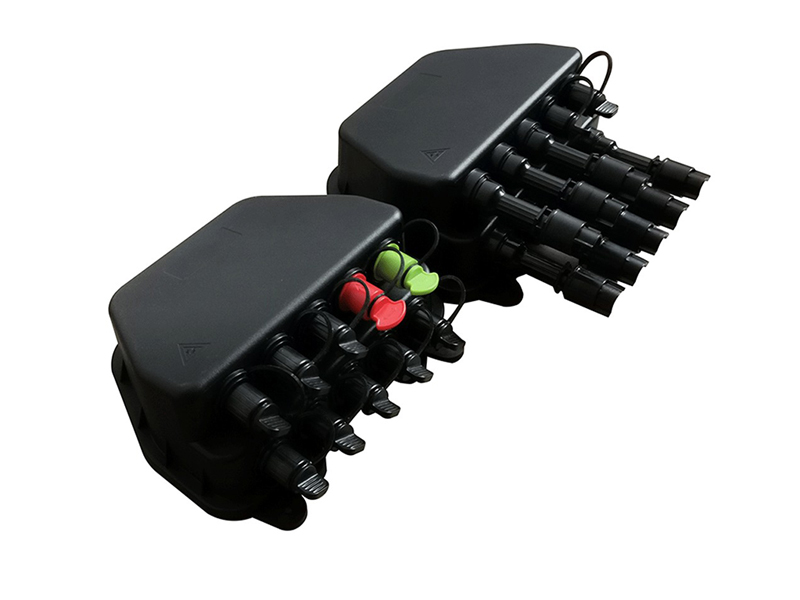

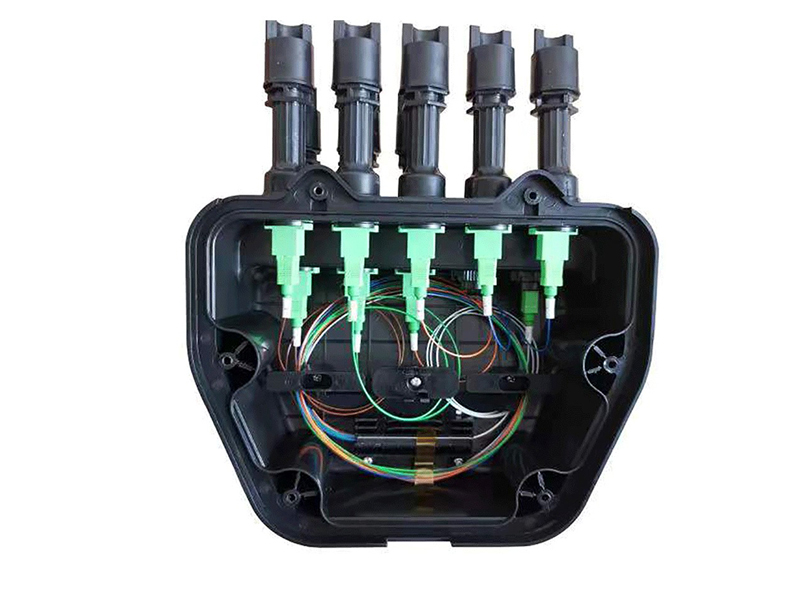

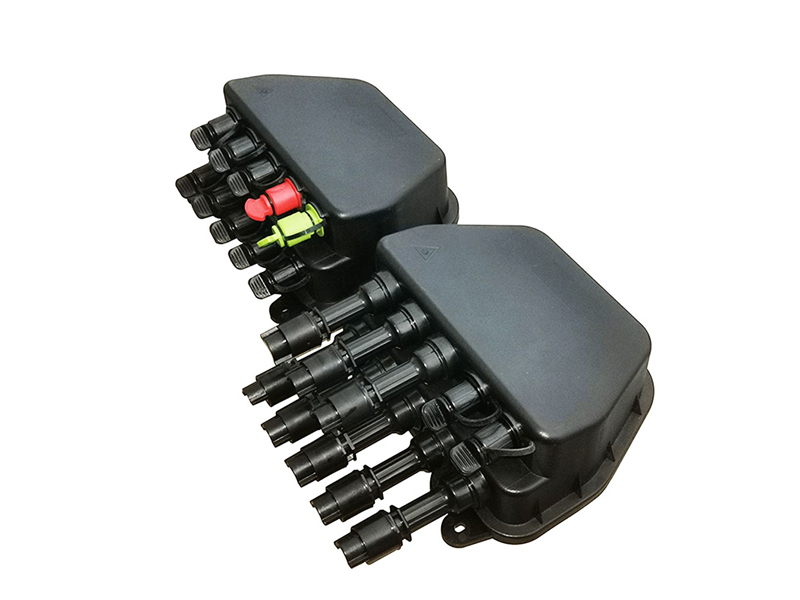

Pictures for reference:
|
Model
|
FTB-AT10B-2 |
|
Size(mm)
|
250.4×209×86
|
|
Max Capacity
|
10 core
|
|
Weight(g)
|
909
|
|
Installation
|
Wall-mounted/Pole-mounted
|
|
Protection Level
|
IP65
|
YOUR VACATION IS HERE
Prepare your network for seamless 5G deployment. Get direct access to factory pricing, custom OEM/0DM solutions, and rapid prototyping,
Let's Build Your Optical Network, Kindly have a chat with our sales experts!
Get A Free Quote
Related Products
Pre-connectorized ODN Boxes Caja NAP CTO Preconectorizada offers a versatile solution for linking drop cables and feeder cables in Fttx networks. It can accommodate the needs of at least 16 users. It as the most advanced FTTX network distribution node equipment, provide quick and reliable connection, good protection and management for the FTTX network.
View More
Optical fiber distribution box Is designed to connect feeder/distribution cable to subscriber’s drop cable using PLC splitter in FTTx networks. It is easy to install on the wall or pole .The rear tray is for splicing a fiber of feeder cable with splitter tray and the front tray is for connecting subscriber’s drop cable through adaptor plate or splitter plate on the tray.
View More

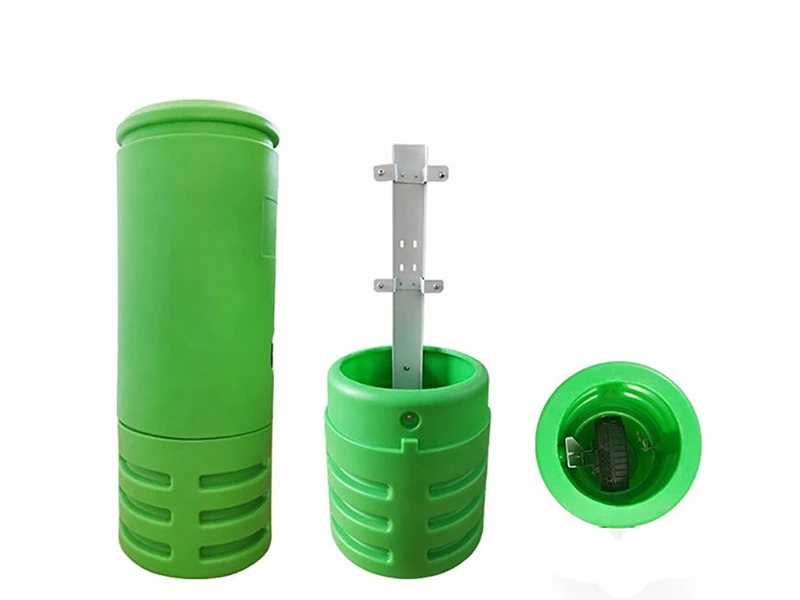

Durable HDPE Fiber Optic Underground Pedestal 16cores ODP Underground Distribution Use
The box is suitable for the protection of optical cable and optical communication equipment connection. Through the pigtail spliced with the incoming cable inside the box, the signal is led lead out directly to realize the wiring function. lt is suitable for floor installation outdoors.
View More

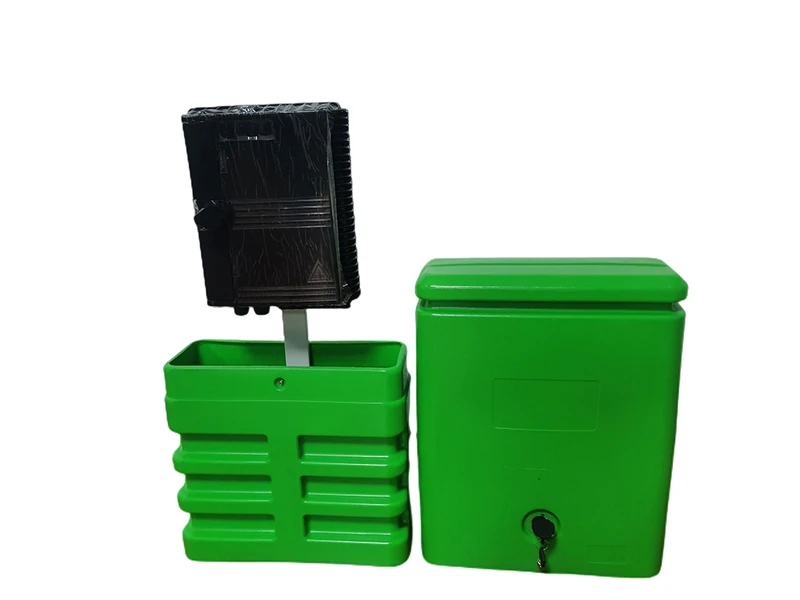

Waterproof Outdoor Pedestal Optical Fiber For Protection Fiber Optic Cable Distribution Box
Alteoptic design a special pedestal for FTTH project. The pedestal with two- stage environmental protection of fiber optic loop distribution cable and customer service drops in FTTH deployments. This two- stage protection is accomplished by housing a weather- tight interior enclosure within the confines of a non- metallic buried distribution pedestal. We can put the terminal boxes with 2 fibers to 16 fibers inside the pedestal.
View More

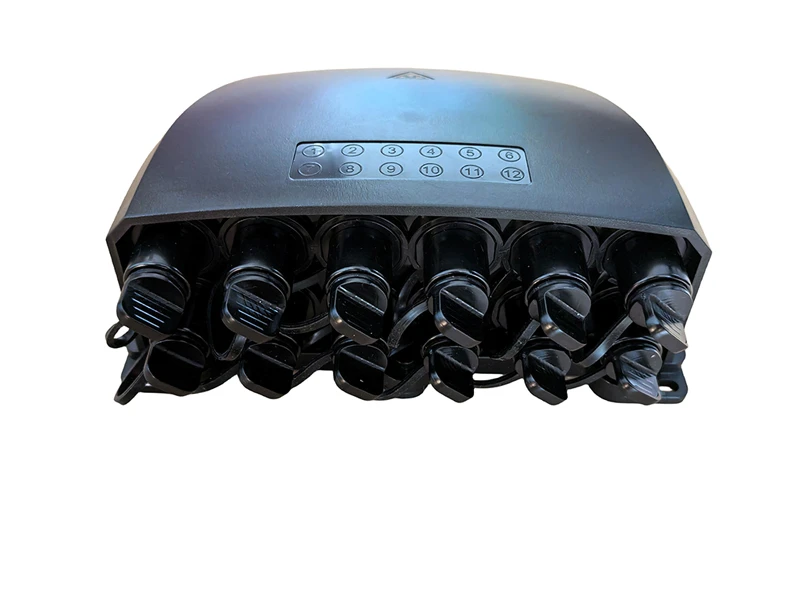

12 Core Ftth Waterproof Termination Box Outdoor Fiber Optic Distribution Box
Alteoptic Model No. FTB-AT12C-1 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 11 users requirements. It can help splicing, splitting, storage and management with suitable space.
View More
Wall Mount Pole Mount No Cutting Cable Type FTB 10 Core FTTH Fiber Optic Distribution Box
Alteoptic Model No. FTB-AT10B-2 Fiber Hub Terminal Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
View More
Alteoptic Model OTB-AT12B is a box that splits an optical cable into a single optical fiber. It is installed on the wall for user termination. Its function is to provide optical fiber fusion and pigtail fusion. It also provides mechanical protection and environmental protection for optical fibers and their components.
View More

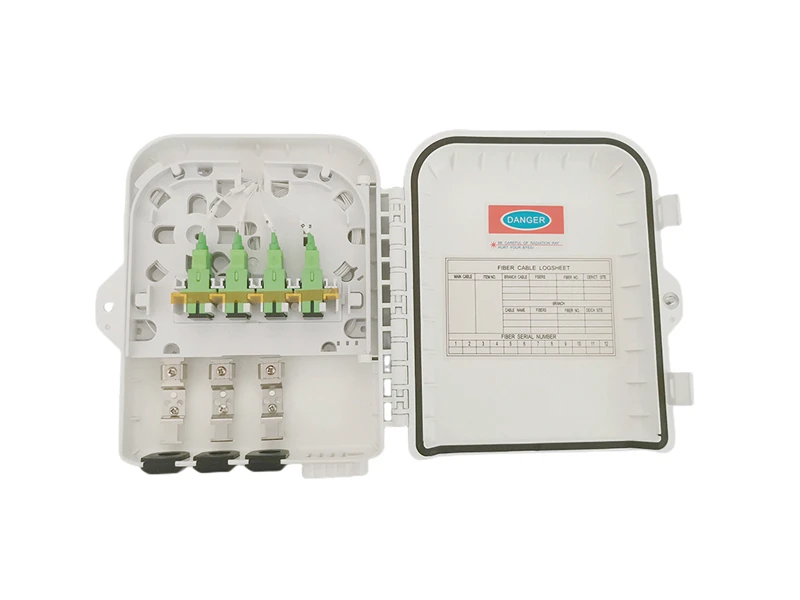

FTB-AT08I-1 8 Core Ftth fiber optic termination box ftth Fiber Optic Distribution Box
Alteoptic Model No. FTB-AT08C-1 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 8 users requirements. It can help splicing, splitting, storage and management with suitable space.
View More
Alteoptic Model No. FTB-AT8D-3 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 8 users requirements. It can help splicing, splitting, storage and management with suitable space.
View More

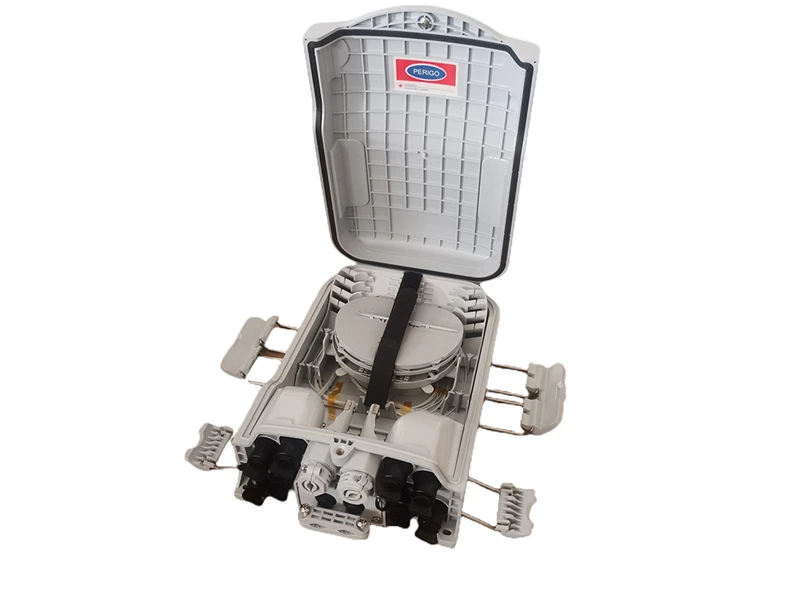

FTTH With Waterproof Mini SC Adapter Fiber Optic Terminal Box 8 Cores Fiber Optic Distribution Boxes
