Overview

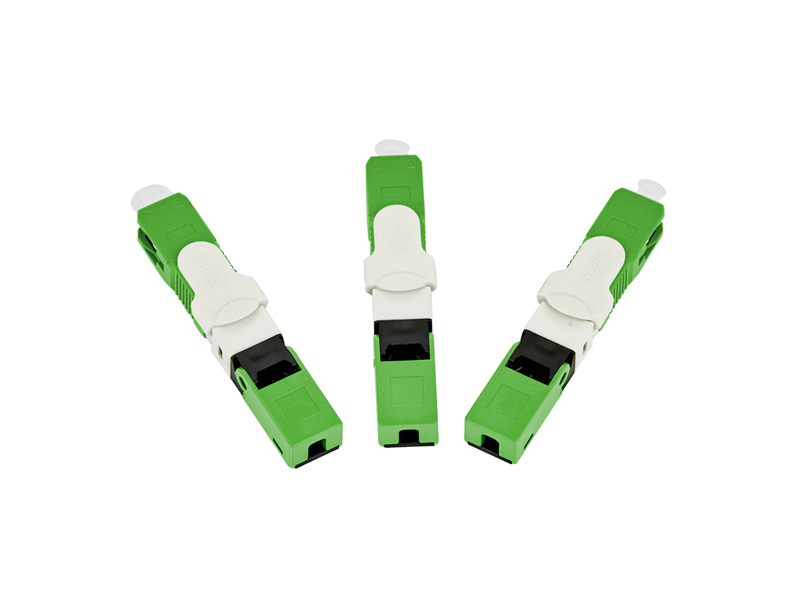

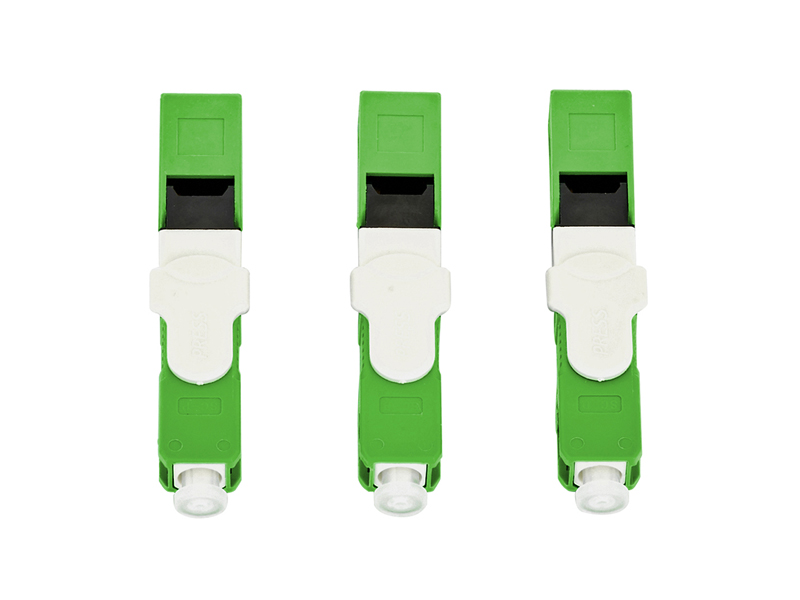

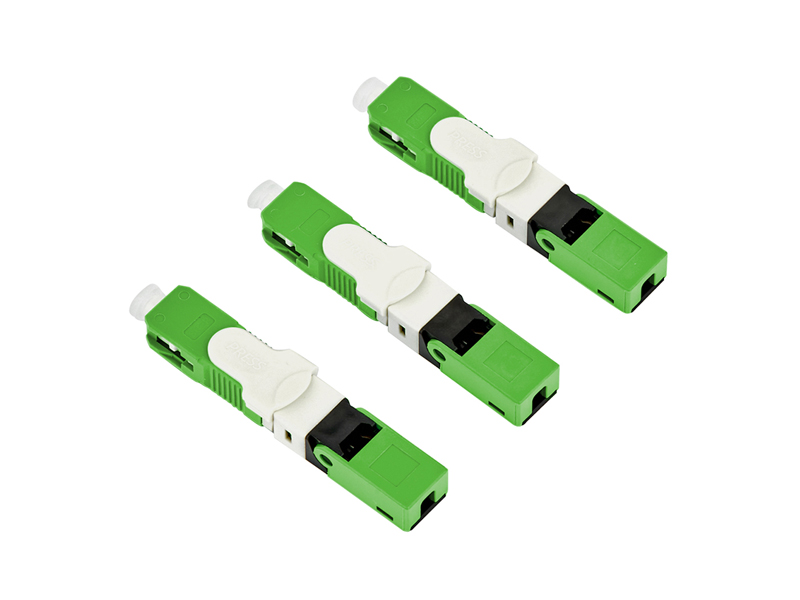

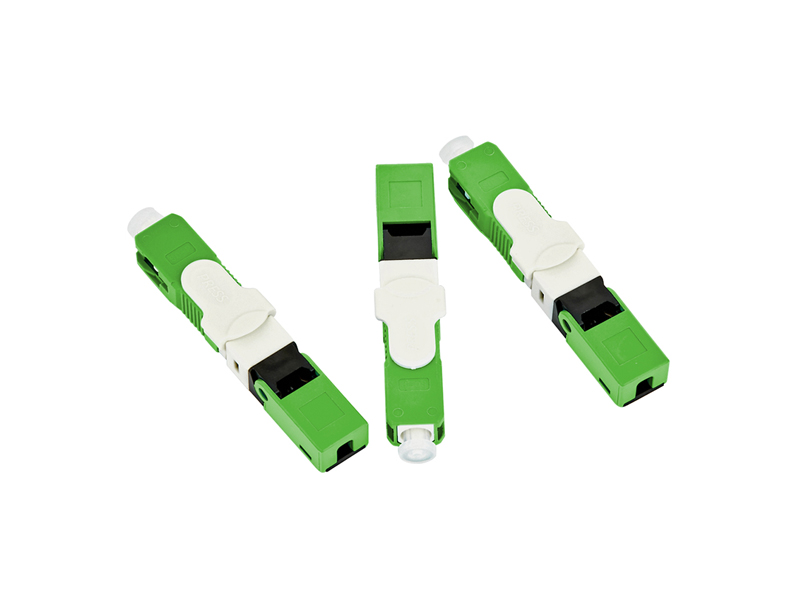

This ESC250D fiber optic fast connector offers low insertion loss (≤0.3dB) and high return loss (≥40dB) for reliable transmission. Supports 125μm–900μm fibers, tensile strength >20N, and operates from -40℃ to 85℃. Withstands vibration, flooding, and temperature cycling. Customizable options available. Ideal for FTTH, data centers, and industrial networks.
| Feature | Description | |
|---|---|---|
| Low Insertion Loss | Ensures high-efficiency signal transmission | |
| High Return Loss | Minimizes reflections, improves system performance | |
| High Reliability & Stability | Suitable for long-term use in harsh environments | |
| Embedded Structure Supported | Easy integration into various devices | |
| Customizable Specifications | Flexible adaptation per customer requirements | |
| Parameter | Specification / Requirement | Remarks |
|---|---|---|
| Fiber Diameter Range | 125μm ~ 900μm | Compatible with commonly used fibers |
| Insertion Loss (IL) | ≤ 0.3 dB (typical) ≤ 0.5 dB (limit) |
Exceeding limit is considered failure |
| Return Loss (RL) | ≥ 40 dB | Ensures high return loss performance |
| Tensile Strength | > 20 N | Guarantees mechanical reliability |
| Repeatability | IL change ≤ 0.3 dB | Stable performance after repeated mating cycles |
| Test Item | Condition / Requirement | Performance Criterion |
|---|---|---|
| Operating Temperature Range | -40℃ ~ +85℃ | Normal operation across full range |
| Temperature Cycling | Per standard test cycle | IL change ≤ 0.3 dB |
| Vibration Test | Per standard vibration condition | IL change ≤ 0.3 dB |
| Water Immersion / Flooding Test | Simulated humid / submerged environment | IL change ≤ 0.3 dB |
