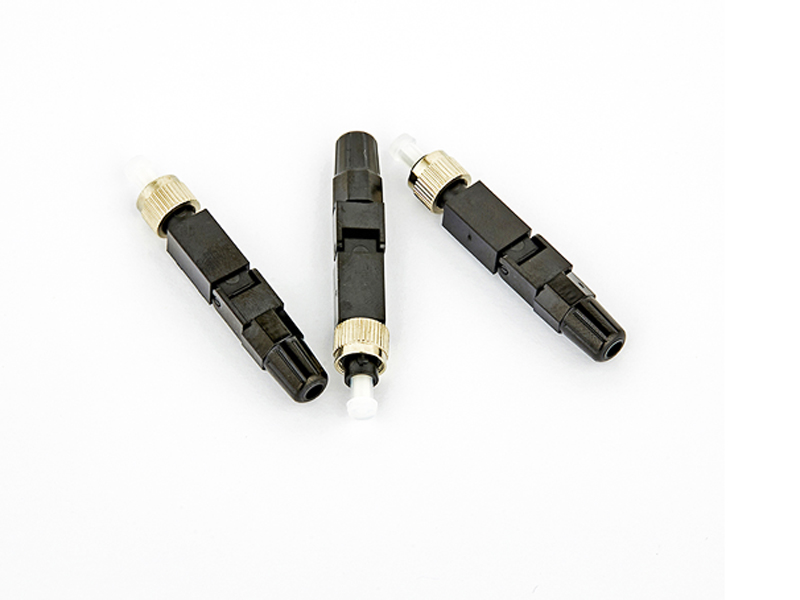

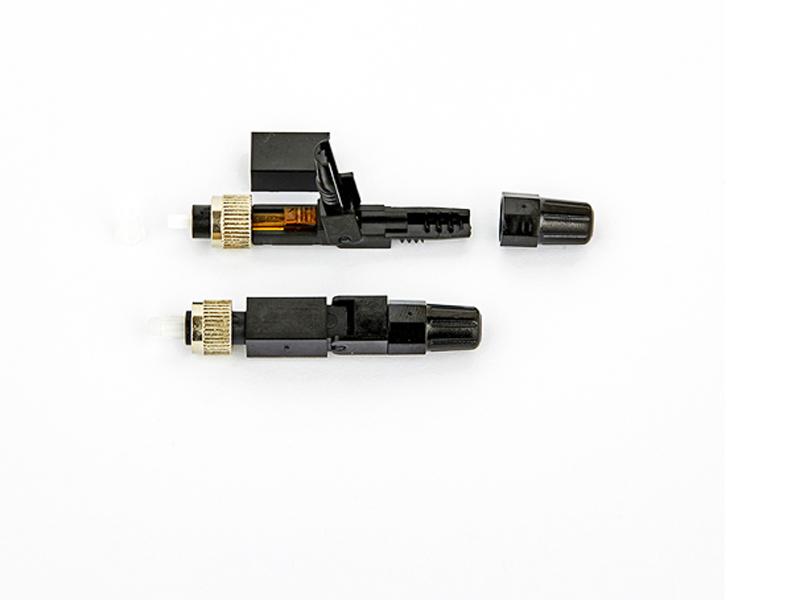

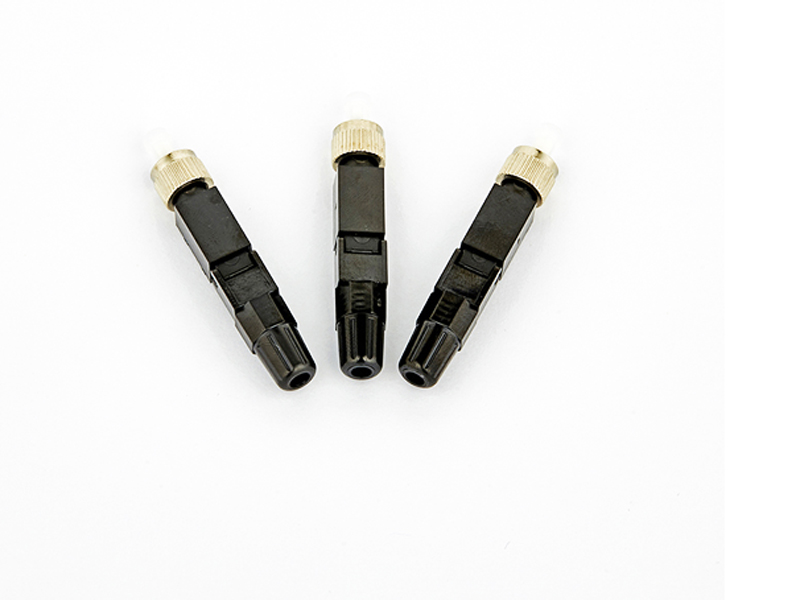

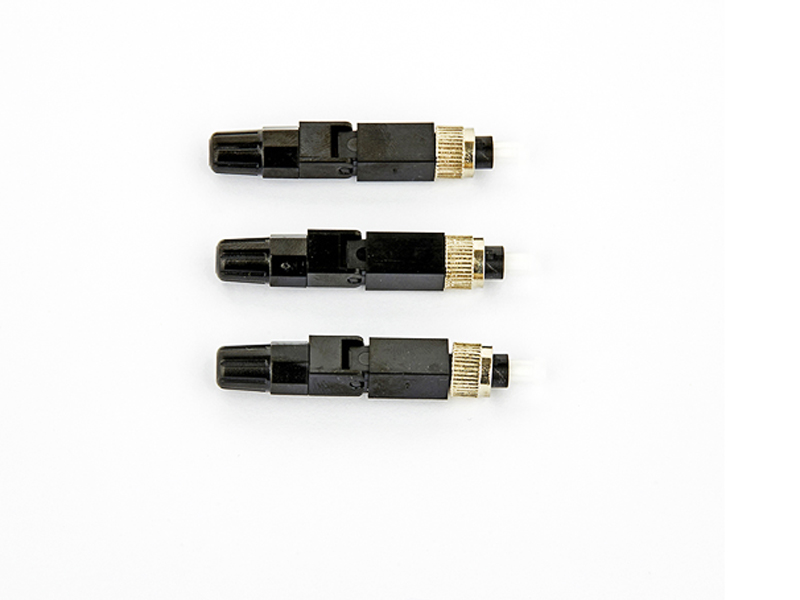

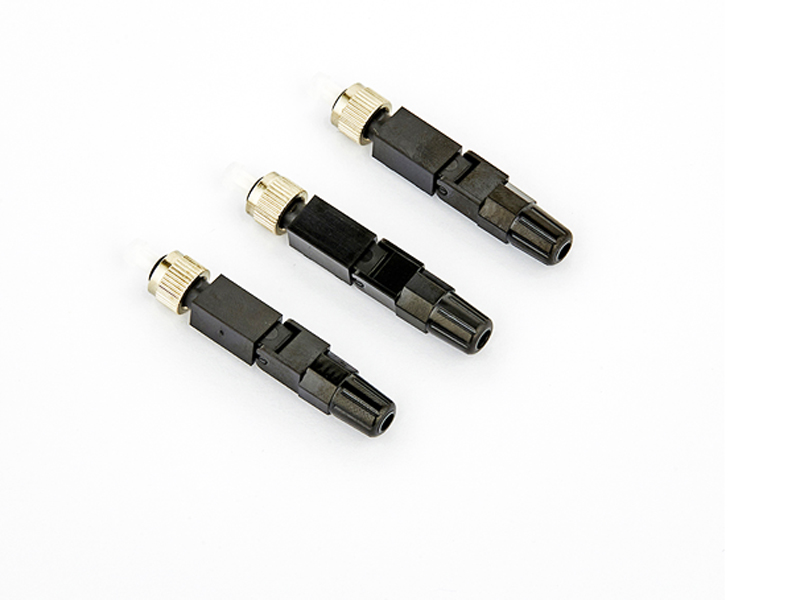

This AT-FC 01 Fiber Optic FC UPC Fast Connector is designed for fast and reliable field termination in FTTH and FTTx optical networks. It features low insertion loss (≤0.3dB typical), high return loss (≥40dB), and excellent mechanical stability to ensure consistent optical performance. Compatible with fiber diameters from 125μm to 900μm, its embedded structure enables quick installation without epoxy or polishing. Custom specifications are available to meet various application requirements. Ideal for FTTH, broadband access networks, CATV, data centers, test equipment, and optical communication systems.
| Feature | Description |
|---|---|
| Low Insertion Loss | Ensures efficient optical signal transmission with minimal attenuation |
| High Return Loss | Reduces back reflection and improves network stability |
| High Reliability & Stability | Provides reliable long-term performance in demanding environments |
| Embedded Structure Design | Enables quick field installation without epoxy or polishing |
| Wide Fiber Compatibility | Supports fiber diameters from 125μm to 900μm |
| Customizable Specifications | Specifications can be customized to meet customer requirements |
| Parameter | Specification / Requirement | Remarks |
|---|---|---|
| Connector Type | FC UPC | Field Installable Fast Connector |
| Fiber Diameter Range | 125μm ~ 900μm | Compatible with standard optical fibers |
| Insertion Loss (IL) | ≤0.3 dB (Typical) ≤0.5 dB (Maximum) |
Exceeding the maximum value is considered failure |
| Return Loss (RL) | ≥40 dB | Stable optical transmission performance |
| Structure | Embedded Type | Easy and reliable field installation |
| Repeatability | IL Change ≤0.3 dB | Stable performance after repeated mating cycles |
| Customization | Available | Specifications can be customized upon request |
| Test Item | Condition / Requirement | Performance Criterion |
|---|---|---|
| Operating Temperature | -40℃ ~ +85℃ | Stable operation across the full temperature range |
| Temperature Cycling | Standard temperature cycling test | IL Change ≤0.3 dB |
| Vibration Test | Standard vibration test | IL Change ≤0.3 dB |
| Water Immersion / Flooding Test | Simulated flooding environment | IL Change ≤0.3 dB |
