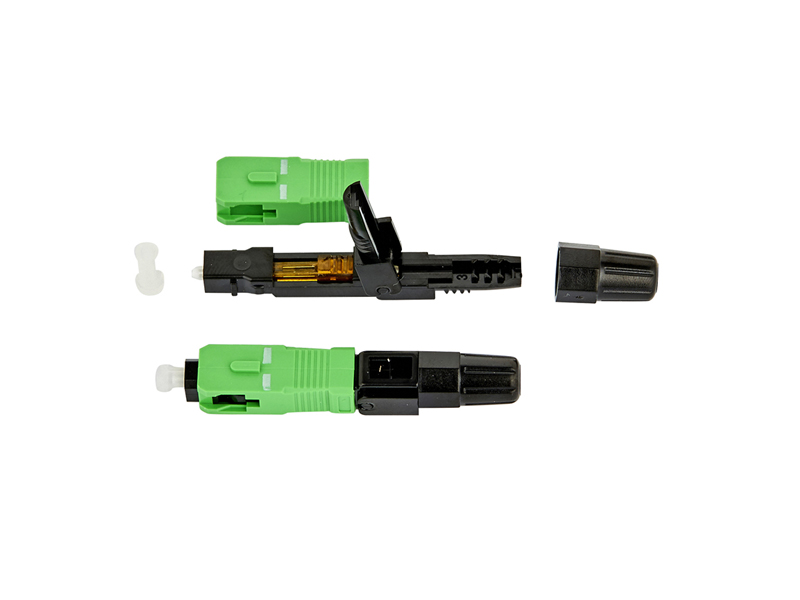

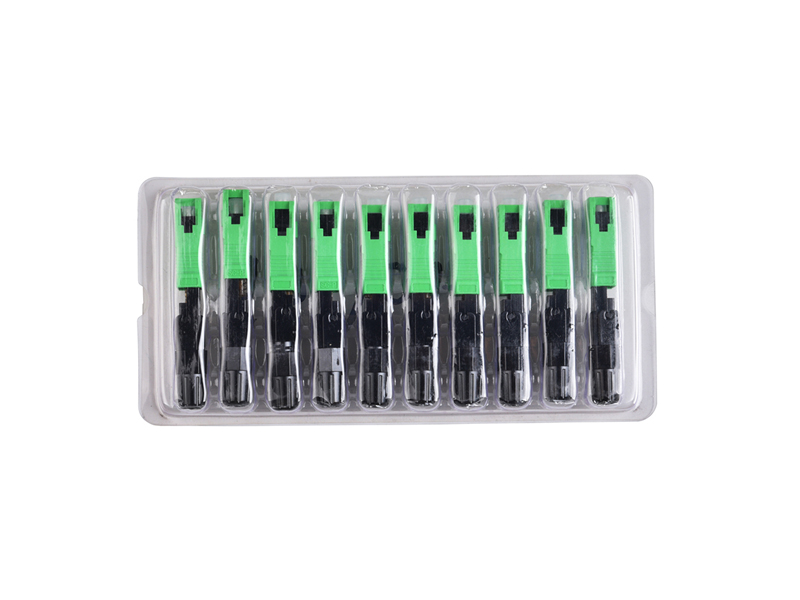

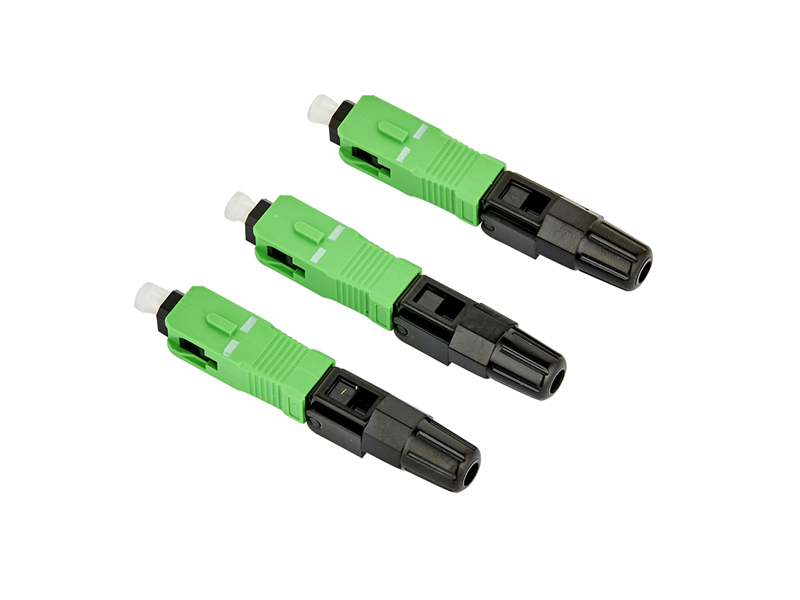

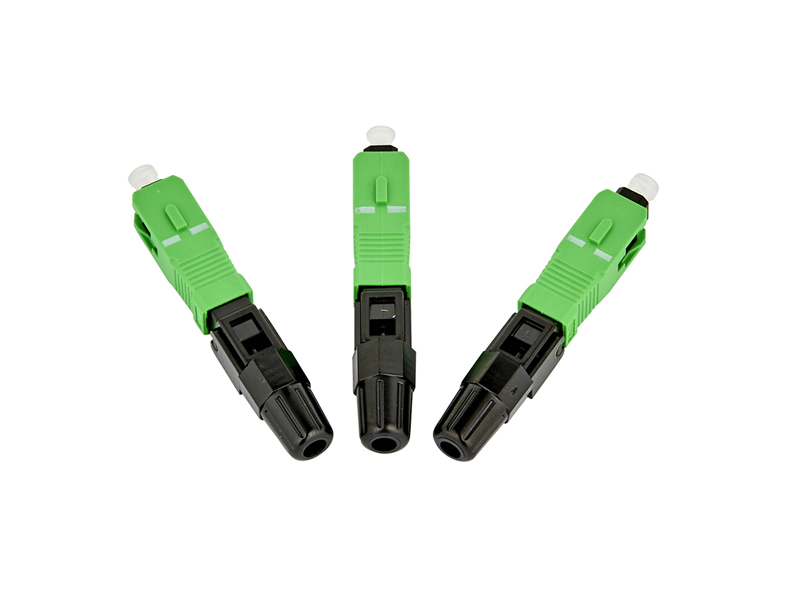

This AT H01 Fiber Optic SC APC Fast Connector is designed for fast and reliable field termination in FTTH optical networks. Featuring low insertion loss (≤0.3dB typical), high return loss (≥40dB), and excellent mechanical stability, it supports fiber diameters from 125μm to 900μm. Its embedded structure enables quick installation without special tools while ensuring long-term durability. Custom specifications are available to meet various project requirements. Ideal for FTTH, FTTx, broadband access networks, data centers, CATV, and optical communication systems.
| Feature | Description |
|---|---|
| Low Insertion Loss | Ensures efficient optical signal transmission with minimal attenuation |
| High Return Loss | Minimizes back reflection for superior network performance |
| High Reliability & Stability | Designed for long-term operation in harsh environments |

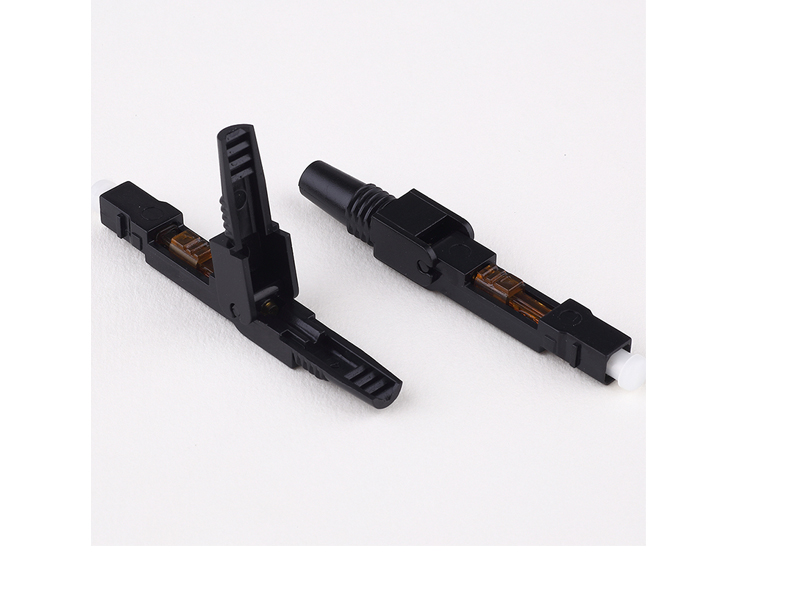

| Embedded Structure Design | Enables fast field installation and secure fiber termination |
| Wide Fiber Compatibility | Supports fiber diameters from 125μm to 900μm |
| Customizable Specifications | Available according to customer-specific requirements |
| Parameter | Specification / Requirement | Remarks |
|---|---|---|
| Connector Type | SC APC | Field Installable Fast Connector |
| Fiber Diameter Range | 125μm ~ 900μm | Compatible with standard optical fibers |
| Insertion Loss (IL) | ≤0.3 dB (Typical) ≤0.5 dB (Maximum) |
Exceeding the maximum value is considered failure |
| Return Loss (RL) | ≥40 dB | Stable optical transmission performance |
| Structure | Embedded Type | Quick and convenient installation |
| Repeatability | IL Change ≤0.3 dB | Stable performance after repeated mating cycles |
| Customization | Available | Specifications can be customized upon request |
| Test Item | Condition / Requirement | Performance Criterion |
|---|---|---|
| Operating Temperature | -40℃ ~ +85℃ | Stable operation across the full temperature range |
| Temperature Cycling | Standard temperature cycling test | IL Change ≤0.3 dB |
| Vibration Test | Standard vibration test | IL Change ≤0.3 dB |
| Water Immersion / Flooding Test | Simulated flooding environment | IL Change ≤0.3 dB |
