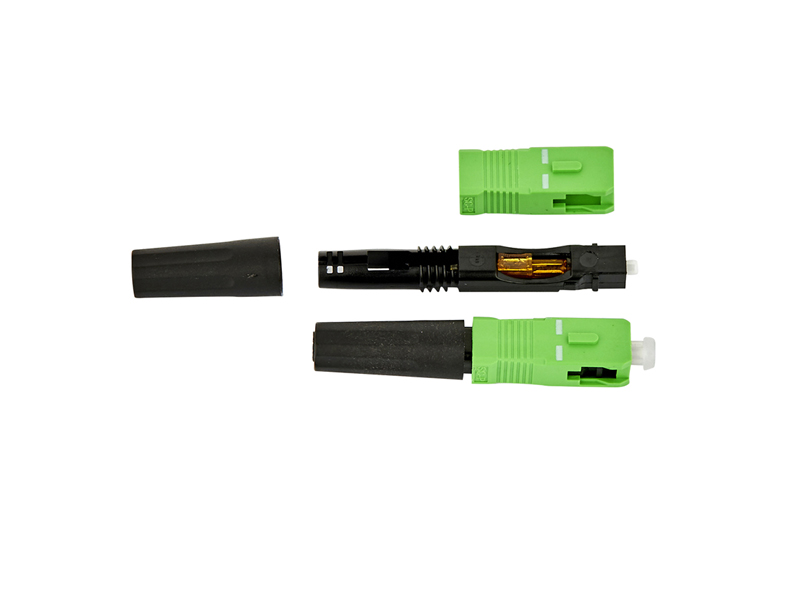

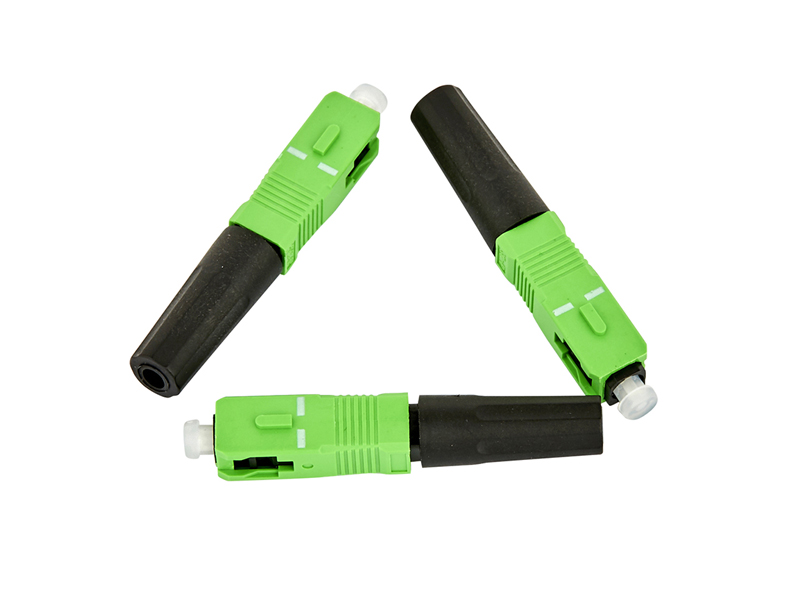

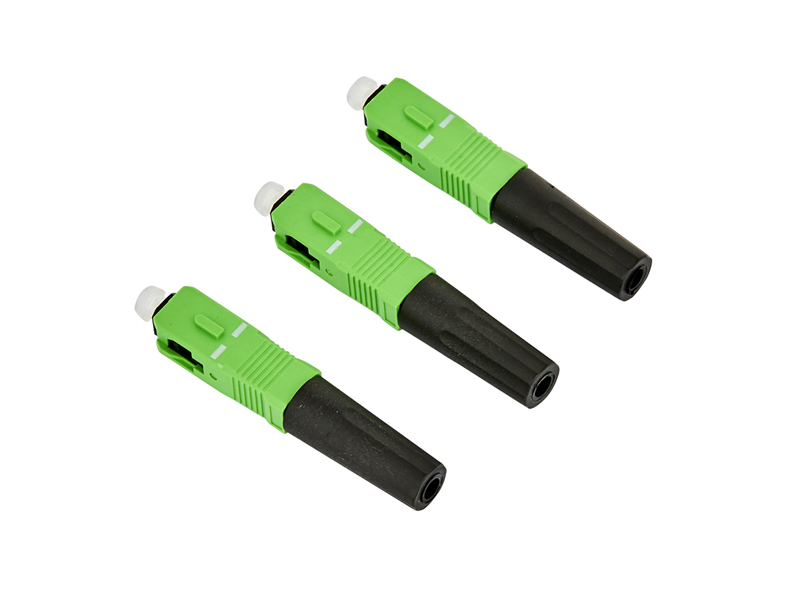

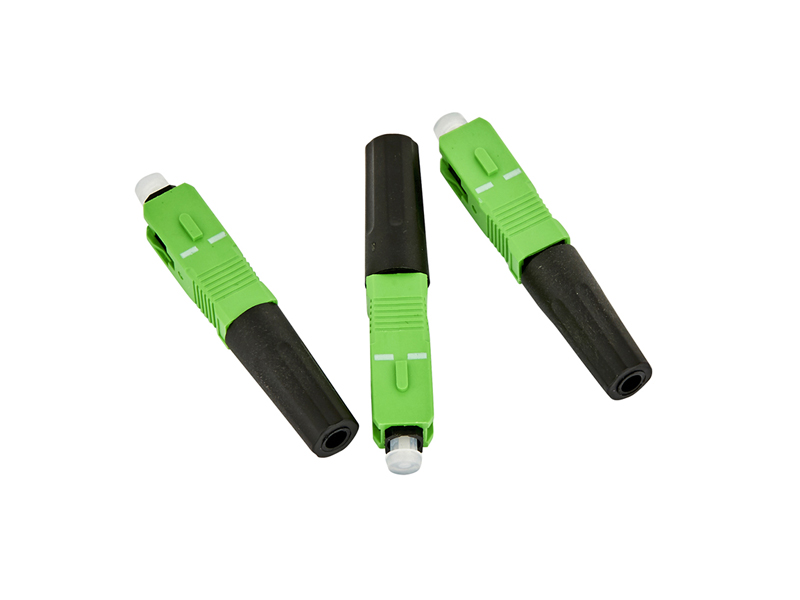

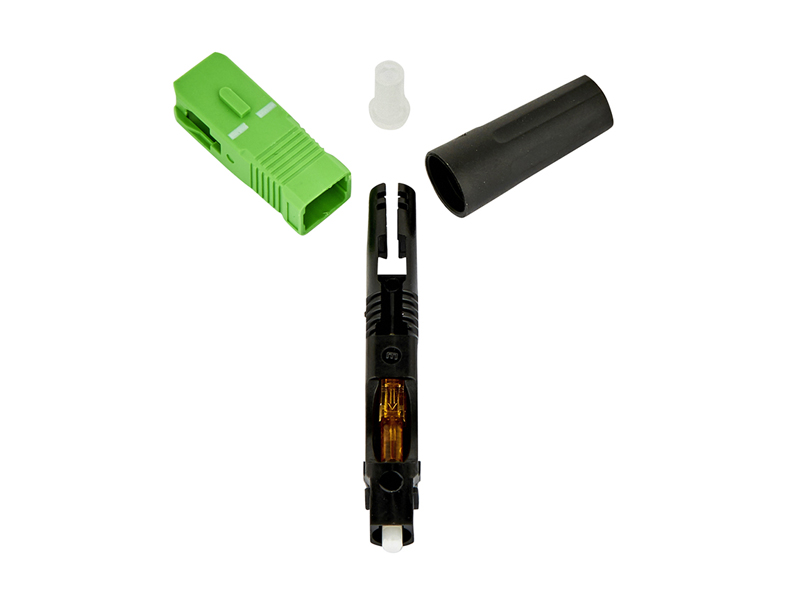

This AT-H02 fiber optic fast connector delivers reliable and stable optical signal transmission with low insertion loss (≤0.3dB) and high return loss (≥40dB). It supports a wide fiber diameter range of 125μm–900μm and provides excellent mechanical strength with tensile resistance over 20N. Designed for harsh environments, it operates from -40℃ to 85℃ and withstands vibration, flooding, and temperature cycling. With high stability, repeatability, and customizable specifications, it is widely used in FTTH networks, telecom systems, data centers, and industrial fiber optic applications.
| Feature | Description |
|---|---|
| Low Insertion Loss | Ensures stable and efficient optical signal transmission |
| High Return Loss | Reduces reflection and improves system performance |
| High Reliability & Stability | Suitable for long-term use in harsh environments |
| Embedded Structure Supported | Easy installation and integration in fiber systems |
| Customizable Specifications | Flexible design based on customer requirements |
| Parameter | Specification / Requirement | Remarks |
|---|---|---|
| Fiber Diameter Range | 125μm ~ 900μm | Compatible with standard fiber types |
| Insertion Loss (IL) | ≤ 0.3 dB (typical) / ≤ 0.5 dB (max) | Exceeding limit is failure |
| Return Loss (RL) | ≥ 40 dB | High reflection performance |
| Tensile Strength | > 20 N | Ensures mechanical durability |
| Repeatability | IL change ≤ 0.3 dB | Stable after repeated connections |
| Test Item | Condition / Requirement | Performance Criterion |
|---|---|---|
| Operating Temperature Range | -40℃ ~ +85℃ | Stable operation across full range |
| Temperature Cycling | Standard thermal cycling test | IL change ≤ 0.3 dB |
| Vibration Test | Standard vibration condition | IL change ≤ 0.3 dB |
| Water Immersion / Flooding Test | Simulated humid or submerged environment | IL change ≤ 0.3 dB |
