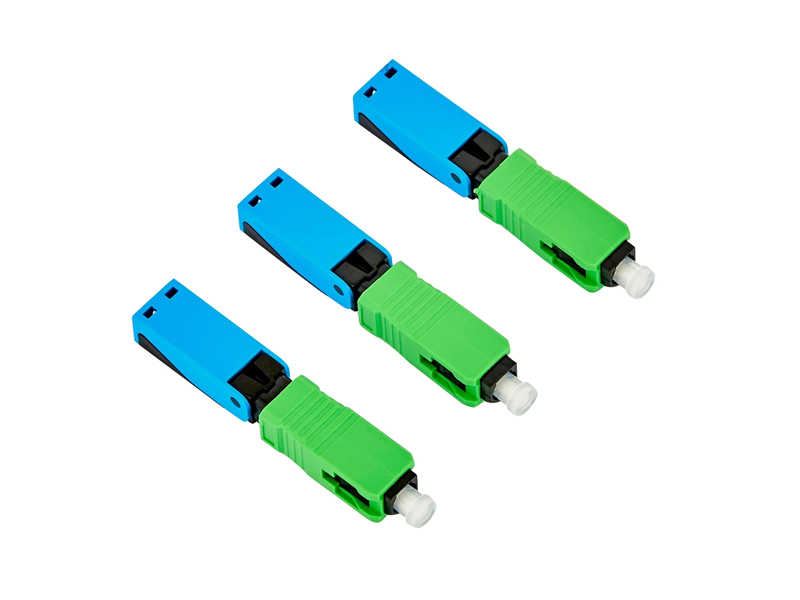

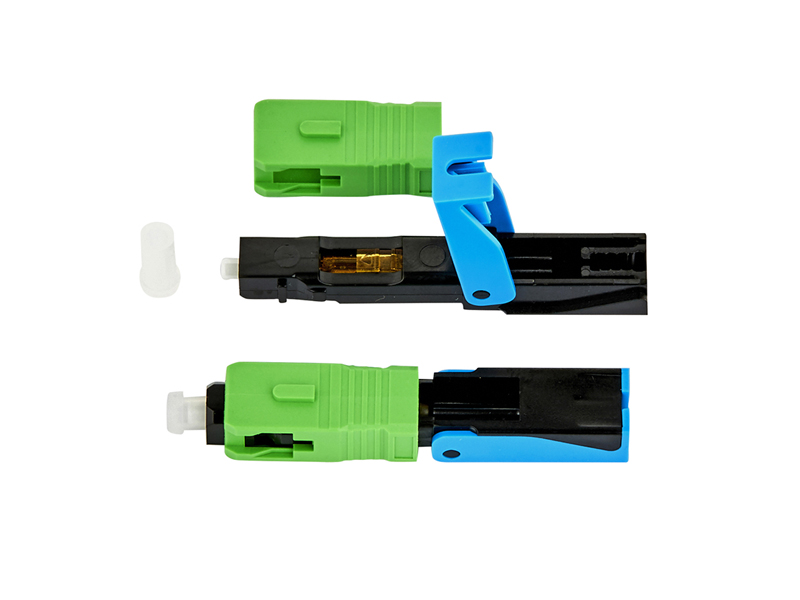

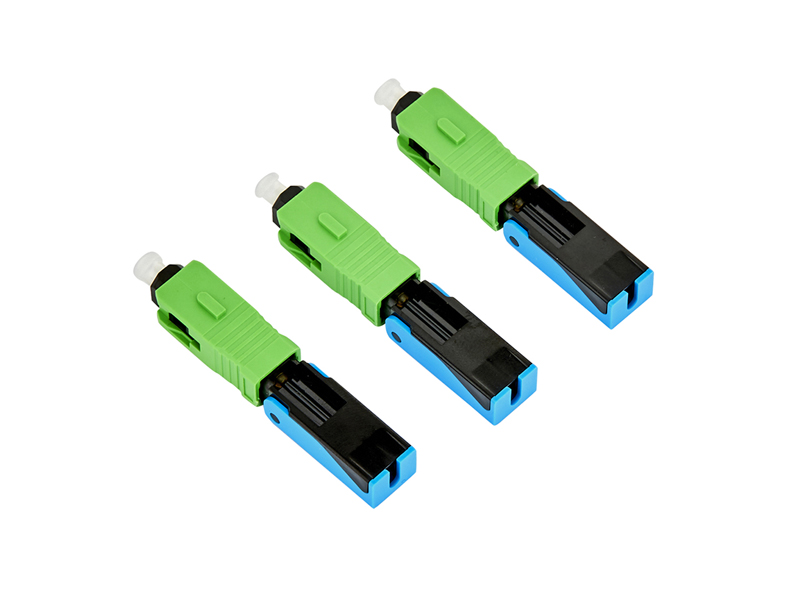

This AT-H07 SC APC fiber optic fast connector is designed for quick and reliable field termination in FTTH fiber optic networks. It enables tool-free installation in less than one minute, significantly reducing deployment time and labor costs. Compatible with 125μm–900μm single-mode fibers, it delivers low insertion loss (≤0.3dB) and high return loss (≥40dB) for stable optical performance. Built for harsh environments, it operates from -40℃ to 85℃ and withstands temperature cycling, vibration, and water immersion. With excellent reliability, repeatability, and customizable specifications, it is an ideal solution for FTTH, telecom networks, data centers, and fiber optic installations.
| Feature | Description |
|---|---|
| Tool-Free Installation | Field assembly in less than one minute without special tools |
| Low Insertion Loss | Ensures efficient and stable optical signal transmission |
| High Return Loss | Minimizes back reflection for superior network performance |
| High Reliability & Stability | Designed for long-term operation in demanding environments |
| Embedded Structure Supported | Compact design for easy installation and integration |
| Compatible with Single-Mode Fiber | Supports 125μm–900μm optical fibers |
| Customizable Specifications | Customized configurations available upon request |
| Parameter | Specification / Requirement | Remarks |
|---|---|---|
| Connector Type | SC / APC | FTTH Fast Connector |
| Fiber Type | Single-Mode | Suitable for FTTH applications |
| Fiber Diameter Range | 125μm ~ 900μm | Compatible with standard optical fibers |
| Installation Time | Less than 1 Minute | Tool-free field installation |
| Insertion Loss (IL) | ≤ 0.3 dB (Typical) ≤ 0.5 dB (Maximum) |
Values above the limit are considered failures |
| Return Loss (RL) | ≥ 40 dB | High optical return performance |
| Tensile Strength | > 20 N | Ensures mechanical durability |
| Repeatability | IL change ≤ 0.3 dB | Stable after repeated connections |
| Test Item | Condition / Requirement | Performance Criterion |
|---|---|---|
| Operating Temperature Range | -40℃ ~ +85℃ | Reliable operation under extreme temperatures |
| Temperature Cycling | Standard thermal cycling test | IL change ≤ 0.3 dB |
| Vibration Test | Standard vibration condition | IL change ≤ 0.3 dB |
| Water Immersion / Flooding Test | Simulated humid or submerged environment | IL change ≤ 0.3 dB |
