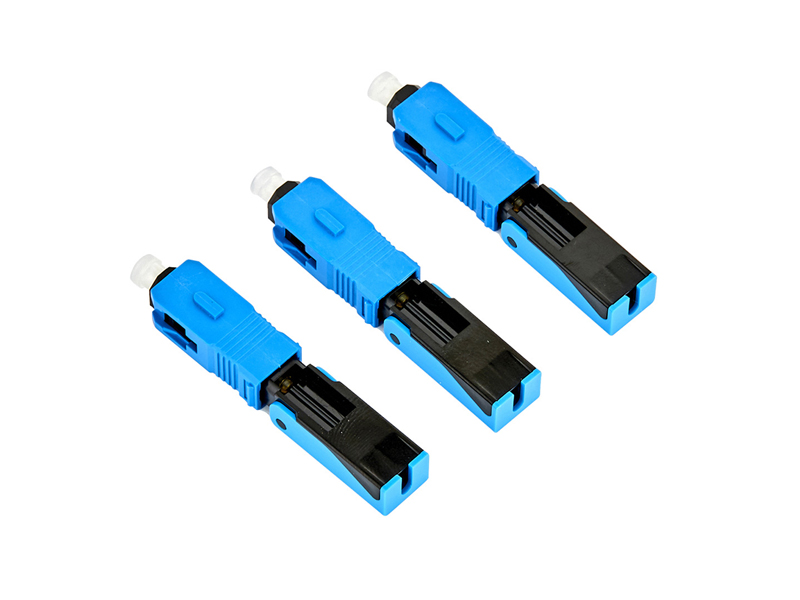

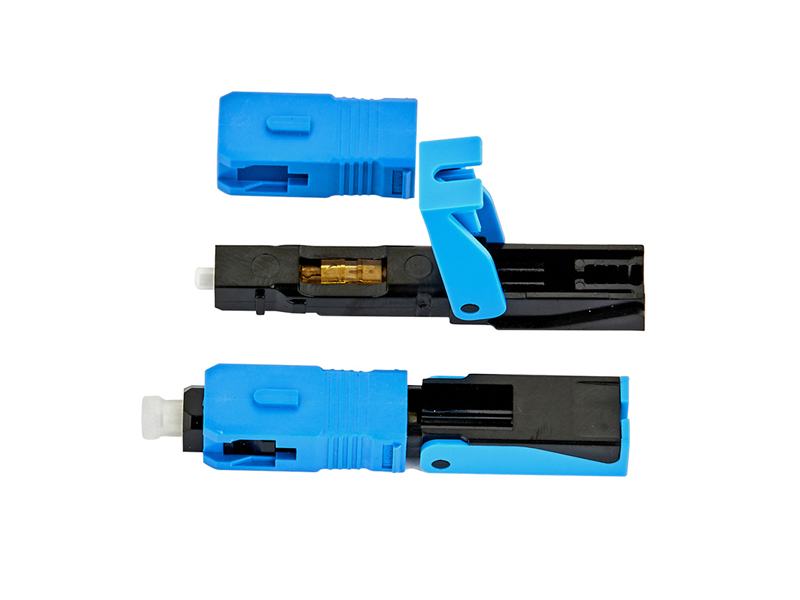

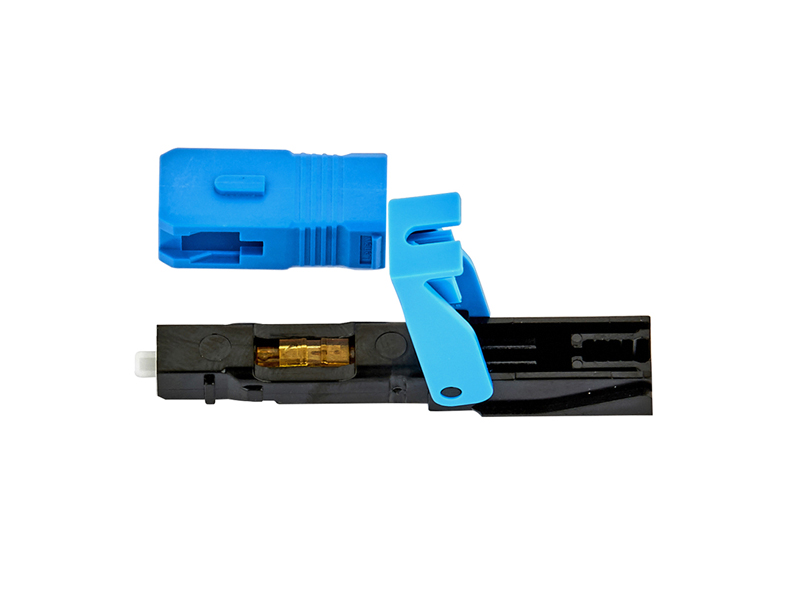

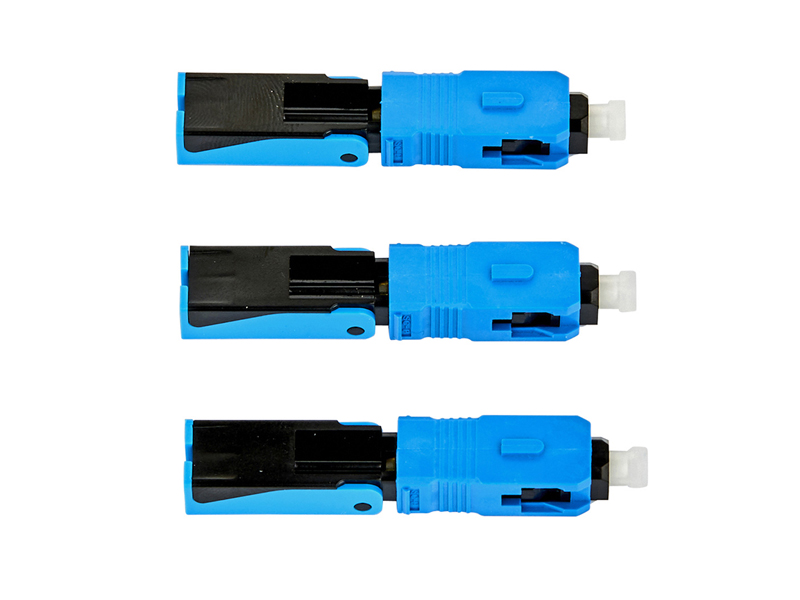

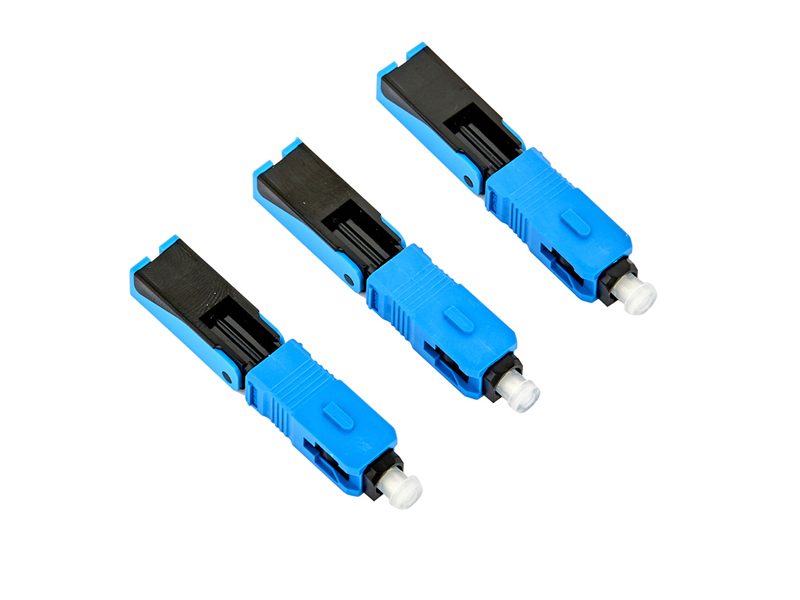

This AT-H07 SC UPC fiber optic fast connector is designed for fast field termination in FTTH fiber optic communication projects. Featuring a pre-polished ferrule, it requires no epoxy or polishing, allowing fiber connections to be completed within minutes while reducing installation time and costs. Compatible with 125μm–900μm single-mode fibers, it offers low insertion loss (≤0.3dB), high return loss (≥40dB), and excellent optical performance. Built for long-term reliability, it operates from -40℃ to 85℃ and withstands temperature cycling, vibration, and water immersion. It is an ideal solution for FTTH installations, telecom networks, fiber optic maintenance, and data center applications.
| Feature | Description |
|---|---|
| Pre-Polished Ferrule | No epoxy or polishing required for fast field termination |
| Fast Installation | Fiber termination completed within minutes, reducing installation time |
| Low Insertion Loss | Provides efficient and stable optical signal transmission |
| High Return Loss | Minimizes back reflection for improved network performance |
| High Reliability & Stability | Designed for long-term use in harsh environments |
| Embedded Structure Supported | Easy integration into various fiber optic systems |
| Customizable Specifications | Available according to customer requirements |
| Parameter | Specification / Requirement | Remarks |
|---|---|---|
| Connector Type | SC / UPC | FTTH Fast Connector |
| Fiber Type | Single-Mode | Suitable for FTTH applications |
| Fiber Diameter Range | 125μm ~ 900μm | Compatible with standard optical fibers |
| Installation Method | Pre-Polished Field Assembly | No epoxy or polishing required |
| Insertion Loss (IL) | ≤ 0.3 dB (Typical) ≤ 0.5 dB (Maximum) |
Values above the limit are considered failures |
| Return Loss (RL) | ≥ 40 dB | Excellent optical performance |
| Tensile Strength | > 20 N | Reliable mechanical durability |
| Repeatability | IL change ≤ 0.3 dB | Stable after repeated connections |
| Test Item | Condition / Requirement | Performance Criterion |
|---|---|---|
| Operating Temperature Range | -40℃ ~ +85℃ | Reliable operation under extreme temperatures |
| Temperature Cycling | Standard thermal cycling test | IL change ≤ 0.3 dB |
| Vibration Test | Standard vibration condition | IL change ≤ 0.3 dB |
| Water Immersion / Flooding Test | Simulated humid or submerged environment | IL change ≤ 0.3 dB |
